>>Your Current Position: Intel Motherboard

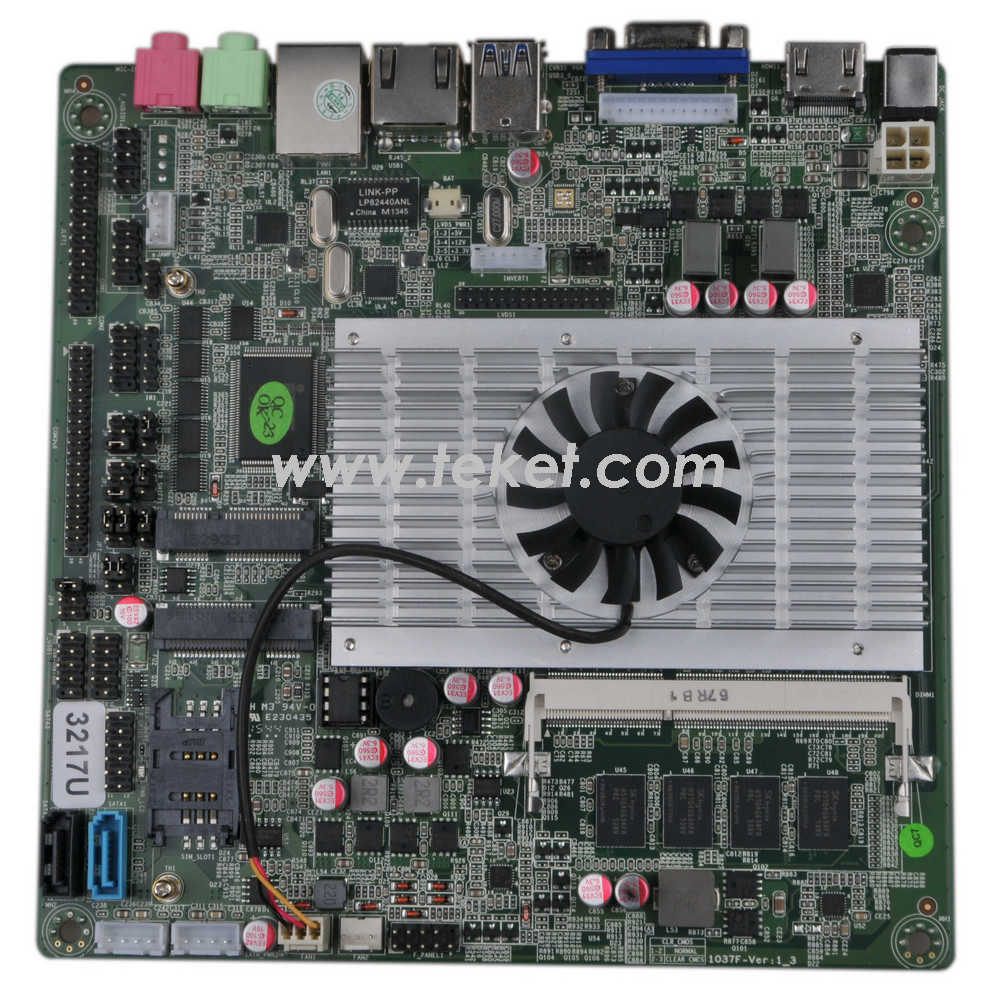

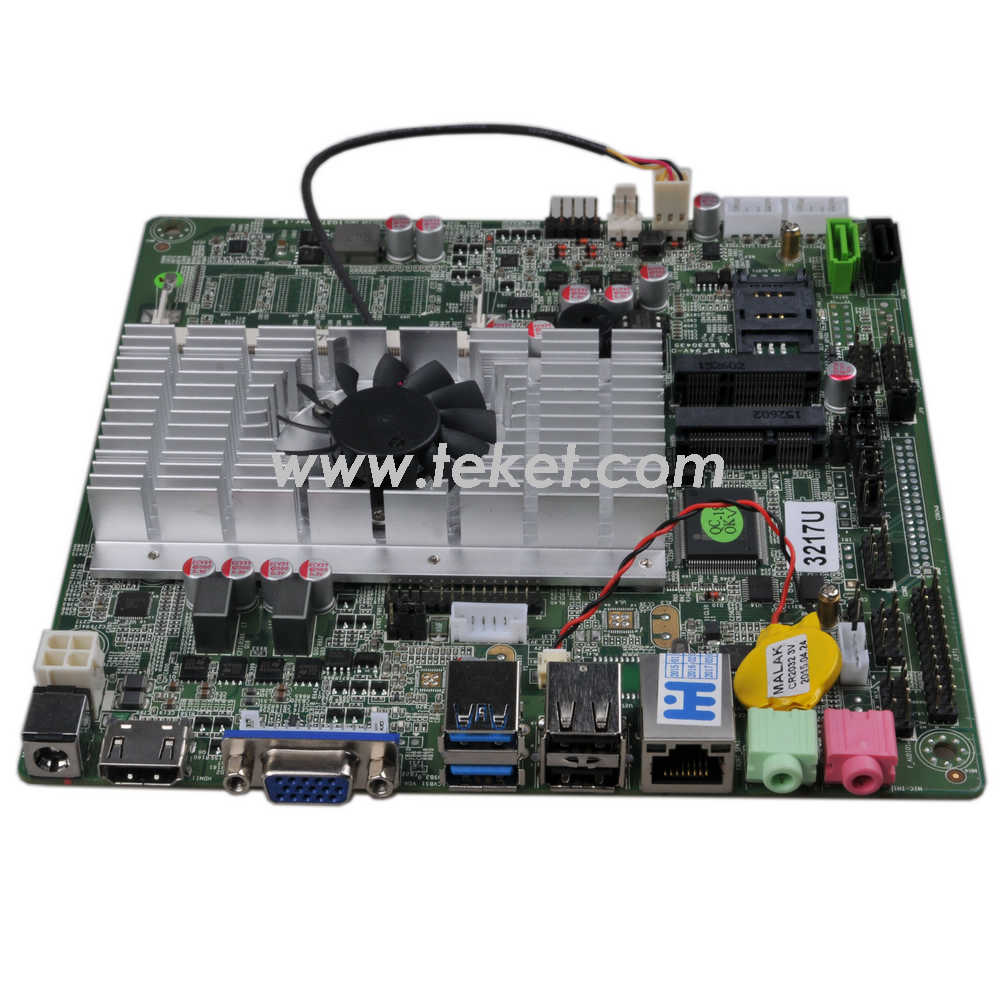

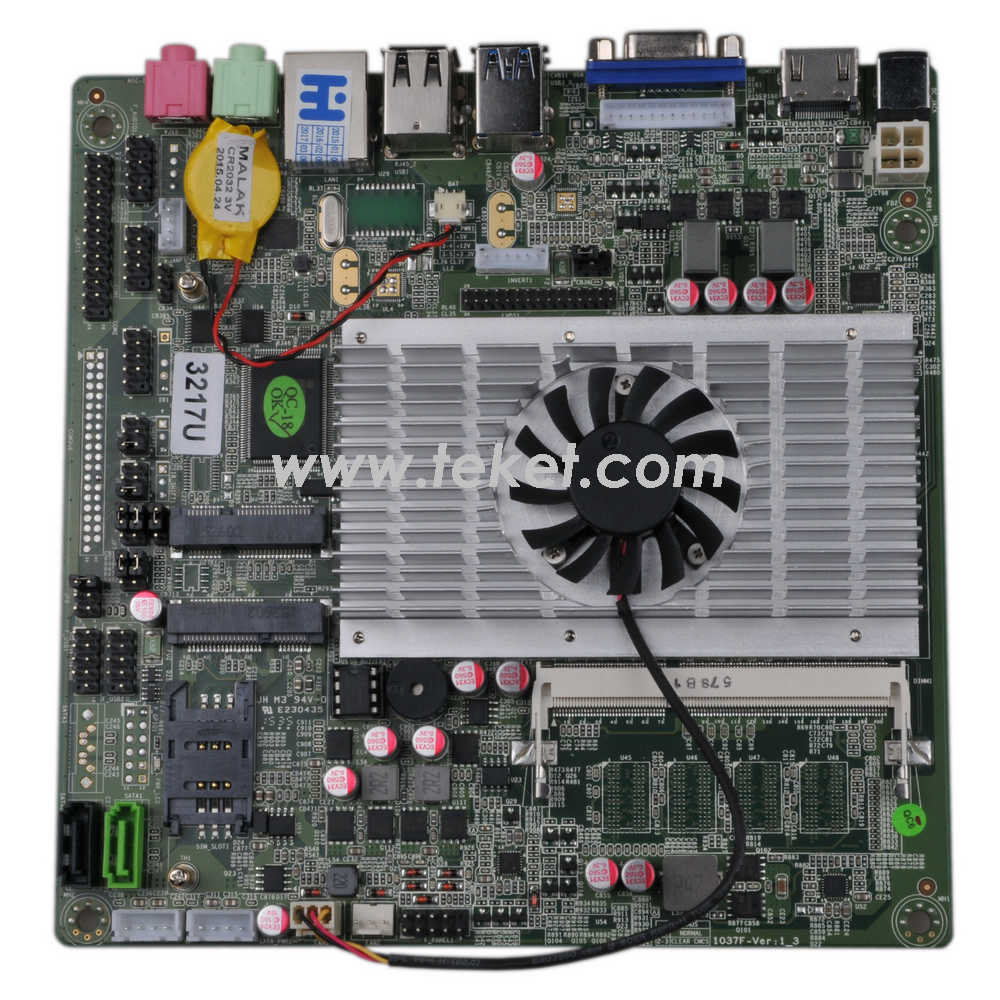

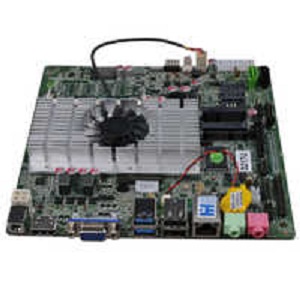

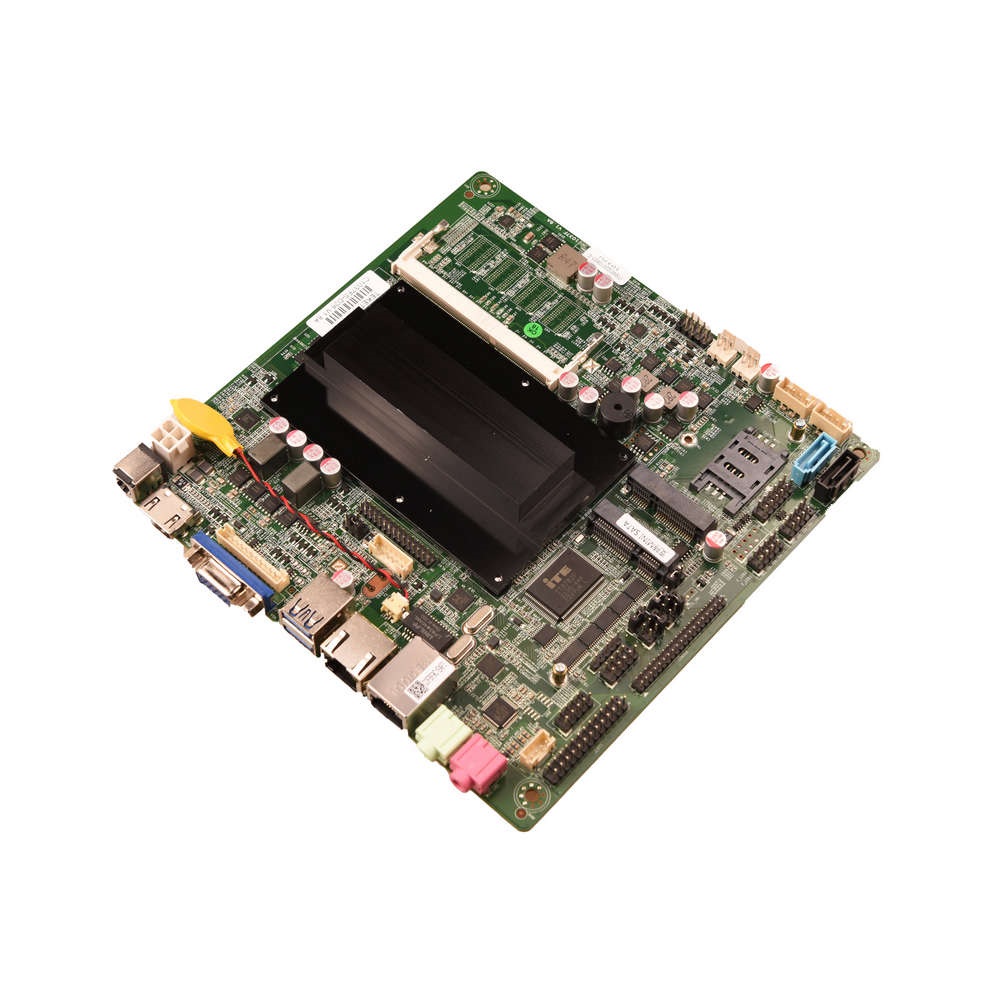

Intel Celeron 1037/I3 3217U Mini-ITX Motherboard C1037FS/I33217U Al-In-One SLIM 12VDC


Intel Celeron 1037 1.8GHZ,NM70,HD Graphics,2*MINI PCIe,1/2*LAN,2/6*COM,LVDS,HDI+VGA,SLIM,fanless option

Intel Celeron 1037 1.8Ghz dual core cpu, NM70 chipset
1*SO DIMM DDR3, support 1066/1333 up to 8GB
2*MINI-PCIe, support SSD/WIFI/3G
2*RS232 serial ports
1*RTL8111E, network wake up
Realtek ALC662 6 channels audio
Display Intel HD Graphics
1*VGA, 2*HDI, 1*LVDS
Support HDI1/VGA Synchronous/Asynchronous
Support LVDS/VGA Synchronous/Asynchronous
Support LVDS/HDI1 Synchronous/Asynchronous
Support HDI1/HDI2 Synchronous/Asynchronous
1*MINI PCIe support WIFI/3G
1*MINI PCIe support SSD/WIFI SSD
Realtek ALC662 6CH support MIC Line-out
3* SATAII,300MB/s
1* RTL8111E 10000M

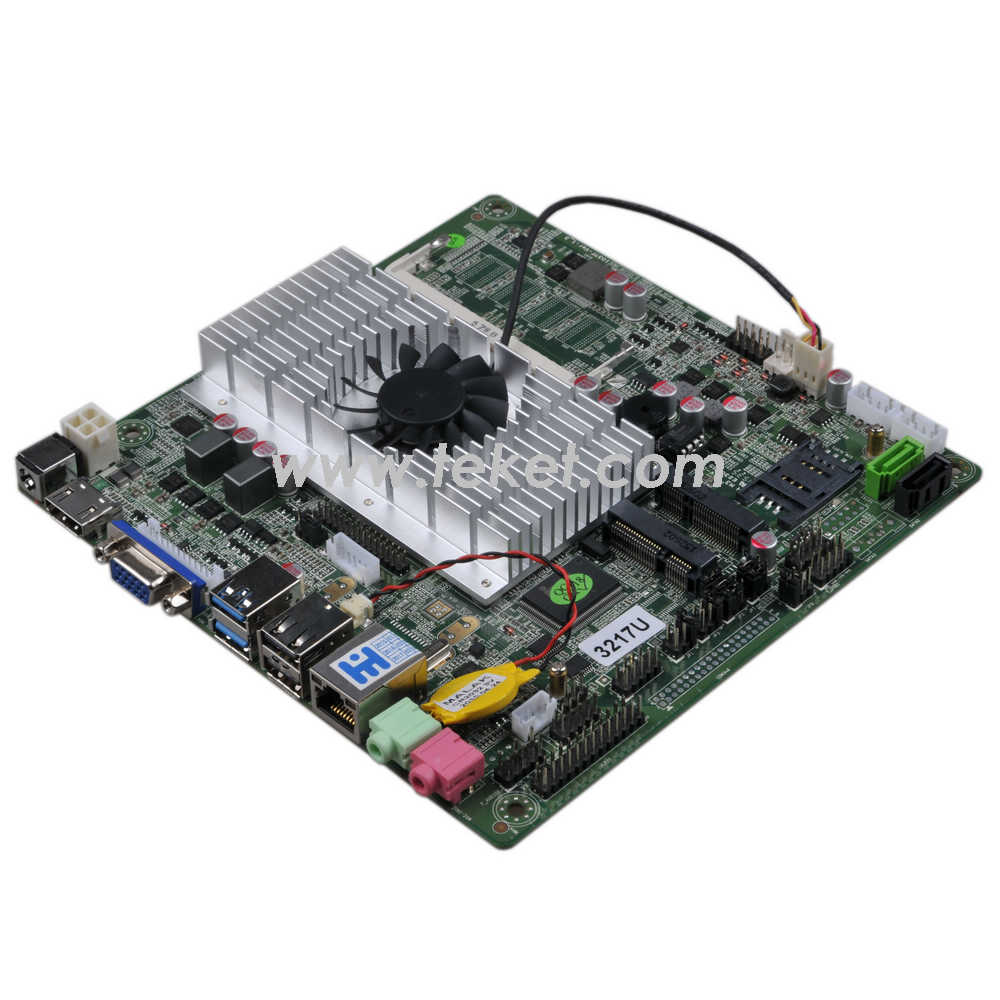

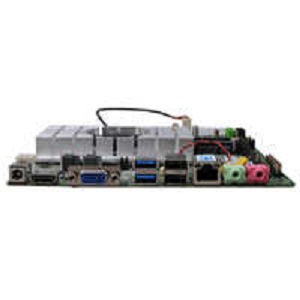

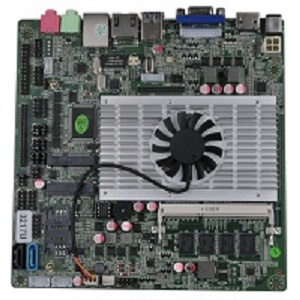

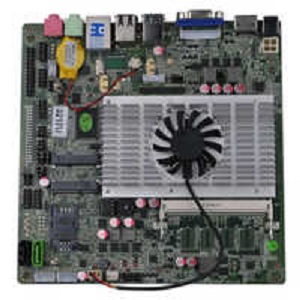

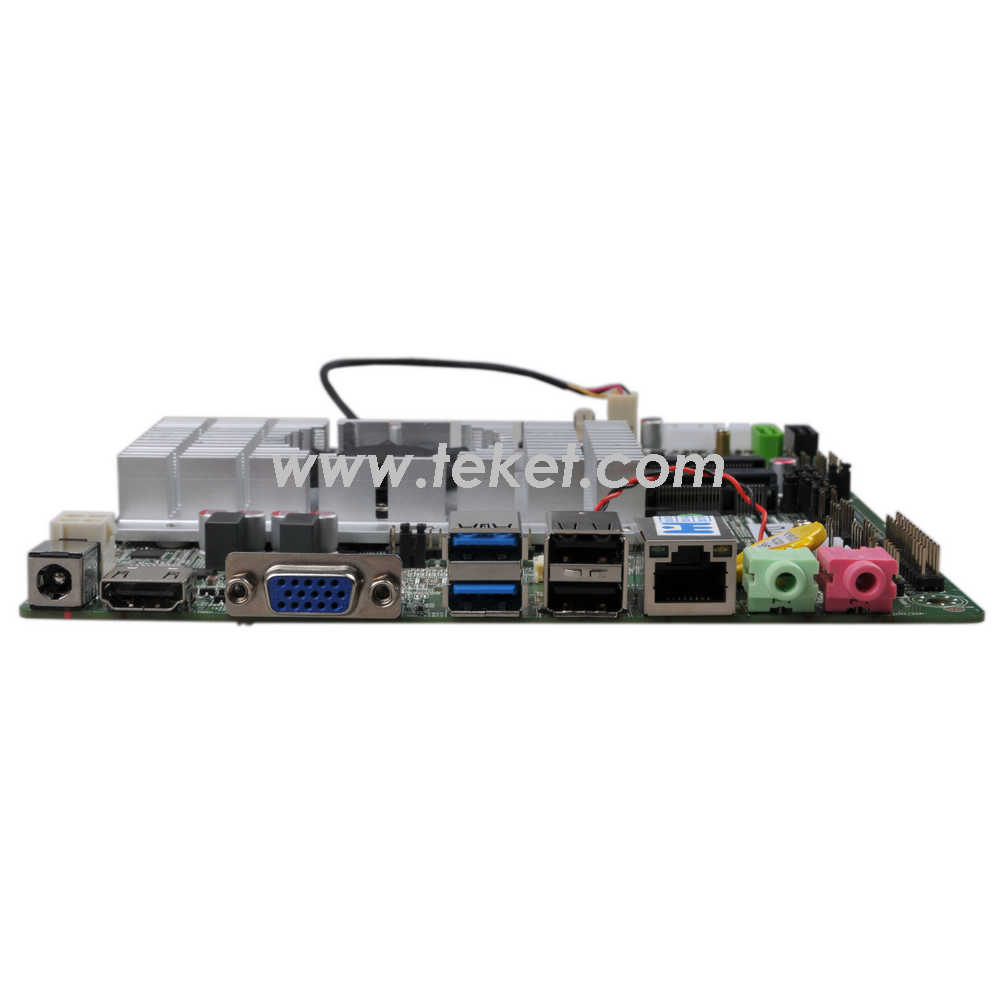

Intel® i3 3217U Dual core 22nm Processor (1.8GHZ)
Intel® NM70 Chipset
Intel® HD Graphics Offers VGA、HDI、LVDS
1* SO DDRIII 1333/1066MHz, Max. Up to 16GB
1* Mini-PCIE (support WIFI/3G)
RS232, the 9 pin supports +5V/+12V charged function
1*RTL8111E 10/100/1000Mbps Ethernet
Integrated Realtek HD ALC662 for 6-Channel output

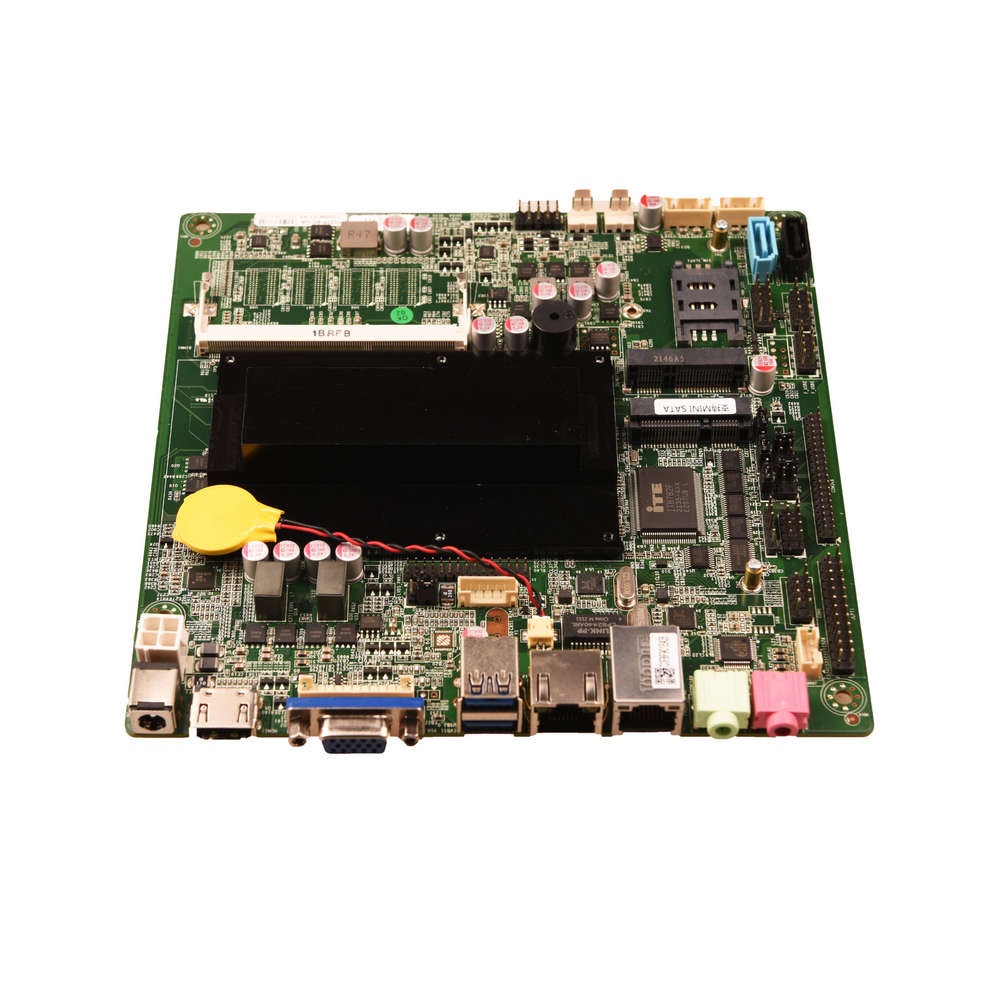

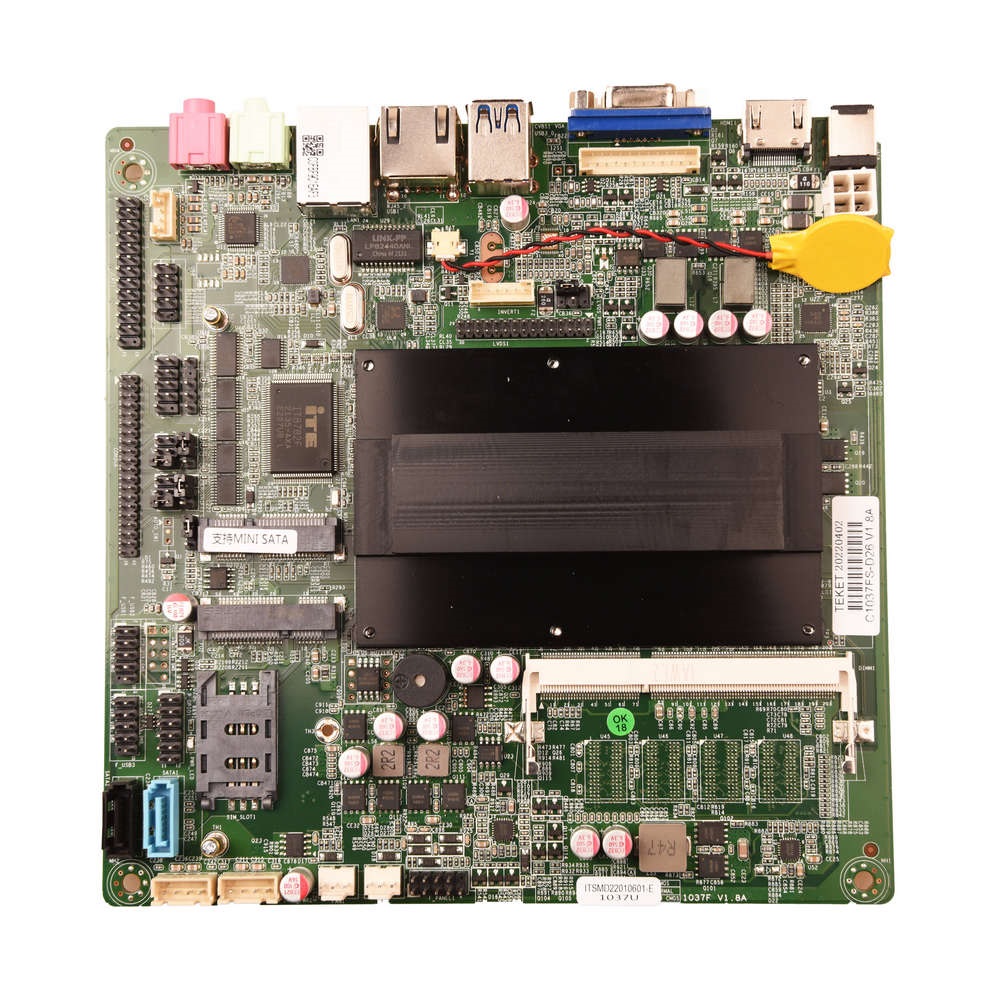

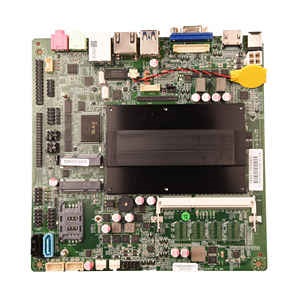

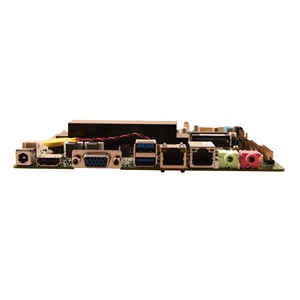

C1037FS spec:

Intel Celeron 1037 1.8Ghz dual core cpu, NM70 chipset
1*SO DIMM DDR3, support 1066/1333 up to 8+2GB, (bulit-in 2GB onboard option for bulk order)

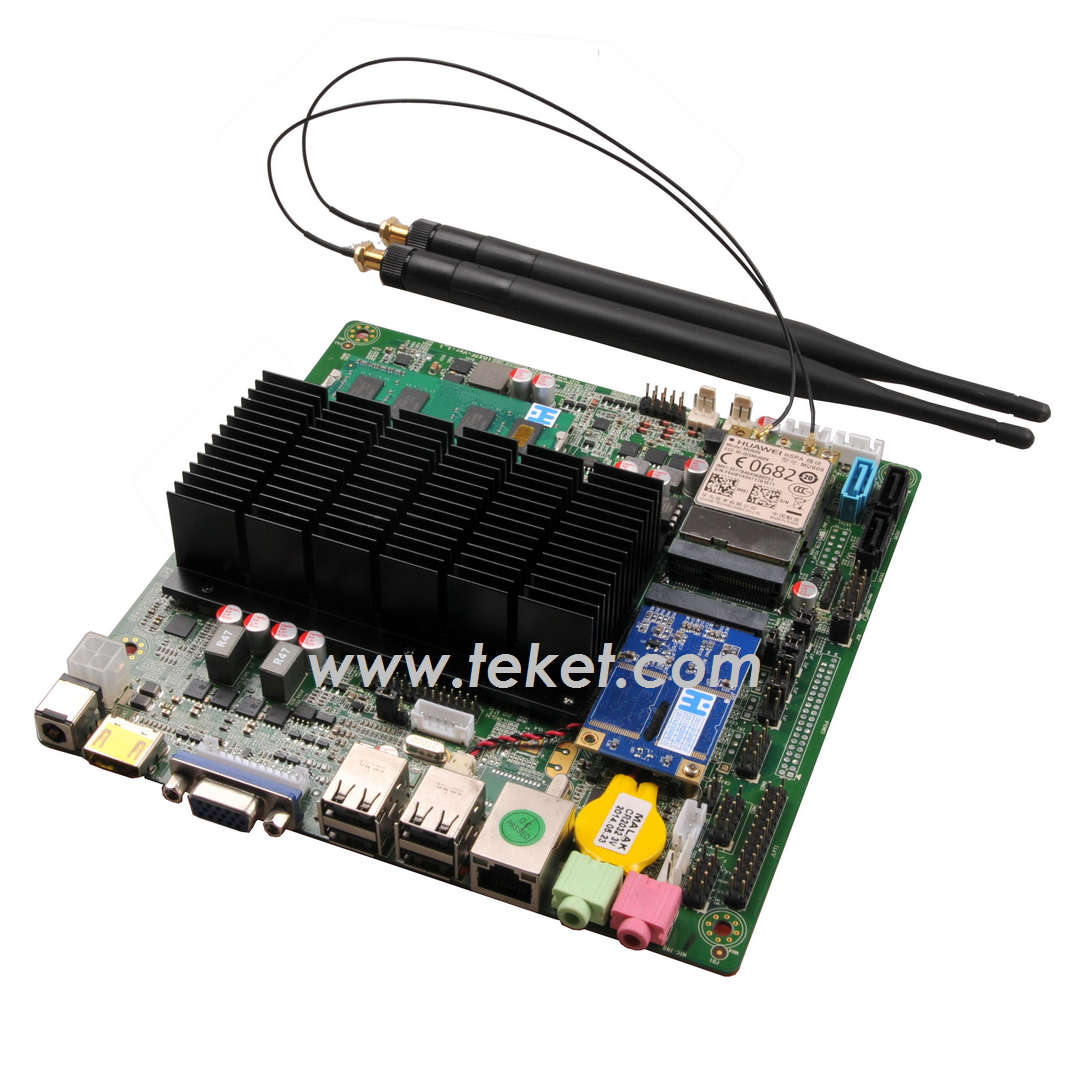

2*MINI-PCIe, support SSD/WIFI/3G, one for msata, other for wifi as default config
2*RS232 serial ports, other 4*RS232 serial ports option(COM3-COM6), all onboard header
1/2*RTL8111E, network wake up
Realtek ALC662 6 channels audio
The onboard 5W power amplifier, Spdif optical fiber output

Display Intel HD Graphics
1*VGA, 2*HDI, 1*LVDS
Support HDI1/VGA Synchronous/Asynchronous
Support LVDS/VGA Synchronous/Asynchronous
Support LVDS/HDI1 Synchronous/Asynchronous
Support HDI1/HDI2 Synchronous/Asynchronous
1*MINI PCIe support WIFI/3G
1*MINI PCIe support SSD/WIFI SSD
Realtek ALC662 6CH support MIC Line-out
2*SATAII
1*SATAIII(blue color)
1*3G slot
1*12VDC power supply
1*fan or fanless config

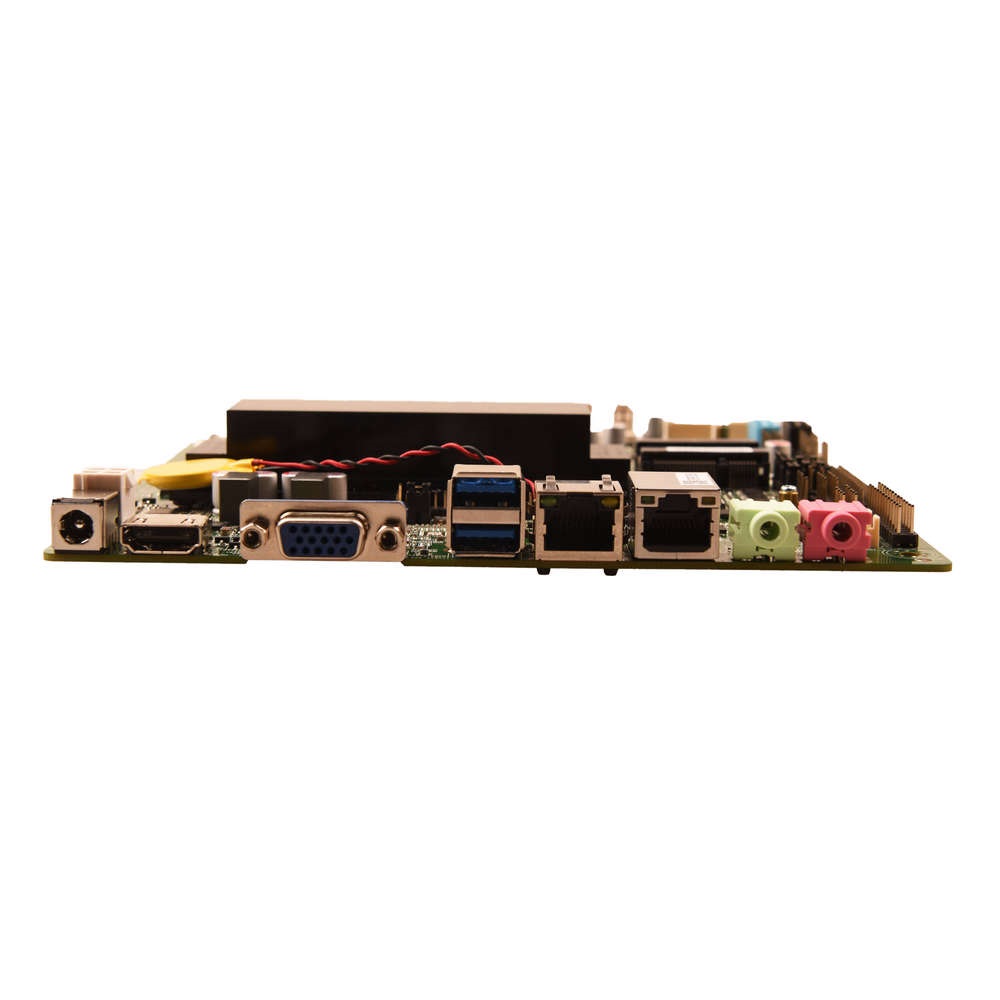

(LEFT 2*LAN+6*COM, RIGHT 1*LAN+2*COM)

model: C1037FS


model: I33217FS


2G RAM onboard


Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Order Information
C1037FS-D12: 1037U dual core 1.8G/1*HDI/1*24bit LVDS/1*VGA/3*SATA /2*COM/1*LAN/1*MSATA/1*MINIPCIE
C1037FS-D26: 1037U dual core 1.8G/1*HDI/1*24bit LVDS/1*VGA/3*SATA /6*COM/2*LAN/1*MSATA/1*MINIPCIE
I33217FS-D12
I33217FS-D26
I53317FS-D12:
I53317FS-D26:


Model Name Definition: A is for atx power supply, D is for DC12V, Digital string 12 is 1*LAN port and 2*COM ports, Digital string 26 is 2*LAN port and 6*COM ports.



Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
