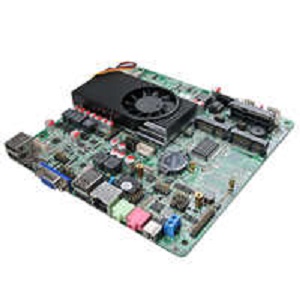

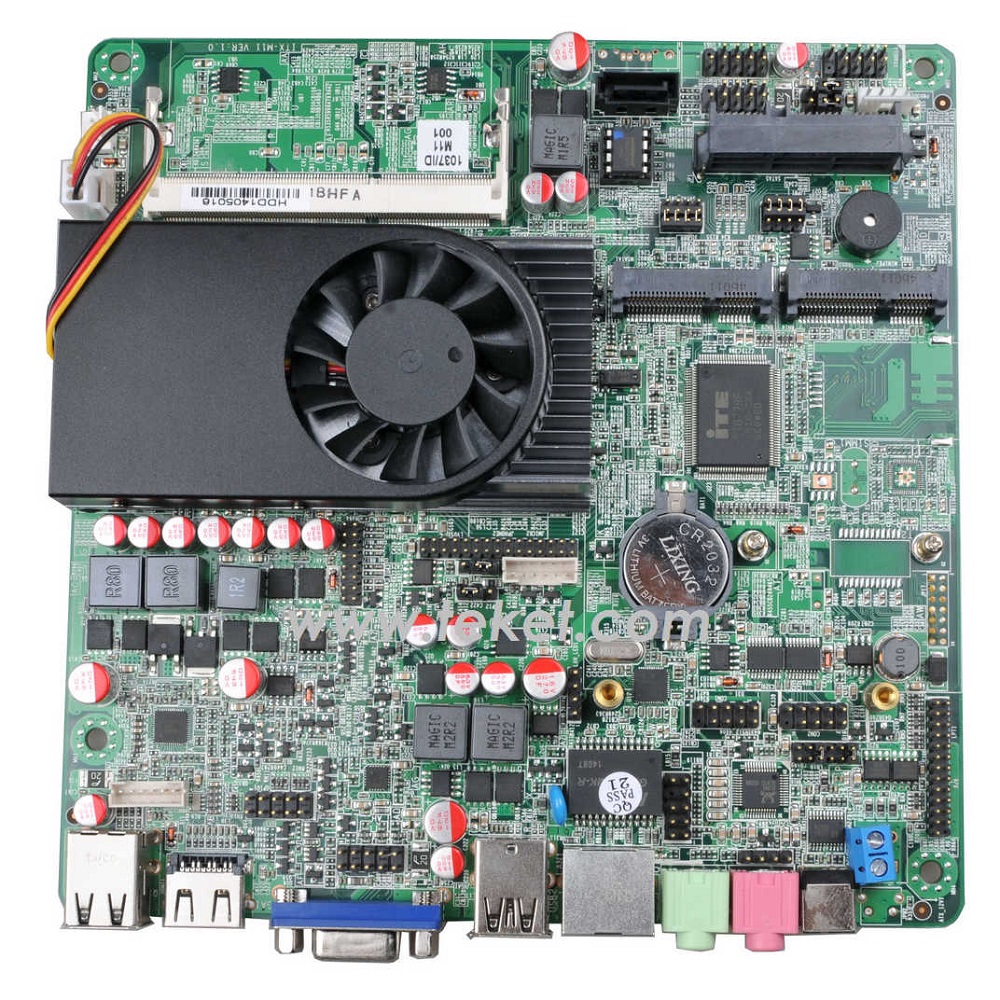

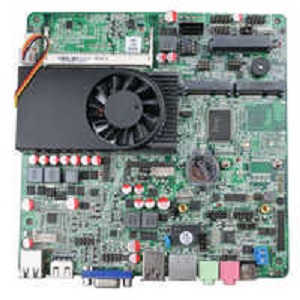

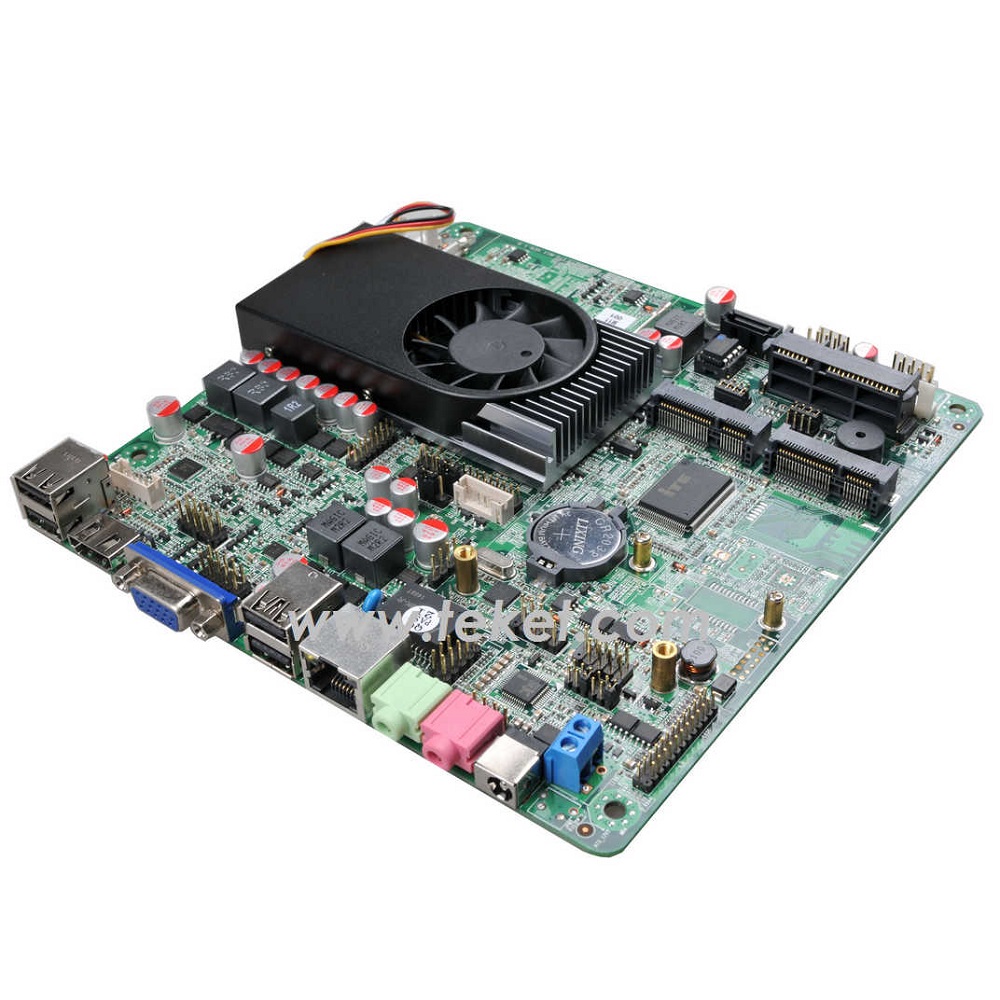

Intel Celeron 1037 1.8Ghz Mini-ITX Motherboard C1037HM Al-In-One SLIM 12VDC

Intel Celeron 1037 1.8GHZ,HM65,HD Graphics,2*MINI PCIe,1*LAN,6*COM,LVDS,HDMI+VGA,SLIM,2.5"SATA HDD/SSD onboard

C1037HM spec:

CPU Intel?1037U Dual core 22nm Processor (1.8GHZ) TDP 17W
Chipset Intel? HM65 Chipset
Memory 1* SO DDRIII 1333/1066MHz, Max. Up to 8GB
Graphics Intel? HD Graphics
Offers 1*VGA、2*HDMI、1*LVDS(support Dual 24bit)
support HDMI1/VGA synchronous/asynchronous display
support LVDS/VGA synchronous/asynchronous display
support LVDS/HDMI1 synchronous/asynchronous display
support HDMI1/HDMI2 synchronous/asynchronous display
Expansion Slots 1* Mini-PCIE, support WIFI/3G (Default WIFI)
1* MSATAⅢ, support SSD/USB WIFI(Default USB WIFI)
LAN 1* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function
(It may also support a built-pin card,To be customized)
Storage 2* SATAⅢ (SATA1 and MSATA with a second election, Default SATA1)
1* SATAⅢ 2.5-inch laptop hard place(cannot be used with SATA2 at the same time, support laptop HDD)
Audio Integrated Realtek HD ALC662 for 6-Channel output
support MIC/Line-out/Line-in



CPU Intel?1037U Dual core 22nm Processor (1.8GHZ) TDP 17W
Chipset Intel? HM65 Chipset
Memory 1* SO DDRIII 1333/1066MHz, Max. Up to 8GB
Graphics Intel? HD Graphics
Offers 1*VGA、2*HDMI、1*LVDS(support Dual 24bit)
support HDMI1/VGA synchronous/asynchronous display
support LVDS/VGA synchronous/asynchronous display
support LVDS/HDMI1 synchronous/asynchronous display
support HDMI1/HDMI2 synchronous/asynchronous display
Expansion Slots 1* Mini-PCIE, support WIFI/3G (Default WIFI)
1* MSATAⅢ, support SSD/USB WIFI(Default USB WIFI)
LAN 1* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function
(It may also support a built-pin card,To be customized)
Storage 2* SATAⅢ (SATA1 and MSATA with a second election, Default SATA1)
1* SATAⅢ 2.5-inch laptop hard place(cannot be used with SATA2 at the same time, support laptop HDD)
Audio Integrated Realtek HD ALC662 for 6-Channel output
support MIC/Line-out/Line-in

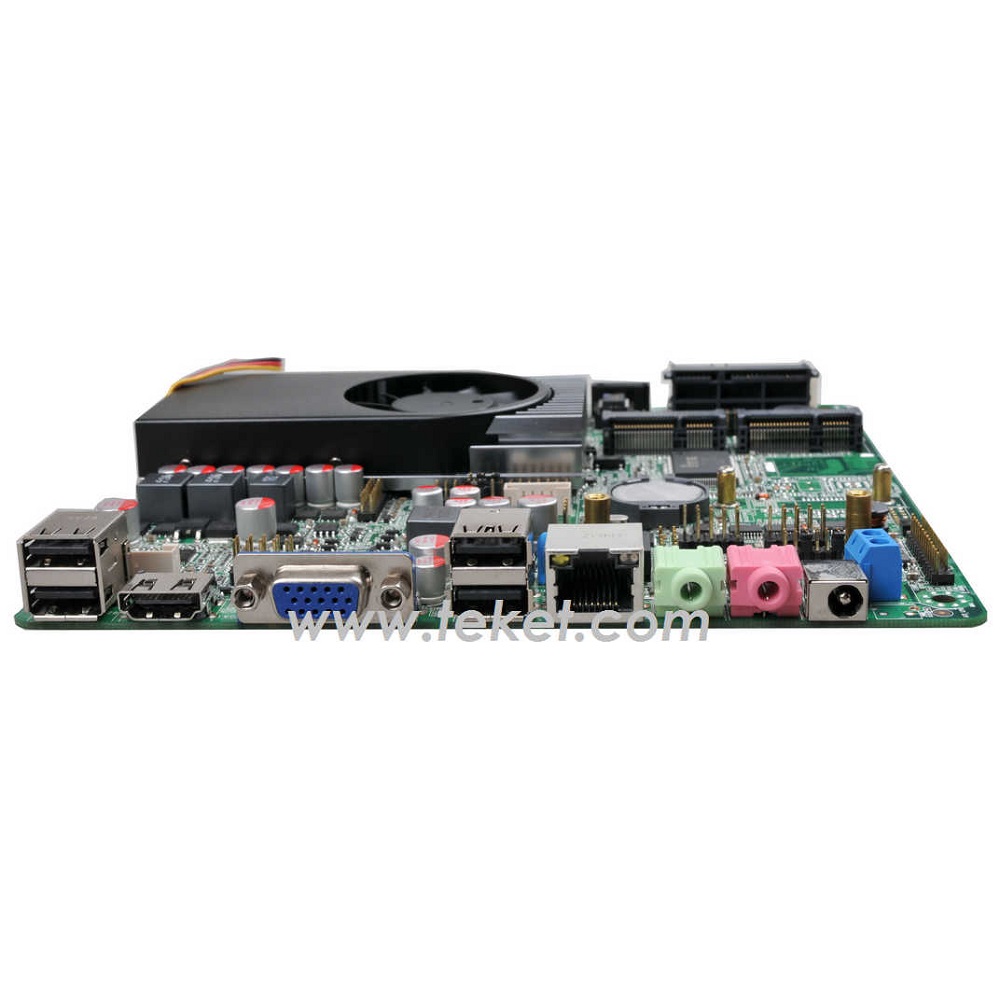

Rear I/O 4* USB 2.0
1* HDMI
1* VGA
1* RJ-45 LAN
1* Line out(green)
1* Mic (red)
1* 12V DC_JACK input
1* Power or Reset switch(Optional)
Internal I/O 1* LVDS 2*15pin,support dual 24bit LCD
1* JHDMI 2*8Pin
1* JVGA1 2*5pin
2* RS232, the 9th pin supports +5V/+12V charged function
1* LPT
4* USB 2.0(If the Mini-PCIE is a USB signal, supports 2 USB)
1* PS/2 6Pin
1* FP1 (2*5pin Front panel buttons and LED connected)
1* AUDIO pin (Front Audio interface 2*5pin)
1* Amplifier Interface 4pin
1* SIM
1* PWROUT (Hard drive power connector)
1* ATX_12V (Can be used as input and output 12V power connector)
1* LVDS INVERTER
Fun interface 1* CPUFAN 4pin 1* SYSFAN 3pin
GPIO 1* GPIO (Support 4-way GPIO function)
BIOS AMI 32MB Flash ROM
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power Input DC_12VSingle power supply
Operating Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 0%-95%(relative humidity; non-condensing)
Dimension 170mm x 170mm

Order Information
C1037HM: 1037U/1.8Ghz,1*LAN(8111E),ALC662,Dual24bitLVDS,noExtended VGA,8*USB,2*COM,COM2/3 support RS485/RS422,DC12


Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.


Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
