>>Your Current Position: Intel Motherboard

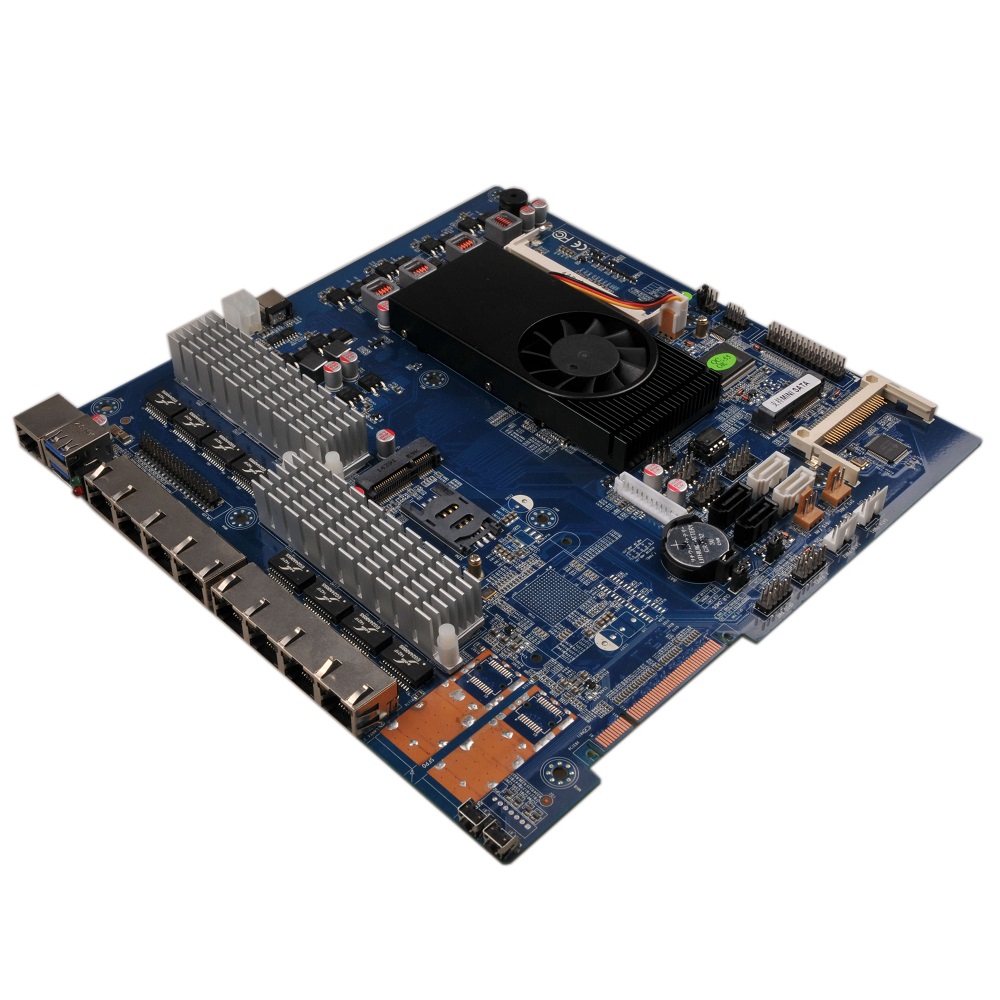

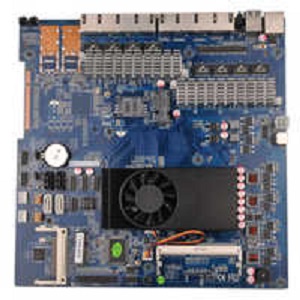

Intel Celeron C1037U Motherboard with 8 Lan Ports

Nodel: C1037LE (old model: C1037MF8)

Intel Ivy Bridge Celeron dual core 1037U 22nm Processor (1.8GHZ)
Intel® HM77 Chipset
Integrated Intel® HD Graphics
Display output bulit-in VGA
1* SO DDR3 1333/1066MHz up to 8gb
1* PCI-E 8X, can be extended Optical interface module
1* Mini-PCIE (support WIFI/3G)
8* Intel® 82583V 10/100/1000Mbps Ethernet

Model NO. C1037LE VER:1.1
CPU Intel® Celeron dual core 1037U 22nm processor 1.8GHz TDP 17W
Chipset Intel® HM77 Chipset
Memory 1* SO DDRⅢ 1333/1066MHz, Max. up to 8GB
Graphics Intel® HD Graphics, support VGA display output
ExpansionSlots 1* PCI-E 8X, can be extended Optical interface module/Electrical interface module
LAN 8* Intel® 82583V 10/100/1000Mbps Ethernet
Support Wake-on-LAN and PXE function,support 2 groups of BYPASS function.
Storage
2* SATA2 3Gbps
2* SATA3 6Gbps
1* PCIE 8x
2* MINI-PICE (for mSATA/WIFI), mSATAIII 6Gbps
1* SIM

1* CF card(cannot be used with SSD at the same time)

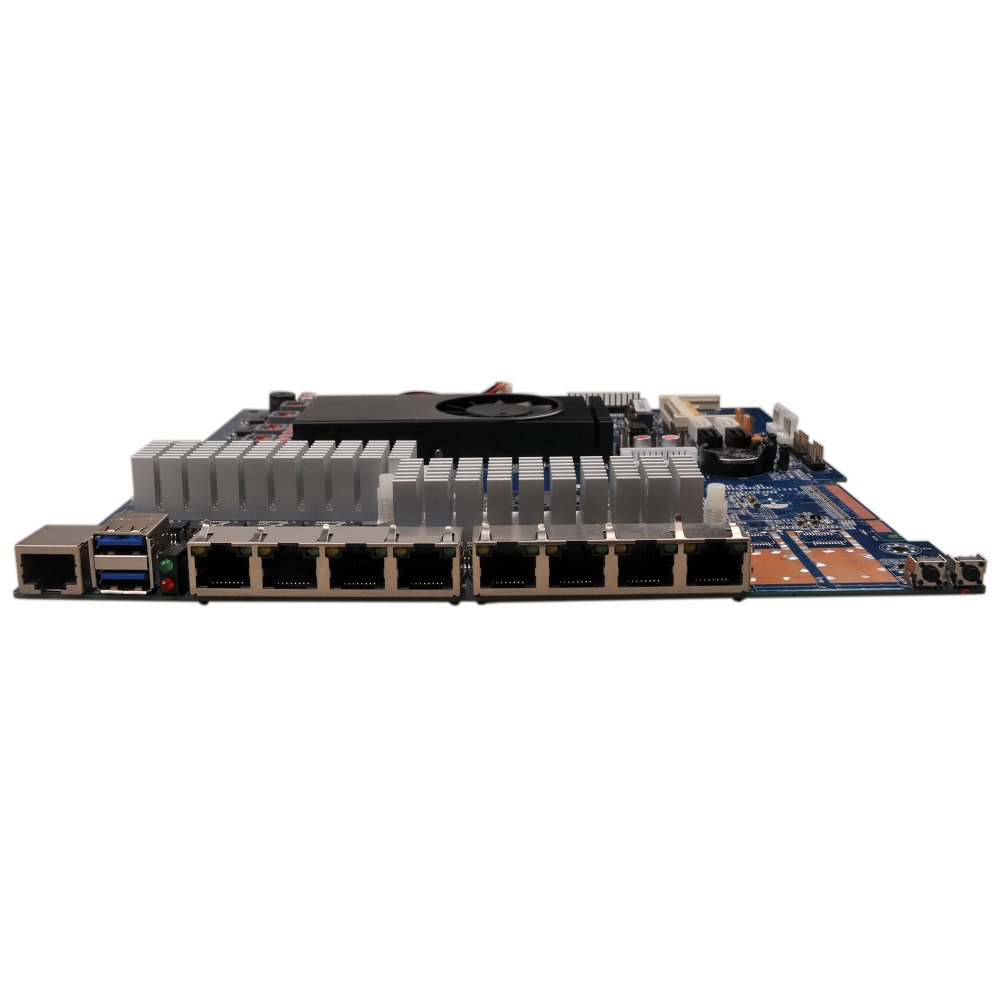

Rear I/O
2* USB 3.0
8* RJ-45 LAN

1* RJ-45 to COM
1* PWR BUTTON
1* RESET BUTTON
1* LED(HDD Power)
2* GIGABIT FIBER(option)

Internal I/O
1*4PIN ATCX
3*USB 2.0(extend to 6*USB)
1*GPIO (2 way GPIO)
1*F-PANEL
1*12pin VGA
1*PS/2
1*8LAN LED
2*SATA-PWR
2*SYS-FAN

1*CPU_FAN

BIOS: AMI 32M BIOS
Power: DC-IN, internal 4pin DC
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power Input DC_12V Single power supply
OperatingTemp. -15℃~60℃
Humidity 0%-95%(relative humidity; non-condensing)
Dimension 230mm x 230mm
