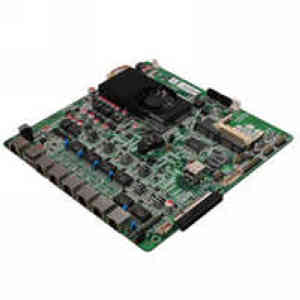

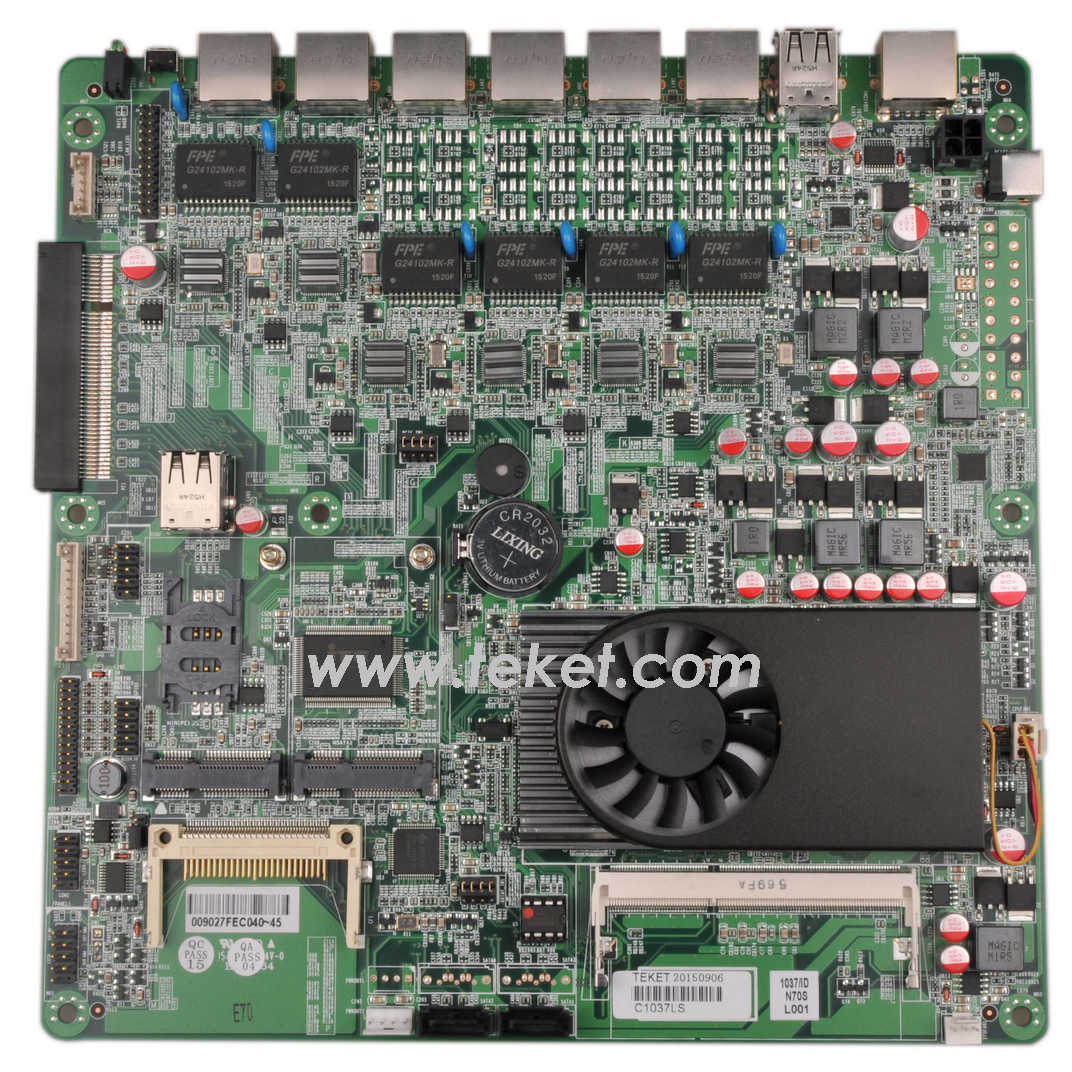

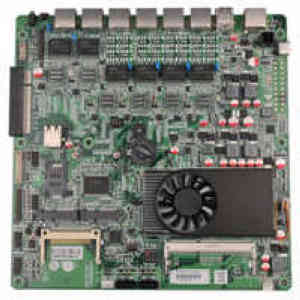

Intel Celreon C1037 Motherboard C1037LS with 6 LAN PORTS and 12V DC IN

6 LAN DC Power
C1037LS VER:1.3
Integrated Intel?1037U/1.80GHz Dual core processor,TDP 17W
Intel? NM70
1*SO DDRIII,Support 1600/1333/1066MHz Memory ,Up to 8GB
Integrated Intel?HD Graphics
Integrated 6* Intel? 82583V orIntel? 82574L Gigabit Ethernet(N70SL_B support BYPASS when used),support wake on LAN/PXE

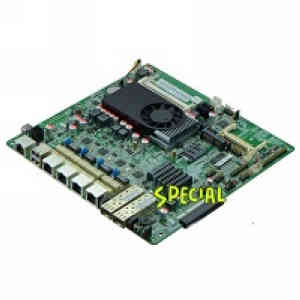

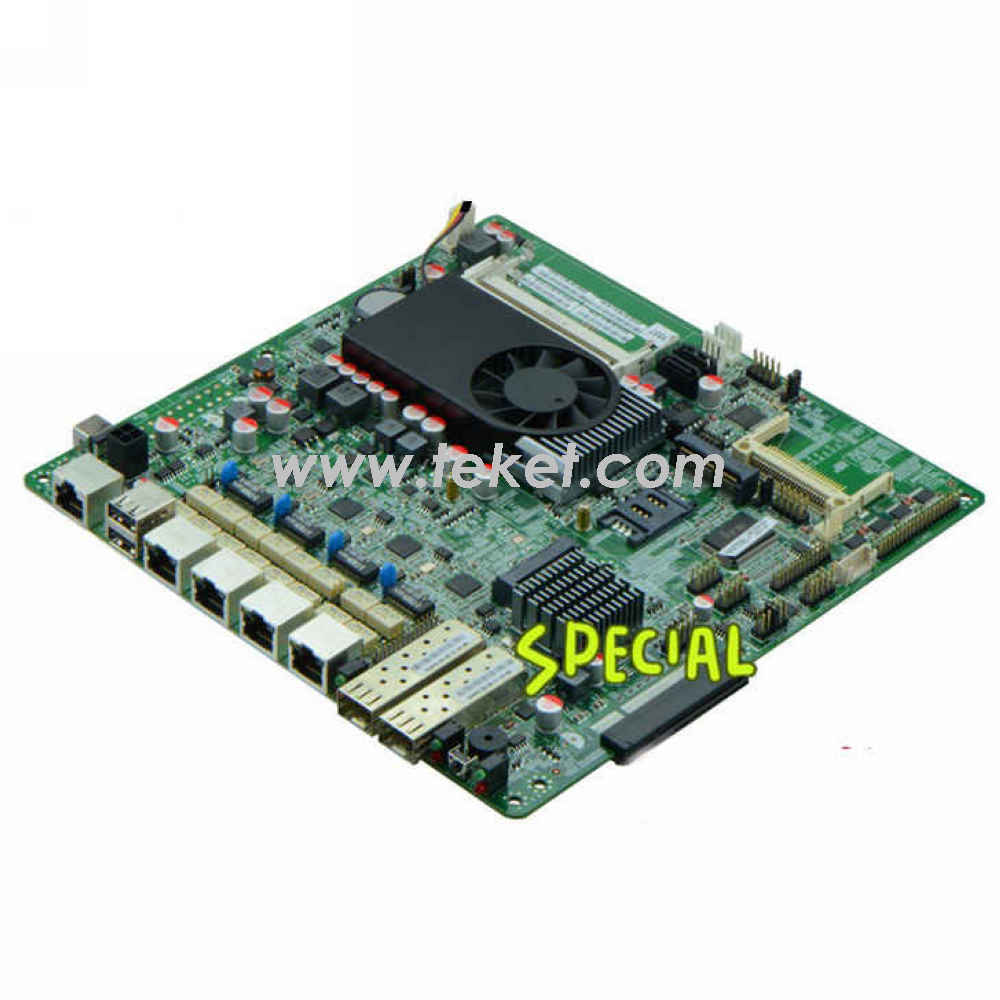

Model: C1037LSO 4*LAN (intel 82574L),2*Fiber (Intel NH82580EB GIGABIT FIBER)

CPU
Integrated Intel?1037U/1.80GHz dual processor,TDP17W
Chipset
Adopt Intel? NM70 Express chipset
Memory
1*SO DDRIII slot,support1600/1333/1066MHz memory,up to 8GB
Graphics
Integrated Intel?HD Graphics
LAN
Integrated 6* Intel? 82583V orIntel? 82574L Gigabit Ethernet(N70SL_B support BYPASS when used),support wake on LAN/PXE
Integrated 2 groups of BYPASS (Management 1,2 and 3,4 net ports,optional
Storage
1*MSATA slot, supportSSD,USB WIFI,the transfer rate up to 6Gbps
2*SATA2.0, the transfer rate up to3Gbps
1*CF card socket(with MSATA two choose one, SATA1_SW1 jumper control interface exchange)
Expansion slots
1*Mini-PCIE slot,support WIFI,3G module(with PCI-E 8x slot two choose one)
1* PCI-E 8x slot, can extend Fiber port /electrical port module andPCIE device

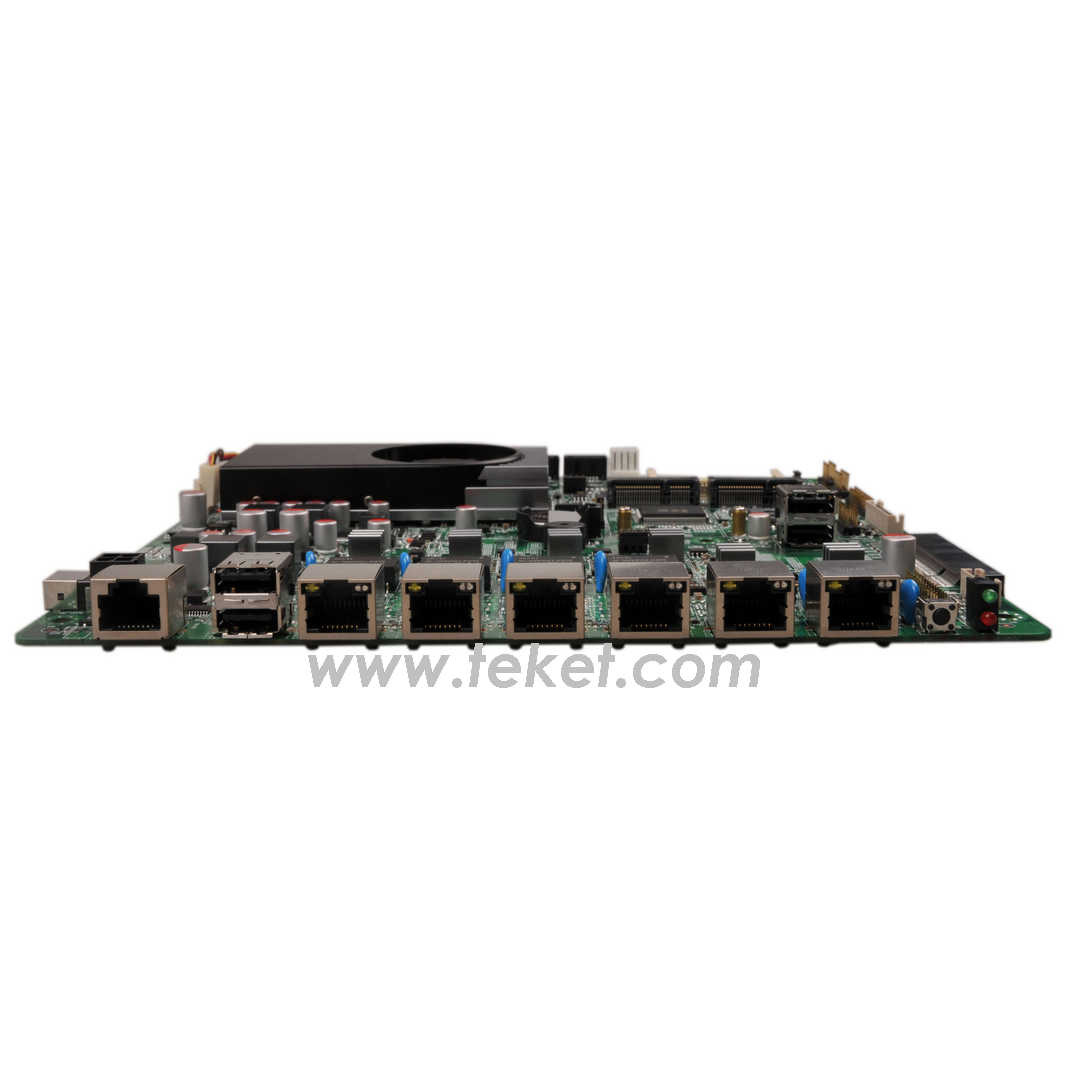

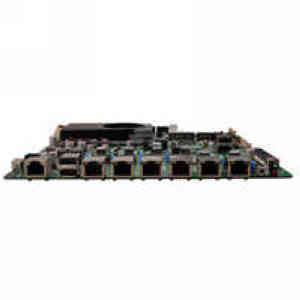

Rear I/O
1* CISCO serial port
2* USB 2.0
6* RJ-45 Gigabit Ethernet connector
1* power switch
1* power/HDD LED
1* 12V DC JACK input connector
Internal I/O
1* JVGA 1*12pin
1* Gigabit Ethernet indicator connector 2*13pin
1* LPT 2*13pin
1* RS232 serial port 2*5pin
4* USB 2.0 , 2 of them are standard interface,2 of them are 2* 5pin
1* PS/2 KB/MS connector 1*6pin
1* front panel function buttons and indicator connector 2*5pin
1* ATX 4Pin power connector(can do +12V power input/output connector)
1* ATX 20Pin power connector(Reserve, can do ATX power input connector)
2* HDD power supply connector
1* SIM card socket
Fan interface
1* 4pin CPU intelligent fan interface,1* 3pin intelligent system fan interface
GPIO
support 4 way input/output GPIO
BIOS
32Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
DC 12V power input or ATX power input(Optional)
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
220mm x 220mm

Order Information
C1037LS ver1.3 1037U,1.80G,1*SODDR3,1*VGA,6*LAN(Intel82583V),6*USB,2*COM,no BYPASS,12VDC,220X220MM
C1037LSB ver1.3 1037U,1.80G,1*SODDR3,1*VGA,6*LAN(Intel82574L),6*USB,2*COM,2*BYPASS,12VDC,220X220MM
