>>Your Current Position: Intel Motherboard

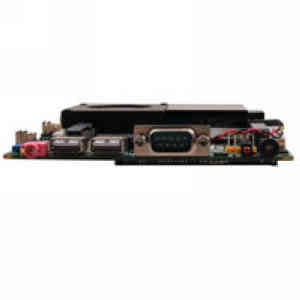

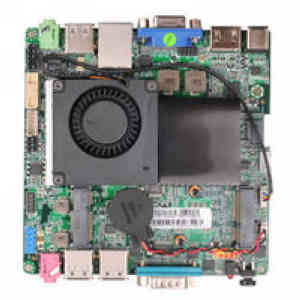

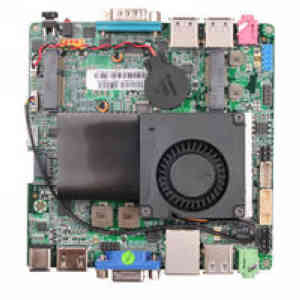

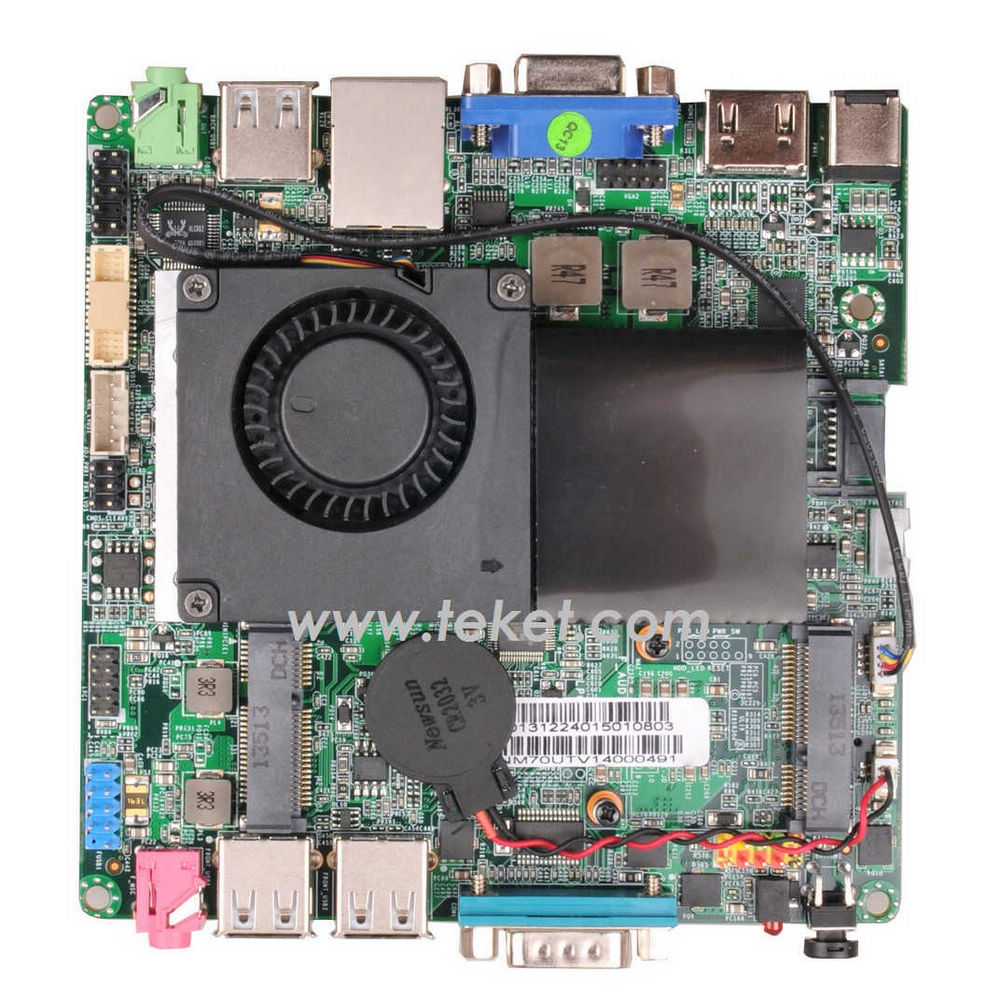

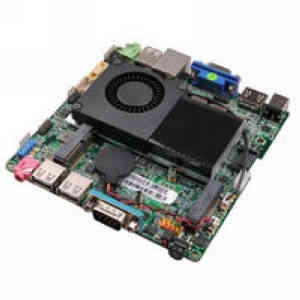

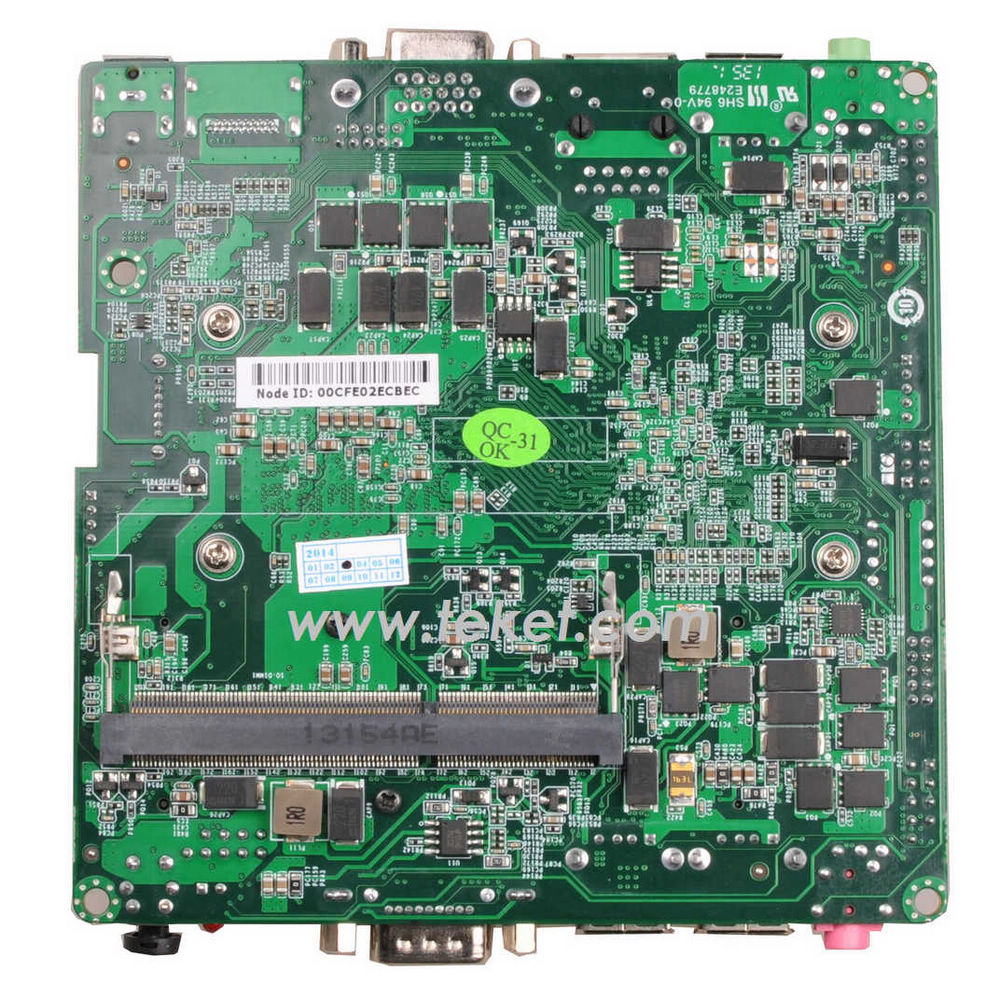

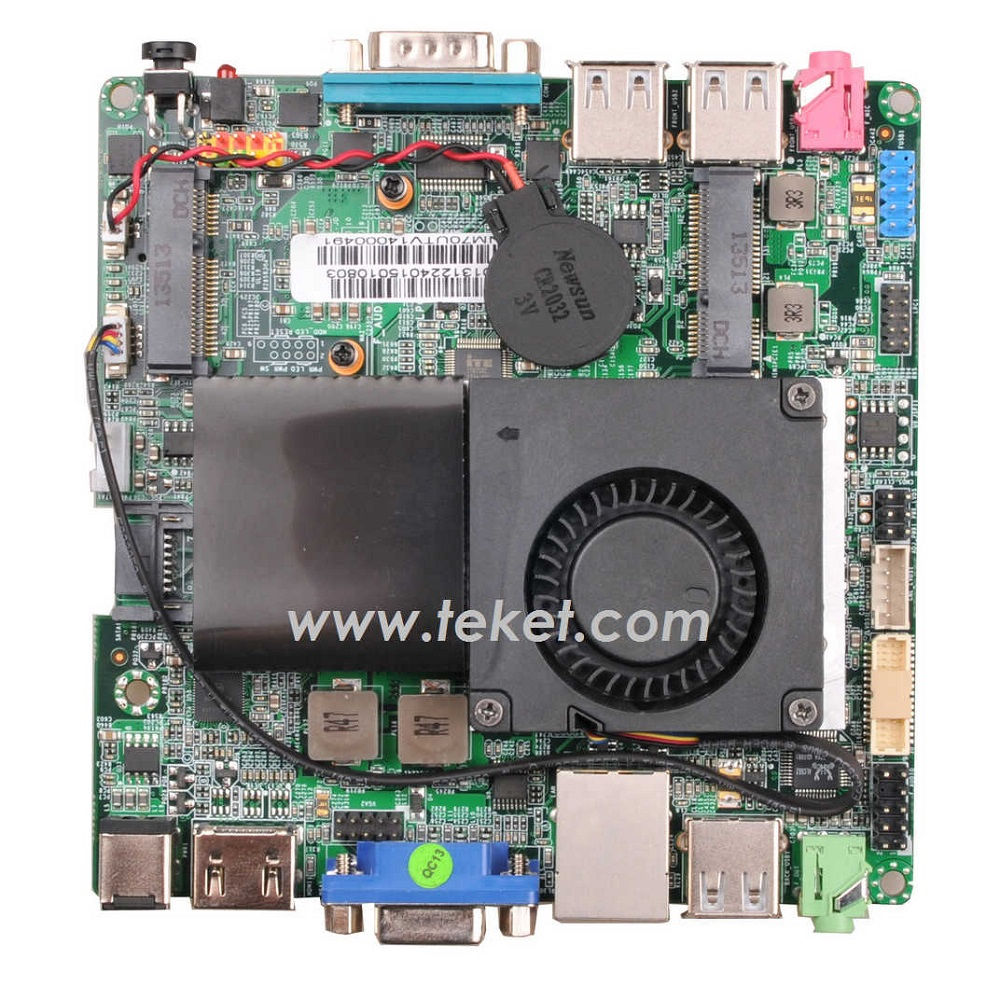

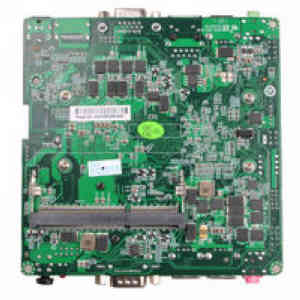

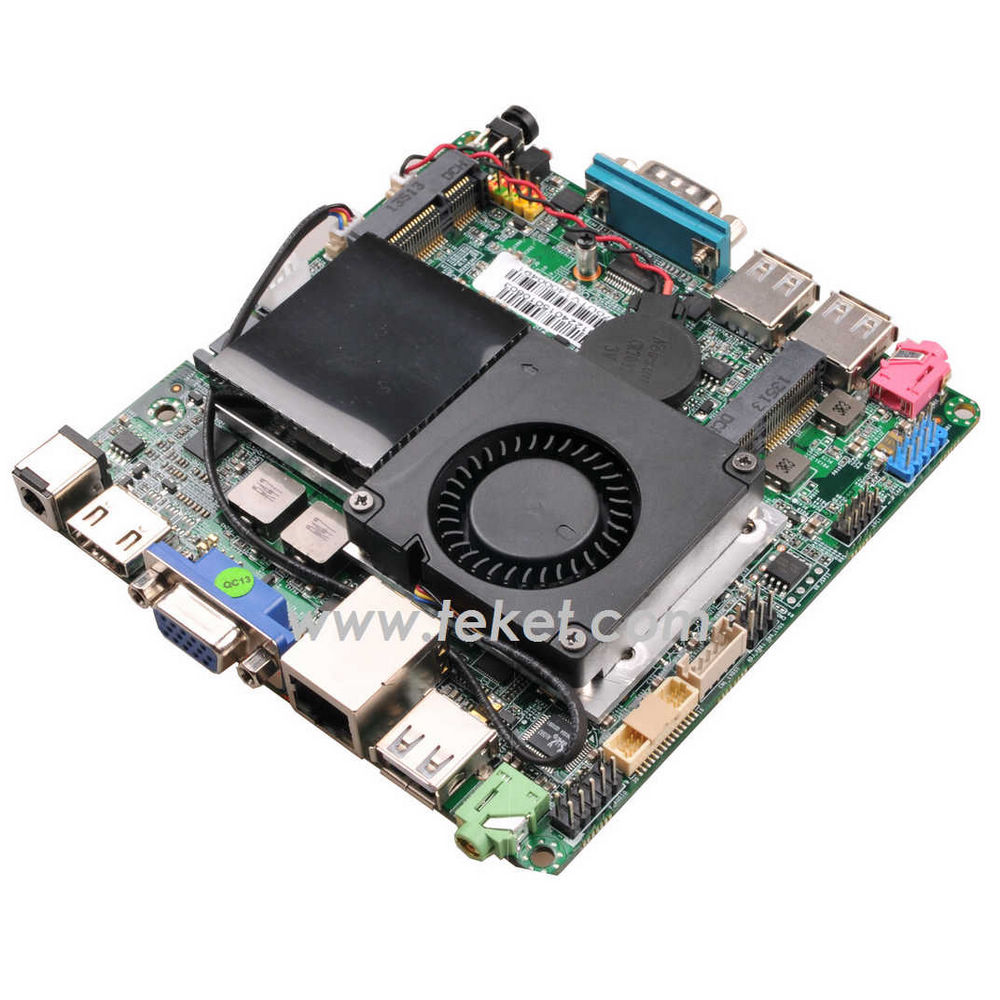

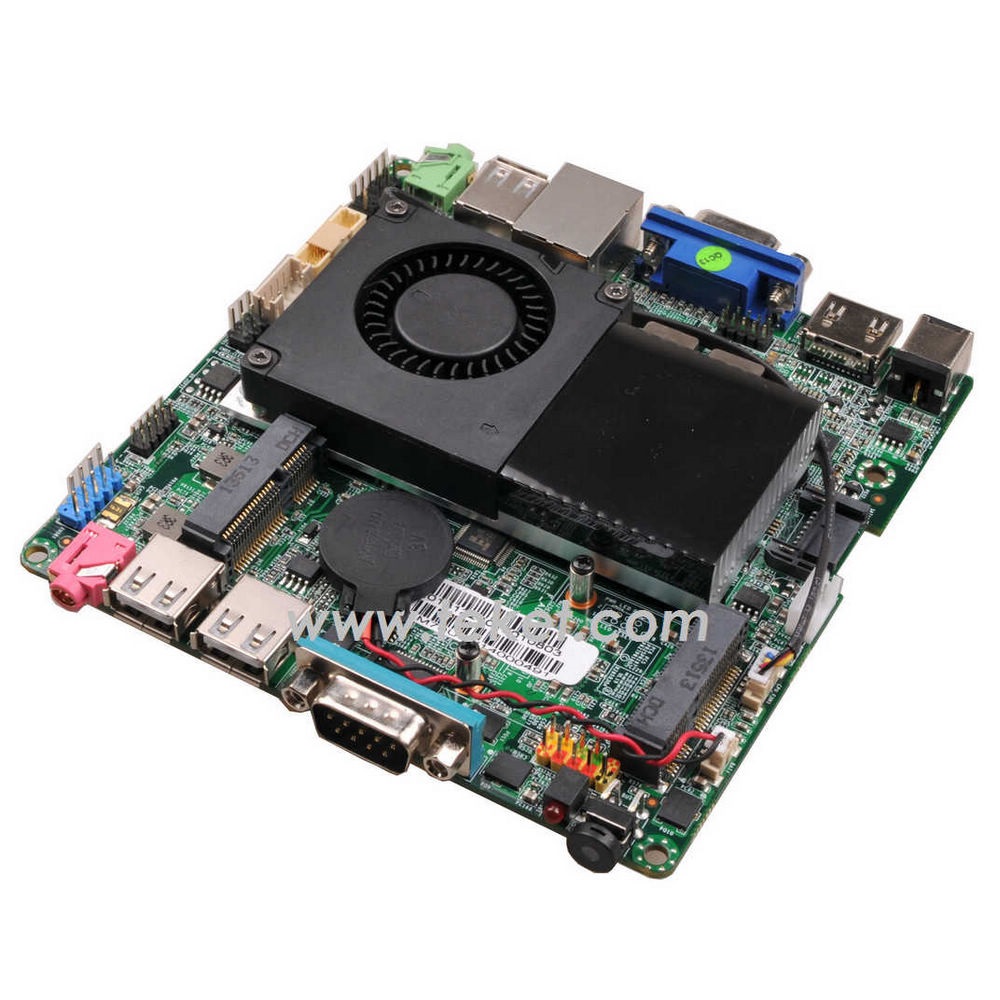

Intel Celeron 1037 1.8Ghz NANO-ITX Motherboard C1037NQ

Intel Celeron 1037 1.8GHZ, NM70,H, 2*MINI PCIe,LVDS, HDI,8-19VDC

C1037NQ spec:

Nano-itx, 120mmx120mm
CPU: Intel celeron dual 1037u, 1.8ghz, 2mb
Display: Intel graphics
Network: Realtek RT8111E 1000M lan port
Audio: Realtek ALC661 HD, encode, 4 channal audio output
Storage: 1x SATA 3.0(6Gb/s)
Inner I/O
1x full size MINI PCIE, for msata SSD
1x half size MINI PCIE, for wifi
1x DDR3 1333/1066Mhz SO-DIMM, up to 8GB
1x ATX power connector
1x LED power
1x LED hdd
1x 9pin VGA
1x LVDS(option)
1x audio input/output
1xUSB 2*usb

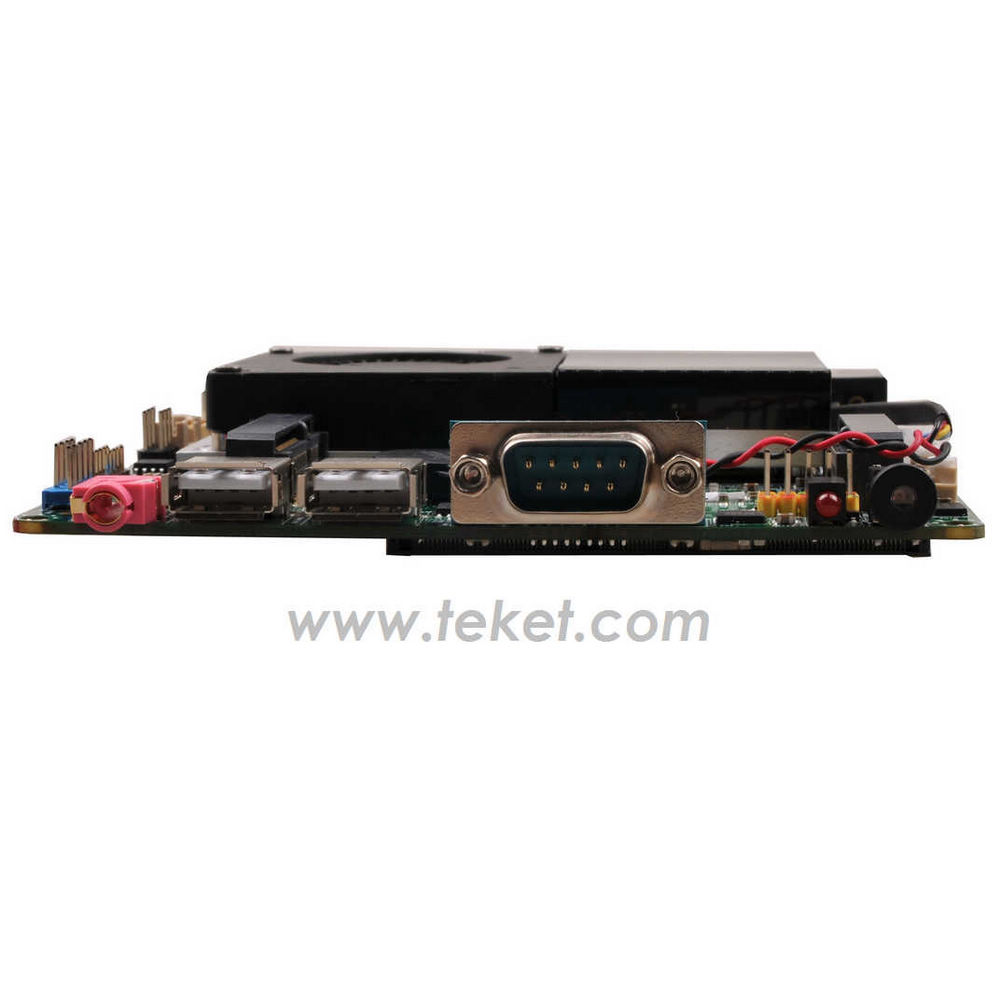

External I/O
1x power switch
2x USB 2.0
1x COM port
1x HDD led
1x audio I/O

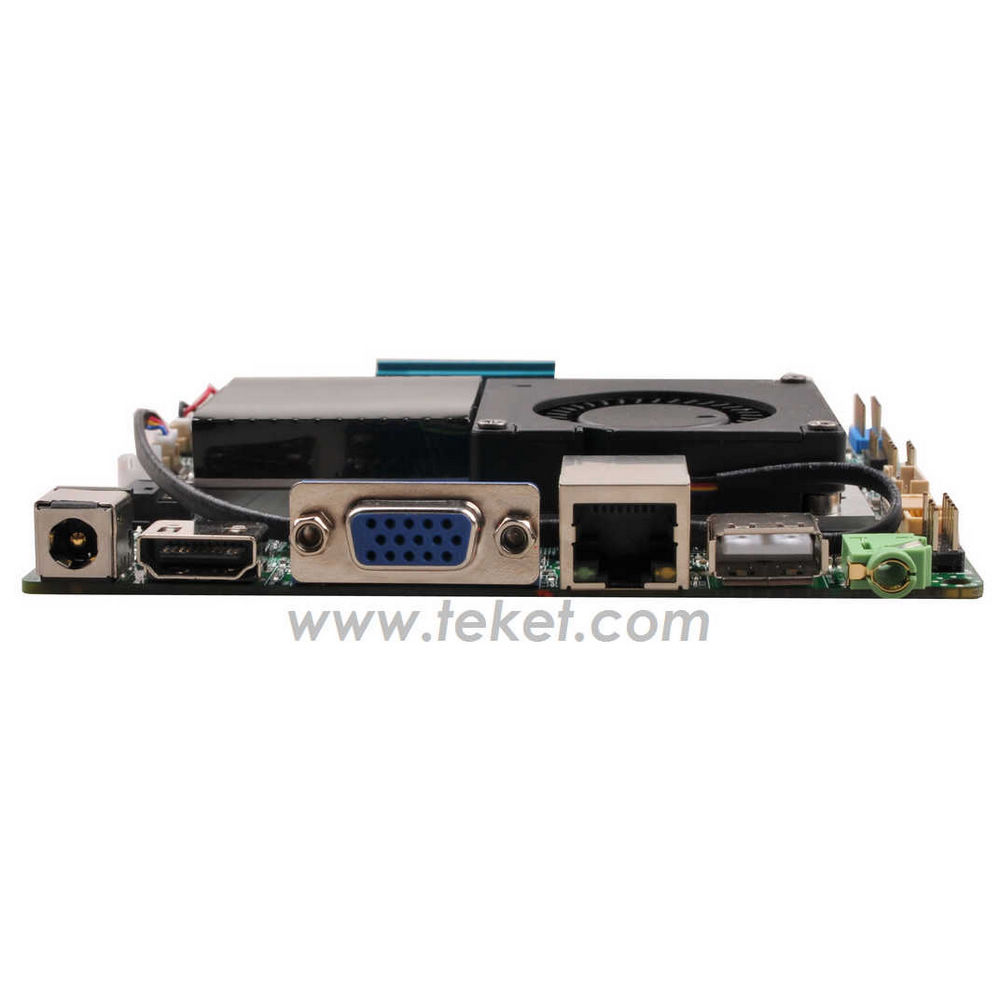

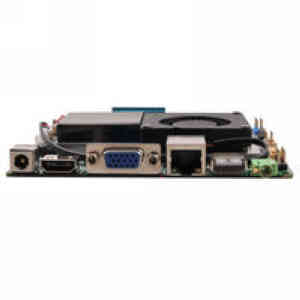

Back
1x DC 9-19v
1x HDI
1x VGA (D-sub)
1x RJ45
1x USB 2.0
1x audio output

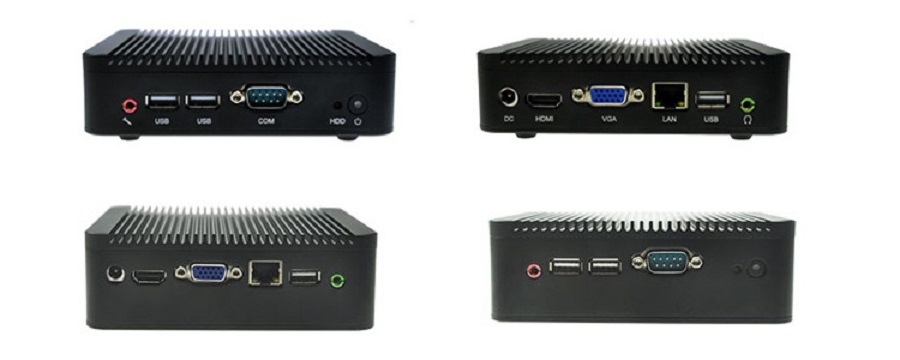

Size: 135*128*35mm （S1）135*128*45mm （S2）
Weight: 800g
Power: 12w
s1: msata ssd only
s2: msata ssd + 2.5" hdd

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details (REF)
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
