>>Your Current Position: Intel Motherboard



Intel Celeron 1037 1.8Ghz Mini-ITX Motherboard C1037UM 8-36VDC or ATX Power Supply

Intel Celeron 1037 1.8GHZ, NM70, 2*MINI PCIe, 6/10*COM, LVDS, HDMI, 8-362VDC or ATX Power Supply

C1037UA spec:

Intel®1037U Dual core 22nm Processor (1.8GHZ)
Intel® NM70 Chipset
Intel® HD Graphics Offers VGA、HDMI、LVDS
2* SO DDRIII 1333/1066MHz, Max. Up to 16GB
1* Mini-PCIE (support WIFI/3G)
RS232, the 9 pin supports +5V/+12V charged function
2*RTL8111E 10/100/1000Mbps Ethernet
Integrated Realtek HD ALC662 for 6-Channel output

Part of the DC version support DC 8~36V Power Supply Recommend the use of 9~24V Power Supply.

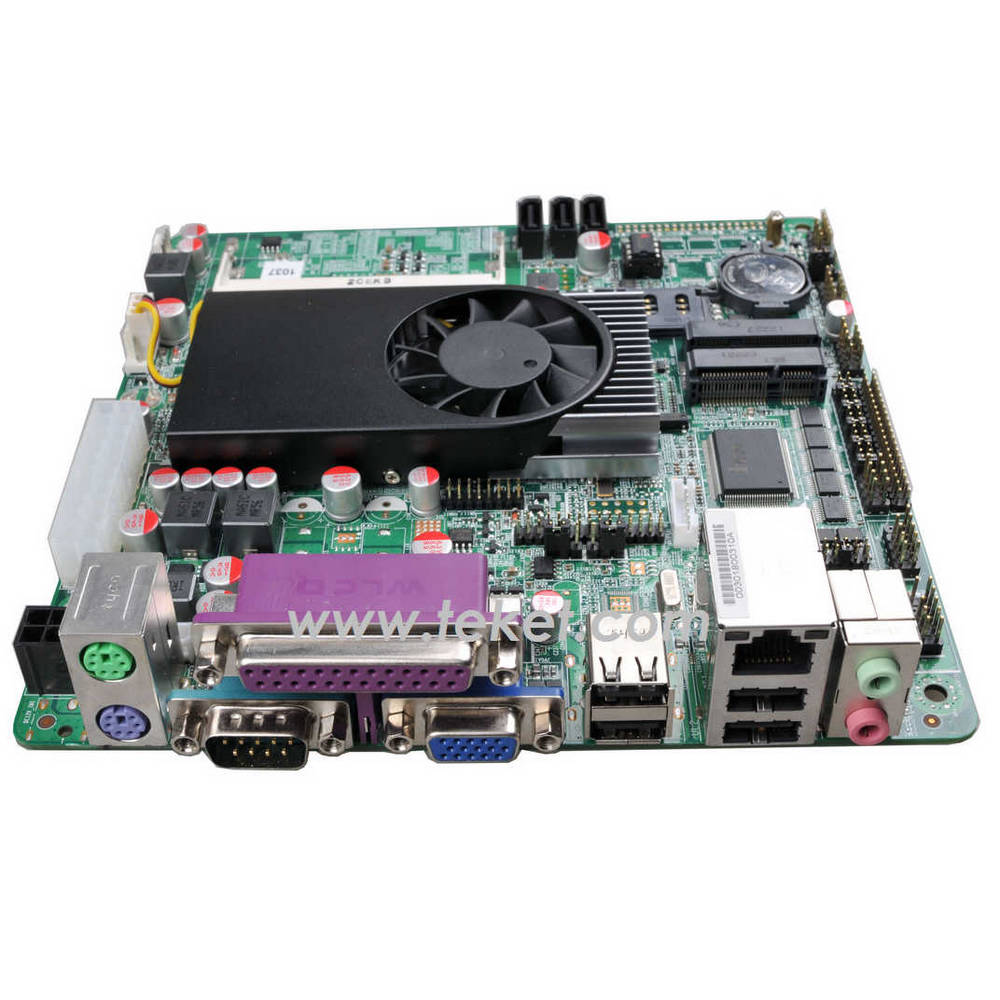

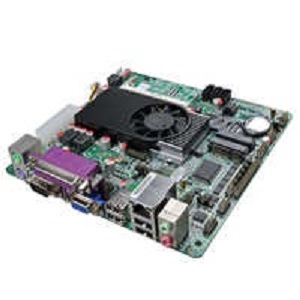

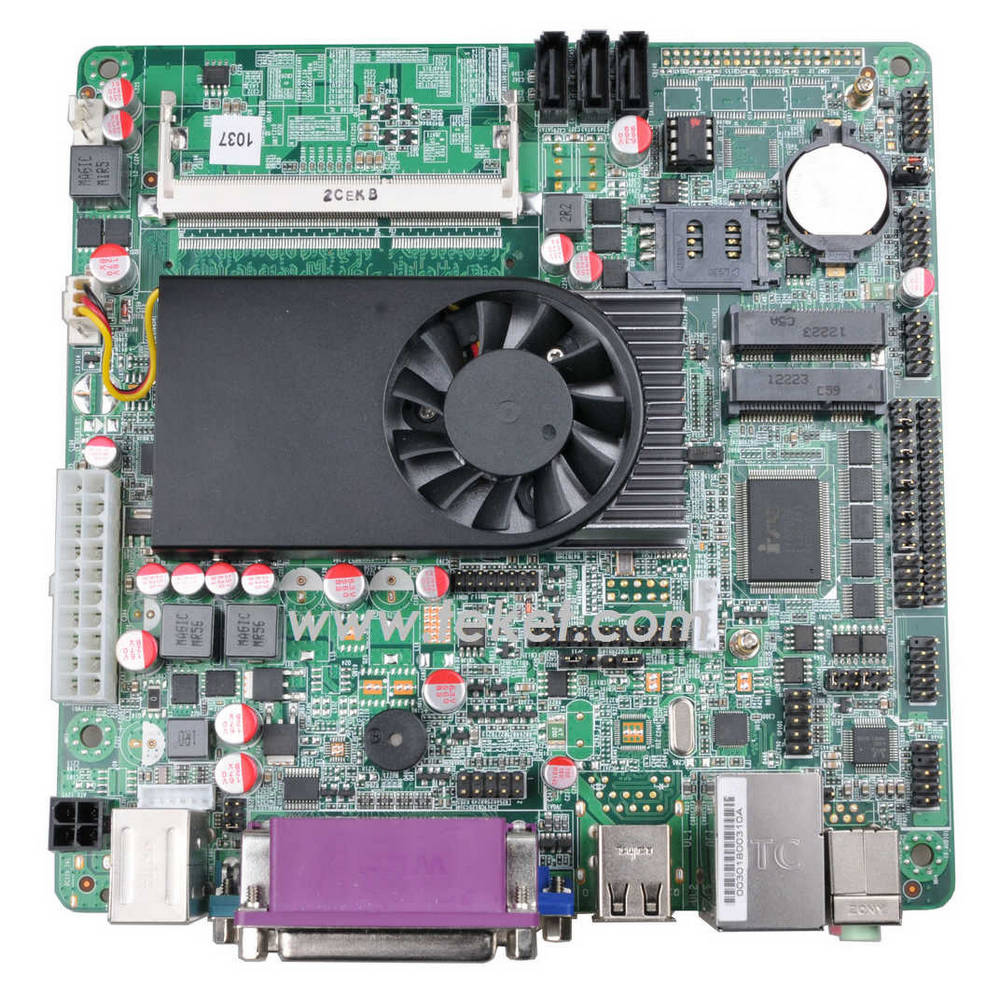

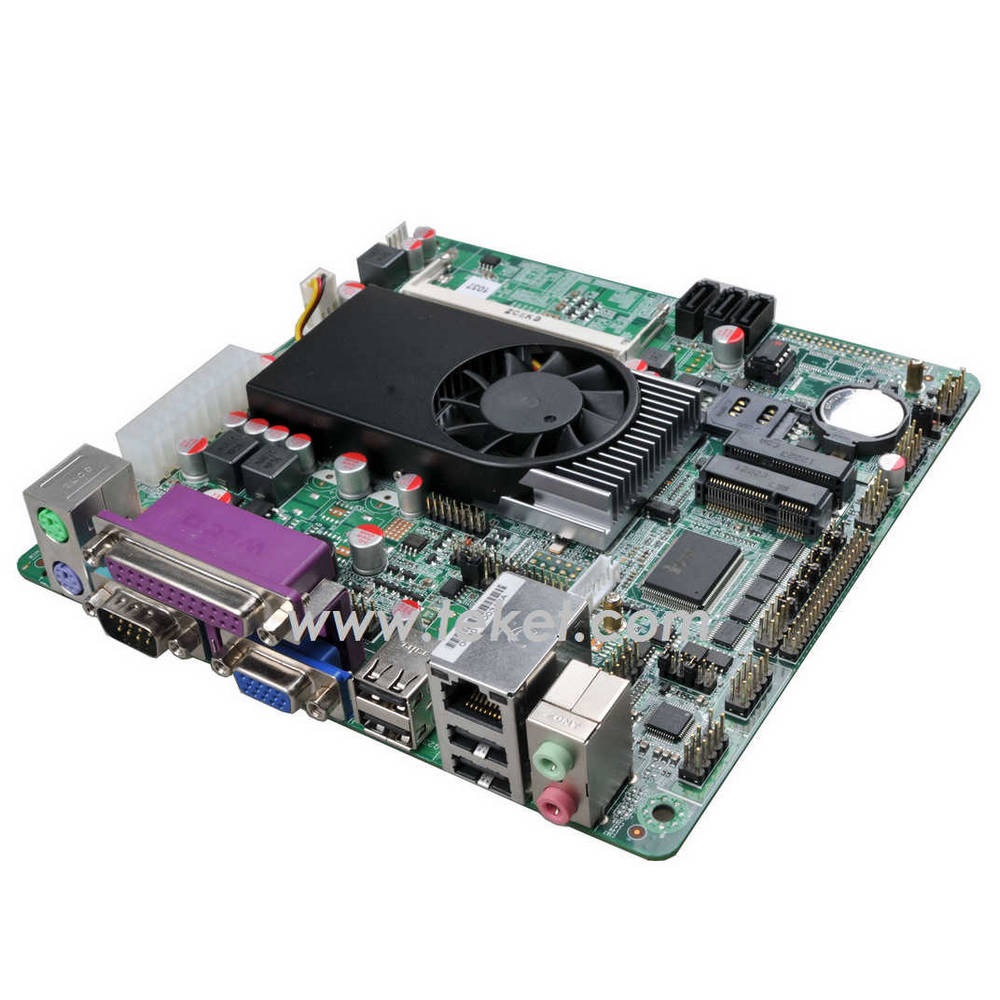

model: C1037UM-A16 (ATX power, 1*LAN, 6*COM)

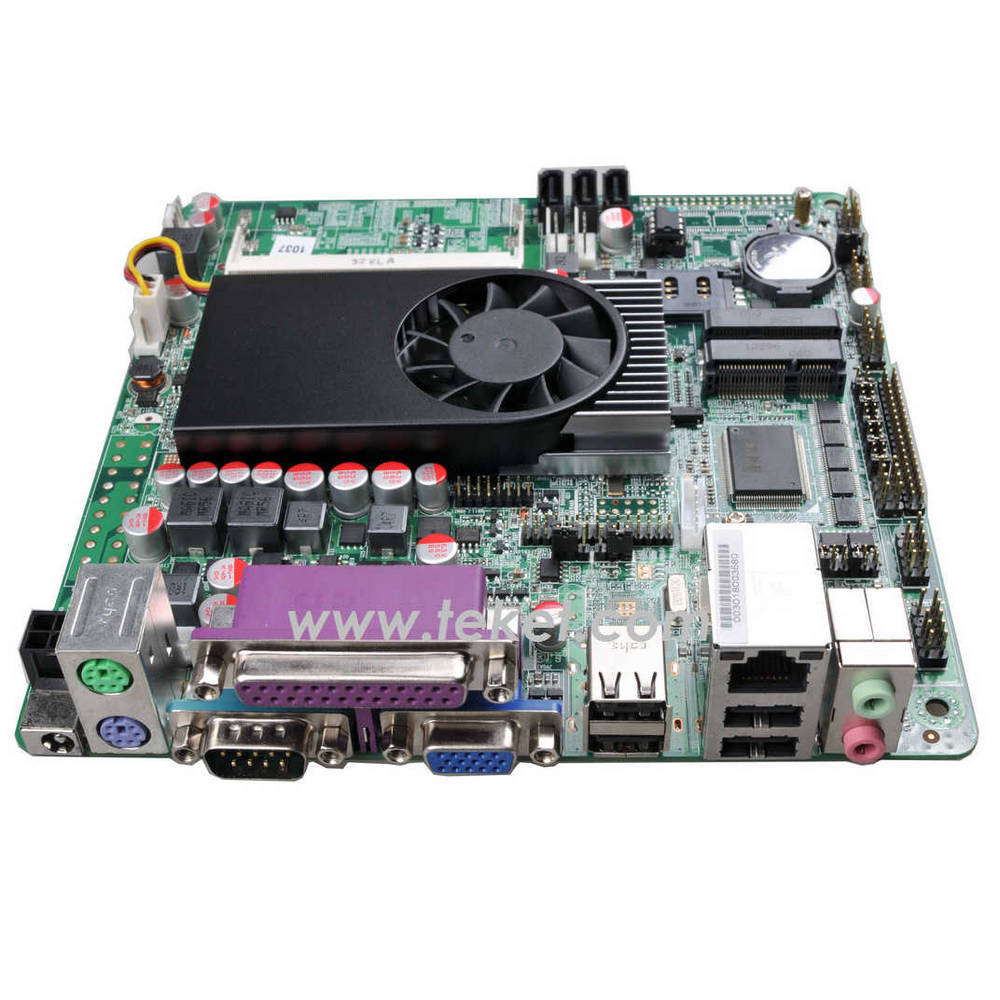

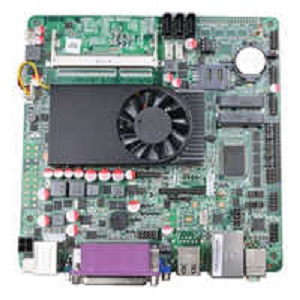

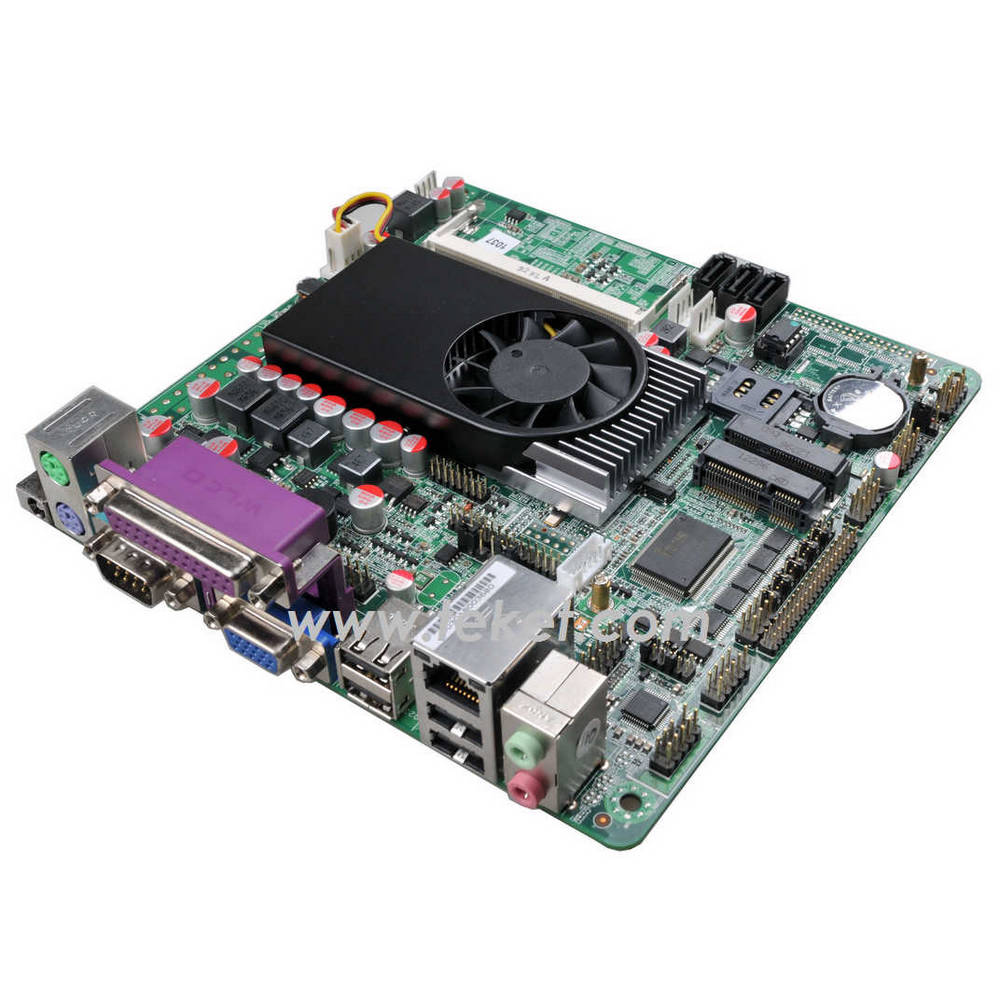

model: C1037UM-D16 (12VDC power, 1*LAN, 6*COM)

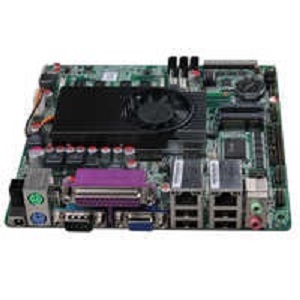

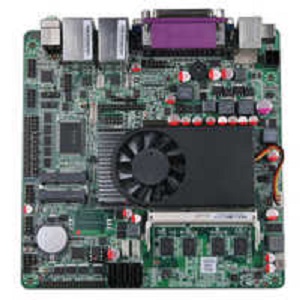

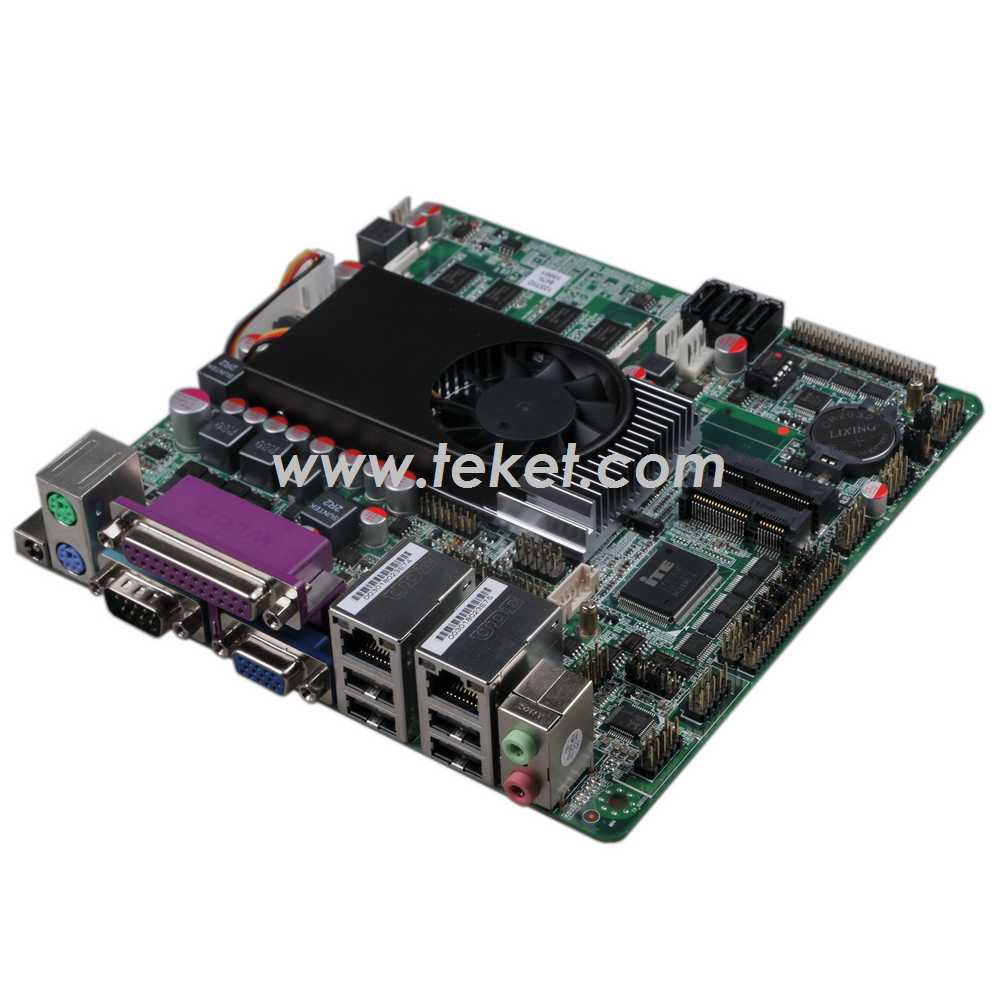

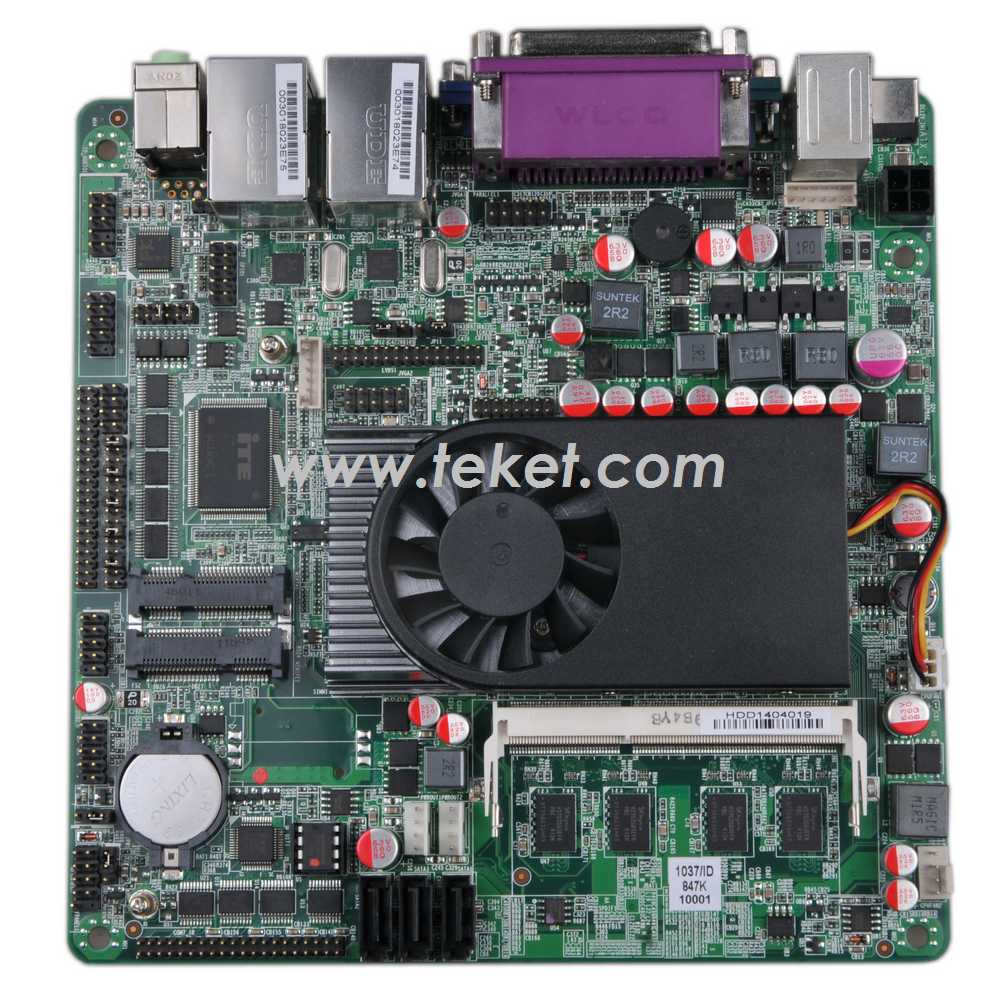

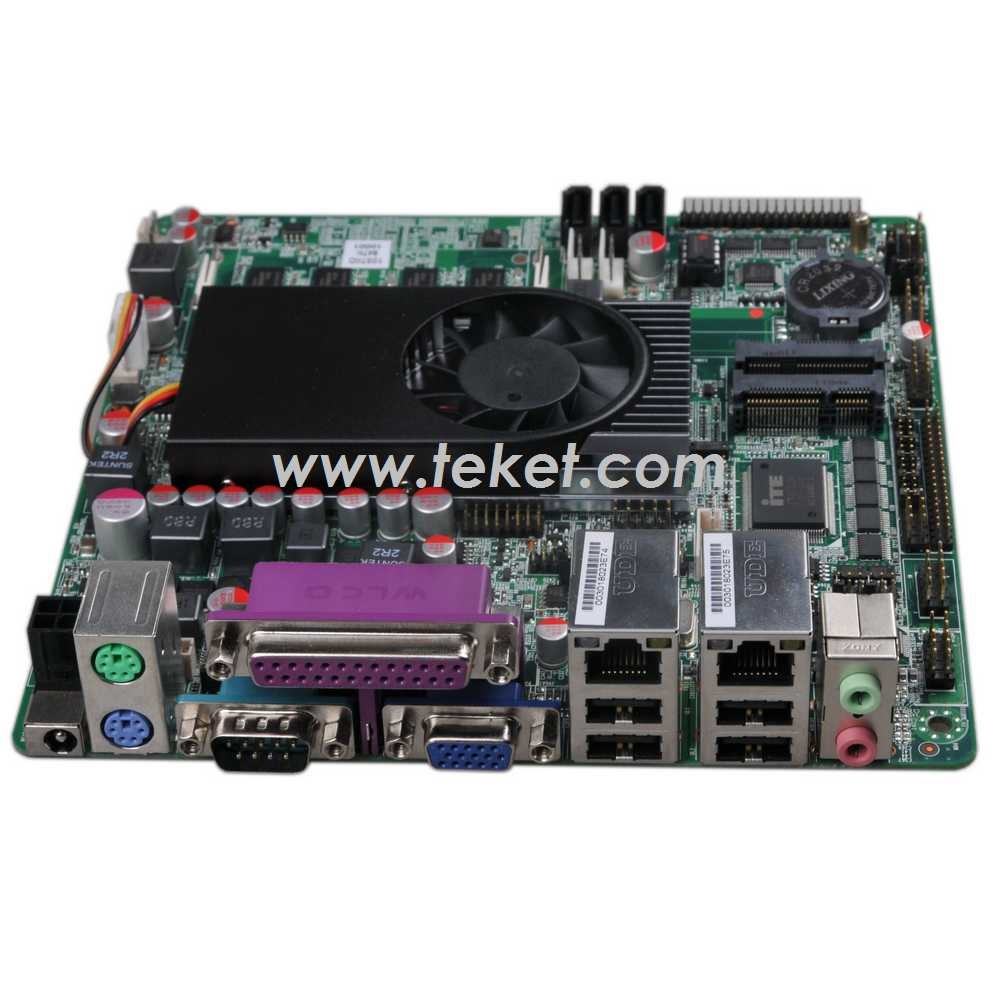

model: C1037UM-D210 (DC8-36V power, 2*LAN, 10*COM)



CPU Intel®1037U Dual core 22nm Processor (1.8GHZ) TDP 17W
Chipset Intel® NM70 Chipset
Memory 2*204pin Dual Channel SO-DIMM DDR3 1333MHz, Max. up to 16GB
Graphics Intel® HD Graphics
Offers 1*VGA、1*HDMI、1*LVDS(support Dual 24bit)
support HDMI/VGA synchronous/asynchronous display
support LVDS/VGA synchronous/asynchronous display
support LVDS/HDMI synchronous/asynchronous display
Expansion Slots 1* Mini-PCIE (support WIFI/3G)
1* MSATA (support SSD 6Gbps/WIFI)
LAN 2*RTL8111E 10/100/1000Mbps Ethernet
Support Wake-on-LAN and PXE function
Storage 3* SATAII 3Gbps
Audio Integrated Realtek HD ALC662 for 6-Channel output
Support MIC/Line-out/Line-in

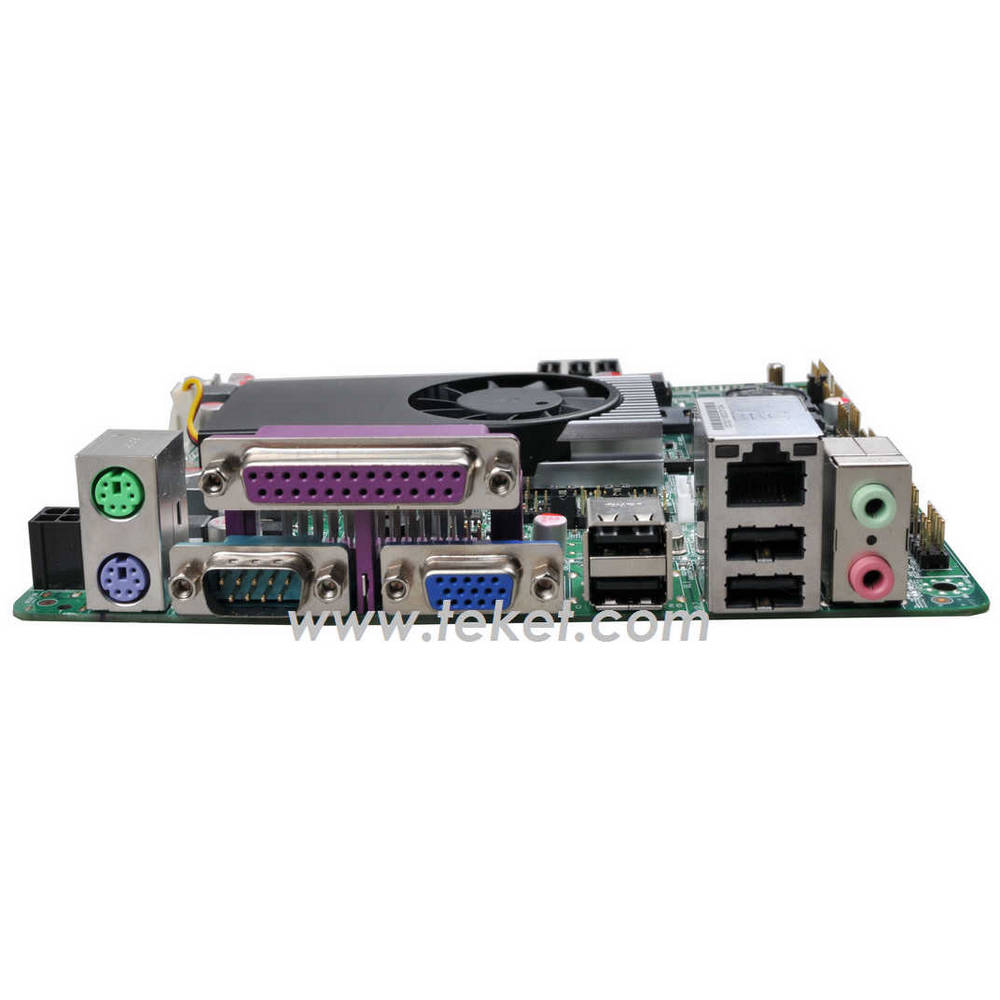

Rear I/O 1* PS/2
1* DB9 COM, the 9th pin supports +5V/+12V charged function
1* LPT
1* DB15 VGA
2* RJ-45 LAN
4* USB 2.0
1* AUDIO I/O (MIC and Line-out)
Internal I/O 9* RS232, COM2 and COM3 also support RS485/422 and 9PIN charged function.
1* LVDS(2*15pin),support dual channel 24bit LCD
1* HDMI 2*8Pin
1* VGA1 2*5pin
4* USB 2.0
1* AUDIO
1* FP1 (2*5pin Front panel buttons and LED connected)
1* TX-RXCOM (RS422/485) 2*4Pin
1* PS/2 1*6Pin
1* SIM
Fun interface 1* CPUFAN and SYSFAN 4pin
GPIO 1* GPIO (Support 4-way GPIO function)
BIOS AMI 32MB Flash ROM
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power Input ATX Power Supply
OperatingTemp. -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 0%-95%(relative humidity; non-condensing)
Dimension 170mm x 170mm

Ording information

C1037UM-A210: 1037U/1.8Ghz,2*LAN(8111E),ALC662,Dual24bitLVDS,noExtended VGA,8*USB,10*COM,COM2/3 support RS485/RS422,ATX power

C1037UM-A16: 1037U/1.8Ghz,1*LAN(8111E),ALC662,Dual24bitLVDS,noExtended VGA,8*USB,6*COM,COM2/3 support RS485/RS422,ATX power

C1037UM-D210:1037U/1.8Ghz,2*LAN(8111E) ,ALC662,Dual24bit LVDS,2*VGA(extended),8*USB,10*COM,COM2/3 support RS485/RS422,DC8-36V

C1037UM-D16: 1037U/1.8Ghz,1*LAN(8105E),ALC662,Dual24bit LVDS,0*VGA(extended),8*USB,6*COM,COM2/3 support RS485/RS422,DC12V

Model Name Definition: U is for ultra config, A is for atx power supply, D is for DC input, Digital string 16 is 1*LAN port and 6*COM ports.

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
