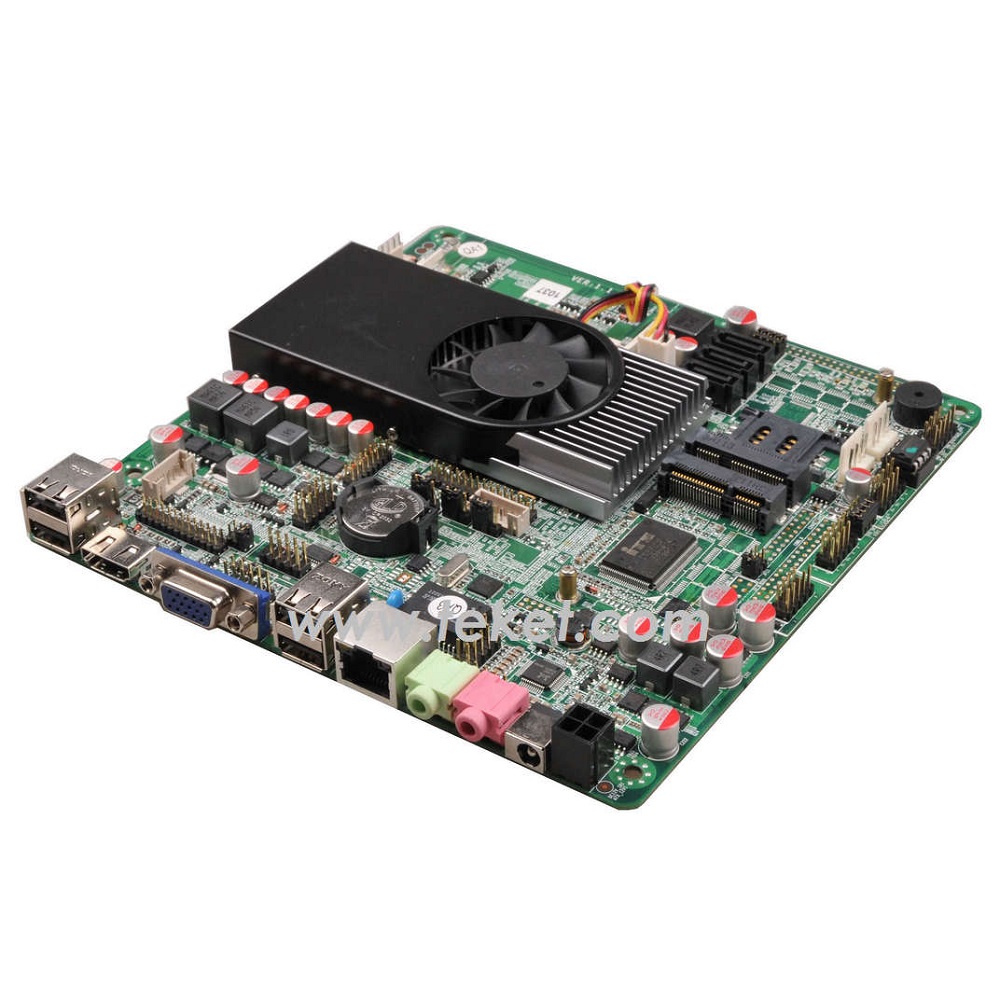

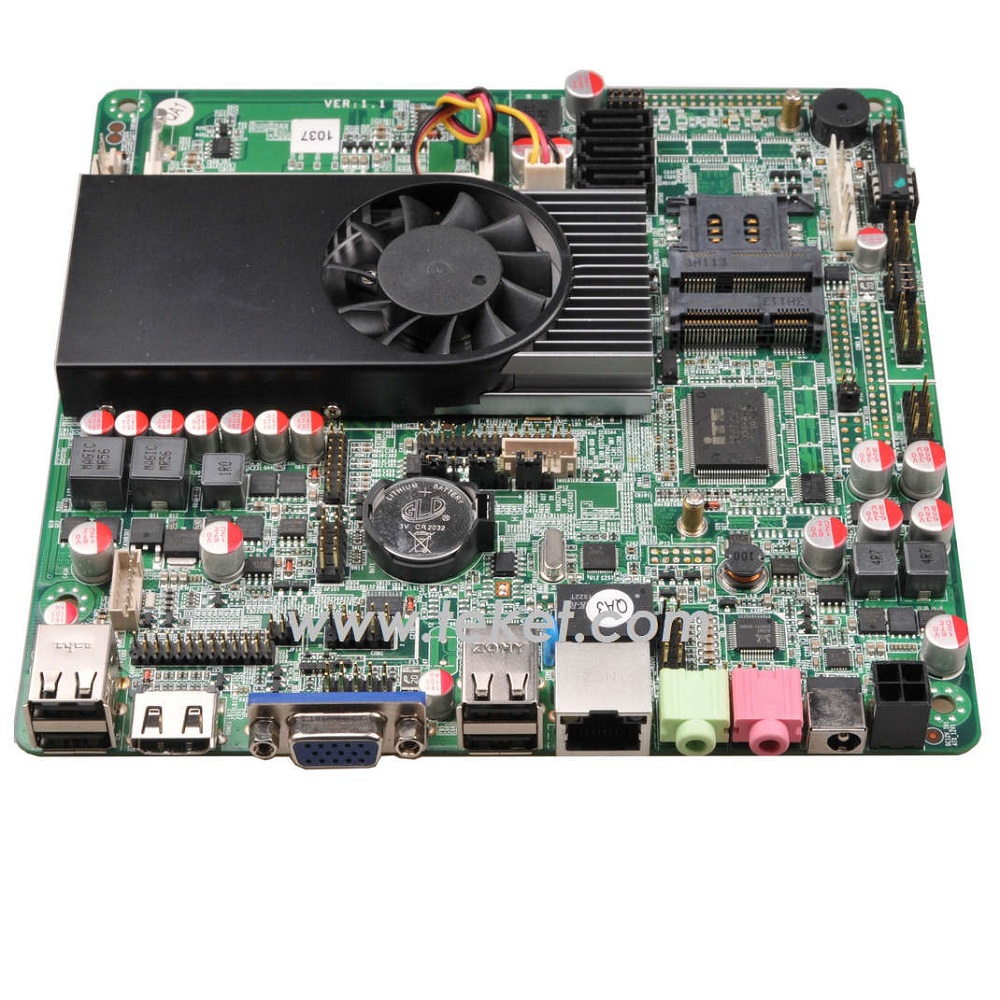

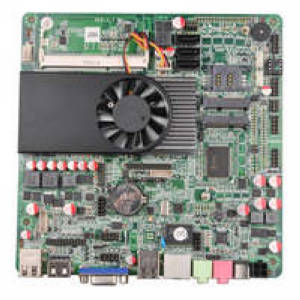

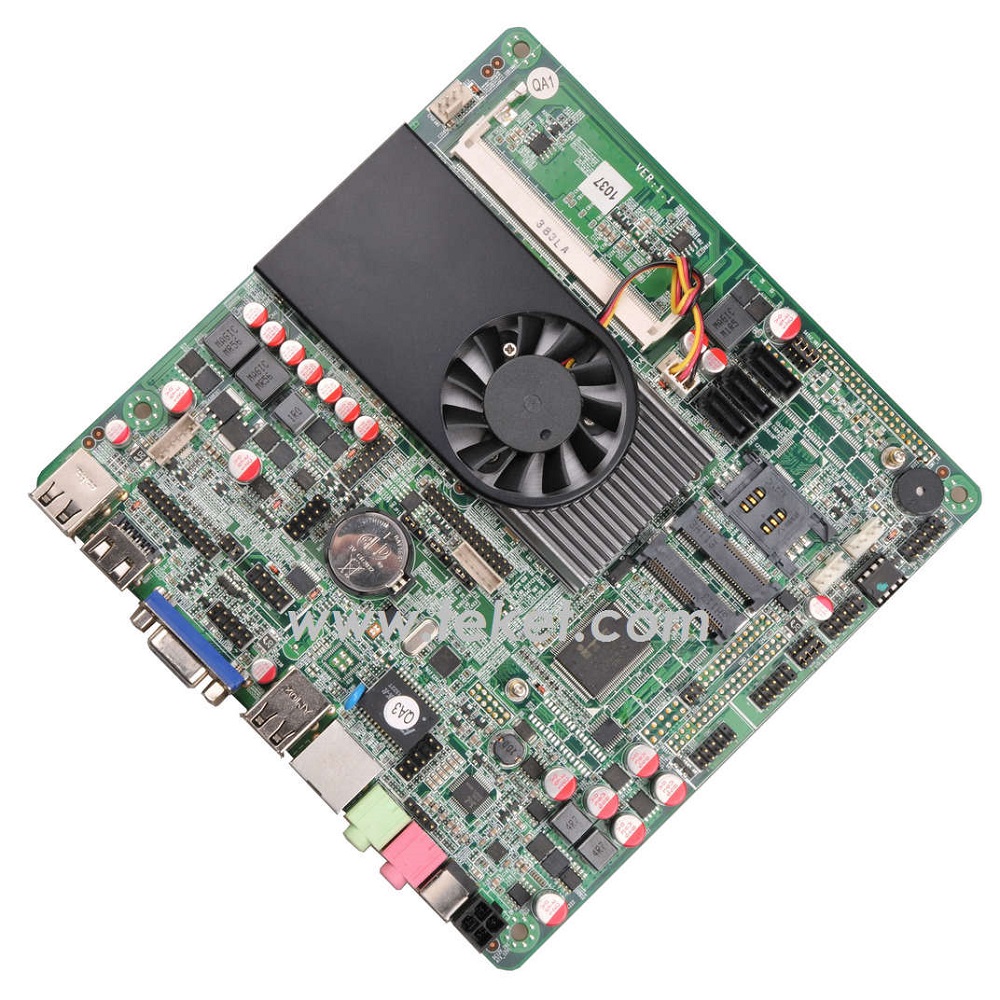

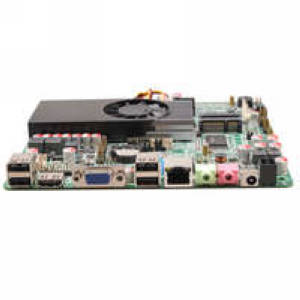

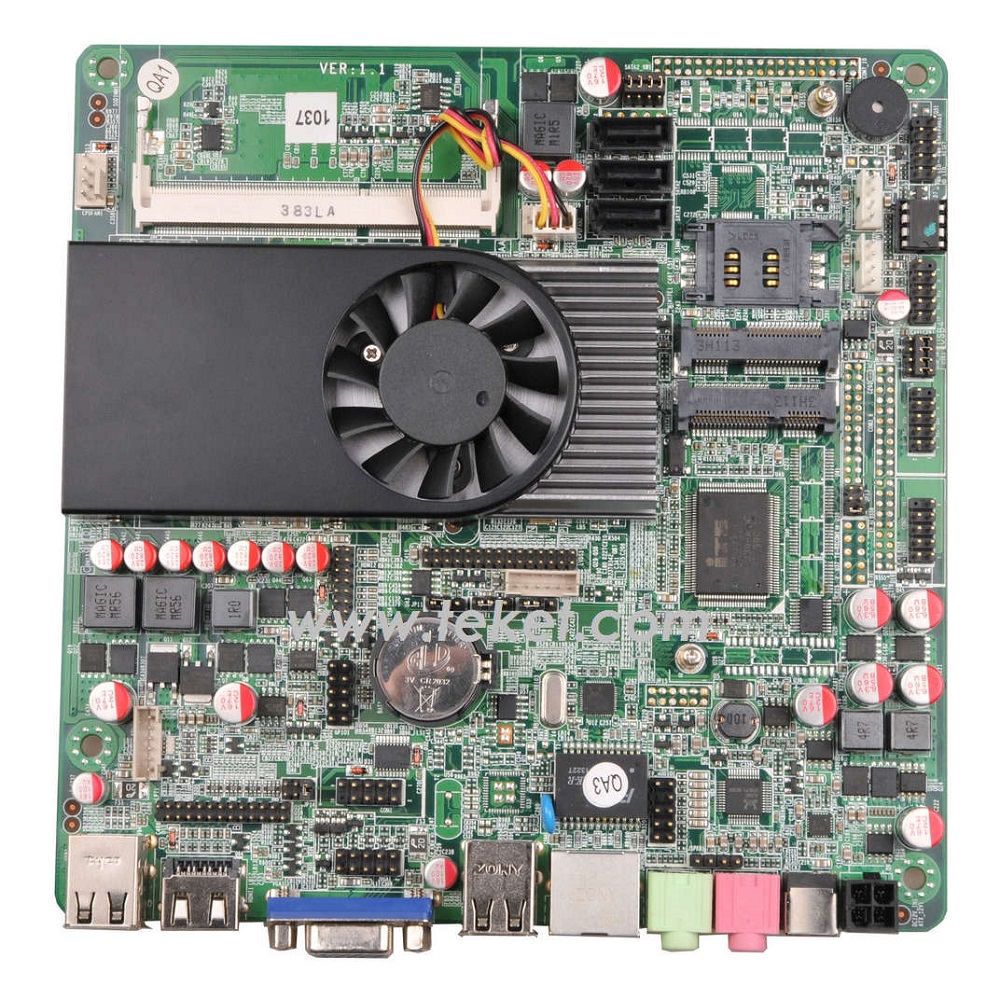

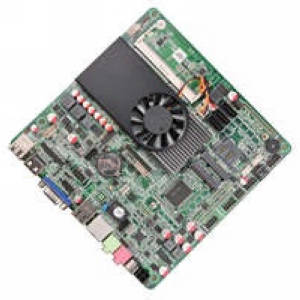

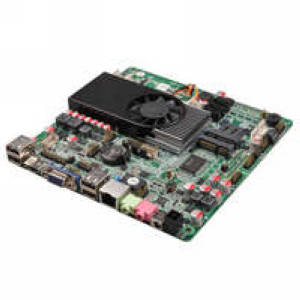

Intel Celeron 1037/I3 3217U Mini-ITX Motherboard C1037US/I33217FS Al-In-One SLIM 12VDC


Intel Celeron 1037 1.8GHZ, NM70, HD Graphics, 2*MINI PCIe, 2*COM, LVDS, HDMI



C1037US and I33217US spec:

Intel Celeron 1037 1.8Ghz dual core cpu, NM70 chipset
1*SO DIMM DDR3, support 1066/1333 up to 8GB
2*MINI-PCIe, support SSD/WIFI/3G
2*RS232 serial ports
1*RTL8111E, network wake up
Realtek ALC662 6 channels audio
Display Intel HD Graphics
1*VGA, 2*HDMI, 1*LVDS
Support HDMI1/VGA Synchronous/Asynchronous
Support LVDS/VGA Synchronous/Asynchronous
Support LVDS/HDMI1 Synchronous/Asynchronous
Support HDMI1/HDMI2 Synchronous/Asynchronous
1*MINI PCIe support WIFI/3G
1*MINI PCIe support SSD/WIFI SSD
Realtek ALC662 6CH support MIC Line-out
3* SATAII,300MB/s
1* RTL8111E 10000M

Intel® i3 3217U Dual core 22nm Processor (1.8GHZ)
Intel® NM70 Chipset
Intel® HD Graphics Offers VGA、HDMI、LVDS
1* SO DDRIII 1333/1066MHz, Max. Up to 16GB
1* Mini-PCIE (support WIFI/3G)
RS232, the 9 pin supports +5V/+12V charged function
1*RTL8111E 10/100/1000Mbps Ethernet
Integrated Realtek HD ALC662 for 6-Channel output

Intel® Core™ i5-3317U Processor (3M Cache, up to 2.60 GHz)
Status Launched
Launch Date Q2'12
Processor Number i5-3317U
Intel® Smart Cache 3 MB
# of Cores 2
# of Threads 4
Processor Base Frequency 1.7 GHz
Max Turbo Frequency 2.6 GHz
TDP 17 W
Processor Graphics ‡ Intel® HD Graphics 4000
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.05 GHz
Graphics Output eDP/DP/HDMI/SDVO/CRT

Intel® Core™ i5-3337U Processor (3M Cache, up to 2.70 GHz)
Status Launched
Launch Date Q1'13
Processor Number i5-3337U
Intel® Smart Cache 3 MB
# of Cores 2
# of Threads 4
Processor Base Frequency 1.8 GHz
Max Turbo Frequency 2.7 GHz
TDP 17 W
Processor Graphics ‡ Intel® HD Graphics 4000
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.1 GHz
Graphics Output eDP/DP/HDMI/SDVO/CRT

Intel® Core™ i7-3537U Processor (4M Cache, up to 3.10 GHz)
Launch Date Q1'13
Processor Number i7-3537U
Intel® Smart Cache 4 MB
# of Cores 2
# of Threads 4
Processor Base Frequency 2 GHz
Max Turbo Frequency 3.1 GHz
TDP 17 W
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3/L/-RS 1333/1600
Max # of Memory Channels 2
Max Memory Bandwidth 25.6 GB/s
Processor Graphics ‡ Intel® HD Graphics 4000
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.2 GHz
Graphics Output eDP/DP/HDMI/SDVO/CRT

CPU Intel® 22NM I3 3217U dual core 1.8GHz TDP 17W
Chipset Intel NM70 Chipset
Memory 1* SO DDRIII 1333/1066MHz, Max. Up to 8GB
Graphics Intel® HD Graphics
Offer 1* VGA、2* HDMI、1* LVDS(support dual 24bit)
support HDMI1/VGA synchronous/asynchronous display
support LVDS/VGA synchronous/asynchronous display
support LVDS/HDMI1 synchronous/asynchronous display
support HDMI1/HDMI2 synchronous/asynchronous display
ExpansionSlots 1* Mini-PCIE, support WIFI/3G
1* MSATA, support SSD 6Gbps/WIFI
LAN 1* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function
Storage 3* SATAII 3Gbps
Audio Integrated Realtek HD ALC662 for 6-Channel output
Support MIC/Line-out/Line-in

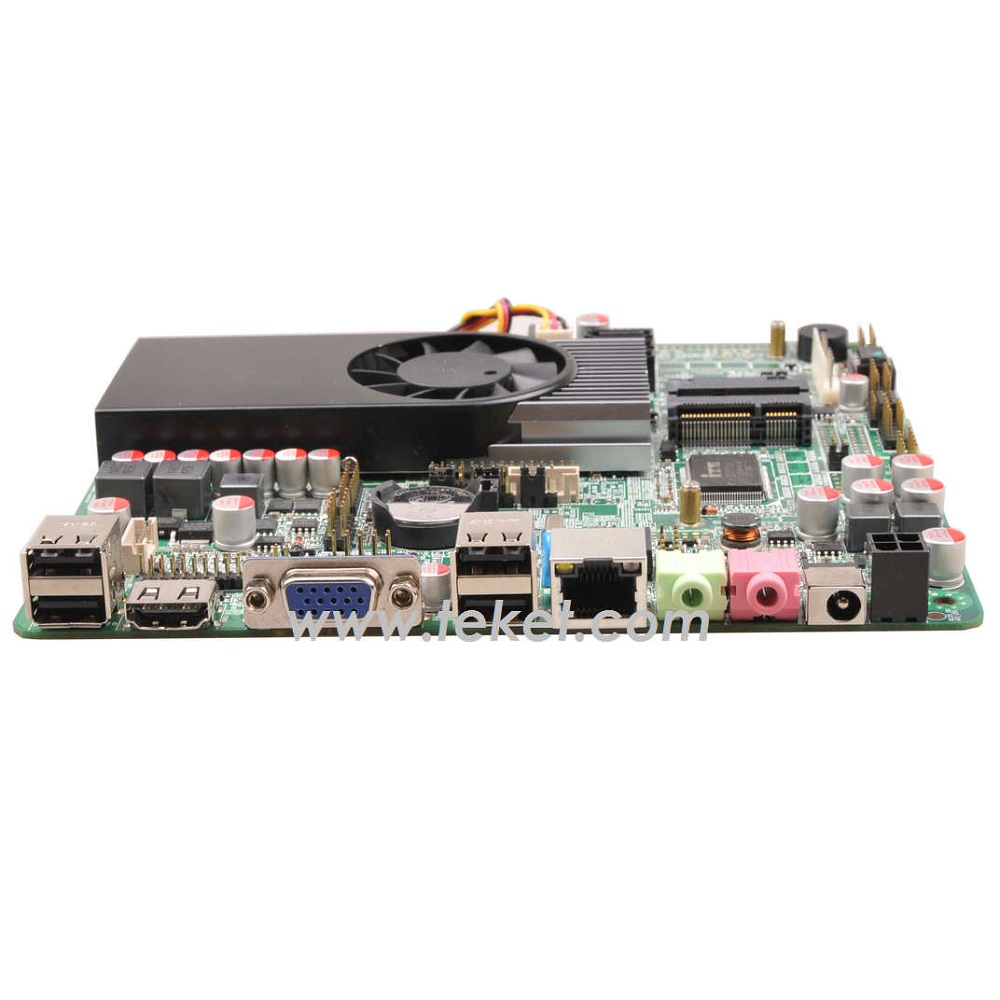

Rear I/O 4* USB 2.0
1* HDMI
1* VGA
1* RJ-45 LAN
1* Line out(green)
1* Mic (red)
1* 12V DC_JACK input
Internal I/O 1* LVDS 2*15pin,support dual 24bit LCD
1* JHDMI 2*8Pin
1* JVGA1 2*5pin
6* RS232, COM2 and COM3 also support RS485/422 and 9PIN charged function.
1* TX-RXCOM (RS422/485) 2*5Pin
1* LPT
4* USB 2.0(If the Mini-PCIE is a USB signal, supports 2 USB)
1* PS/2 6Pin
1* FP1 (2*5pin Front panel buttons and LED connected)
1* AUDIO pin (Front Audio interface 2*5pin)
1* SIM
2* PWROUT (Hard drive power connector)
1* ATX_12V (Can be used as input and output 12V power connector)
1* LVDS INVERTER
Fun interface 1* CPUFAN 4pin 1* SYSFAN 3pin
GPIO 1* GPIO (Support 4-way GPIO function)
BIOS AMI 32MB Flash ROM
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power Input DC_12VSingle power supply
Operating Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 0%-95%(relative humidity; non-condensing)
Dimension 170mm x 170mm

2G ram onboard



Order Information
C1037US-D16: 1037U/1.80Ghz,1*LAN(8111E),ALC662,Dual24bit,no Extended VGA,8*USB,6*COM,RS485/RS422,DC12V

C1037US-D12: 1037U/1.80Ghz,1*LAN(8111E),ALC662,Dual24bit,no Extended VGA,8*USB,2*COM,no RS485/RS422,DC12V

I33217US-D16: I3 3217U/1.80Ghz,1*LAN(8111E),ALC662,Dual24bit,no Extended VGA,8*USB,6*COM,RS485/RS422,DC12V
I53337US-D16:

Model Name Definition: U is for ultra config, A is for atx power supply, D is for DC input, Digital string 16 is 1*LAN port and 6*COM ports.

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
