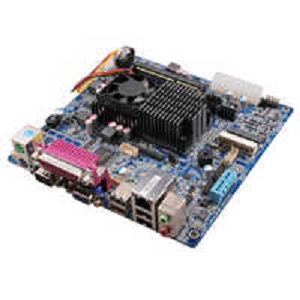

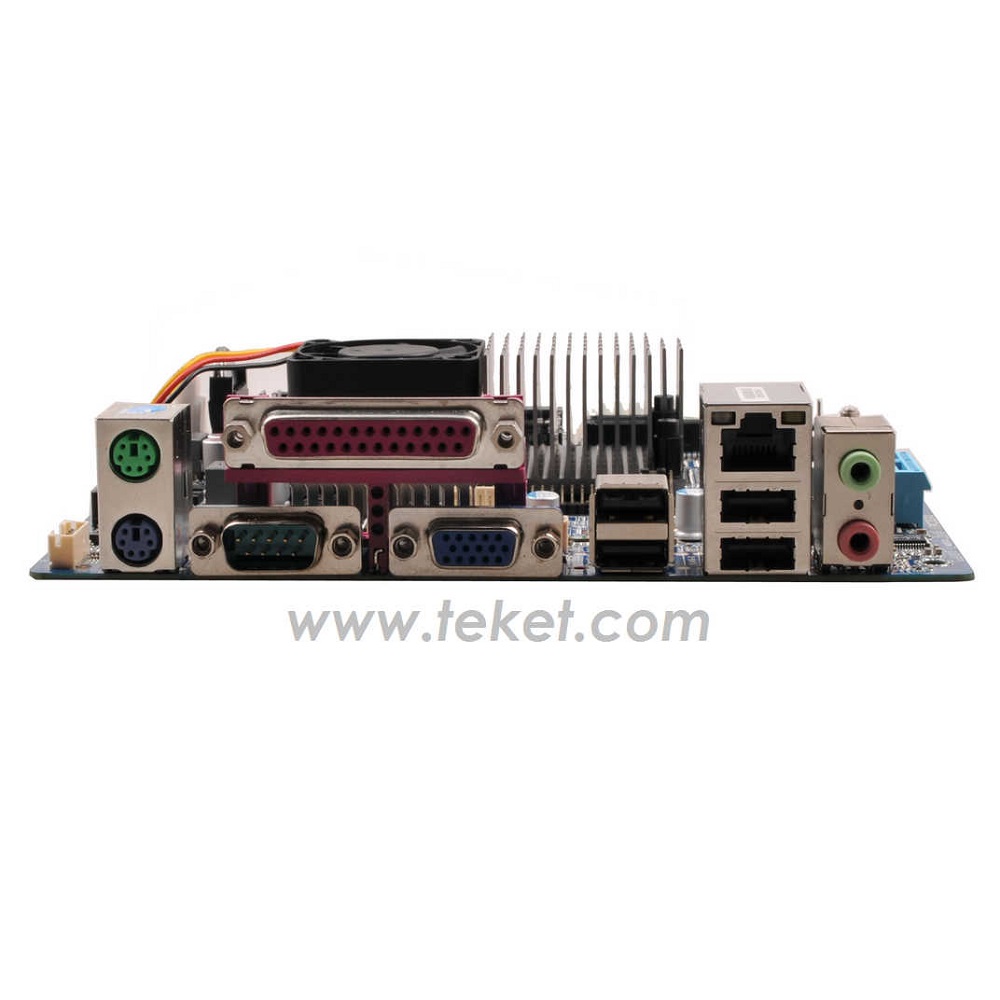

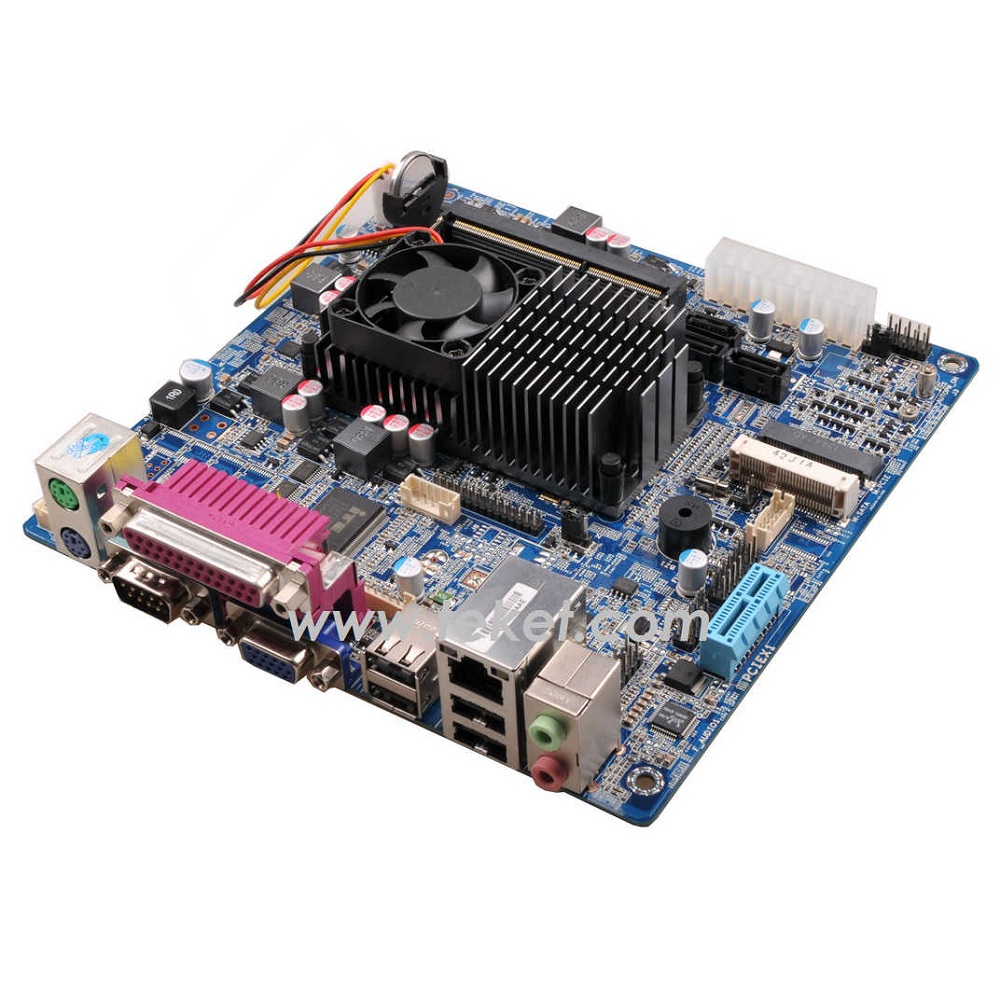

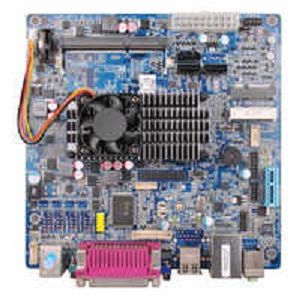

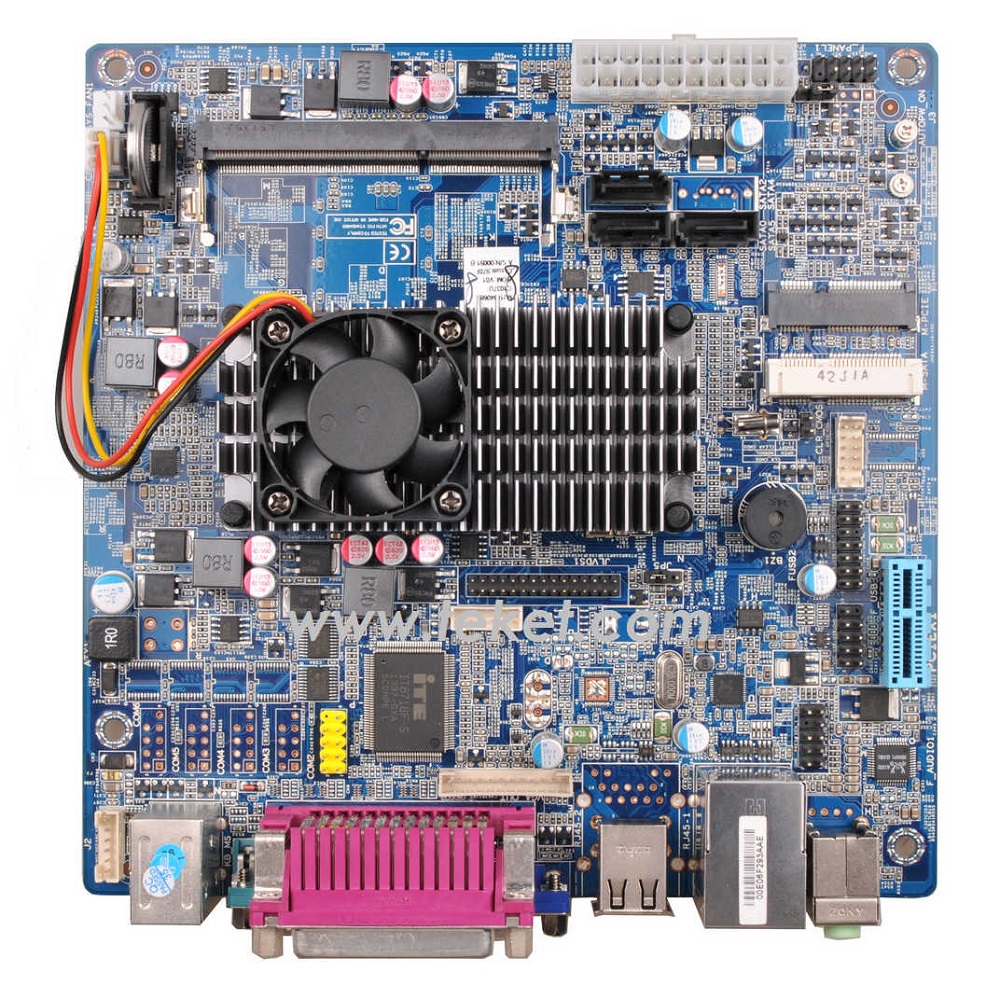

Intel Celeron 1037 1.8Ghz Mini-ITX Motherboard C1037YAE ATX PCIe Slot


Intel Celeron 1037 1.8GHZ,NM70,HD Graphics,2*MINI PCIe,1*LAN,2*COM,LVDS,VGA,PCIe slot


C1037YAE spec:

Intel Celeron 1037 1.8Ghz dual core cpu, NM70 chipset
1*SO DIMM DDR3, support 1066/1333 up to 8G
2*MINI-PCIe, support SSD/WIFI/3G, one for msata, other for wifi as default config
2*RS232 serial ports,all onboard header
1*RTL8111E, network wake up

Realtek ALC662 6 channels audio

Display Intel HD Graphics
1*VGA,
1*MINI PCIe support WIFI/3G
1*MINI PCIe support SSD/WIFI SSD
Realtek ALC662 6CH support MIC Line-out
2*SATAII
1*fan




Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Order Information
1037FM

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
