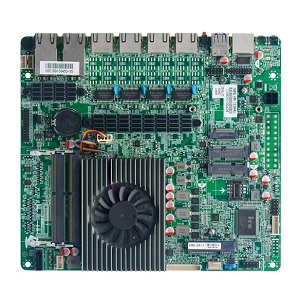

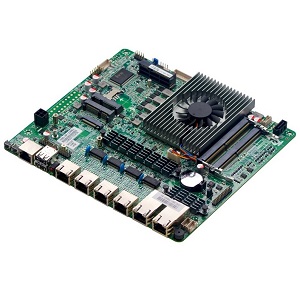

Celeron 3855U Motherboard C3855LS with Intel 6 LAN PORTS and 12V DC IN

6 LAN DC Power
C3855LS VER:1.0
Integrated Intel® Celeron® Processor 3855U 1.6GHz dual core processor
Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor
2*DDR4 SODIMM ,support dual channel 2133MHz memory, up to 32GB
Integrated Intel® HD Graphics 510,Provide 1*VGA
Integrated 6*Intel WGI210AT Gigabit Ethernet ,support wake on LAN/PXE
4*USB2.0,2*USB3.0,2*RS232 serial ports



Provessor
Integrated Intel® Celeron® Processor 3855U 1.6GHz dual core processor,TDP15W
Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor
Chipset
SOC
Memory
2*DDR4 SODIMM memory slot, support dual channel 2133MHz memory, up to 32GB
Display
Integrated Intel® HD Graphics 510,provide 1*VGA display output.
Network
Integrated 6*Intel WGI210AT Gigabit Ethernet ,support wake on LAN/PXE
Integrated 2 group BYPASS function(Optional)
Storage
Provide 1* SATA3.0 HDD interface, the transfer rate up to6Gbps(with 2.5 inch HDD optional)
1* SATA3.0 2.5 inch Notebook HDD interface,can be install HDD directly
Provide 1* M.2 standard slot,support M.2 2242 standard SSD(with MSATA slot optional)
Provide 1* MSATA slot,support Intel protocol ,the transfer rate up to 6Gbps(with M.2 slot optional)
Expansion slots
1* Mini-PCIE slot, supportWIFI、3G module.

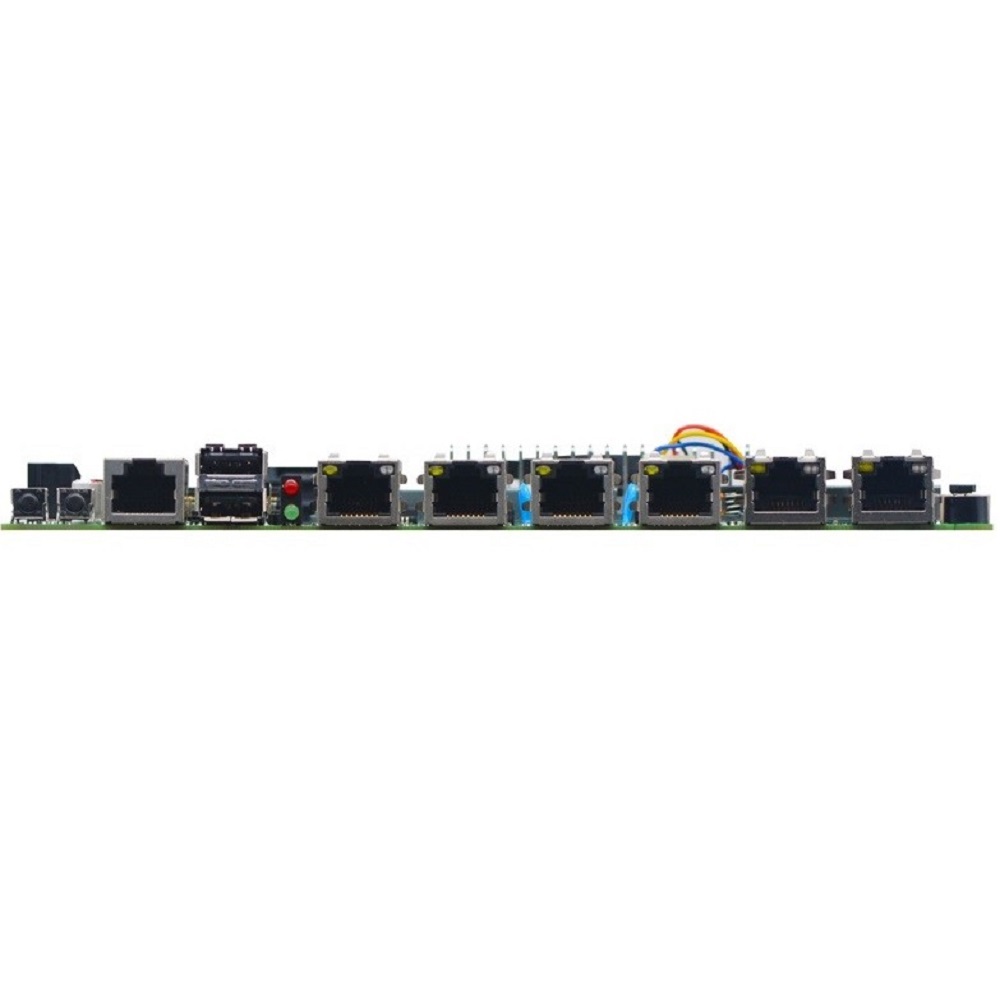

Rear I/O
1* CISCO standard RS232 serial port
2* USB 2.0 ports
6* RJ-45 Gigabit Ethernet ports
1* power switch,1* reset swtich
1* power LED(Green)/HDD LED(Red)
Internal I/O
1* JVGA port 1*12pin
1* Network indicator port 2*13pin
1* RS232 serial port 2*5pin
2* USB2.0 ports 2*5pin
2*USB3.0 ports*10pin
1* front panel function buttons and indicator port 2*5pin
1* PS/2 KB/MS port 1*6pin
1* SIM card socket
1*HDD power supply connector 1*4pin(Use DC power supply have this connector)
1* 4pin ATX power supply connector(use DC power supply have this connector)
1*DC power supply connector,support 12V power input/output(use DC power supply have this connector)
1*2pin blue power element ,support 12V power input/output(use DC power supply have this connector)
1* 20pinATX power supply connector(optional,use ATX power supply have this connector)
FAN interface
1* 4pin CPU fan connector, 1* 4pin system fan connector
GPIO
Support 4 way input/output GPIO
BIOS
64Mb Flash ROM
Watch dog
Support hardware reset function(L256,0~255 second)
Power input
Adopt DC 12V power supply or 20pin ATX power supply
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Operating humidity
5%-95% (relative humidity; non-condensing)
Dimension
200mm x 180mm

Order Information
C3855LS ver1.0 3855U,1.6G,2*SODDR4,1*VGA,6*LAN(Intel WGI210AT),6*USB,2*COM,no BYPASS,12VDC,200mmx180mm
