Intel Atom D2500 Mini-ITX Motherboard D2500CC

Digital Signage
1) Dual-core AtomTM with & without Hyper-Threading
2) DVI-I for full dual-independent display
3) 4 serial ports & headers for multiple peripherals
4) Boards are suitable for other devices; ATM, Kiosk, POS, etc.

http://www.intel.com/content/www/us/en/motherboards/desktop-motherboards/desktop-board-d2500cc.html?wapkw=d2500cc

Intel? Desktop Board D2500CC
Tagged AsIntel? Desktop Board D2500CC

Intel? Desktop Board D2500CC is integrated with the new Intel? Atom? processor D2500 and the Intel? NM10 Express Chipset to offer a PC-like embedded desktop system. The board features a dual 10/100/1000 integrated Intel? LAN, full legacy features with 4 serial ports, and Intel? High Definition Audio (Intel? HD Audio).

The Intel Desktop Board D2500CC features a passive thermal solution which is suitable for low-power embedded usages.

Based on the standard mini-ITX form factor, the Intel Desktop Board D2500CC board is a cost-competitive, entry-level embedded desktop system due to the wide mini-ITX ecosystem support.



Features and configurations
Form factor
Mini-ITX / Micro-ATX compatible (170mm X 170mm)

AA# (Altered Assembly)
BLKD2500CC ¨C G43154-XXX
BLKD2500CCE ¨C G43156-XXX

BIOS ID string
CCCDT10N.86A with Intel Fast Boot Technology

Processor
At product launch, this Intel? Desktop Board D2500CC supports:

Intel? Atom processor D2500 with passive heatsinkView all compatible Intel? processor numbers
Memory
Two SO-DIMM slots for 1066/800 MHz DDR3 single-channel memory
Support for up to 4 GB of system memory
Chipset
Intel? NM10 Express Chipset


Audio
Intel? High Definition Audio (Intel? HD Audio) subsystem in the following configuration:


Eight (6+2) channel Intel? HD Audio
Front panel mic/headphone header (2x5)

LAN support
Dual Integrated Intel? 10/100/1000 network connection

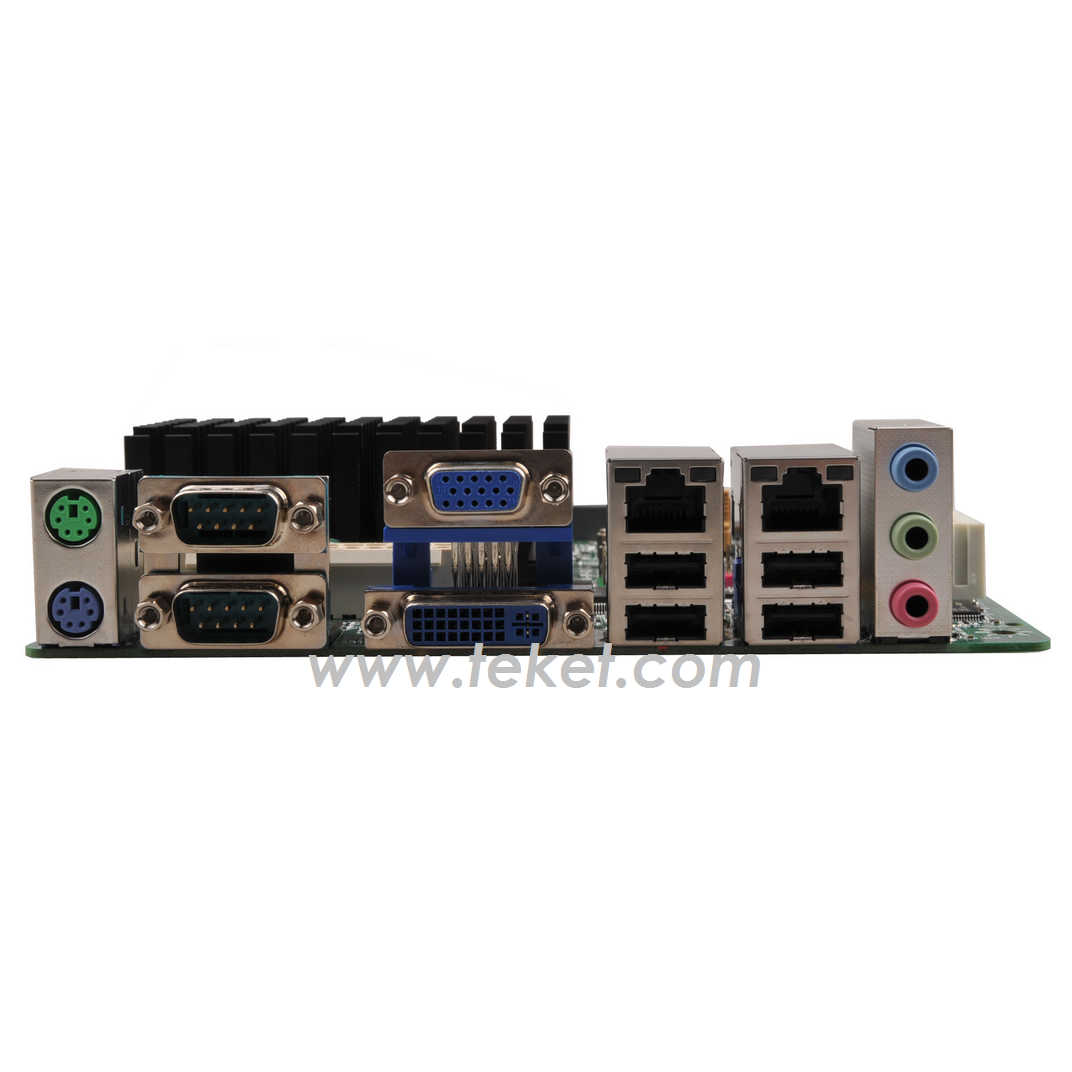

Peripheral interfaces
Four USB 2.0 ports (back panel)
Three USB 2.0 ports (internal)
Two Serial ATA 3.0 Gb/s ports
PS/2 ports (keyboard and mouse)
Two Serial header (internal) & Two Serial ports (back panel)
One Parallel header (internal)

Expansion capabilities
One PCI* Conventional Bus Connector
One PCI Express* Mini Card

Video VGA & DVI-I ports (back panel)
Dual-channel 24-bpp LVDS connector

Warranty 3-year warranty (BOX/BLK)
Standard Warranty Replacement (SWR)

Net Weight: 462g
Inner Packing:
Outer Packing: 462g/pcs, 6.3kgs,10pcs/ctn,625x220x230(mm)
