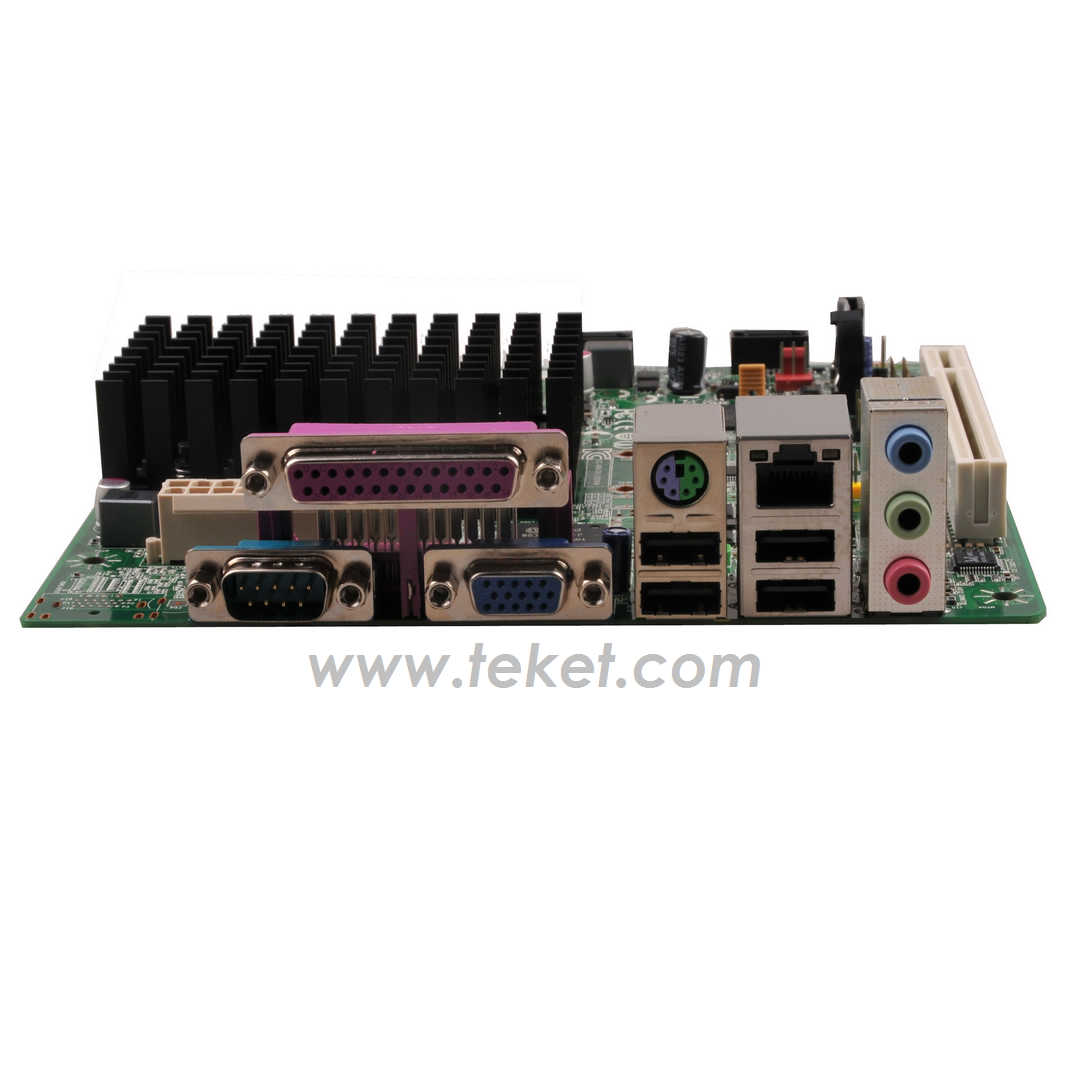

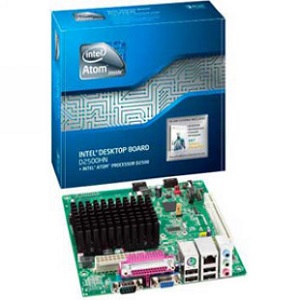

Intel Atom D2500 Mini-ITX Motherboard D2500HN

Entry-Level Desktop
1) Dual-core AtomTM with & without Hyper-Threading
2) Passive thermal solution; 35mm z-height
3) Legacy features for basic computing needs

Intel? Desktop Board D2500HN
Tagged AsIntel? Desktop Board D2500HN, Intel? Atom? Processors, Intel? NM10 Express Chipset

Intel? Desktop Board D2500HN is integrated with the new Intel? Atom? processor D2500 and the Intel? NM10 Express Chipset to offer an entry-level desktop computer system. The board features a 10/100/1000 integrated Intel? LAN, full legacy features, and Intel? High Definition Audio.

The Intel Desktop Board D2500HN is suitable for first-time users who require basic computing needs.

The Intel Desktop Board D2500HN is also suitable for users requiring a second computer system that delivers a basic and yet powerful Internet experience.



Features and configurations
Form factor Mini-ITX / Micro-ATX compatible (170mm x 170mm)
AA# (Altered Assembly) BOX/BLKD2500HN: G34776-XXX

LAD2500HN: G34777-XXX

BIOS ID string MUCDT10N.86A with Intel Fast Boot Technology

Processor At product launch, this Intel? Desktop Board D2500HN supports:

Intel? Atom? processor D2500 with passive heatsinkView all compatible Intel? processor numbers
Memory Two SO-DIMM slots for 1066 MHz DDR3 single-channel memorySupport for up to 4 GB of system memory
Chipset Intel? NM10 Express Chipset
Audio Intel? High Definition Audio (Intel? HD Audio) subsystem in the following configuration:

Four (2+2) channel Intel? HD Audio
Front panel mic/headphone header (2x5)

LAN support
Integrated Intel? 10/100/1000 network connection

Peripheral interfaces
Four USB 2.0 ports (back panel)
Four USB 2.0 ports (internal)
Two Serial ATA 3.0 Gb/s ports
PS/2 port (keyboard or mouse)
One Serial header (internal) and one Serial port (back panel)
One Parallel port (back panel)

Expansion capabilities
One PCI* Conventional Bus ConnectorLAD2500HN:

One PCI Express* Mini Card

Video VGA port

Warranty 3-year warranty (BOX/BLK)
Standard Warranty Replacement (SWR)

Packing information: 5.8kgs,10pcs/ctn, 620*213*235mm
