>>Your Current Position: Intel Motherboard

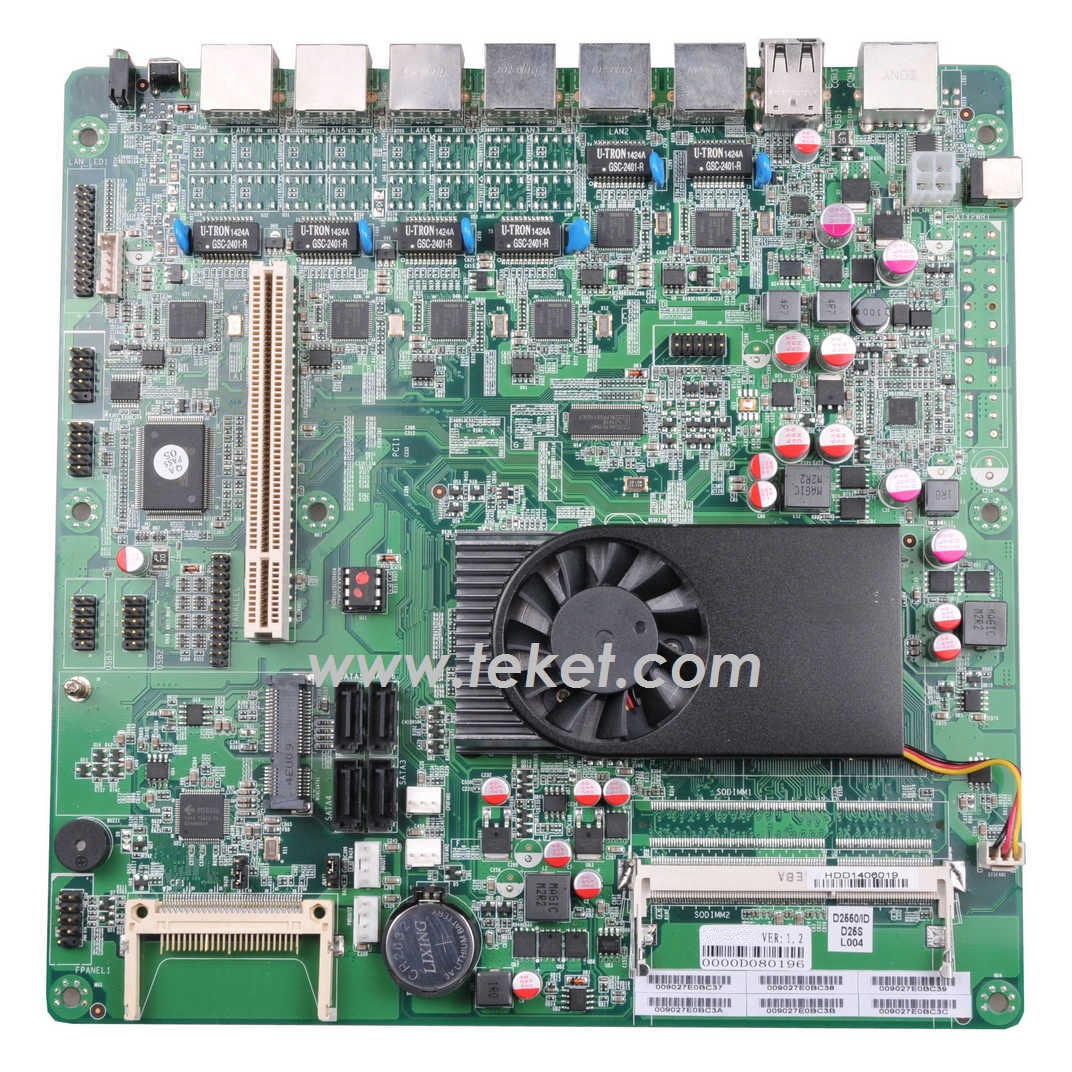

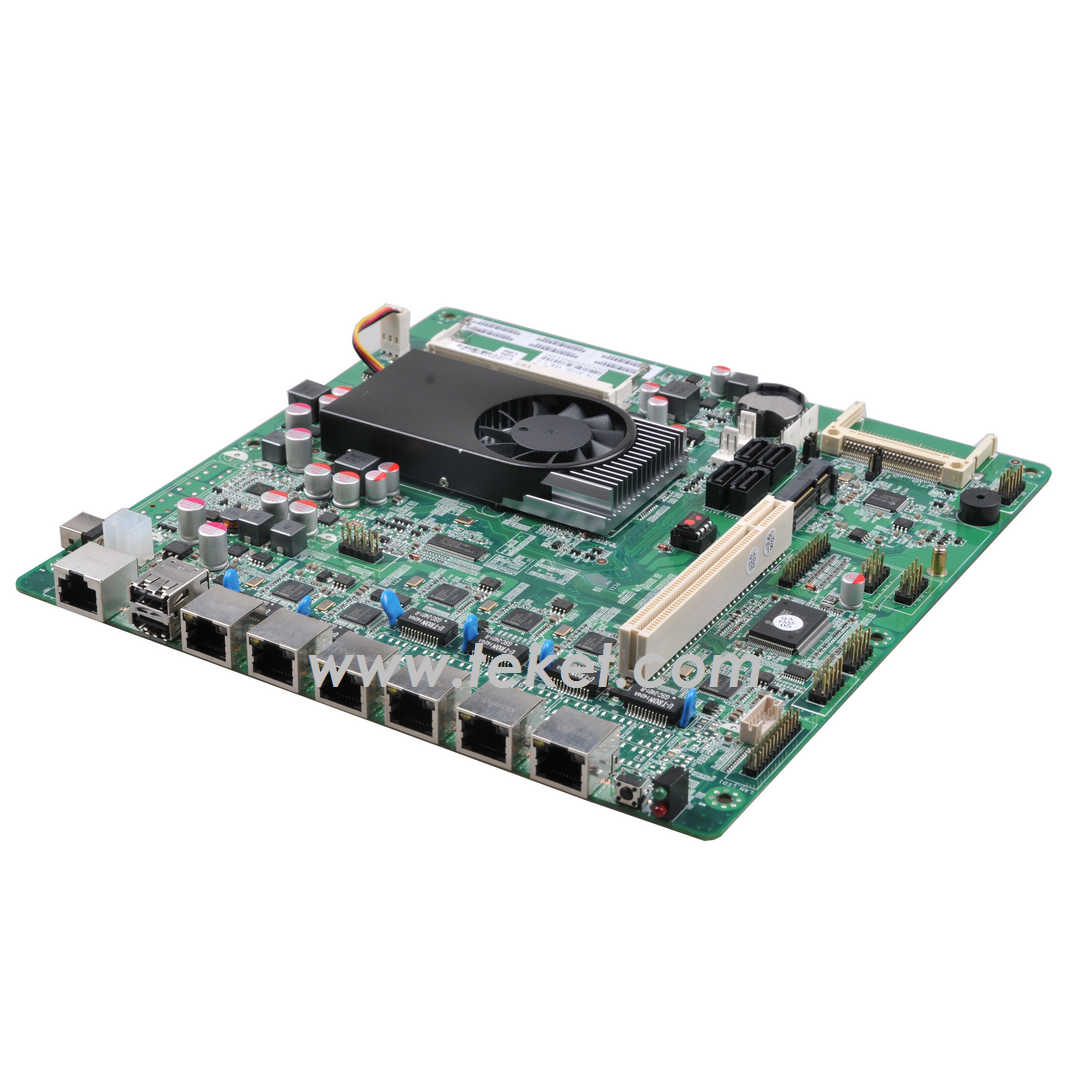

Atom D2550 Motherboard D2550LS with Intel 6 LAN PORTS and 12V DC IN

D2550,GMA3600,6*Intel 82583V,mini-pcie,msata,52p cf,1*com,1*vga,2*usb,220x220mm

Firewall, Gateway, Network Security ROS,Hi-Spider Router
ATOM D2550 6 LAN Gigabit Ethernet BYPASS, Network Security ROS

Intel® Atom D2550 dual-core processor 1.86GHz
Intel® ICH10R Chipset
Intel® GMA3650 Graphics
1* SO DIMM DDRIII 1066/800MHz, Max. up to 4GB
1* MSATA (support SSD/USB WIFI)
4*SATAII 1* CF
6*Intel® 82583V 10/100/1000Mbps Ethernet
Support Wake-on-LAN and PXE function

CPU Intel® Atom D2550 dual-core Processor(1.86GHz)
Chipset Intel® ICH10R Chipset
Memory 1* SO DDR3 800/1066MHz, Max. up to 4GB
Graphics Intel® GMA3600 Graphics,support VGA display output
Expansion Slots 1* MSATA, support SSD/USB WIFI
1* PCI
LAN 6* Intel® 82583V 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function.
LAN1~4 supports 2 groups of BYPASS function.
Storage 4* SATAⅡ 3Gb/s
1* CF card

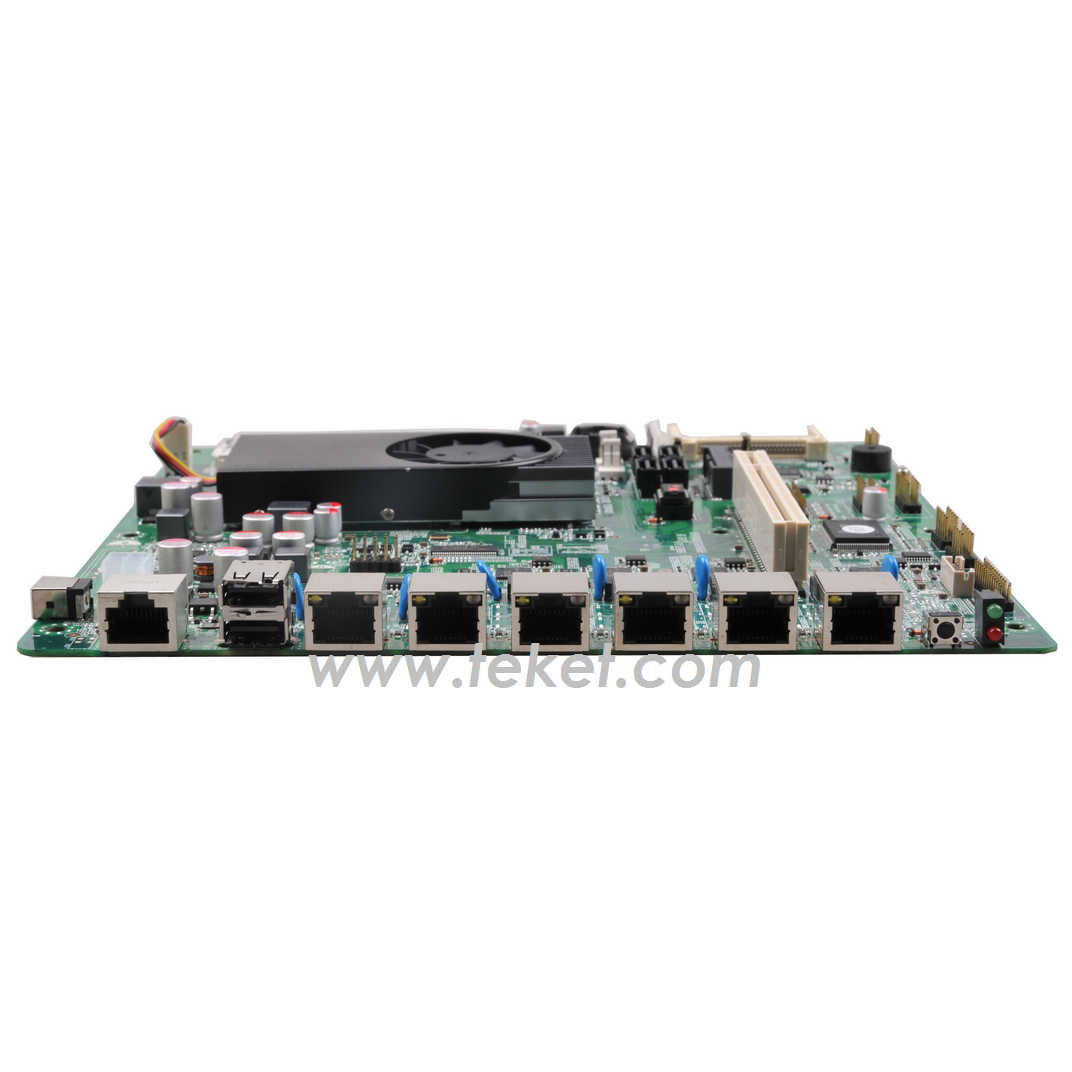

Rear I/O 1* COM(CISCO standard interface)
2* USB 2.0
6* RJ-45 LAN
1* POWER
1* LED1(POWERLED/HDDLED)
1* 12V DC_JACK input
Internal I/O 1* JVGA 2*5pin
1* LAN_LED 2*13pin
1* LPT
4* USB 2.0
1* RS232
1* FP1 (2*5pin Front panel buttons and LED connected)
1* PS/2
1* ATX_12V (Can be used as input and output 12V power connector)
2* PWROUT (Hard drive power connector)
Fun interface 1* CPUFAN、2* SYSFAN(3pin)
GPIO 1* GPIO (Support 4-way GPIO function)
BIOS AMI 16MB DPI Flash ROM
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power Input DC12V Single power supply
Operating Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 0%-95%(relative humidity; non-condensing)
Dimension 220mm x 220mm
