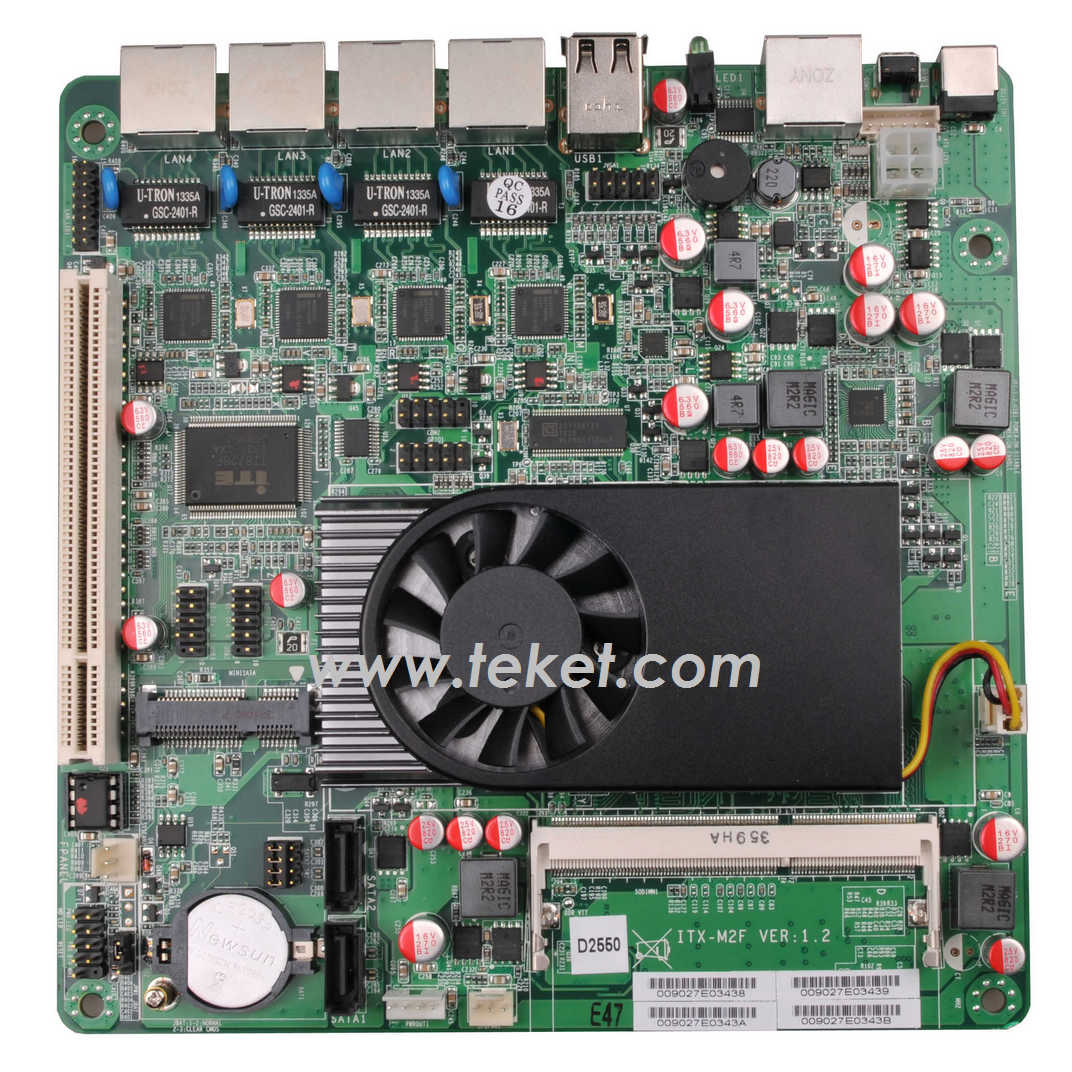

Atom D2550 Mini-ITX Motherboard D2550MF with Intel 4 LAN PORTS and 12V DC IN

Intel® Atom D2550 dual-core processor 1.86GHz
Intel® NM10 Chipset
Intel® GMA3650 Graphics
1* SO DIMM DDRIII 1066/800MHz, Max. up to 4GB
1* MSATA (support SSD/USB WIFI)
2*SATAII (SATA2 SSD with a second election)
4*Intel® 82583V 10/100/1000Mbps Ethernet
Support Wake-on-LAN and PXE function



CPU Intel® Atom D2550 dual-core Processor(1.86GHz)
Chipset Intel® NM10 Chipset
Memory 1* SO DDRIII 1066/800MHz, Max. up to 4GB
Graphics Intel® GMA3600 Graphics,support VGA display output
Expansion Slots 1* PCI
1* MSATA(support SSD/USB WIFI)
LAN 4* Intel® 82583V 10/100/1000Mbps Ethernet
Support Wake-on-LAN function
Storage 2* SATAII(SATA2 and SSD with a second election)

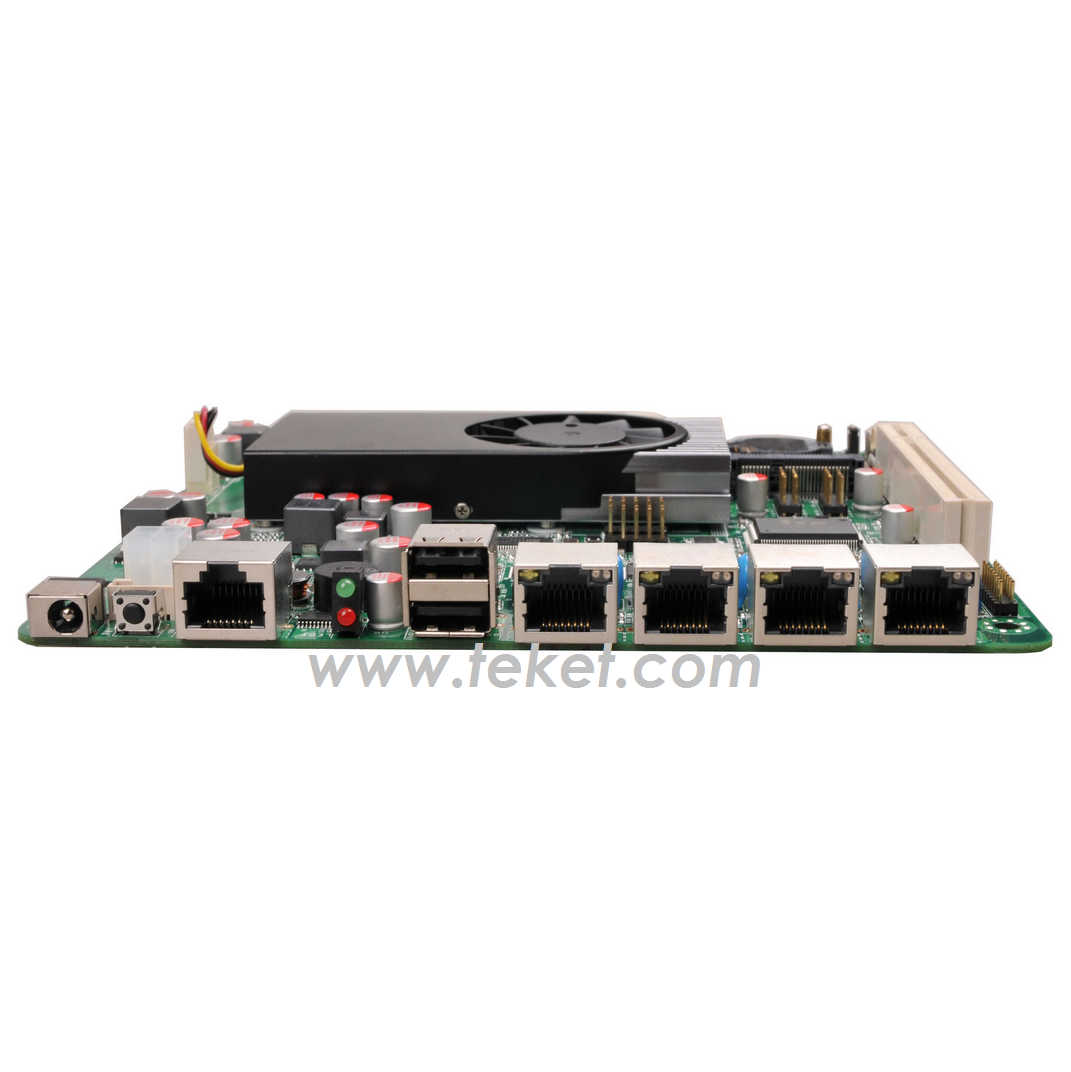

Rear I/O 1* 12V DC_JACK input
1* POWER
1* COM(CISCO standard interface)
1* LED1(POWERLED/HDDLED)
2* USB 2.0
4* RJ-45 LAN
Internal I/O 1* JVGA 2*5pin
1* LAN_LED 2*8pin
4* USB 2.0
1* COM
1* FP1 (2*5pin Front panel buttons and LED connected)
1* KB2 6pin
1* ATX_12V (Can be used as input and output 12V power connector)
1* PWROUT (Hard drive power connector)
Fun interface 1* CPUFAN、2* SYSFAN 3pin
GPIO 1* GPIO (Support 4-way GPIO function)
BIOS AMI 16MB DPI Flash ROM
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power Input DC_12V Single power supply
Operating Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 0%-95%(relative humidity; non-condensing)
Dimension 170mm x 170mm
