>>Your Current Position: Intel Motherboard

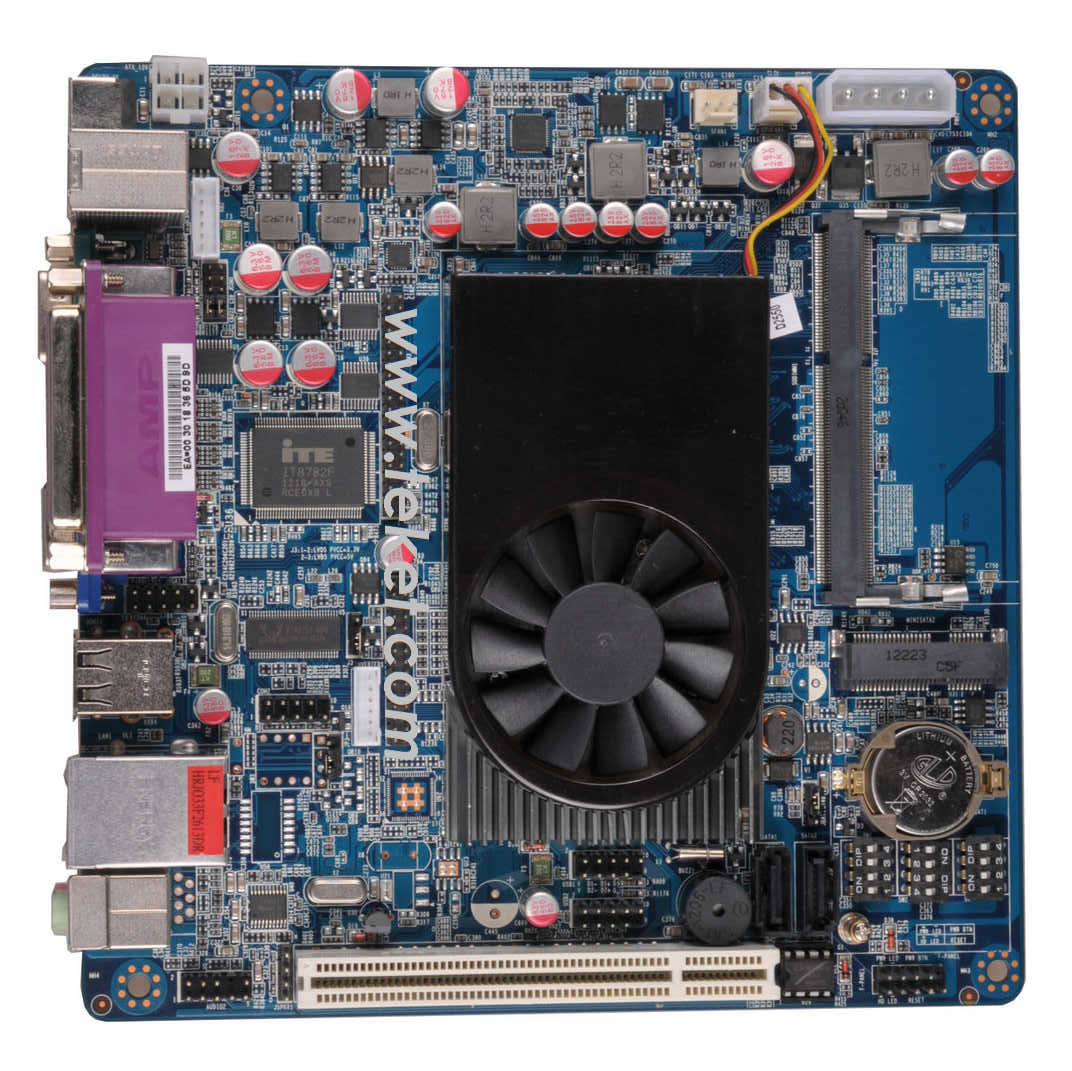

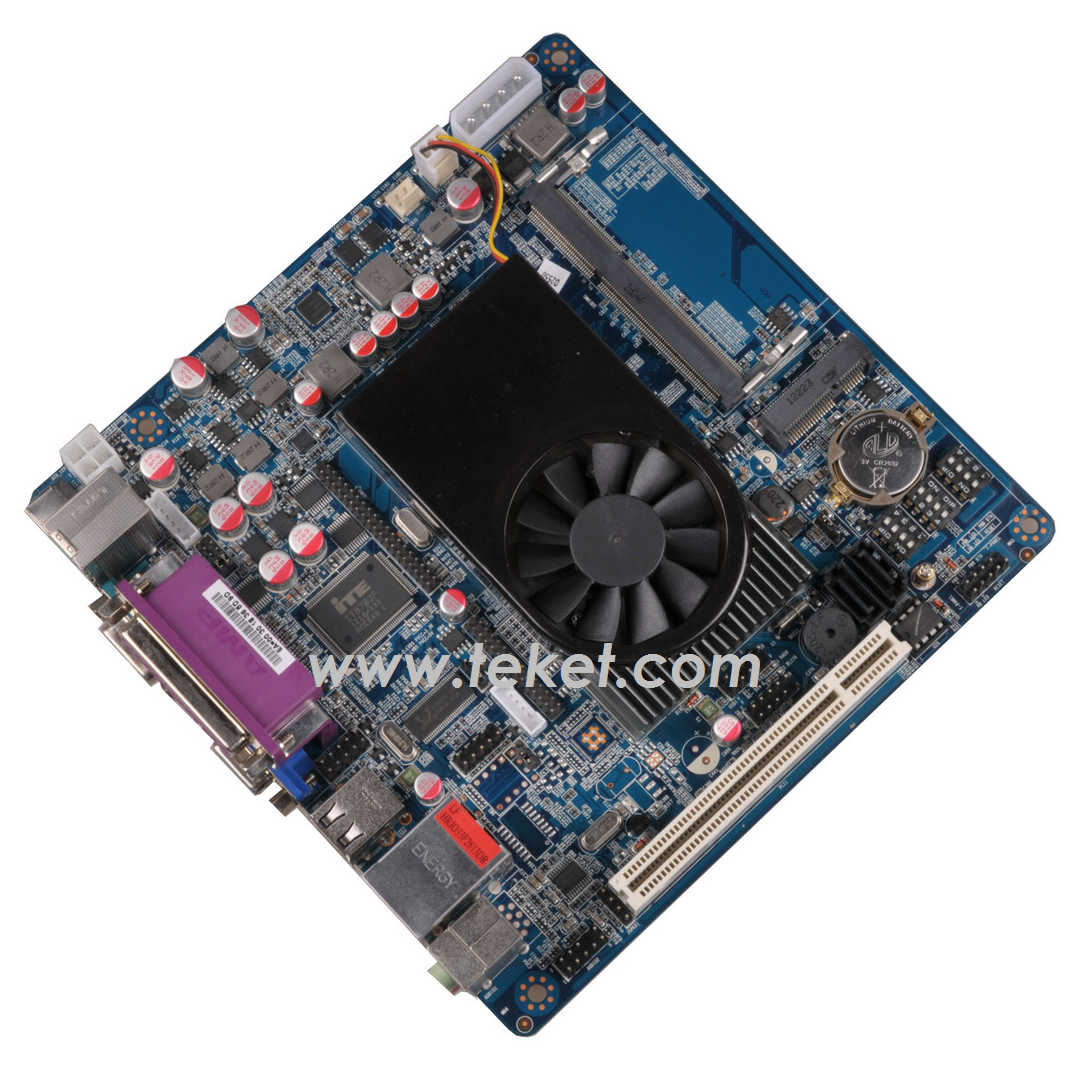

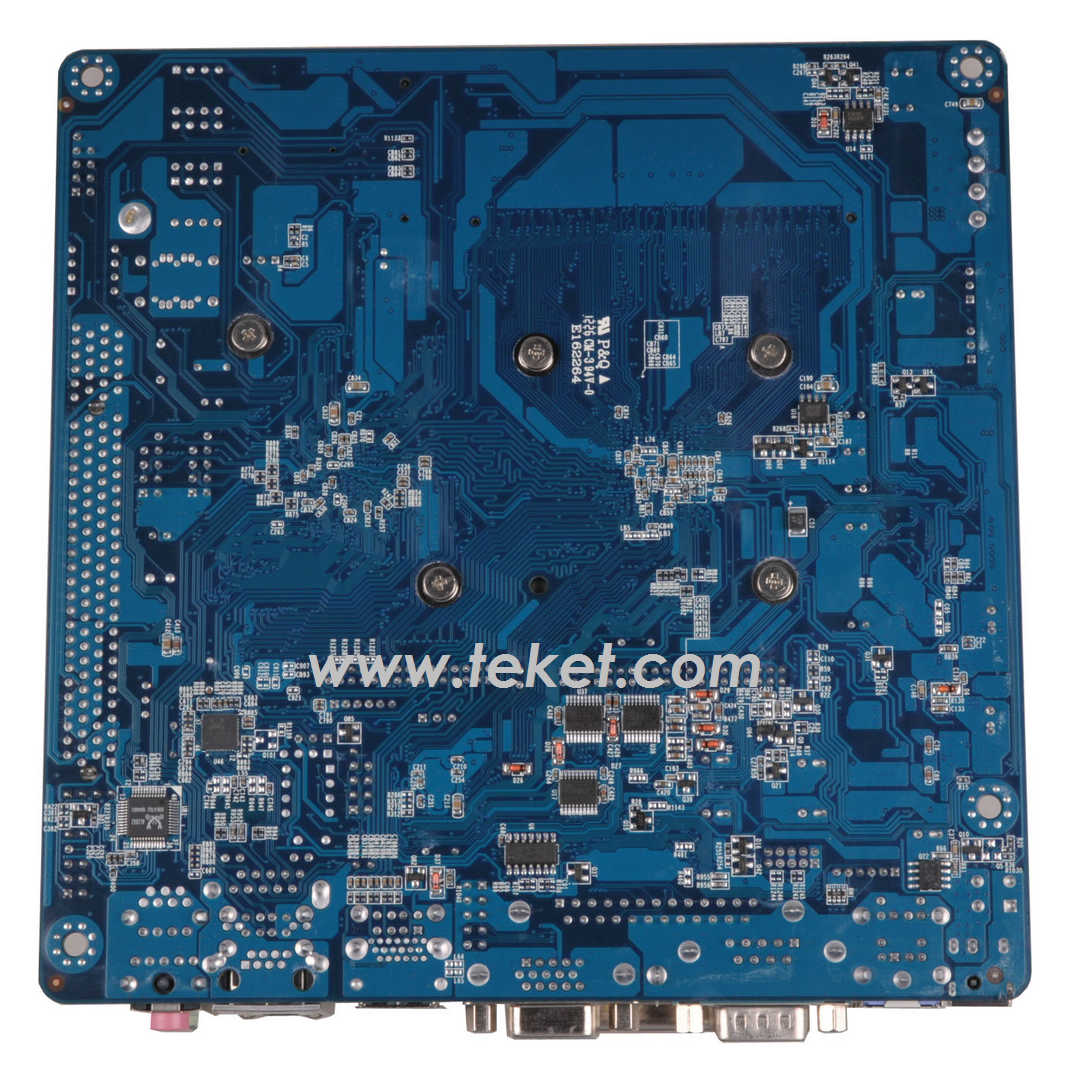

Atom D2550 Mini-ITX Motherboard D2550MH 1 or 2 LAN 2 or 6 COM with 12VDC or ATX

Supprot Intel® Cedar Trail-D/M Processor
Adopt Intel® NM10 Express chipset.
1* DDR3 SODIMM memory slot, support800/1066MHz memory, up to4GB.
Integrated Intel® GMA3600 Graphics
Provide 1*VGA,1*LVDS (support single channel 24BIT)
2* RJ-45 Gigabit Ethernet connector or1*RJ-45 Gigabit Ethernet
6*RS232,8*USB2.0,1*LPT

CPU
Supprot Intel® Cedar Trail-D/M Processor(For more details,please refer to the ordering information).
Chipset
Adopt Intel® NM10 Express chipset.
Memory
1* DDR3 SODIMM memory slot, support800/1066MHz memory, up to4GB.
Graphics
Integrated Intel® GMA3600 Graphics
Provide 1*VGA,1*LVDS (support single channel 24BIT)
Support VFA/LVDS synchronous/asynchronous display
LAN
2* RTL8111E(F) Gigabit Ethernet or1*RTL8105E Fast Ethernet(Optional),
Support wake on LAN/PXE( For more details,please refer to the ordering information).
Storage
Provide 2* SATA2.0 HDD interface,the transfer rate up to 3Gbps.
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out.
Expansion slots
Provide 1* PCI slot,
1* Mini-PCIE slot, support WIFI、USB WIFI,
1* MSATA slot, support SSD,the transfer rate up to 3Gbps
Note: MASTA andSATA2 two choose one, by SATA2_SW2 set up
Rear I/O
1* 12V DC JACK power input interface
1* PS/2 KB/MS connector
4* USB2.0
2* RJ-45 Gigabit Ethernet connector or1*RJ-45 Gigabit Ethernet(Support Fast Ethernet ,please refer to the ordering information)
1* double standard audio interface (support MIC、Line out)
1* LPT
1* VGA
1* RS232 serial port( the 9th pin support5V/12V charged function)
Internal I/O
2* HDD power supply connector
4* USB2.0
5* RS232 serial port(the 9th support5V/12V charged function)
1* front panel audio connector2*5pin
1* single24Bit LVDS interface
1* backlight power supply connector
1* front panel function buttons and indicator connector 2*5pin
1* JVGA1 2*5pin, same signal with DB15
1* 4pin ATX 12V power interface
FAN interface
1* 3pin CPU fan interface, 1*3pin system fan interface
BIOS
16Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt DC 12V power supply
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
170mm x 170mm


Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Ordering information
D2550MH-D16 ver1.5A,D2550/1.86G,1*SODDR3,1*VGA,1*LAN(RTL8015E),8*USB,6*COM,no RS485/422,DC12V
D2550MH-D26 ver1.5A,D2550/1.86G,1*SODDR3,1*VGA,2*LAN(RTL8111E),8*USB,6*COM,no RS485/422,DC12V
N2600MH-D12 ver1.5A,N2600/1.60G,1*SODDR3,1*VGA,1*LAN(RTL8015E),8*USB,2*COM,no RS485/422,DC12V
N2800MH-D16 ver1.5A,N2800/1.86G,1*SODDR3,1*VGA,1*LAN(RTL8015E),8*USB,6*COM,no RS485/422,DC12V


Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
