Intel Atom D2550 All-in-One Slim Mini-ITX Motherboard D2550MT with 12VDC


All-In-One
1) Dual-core AtomTM with Hyper-Threading

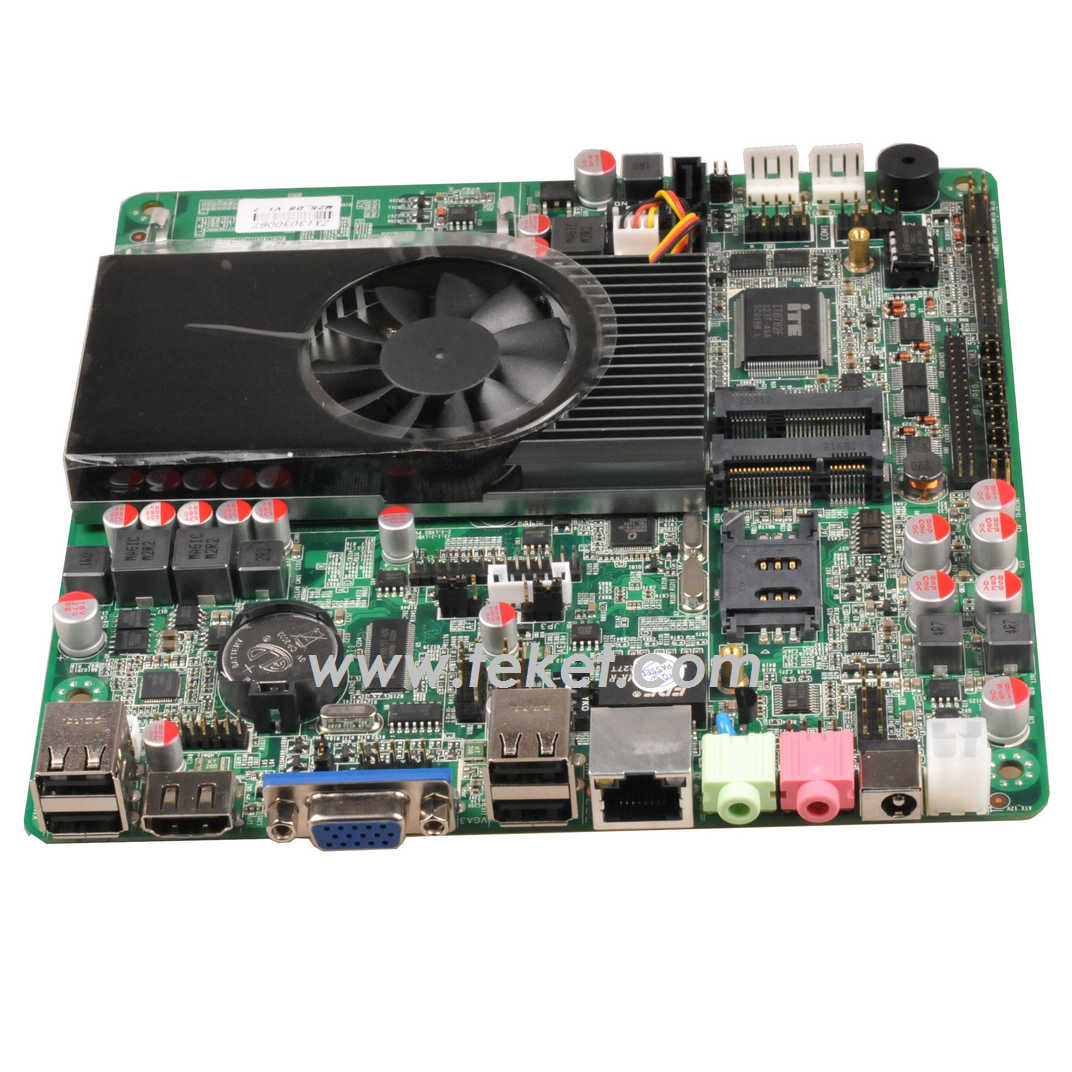

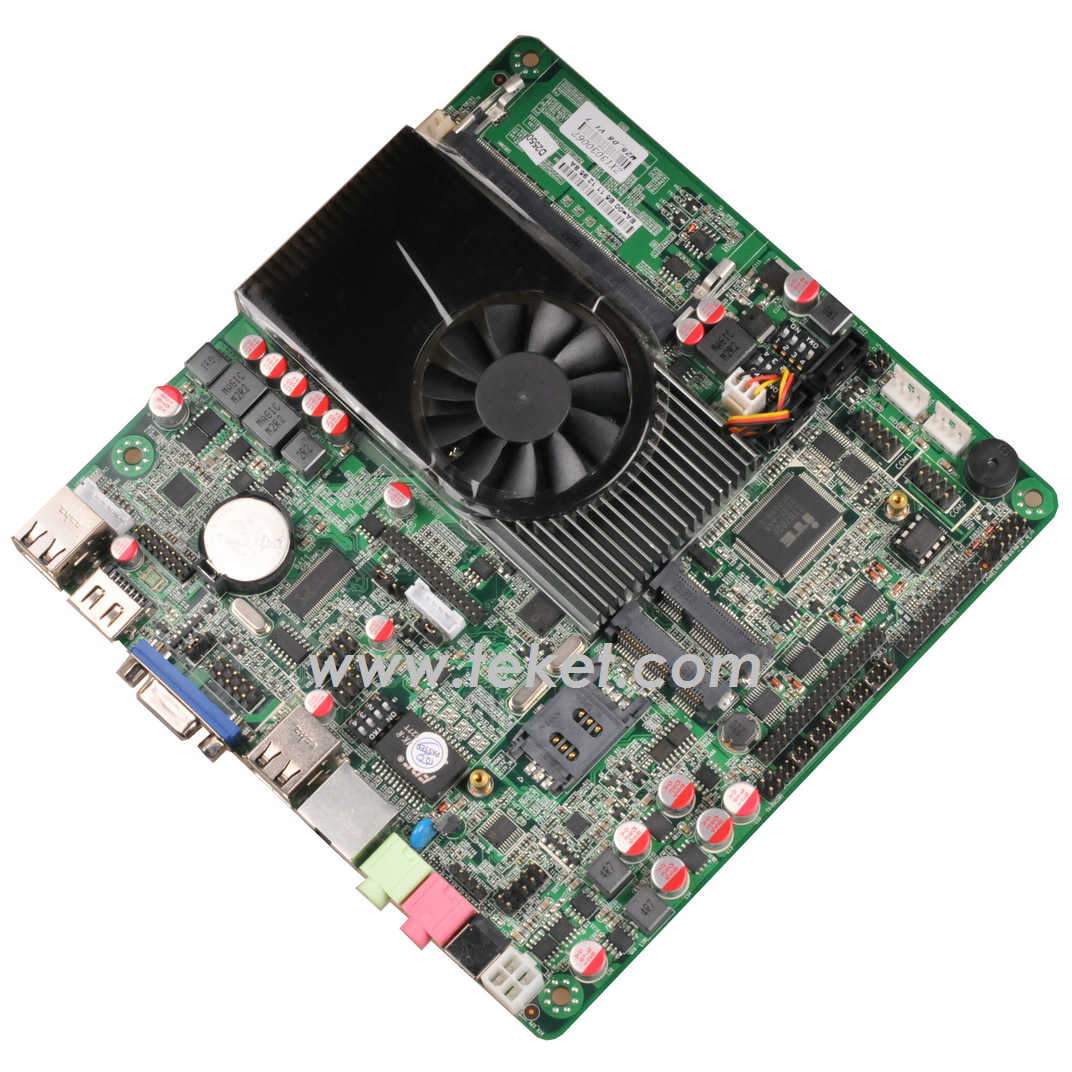

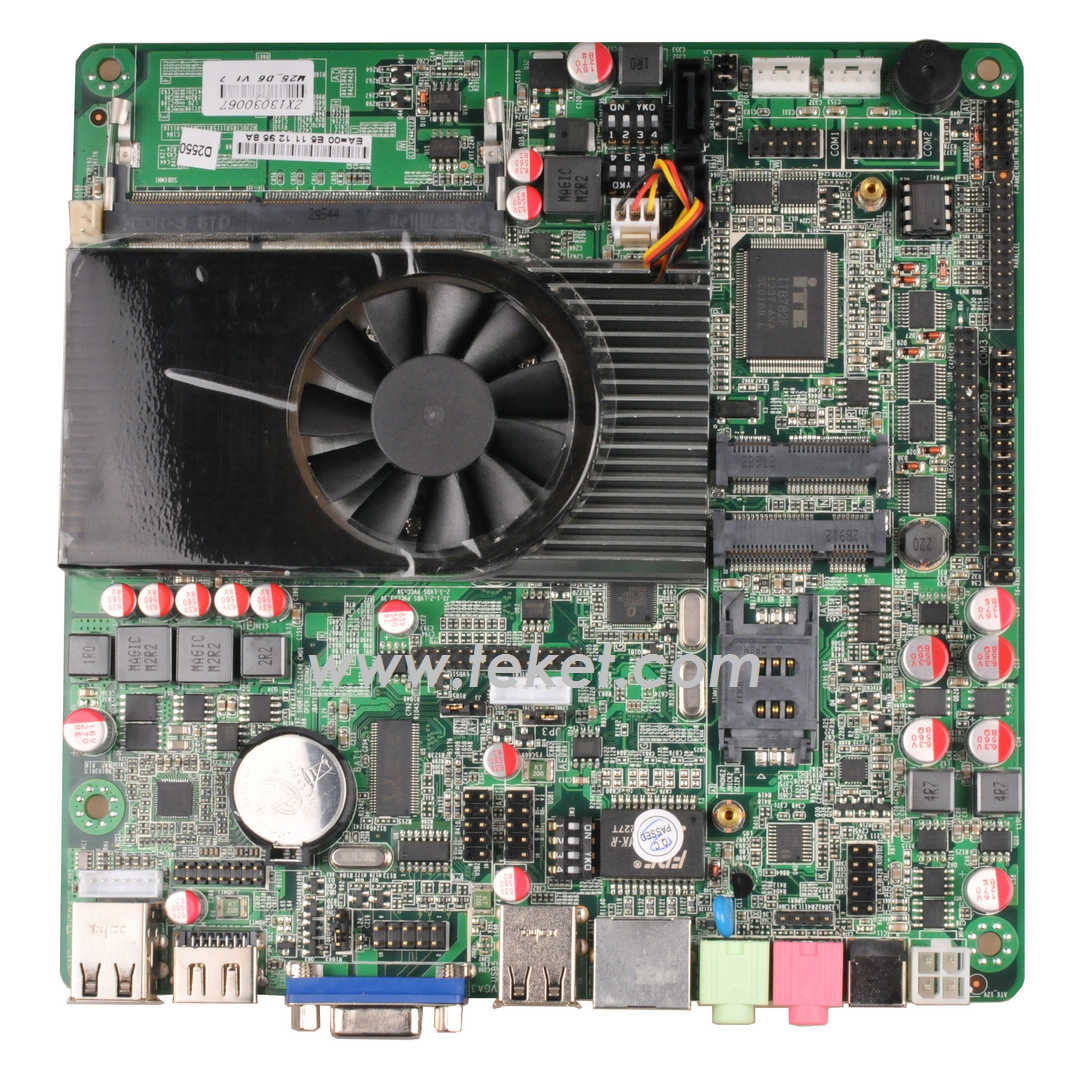

2) Slim form factor; <30mm z-height (fanless), <20mm (fan)
3) Meets channel All-In-One specification




Intel® Atom D2550 dual-core processor 1.86GHz
Intel® NM10 Chipset
Intel® GMA3650 Graphics
1* SO DIMM DDRIII 1066/800MHz, Max. up to 4GB
1* MSATA (support SSD 3Gbps/USB WIFI)
2*SATAII (SATA2 SSD with a second election)
1* RTL8111E Ethernet
Support Wake-on-LAN and PXE function
2* COM, the 9th pin supports +5V/+12V charged function
Mini ITX Form Factor(17cmx17cm)

CPU Intel Atom Dual core D2550 Processor (1.86GHz)
Chipset Intel NM10 Chipset
Memory 1* SO DDRIII 1333/1066MHz, Max. Up to 4GB
Graphics Intel GMA3600 Graphics, support 1080P HD
support VGA/HDI/LVDS display output, LVDS supports single 24BIT
Expansion Slots 1* Mini-PCIE, support WIFI/3G
LAN 1* RTL8111E 10/100/1000Mbps Ethernet,Support Wake-on-LAN and PXE function
Storage 2* SATAII,SATA2 and SSD with a second election, jumper control function swap
1* MSATA, support SSD/WIFI
Audio Integrated Realtek HD ALC662 for 6-Channel output
Support MIC/Line-out/Line-in

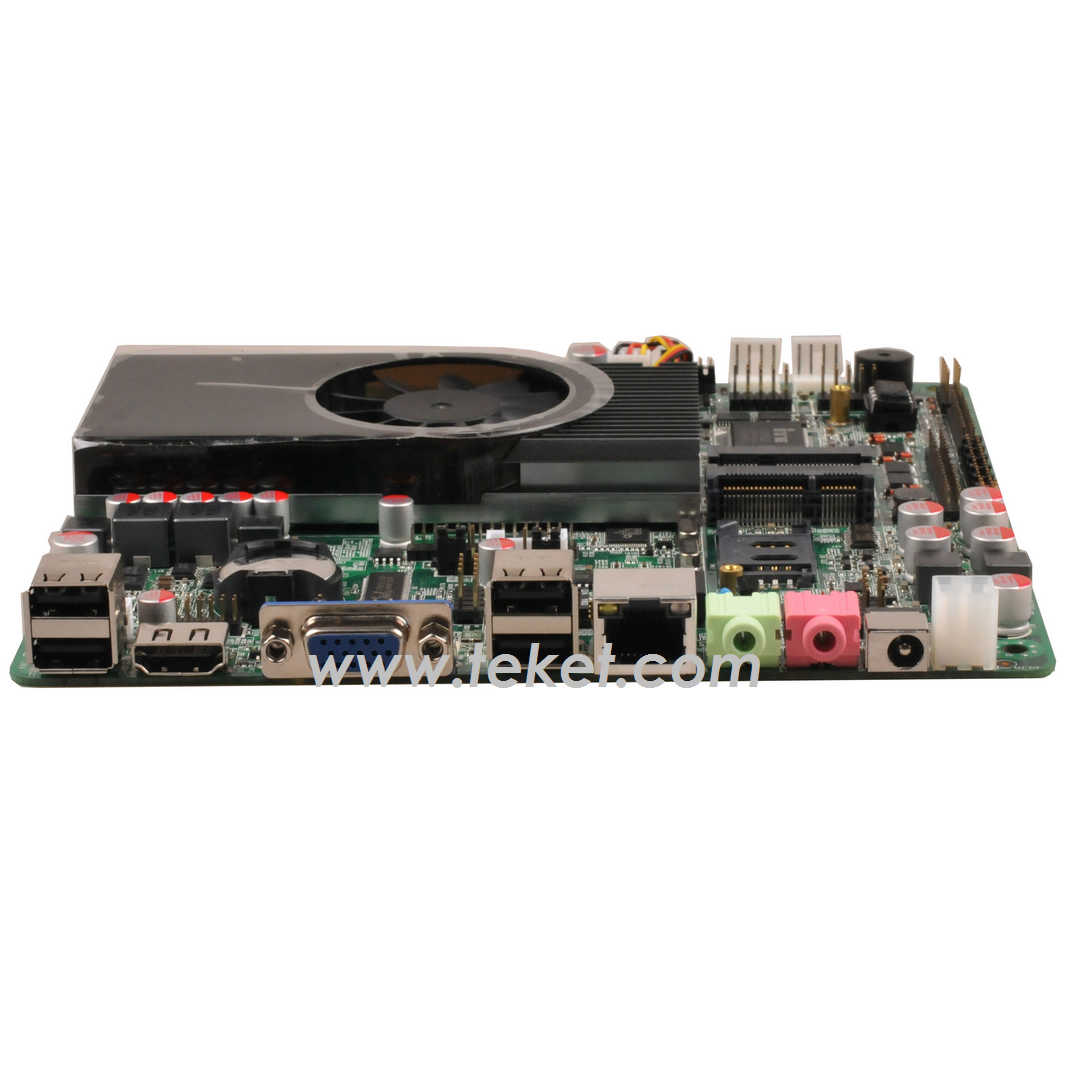

Rear I/O 4* USB 2.0
1* HDI
1* VGA
1* RJ-45 LAN
1* Line Out(green)
1* Mic(red)
1* 12V DC_JACK input
Internal I/O 1* LVDS(2*15pin single 24bit)
1* JVGA (2*5pin)
1* JHDI(2*8pin)
1* LPT
2* COM
4* USB 2.0(If the Mini-PCIE is a USB signal, supports 2 USB)
1* KB/MS
1* AUDIO pin (Front Audio interface 2*5pin)
1* CD_IN pin Amplifier interface
1* FP1 (2*5pin Front panel buttons and LED connected)
1* LVDS INVERTER
1* ATX_12V (Can be used as input and output 12V power connector)
1* SIM
Fun interface 1* CPUFAN and SYSFAN(3pin)
BIOS AMI 16MB Flash ROM
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power Input DC_12VSingle power supply
Operating Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 0%-95%(relative humidity; non-condensing)
Dimension 170mm x 170mm

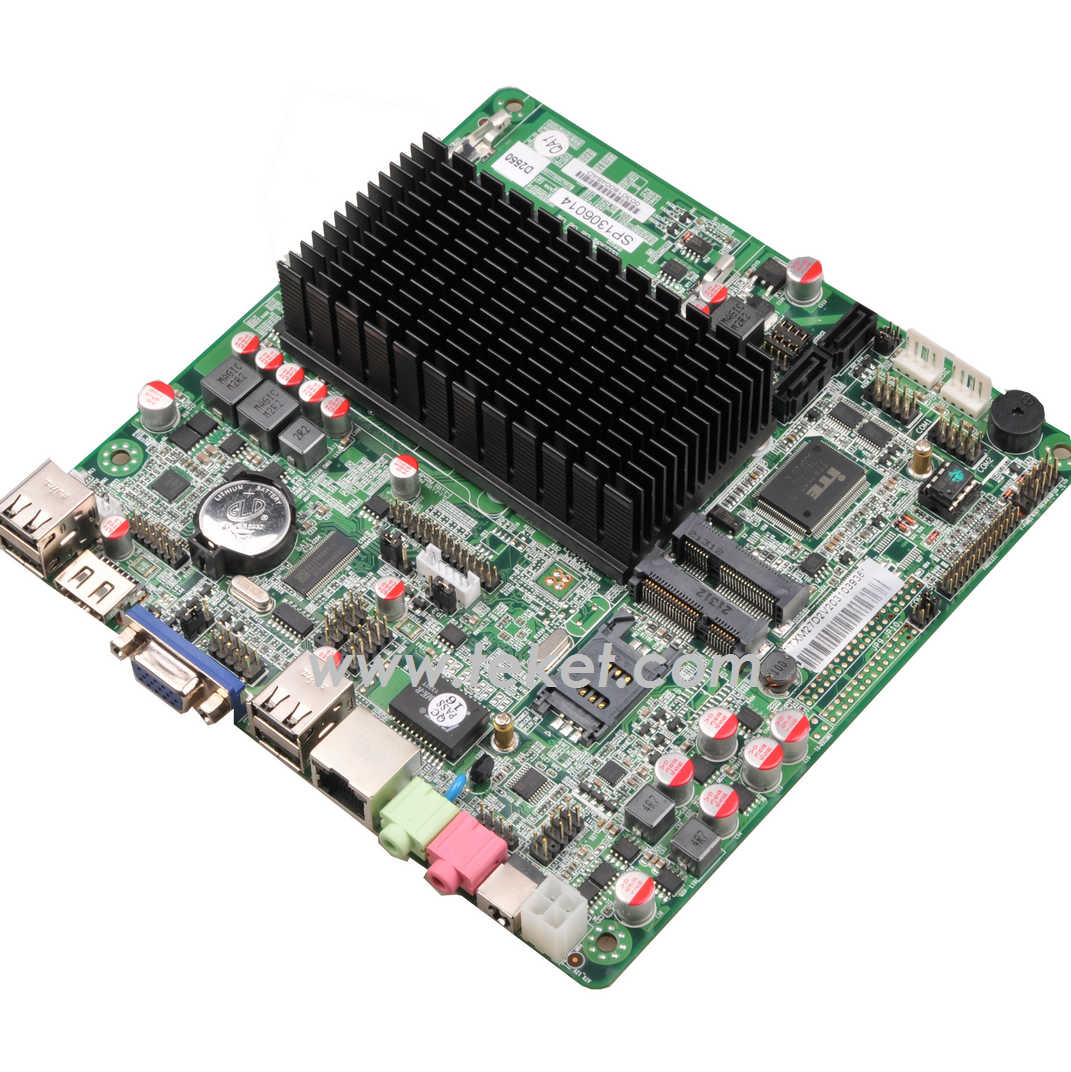

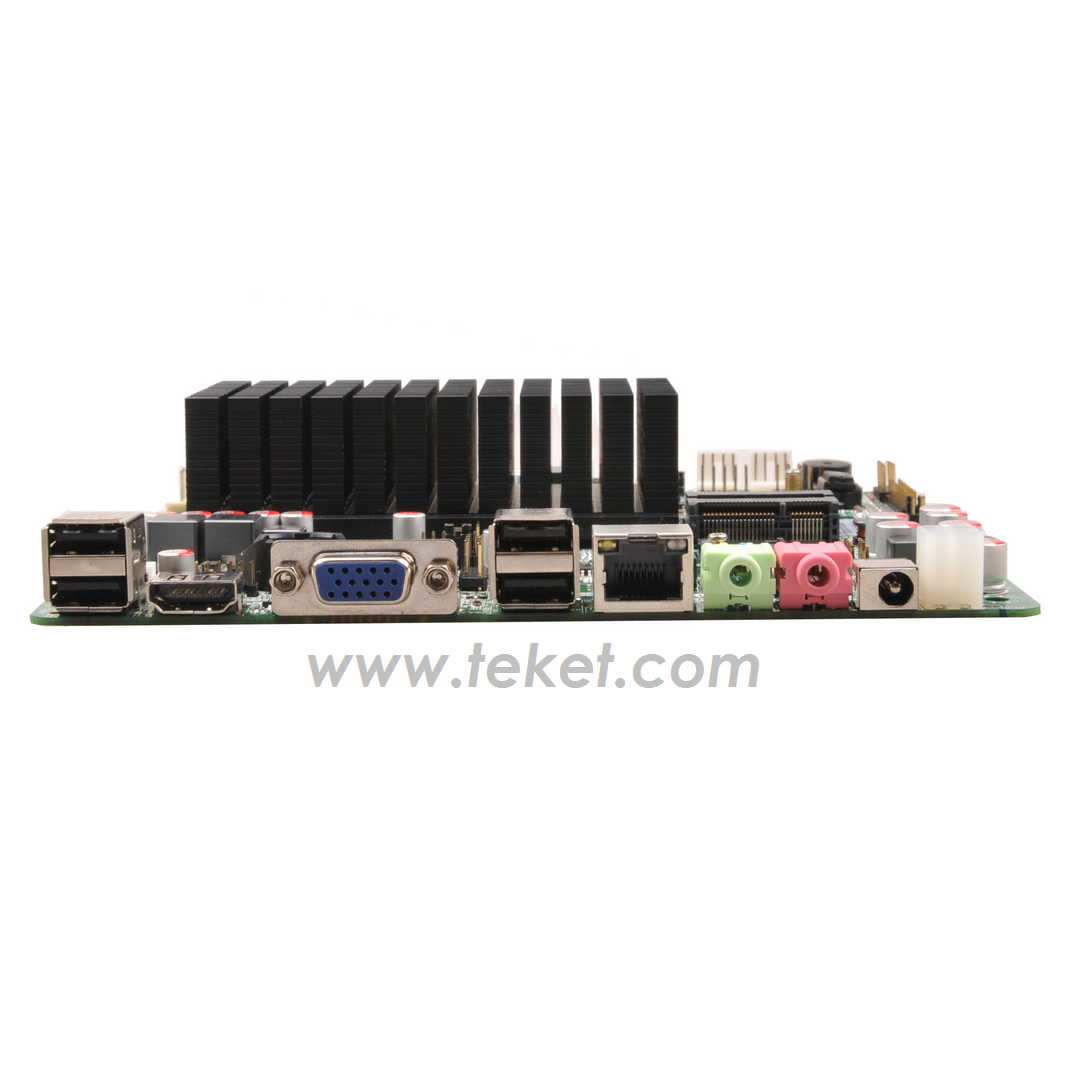

We also can provide D2550MT fanless version, the Z-height 30mm

D2550MT-D12: D2550/1.86Ghz,GMA3650,1*LAN(8111E),ALC662,Single/24bitLVDS,8*USB,2*COM,no RS485/422,DC12V

Model Name Definition: A is for atx power supply, D is for DC input, Digital string 12 is 1*LAN port and 2*COM ports.

Net Weight: 510g
Inner Packing:
Outer Packing: 6.0kg,10pcs/ctn,450x215x230(mm)
