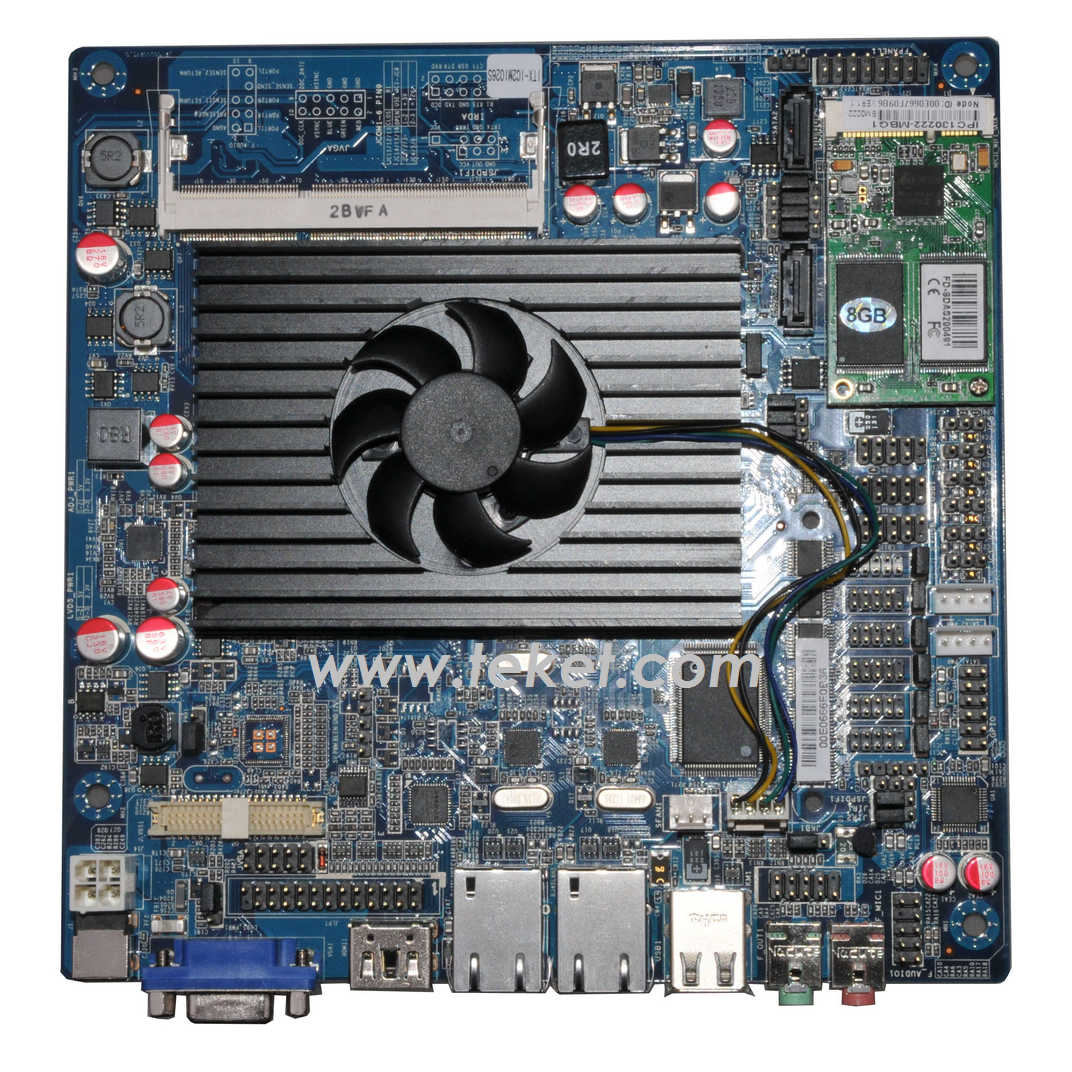

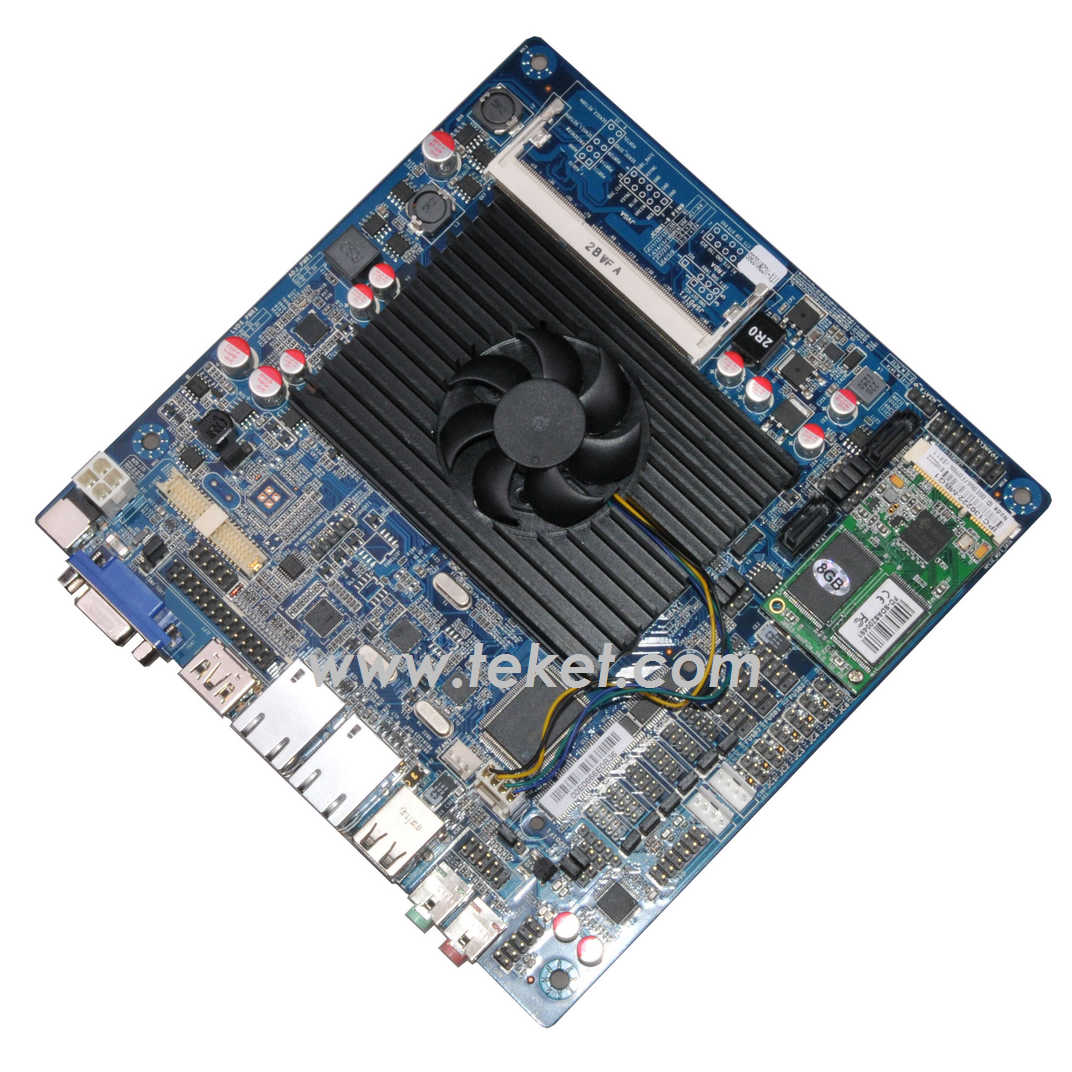

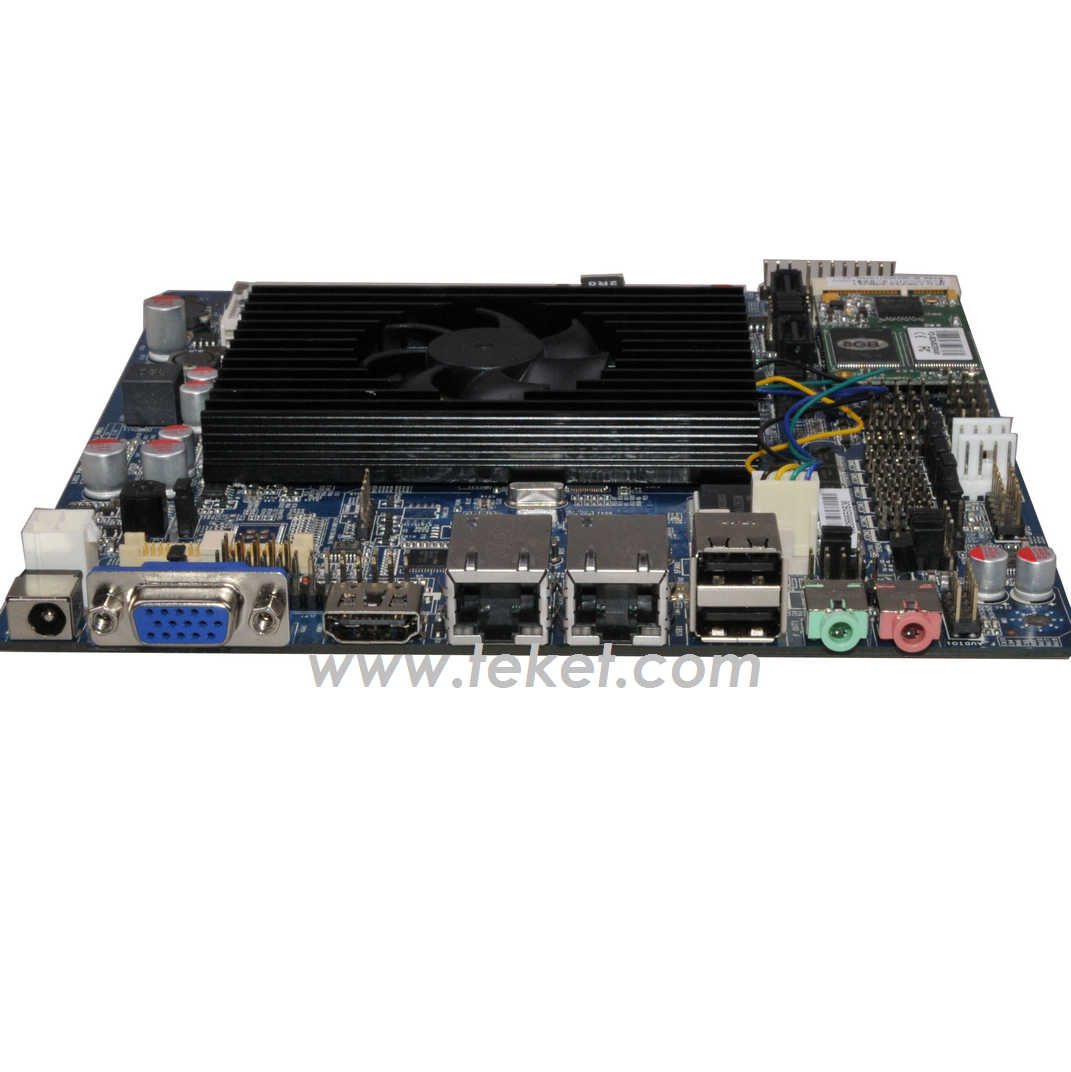

Thin All-In-One(AIO) Dual Lan Mini-ITX Motherboard D2550SL with 12VDC

hin All-In-One(AIO) Dual Lan Mini-ITX Motherboard D2550SL with 12VDC

Intel® Atom™ Dual-Core D2550 Processor (1M Cache, 1.86GHz)
Intel® NM10 Chipset
1 x DDR3 1066/1333MHz SO-DIMM Support 4GB MAX
VGA, HDMI, Single(or Dual)-channel 18/ 24-bit LVDS
2 x Realtek RTL8111E PCIe Gigabit Ethernet
1 x Mini PCI-E(WIFI/SSD)
2 SATA 2.0, 6 COM RS-232(5V or 12V), 8 USB 2.0, 8-bit GPIO
DC 12V
Thin design

CPU:
Intel atom dual core d2550, model: D2550SL
Intel atom dual core d2800, model: D2800SL (optional)

Detail Specification
Mechanical Standard
Industral Motherboard
Size: 170mm(6.7")x170mm(6.7")

Chipset:
Intel NM10

Processor:
intel ATOM Dual-Core D2550, 1.86Ghz, 1MB

BIOS
AMI BIOS
16Mbit SPI BIOS

Memory
1xDDR3 800/1066Mhz SO-DIMM
Support 4GB MAX

Graphics:
Intel SGX545
Display: VGA/HDMI/LVDS (dual display
1xVGA(port),1xHDI(port)
1xLVDS(pin).,1xVGA(pin)

LAN
2xRealtek RTL8105E 100M or RTL8111E 1000M

Audio
Realtek ALC661 HD Audio Decoding controller
4 Channel Audio output
Support On-board S/PDIF input/output

COM:
5xCOM(RS232/Pin header)
COM1-COM6, either 5v or 12v voltage configured, through jumper
1A power supply, the 9th pin is galvanical.

USB:
8xUSB 2.0/1.1
6xPin interface.2x On-board interface

Storage
2xSATAII Connector(3GB/s)

Expansion socket
1xMINI PCIe socket
WIFI and M-SATA SSD switch throughjumper 8 bit

Power Supply
1xDC Jack
1x4pin ATX Standard Power Connector(optional)

Working condition
Operation Temperature -10c~60c
Operation Humidity 10%-90% relative humidty, Non-condensing.


Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
