>>Your Current Position: Intel Motherboard

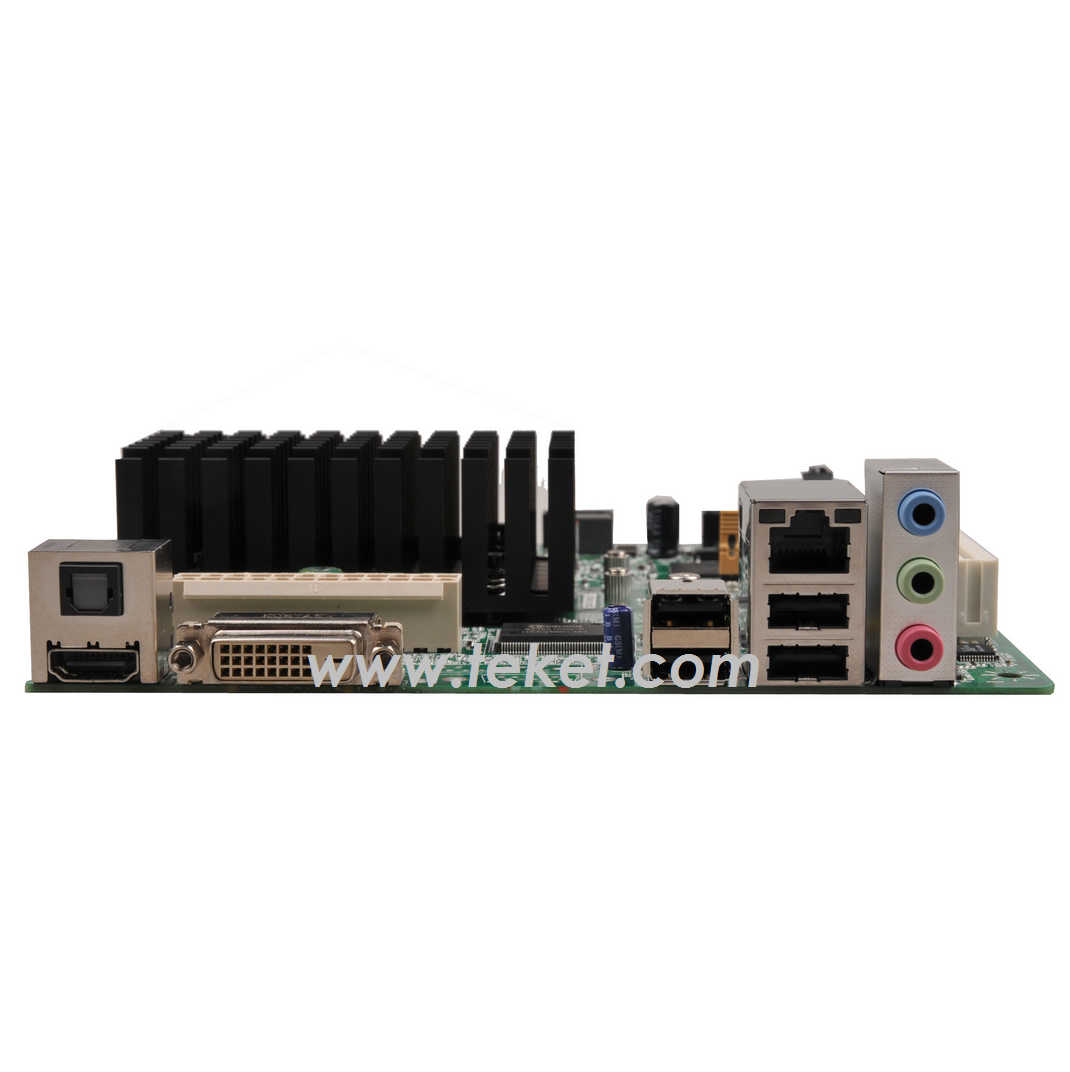

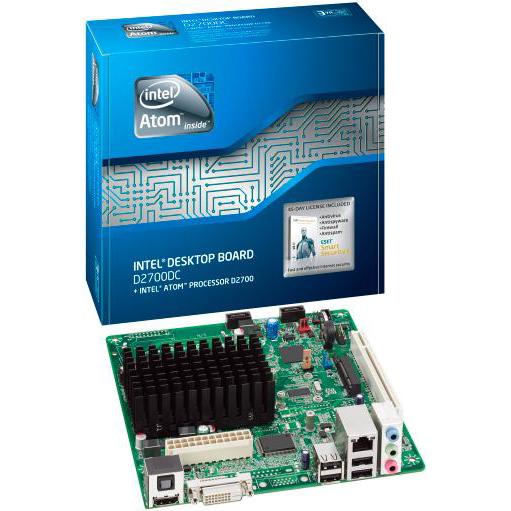

Intel Atom D2700 Mini-ITX Motherboard D2700DC

D2550DC2 is the same as D2700DC, only different CPU!
D2550DC2 cpu 1.86Ghz
D2700DC cpu 2.13Ghz

Home Theater PC
1) Dual-core AtomTM with Hyper-Threading
2) 1080 High-Definition playback
3) Cost competitive entry-level HTPC

Intel Orginal ATOM Board D2700DC for Home Theater PC
1),D2700 fastest atom dual-core processor with hyper-threading 2.13GHz
2),NM10 Express Chipset,Graphics Media Accelerator 3650, high-definition video playback
3),Video: Digital DVI, HDMI, no VGA ,support 1080 High-Definition playback
4),Cost competitive entry-level HTPC
5),passive heatsink thermal solution, fanless, quiet and low-power small form factor
6),Two SO-DIMM slots for 1066 MHz DDR3 single-channel memory support up to 4GB
7),10/100/1000 integrated Intel LAN, best compatibility
8),4 USB 2.0 ports (back panel),3 USB 2.0 ports (internal)
9),Two Serial ATA 3.0 Gb/s ports
10),Optical SPDIF output (back panel)
11),Six (5.1) channel Intel? HD Audio
12),One PCI* Conventional Bus Connector,One PCI Express* Mini Card
BLKD2700DC Outer Packing: 5.250kg, 10pcs/ctn,625x220x230(mm)

http://www.intel.com/content/www/us/en/motherboards/desktop-motherboards/desktop-board-d2700dc.html?wapkw=Intel Desktop Board D2700DC

Intel? Desktop Board D2700DC
Tagged AsIntel? Desktop Board D2700DC

Intel? Desktop Board D2700DC is integrated with the new Intel? Atom? processor D2700 and the Intel? NM10 Express Chipset to offer an entry-level home theater system. The board features a 10/100/1000 integrated Intel? LAN, 1080 high-definition video playback with HDMI port and Intel? High Definition Audio (Intel? HD Audio) via optical SPDIF output.

The Intel? Desktop Board D2700DC features a passive thermal solution, which is suitable for a quiet and low-power small form factor home theater system.

While this desktop board is small in size, it delivers a rich multimedia experience to home users.

Features and configurations
Form factor
Mini-ITX / Micro-ATX compatible (170mm X 170mm)

AA# (Altered Assembly)
BOX/BLKD2700DC: G32420-XXX

BIOS ID string
MUCDT10N.86A with Intel Fast Boot Technology

Processor
At product launch, this Intel? Desktop Board D2700MU supports:

Intel? Atom? processor D2700 with passive heatsinkView all compatible Intel? processor numbers
Memory
Two SO-DIMM slots for 1066 MHz DDR3 single-channel memorySupport for up to 4 GB of system memory
Chipset
Intel? NM10 Express Chipset

Audio
Intel? High Definition Audio (Intel? HD Audio) subsystem in the following configuration:

Six (5.1) channel Intel? HD Audio
Front panel mic/headphone header (2x5)
Optical SPDIF output (back panel)

LAN support
Integrated Intel? 10/100/1000 network connection

Peripheral interfaces
Four USB 2.0 ports (back panel)Three USB 2.0 ports (internal)
Two Serial ATA 3.0 Gb/s ports
Expansion capabilities
One PCI* Conventional Bus ConnectorOne PCI Express* Mini Card

Video
Digital DVI & HDMI ports

Warranty
3-year warranty (BOX/BLK)
Standard Warranty Replacement (SWR)

Net Weight: 310g
Inner Packing:
Outer Packing: 5.250kg, 10pcs/ctn,625x220x230(mm)
