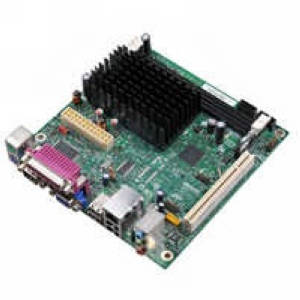

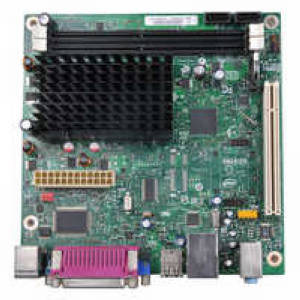

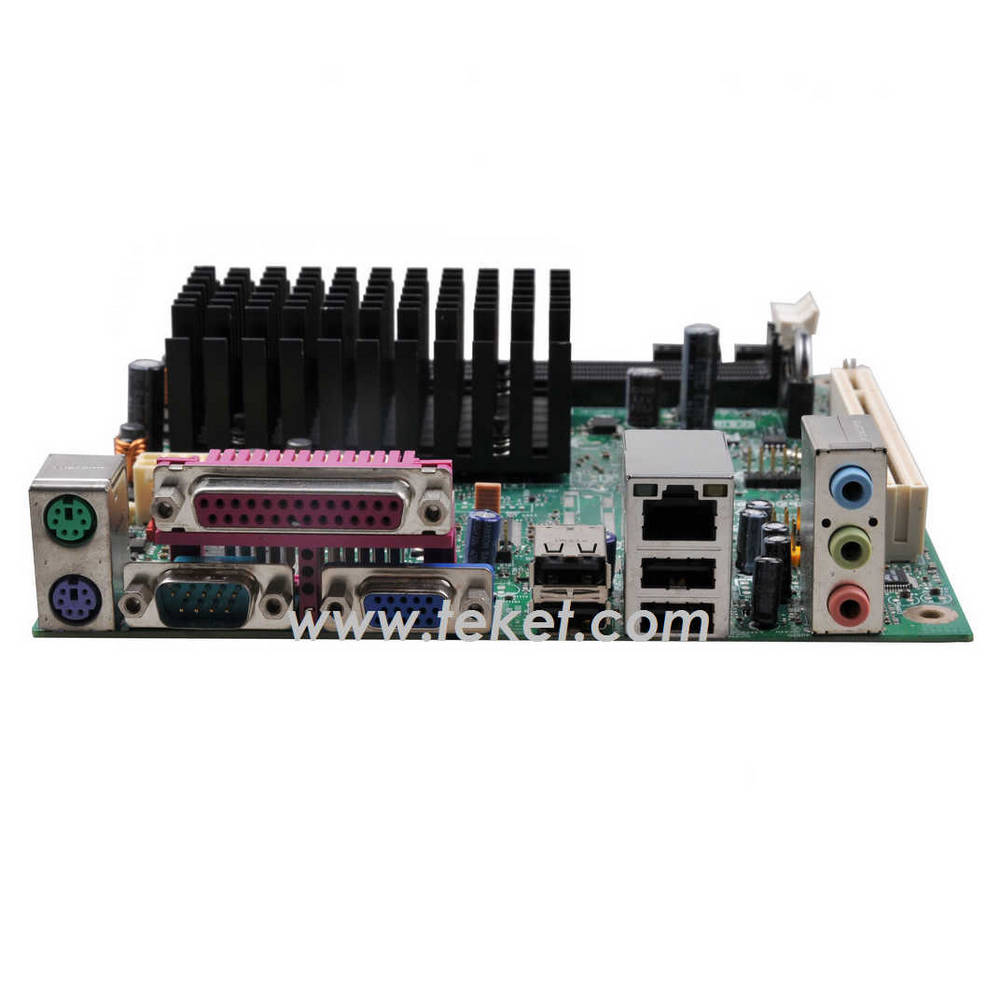

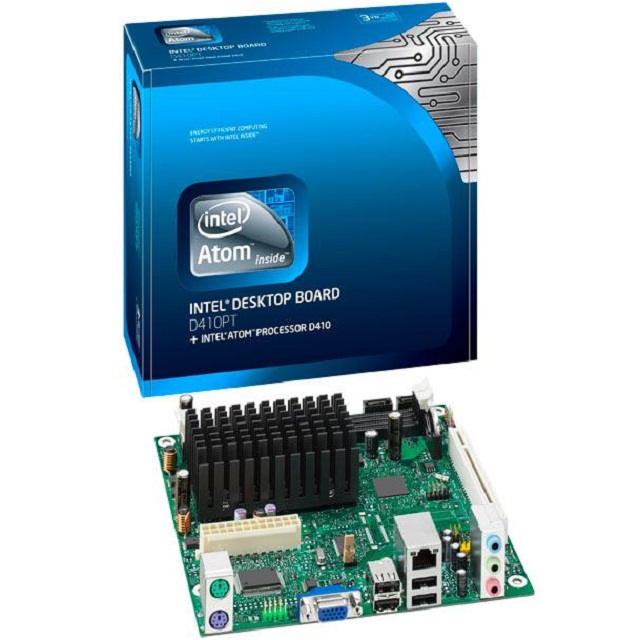

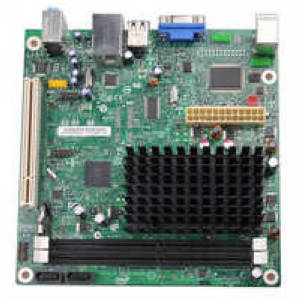

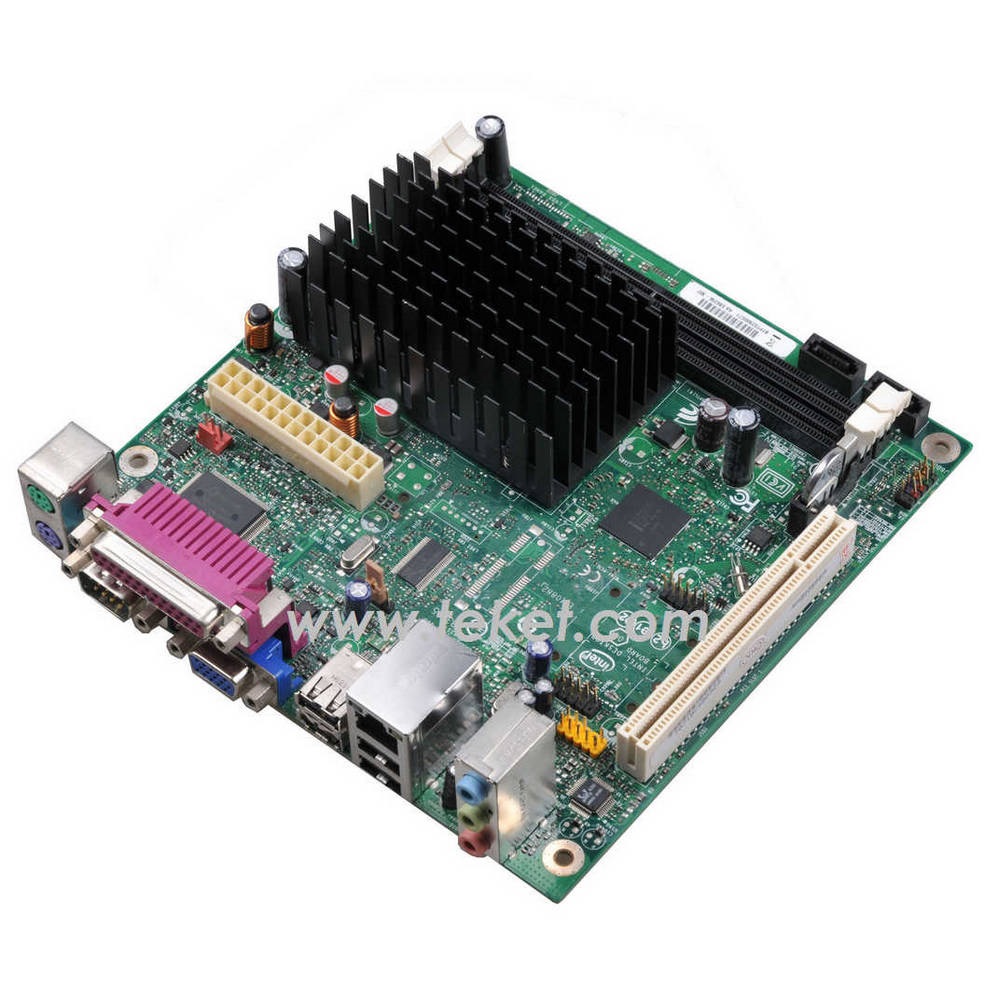

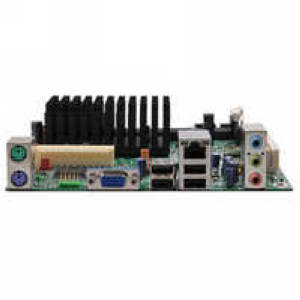

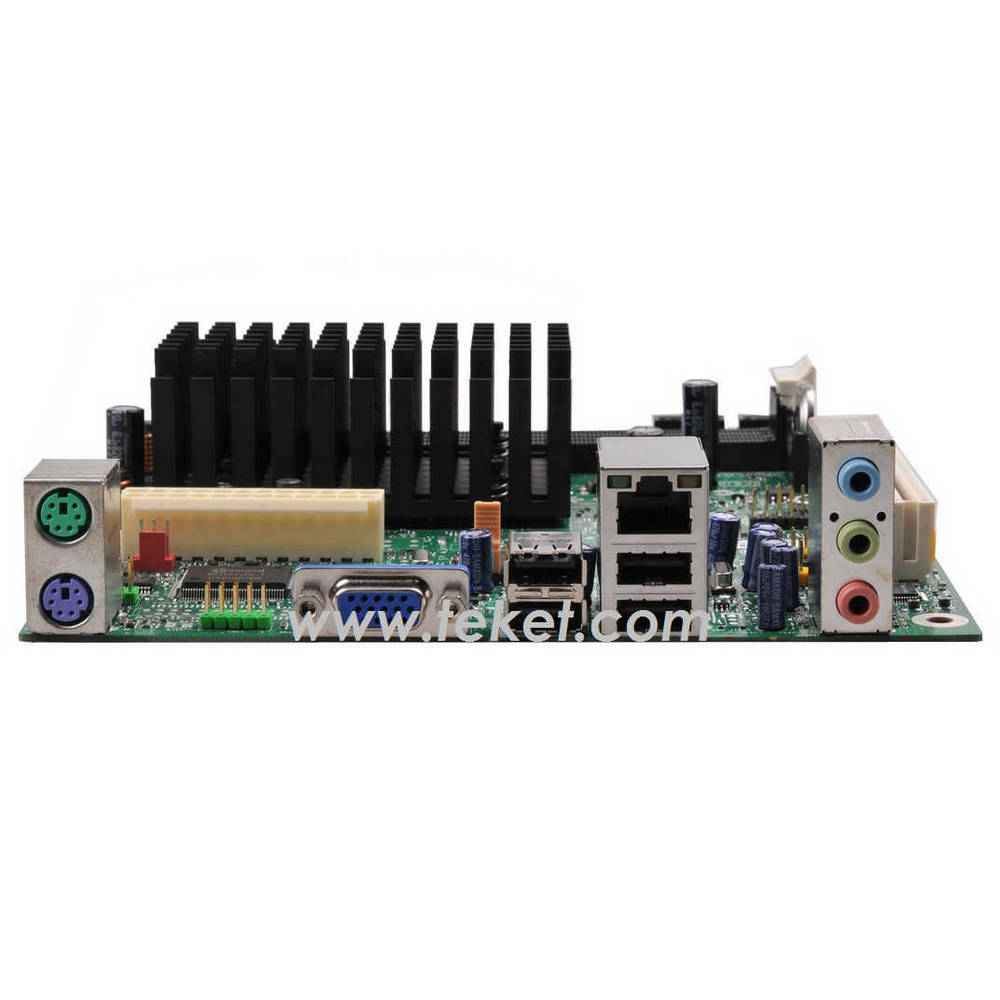

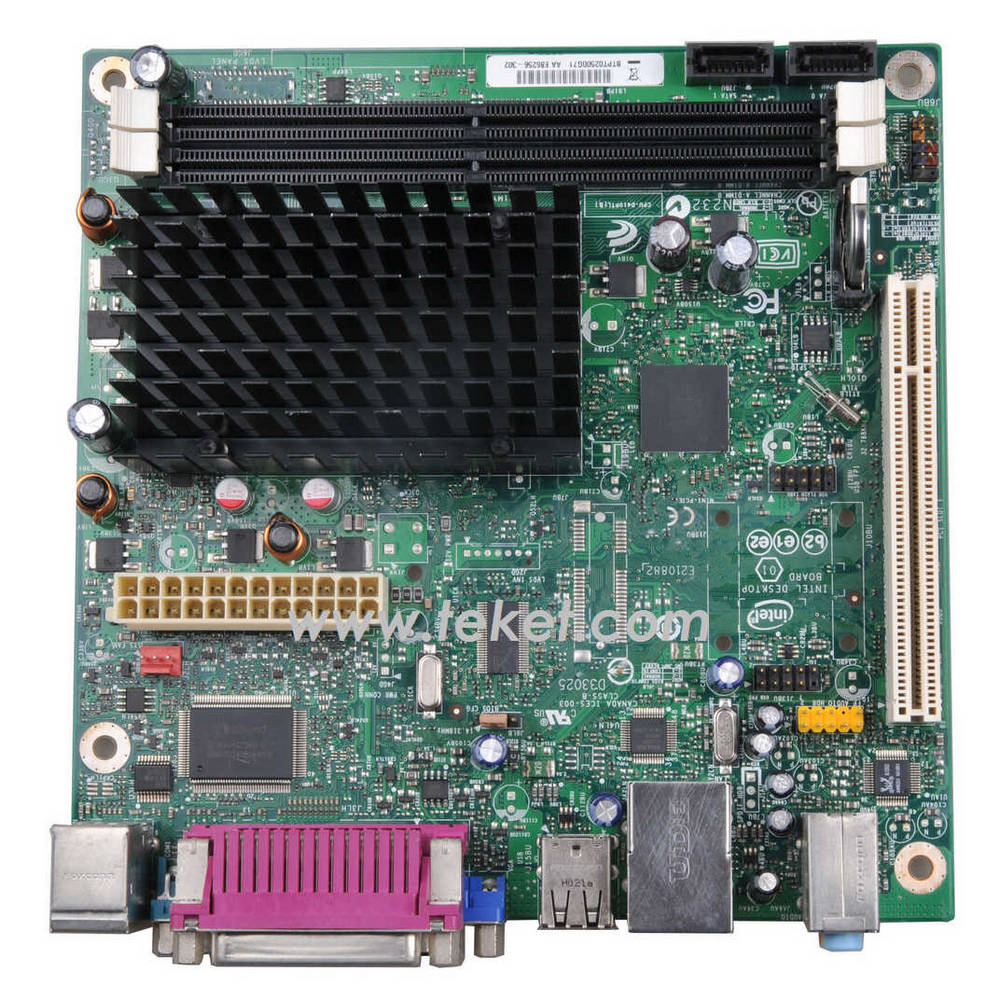

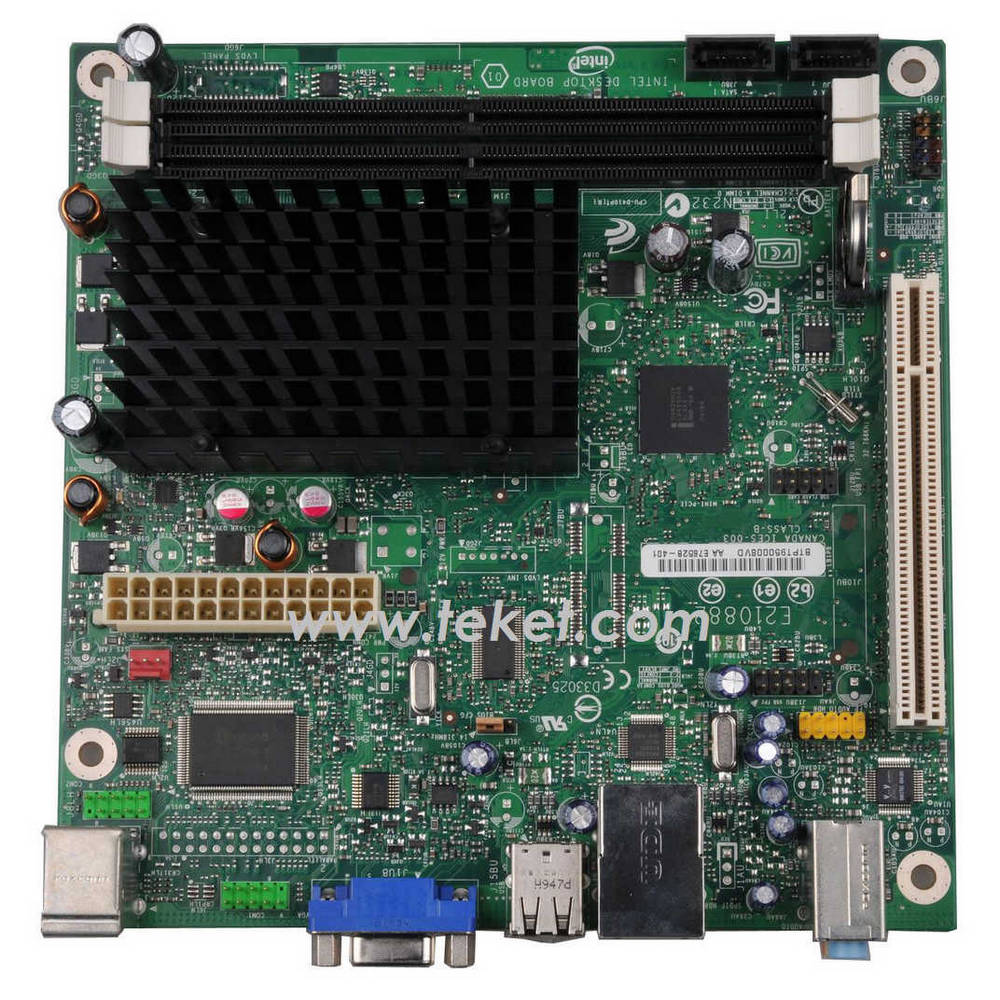

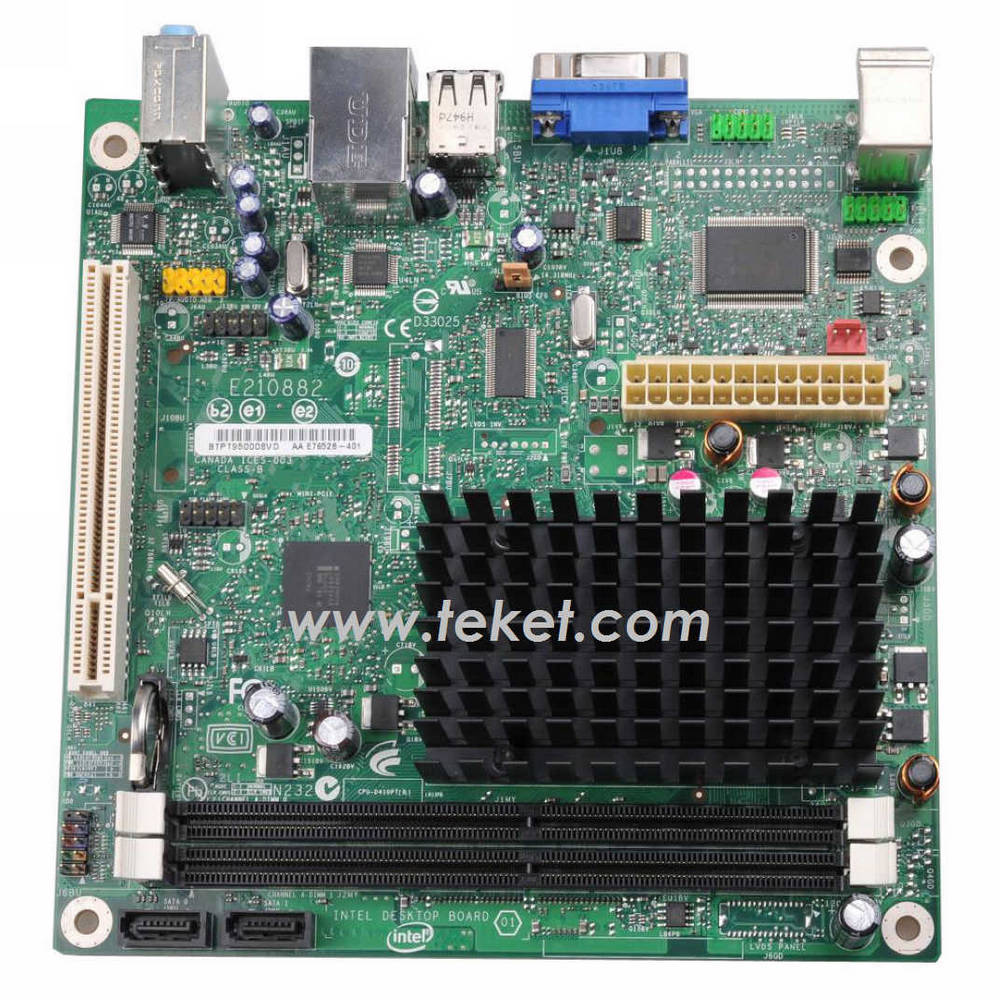

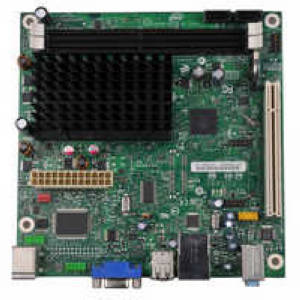

Intel Desktop Board D410PT with ATOM D410 and NM10

Intel? Desktop Board D410PT with integrated Intel? Atom? processor D410 and the Intel? NM10 Express Chipset enables low-power consumption and reduces the package footprint by 70 percent. The board also features 10/100 integrated LAN and USB Solid State Drive (SSD) keep-out-zone design ¨C an ideal combination for a diskless usage model.
With breakthrough low-power silicon, the Intel Desktop Board D410PT can also be used with a passive thermal solution based on the recommended boundary conditions.¦α
While this desktop board is small in size, it delivers a powerful Internet experience for all audiences.







Features and configurations
Form factor Mini-ITX /microATX compatible (170mm X 170mm)
AA# (Altered Assembly) For BOX/BLKD410PT: E76528-xxx
For LAD410PT: E66175-xxx
For LAD410PTL: E80278-xxx
For BLKD410PTL: E86256-xxx
For LAD410PTLW: E86257-xxx

BIOS ID string MOPNV10N.86A
Processor Intel? Atom? processor D410

Memory Single channel DDR2 with two slots for 800 / 667 MHz memory support
Support for up to 4 GB¦β maximum system memory

Chipset Intel? NM10 Express Chipset

Audio Intel? High Definition Audio? subsystem in the following configuration:

Four channel Intel? High Definition Audio
Front panel mic/headphone header (2x5)

LAN support Integrated 10/100 network connection
I/O control Legacy I/O:

Two PS/2 ports
Two serial headers
For BLK/LAD410PTL and LAD410PTLW:

One parallel port and one serial port

Peripheral interfaces Two Serial ATA ports
Eight Hi-Speed USB 2.0 ports (four back panel ports and four ports via headers)
For LAD410PTLW: Seven hi-speed USB 2.0 ports (four back panel ports, two ports via header and one USB for Flash/SSD)

Expansion capabilities One PCI
For LAD410PTLW: One PCI Express* mini card

Net Weight: 412g
Inner Packing:
Outer Packing: 5.71kg/ctn,10pcs/ctn,580x235x215(mm)
