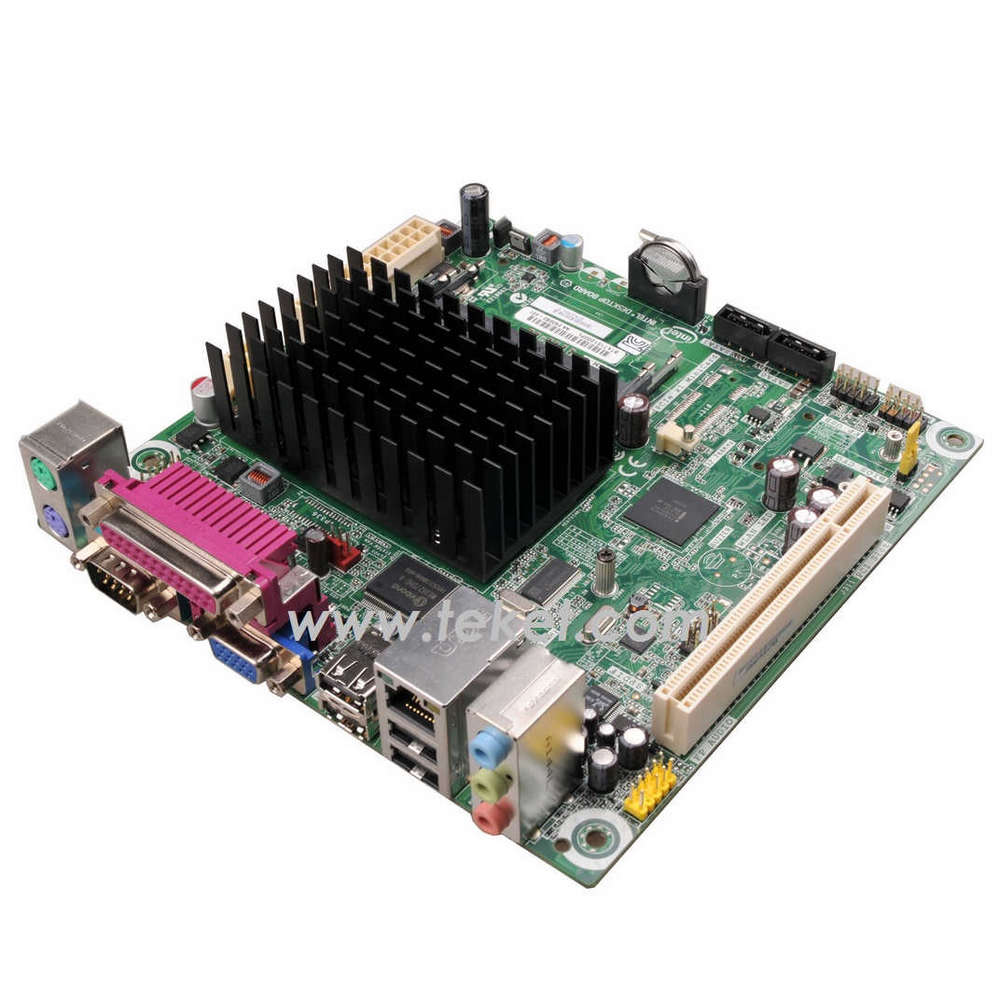

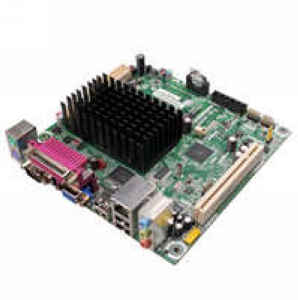

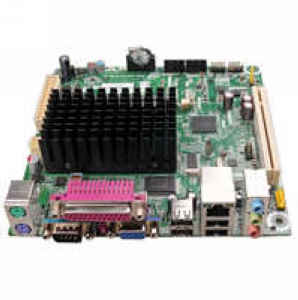

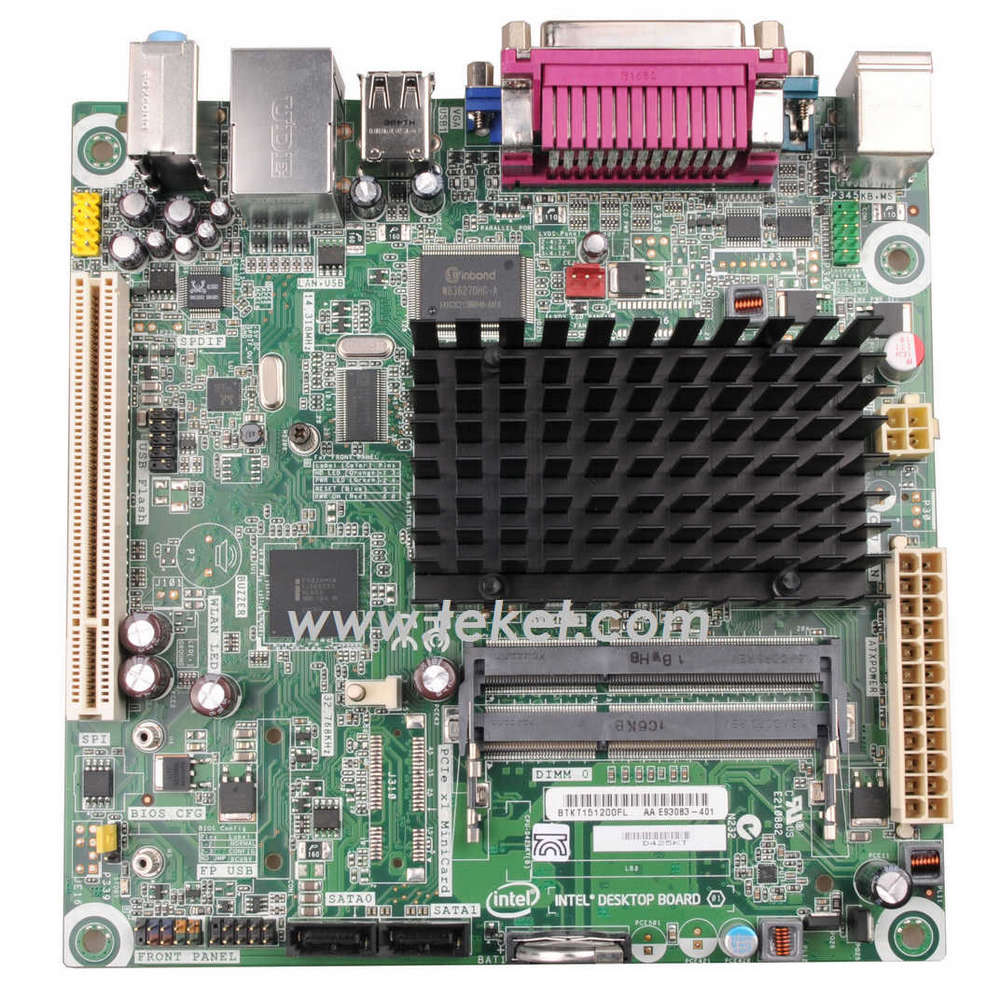

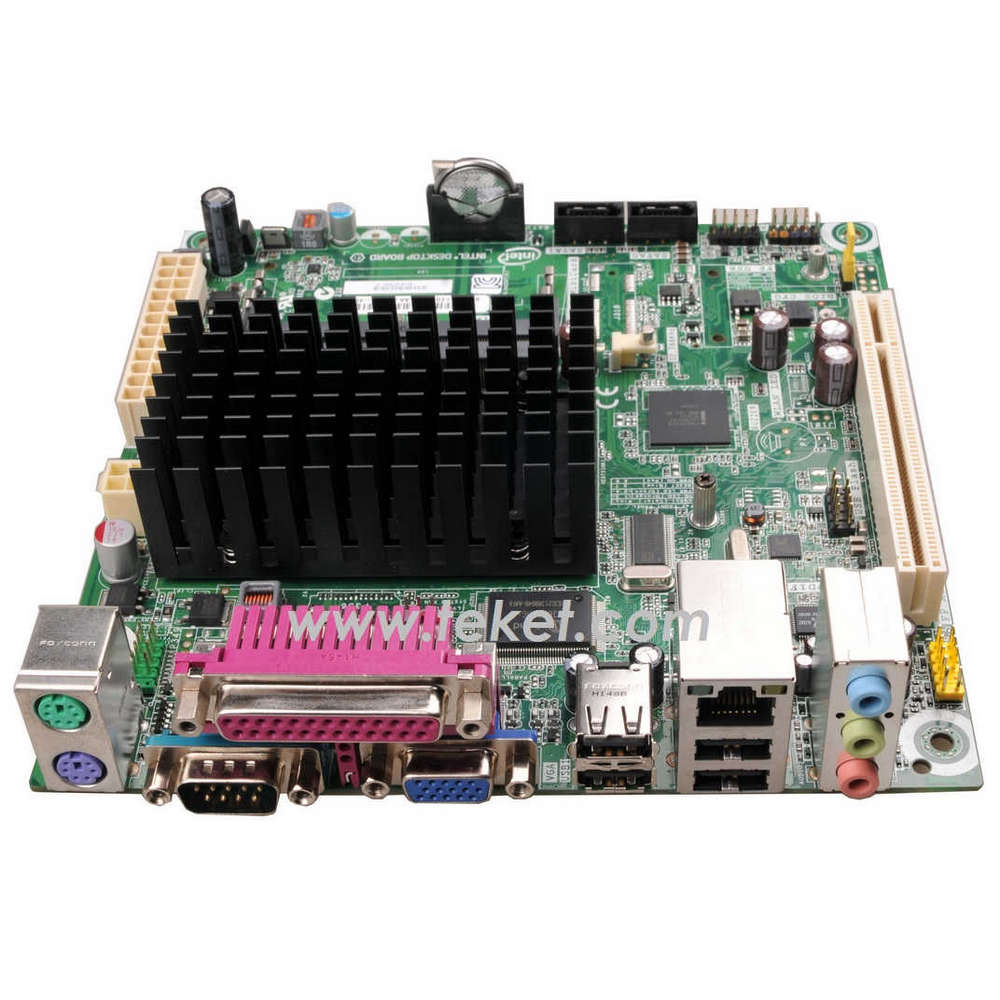

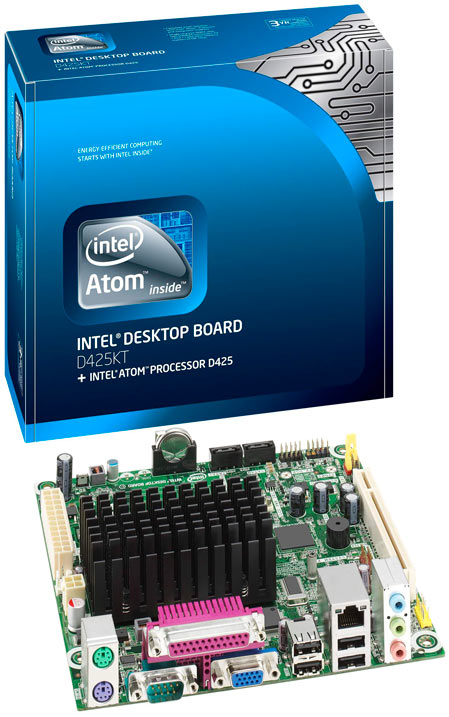

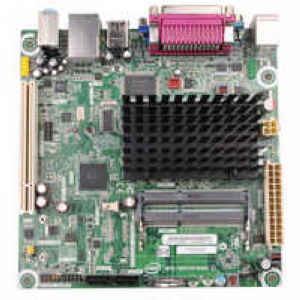

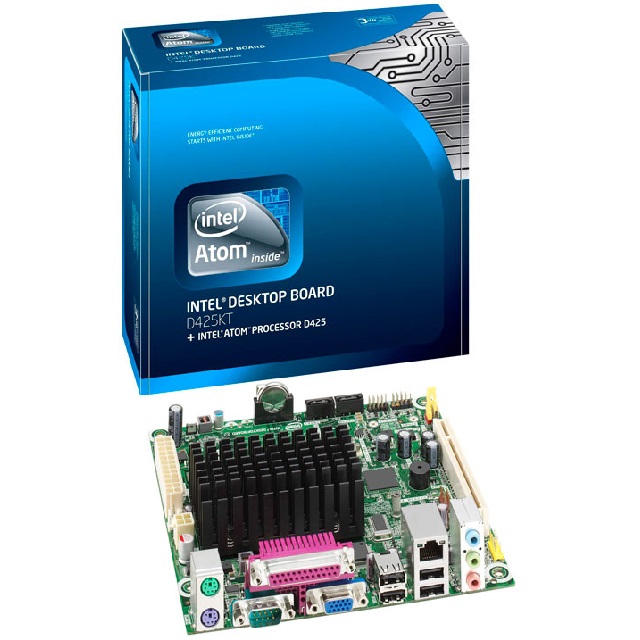

Intel Desktop Board D425KT with ATOM D425 and NM10

Intel? Desktop Board D425KT with integrated Intel? Atom? processor D425 and the Intel? NM10 Express Chipset enables low-power consumption and reduces the package footprint by 70 percent. The board also features 10/100 integrated LAN and USB Solid State Drive (SSD) keep-out-zone design ¨C an ideal combination for a diskless usage model.
With breakthrough low-power silicon, the Intel Desktop Board D425KT can also be used with a passive thermal solution based on the recommended boundary conditions.1
While this desktop board is small in size, it delivers a powerful Internet experience for all audiences.


Features and configurations
Form factor Mini-ITX /microATX compatible (170mm X 170mm)
AA# ( Altered Assembly) For BOX/BLKD425KT: E93083-xxx
For LAD425KT: E93084-xxx
For LAD425KTW: E93085-xxx
BIOS ID string MWPNT10N.86A
Processor Intel? Atom? processor D425
Memory Single channel DDR3 with two slots for 1066/800 MHz memory support
Support for up to 4 GB maximum of system memory

Chipset Intel? NM10 Express Chipset

Audio Intel? High Definition Audio2 subsystem in the following configuration:


Four channel Intel? High Definition Audio
Front panel mic/headphone header (2x5)

LAN support Integrated 10/100 network connection

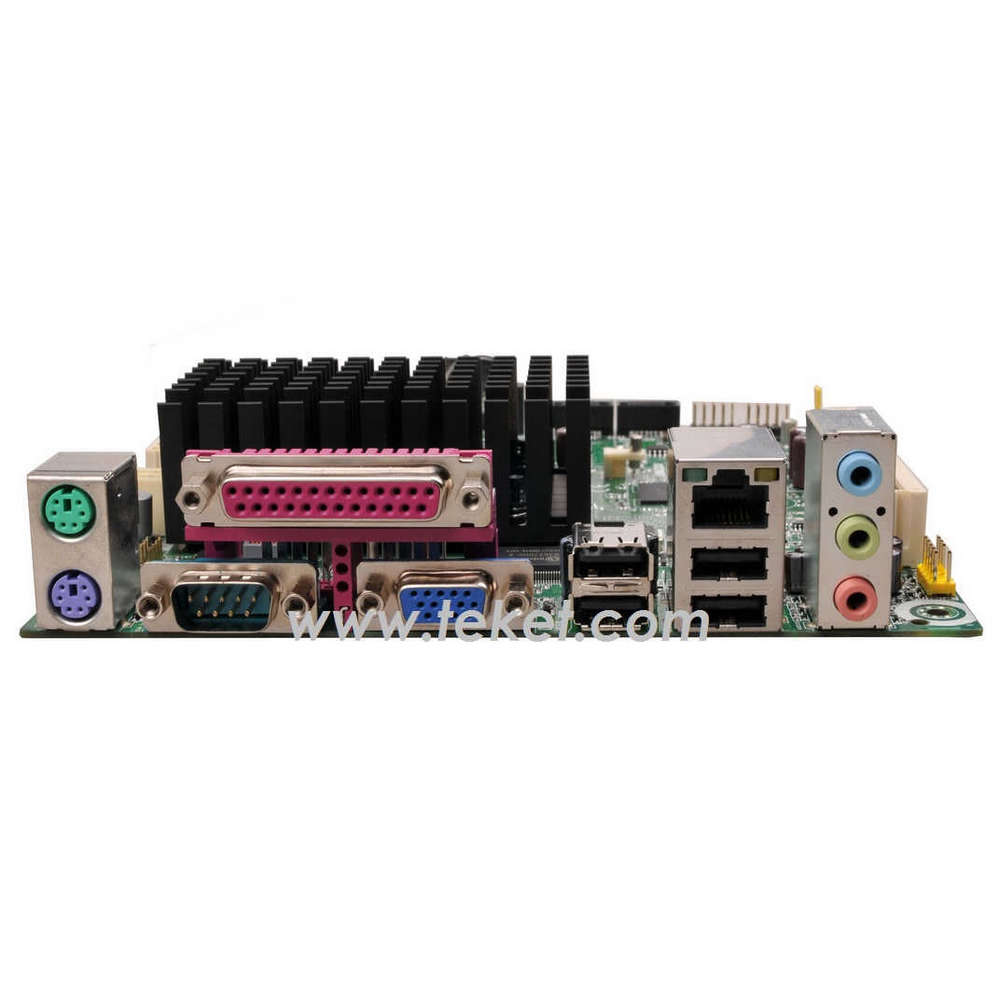

Peripheral interfaces Up to seven USB 2.0 ports (4 external ports & 3 via headers)
Two Serial ATA 3.0 Gb/s ports
PS/2 ports (Keyboard and Mouse)
One Serial Header and One Serial Port
One Parallel Port

Expansion capabilities One PCI Conventional bus connector
For LAD425KTW:

One PCI Express* Mini Card

Video VGA port
For LAD425KTW:

LVDS connector

Warranty 3-year warranty
Standard Warranty Replacement (SWR)

Net Weight:
Inner Packing:
Outer Packing: 5.81kg/ctn,10pcs/ctn,580x235x215(mm)
