>>Your Current Position: Intel Motherboard

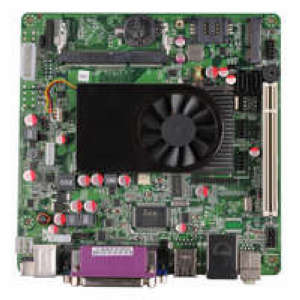

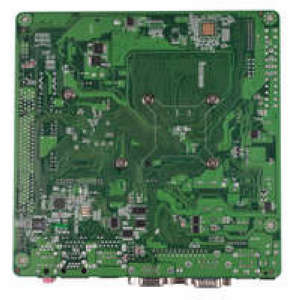

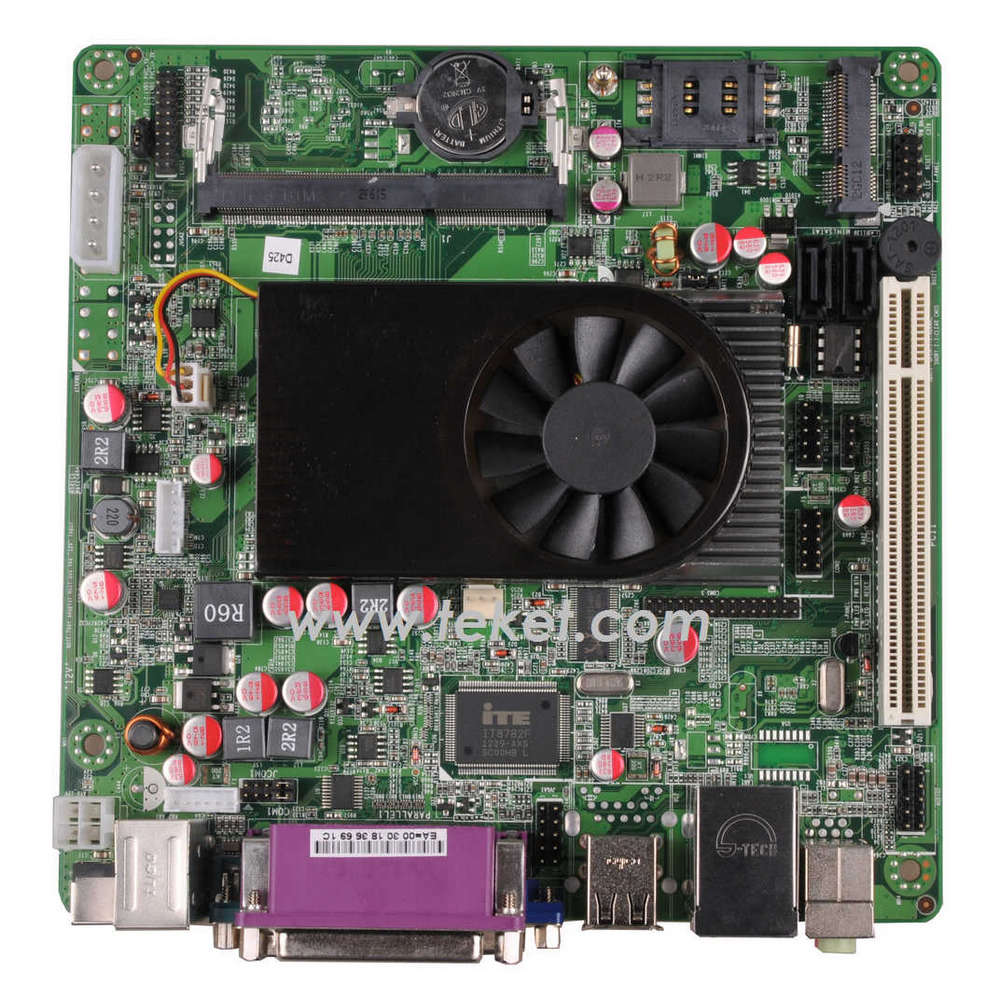

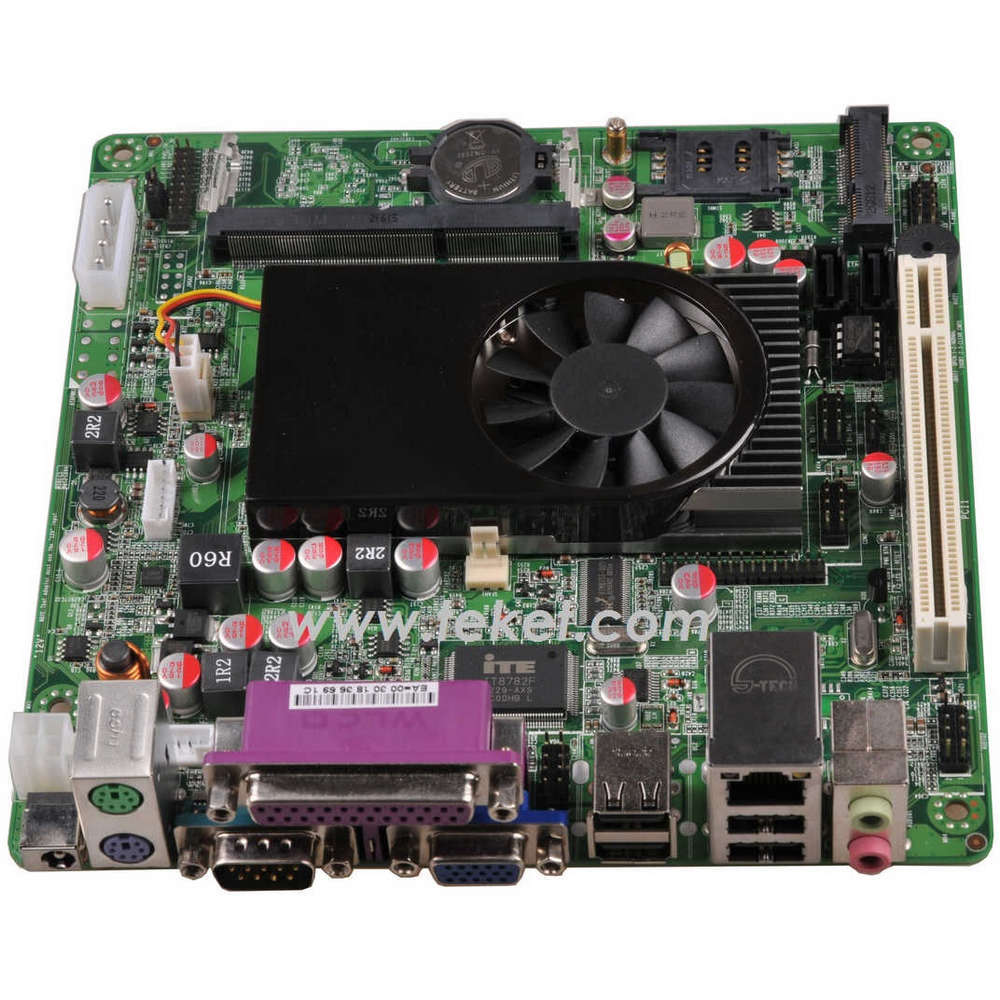

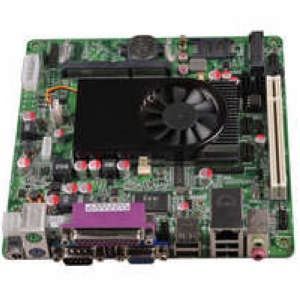

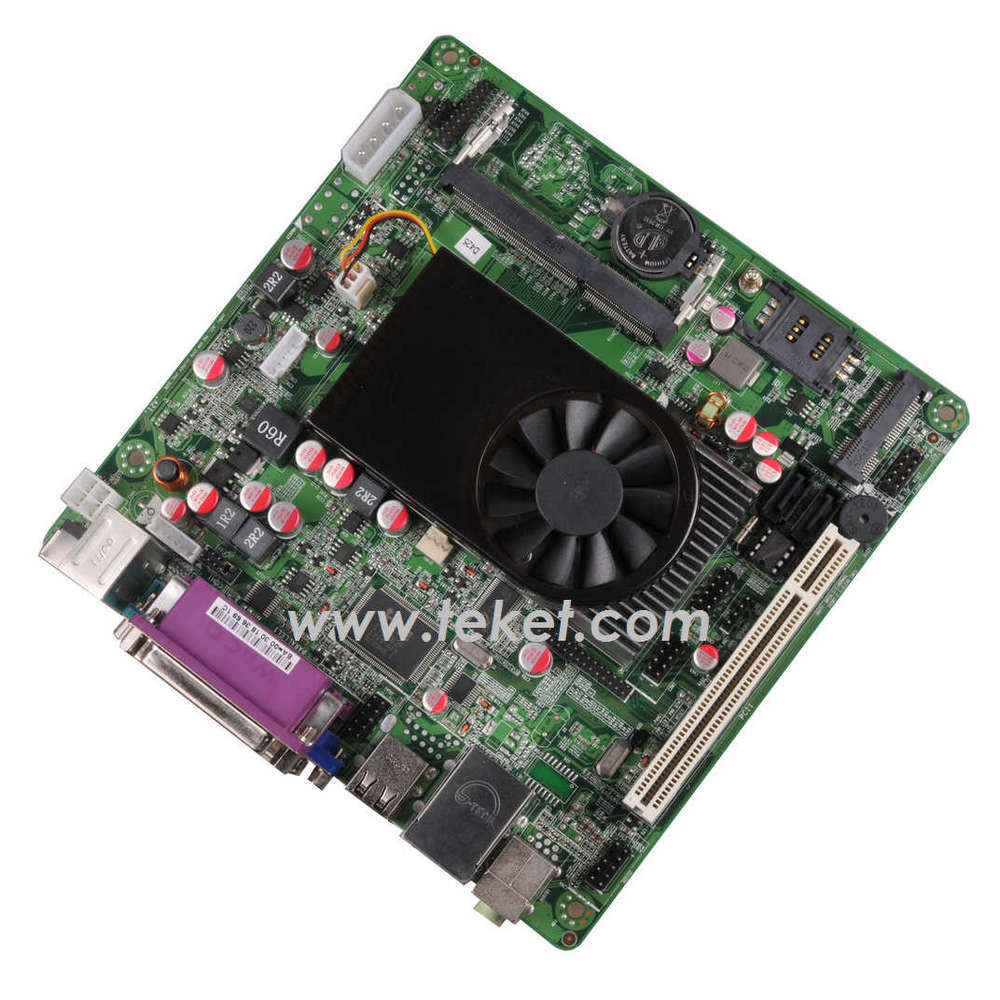

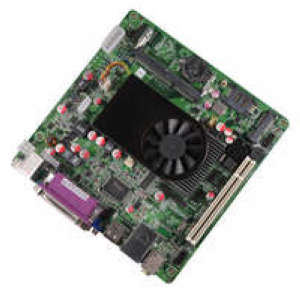

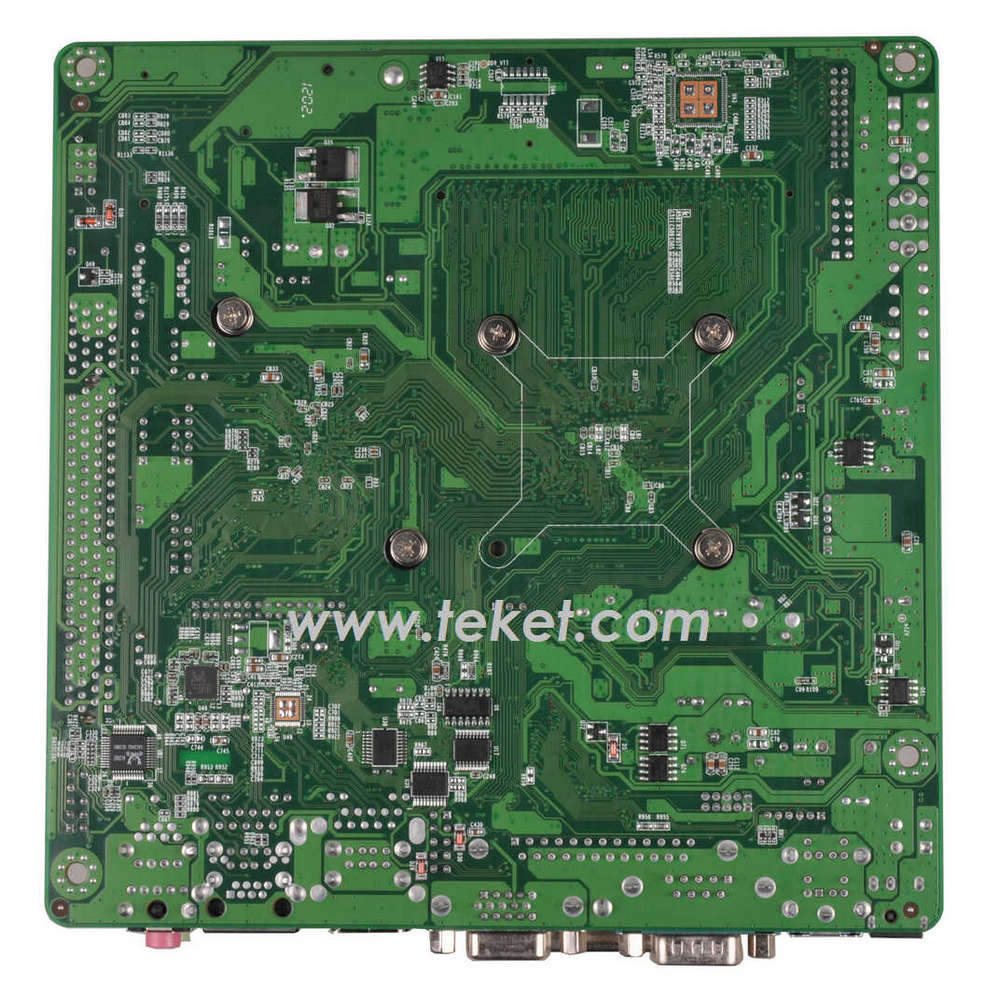

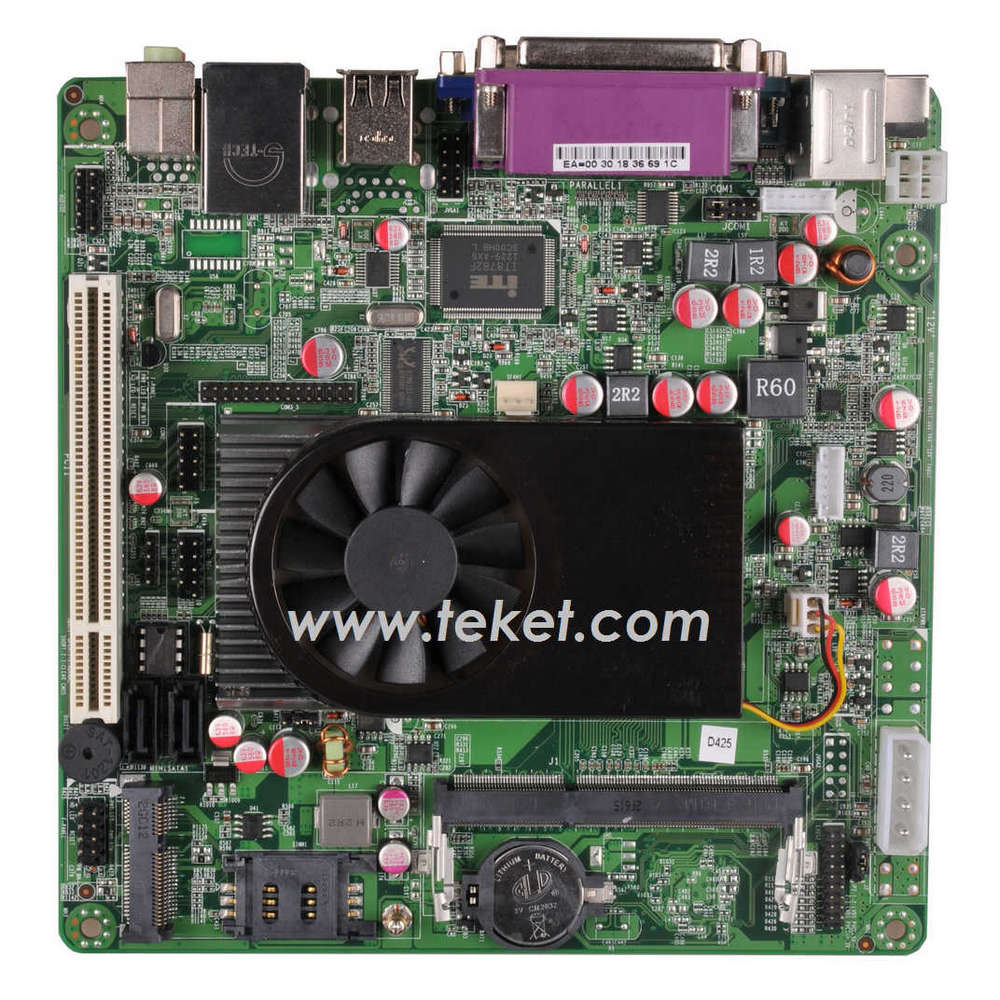

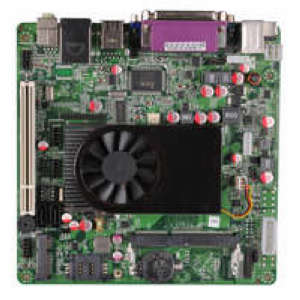

Atom D425 /D525 Mini-ITX Motherboard D425MC D525MC 2/5/9 COM with 12VDC or ATX

Pine Trail
D425MC/D525MC VER:1.6
Integrated Intel? Pine Trail-D/M processor
Adopt Intel? NM10 Express chipset
1* DDR3 SODIMM,support 1066/800MHz memory, up to2GB
Integrated Intel?GMA3150 Graphics
1*VGA,1*LVDS,support single channel18/24Bit
Provide 1/2 * RTL8111E/F Gigabit Ethernet or1*RTL8105E fast ethernet, support wake on ?LAN/PXE
9*RS232,COM1-COM5,the 9th pin support 5V/12V

Integrated Intel? Pine Trail-D/M processor
Adopt Intel? NM10 Express chipset
1* DDR3 SODIMM,support 1066/800MHz memory, up to2GB
Integrated Intel?GMA3150 Graphics, support for single display,double copy,double extendion.
Provide 2* VGA ports,1* support single channel18/24Bit LVDS display output
Note: For more information about the display,please see the order information
Provide 1/2 * RTL8111E/F Gigabit Ethernet or1*RTL8105E fast ethernet, support wake on LAN/PXE
Note: For more information ,please see the order information
Provide 2* SATA2.0 HDD interface, the transfer rate up to3Gbps(SATA2 and MSATA optional)
Integrated ALC662 6-Channel audio controller ,support MIC/Line-out,
Expansion Slots
Provide 1* MSATA slot, supportWIFI、3G module、Intel protocol SSD
1* PCI slot

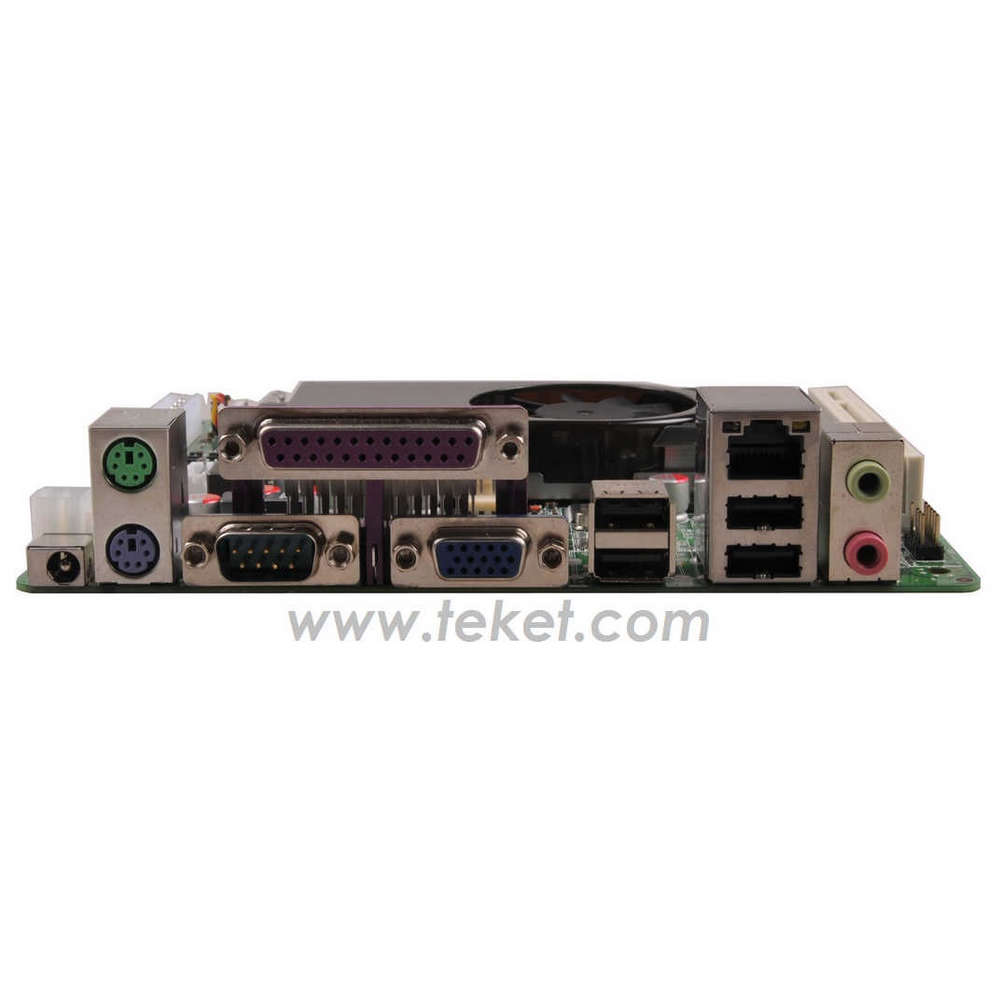

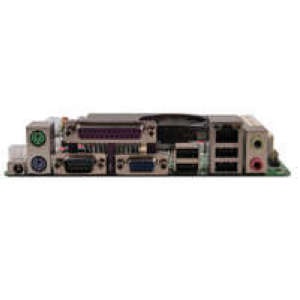

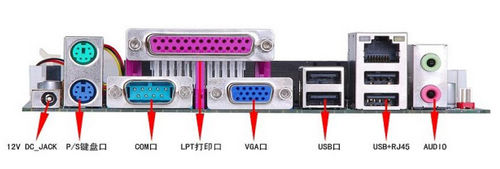

Rear I/O
1* 12V DC power input(12vdc power supply version only)
1* PS/2 KB/MS port
1* LPT
1* RS232 serial port,the 9th pin support 5V/12V charged function
1* VGA port
2* RJ45 Gigabit Ethernet port or1* RJ45 fast ethernet port
4* USB 2.0 ports
1* audio I/O port( MIC andLine_out)
Internal I/O
1*18/24 Bit single LVDS port 2*10pin
1* JVGA1 port 2*5pin (the same signal with DB15)
1* JVGA2 port,with VGA,LVDS synchronous/asynchronous display 2*5pin (D5L、D9L has this port)
8* RS232 serial ports, the 9th pin of COM2~COM5 support5V/12V charged function
1* PS/2 KB/MS connector
4* USB 2.0 ports 2*5pin (If Mini-PCIE is a USB signal ,it supports 2* USB2.0 ports)
1* front panel audio connector 2*5pin
1* front panel function buttons and indicator connector 2*5pin
1* 4pin ATX power port(12vdc power supply version only)
2* HDD power supply connector (12vdc power supply version only)
1* screen power supply connector1*6pin
1* SIM card socket
1* 20pin ATX power port(M4S_A2 power supply)
FAN interface
1* 3pin CPU fan port and1* 3pin system fan port
8Mb Flash ROM
Watch dog
Support hardware reset function(L256,0-255seconds)
Power input
Adopt DC 12V power supply or ATX power supply
Operating Temp.
Storage Temp.
5~90%(Relative humidity,Non-condensing)
170mm x 170mm

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Ordering information
D425MC-A12 D425,1.80G,1*SODDR3,1*VGA,1*18bitLVDS,1*LAN(RTL8105E),8*USB,2*COM,12VDC
D425MC-D15 D425,1.80G,1*SODDR3,1*VGA,1*18bitLVDS,1*LAN(RTL8105E),8*USB,5*COM,12VDC
D525MC-D15 D525,1.80G,1*SODDR3,1*VGA,1*18bitLVDS,1*LAN(RTL8105E),8*USB,5*COM,12VDC
D425MC-D15L D425,1.80G,1*SODDR3,2*VGA,1*24bitLVDS,1*LAN(RTL8105E),8*USB,5*COM,12VDC
D525MC-D15L D525,1.80G,1*SODDR3,2*VGA,1*24bitLVDS,1*LAN(RTL8105E),8*USB,5*COM,12VDC
D525MC-D19L D525,1.80G,1*SODDR3,2*VGA,1*24bitLVDS,1*LAN(RTL8111E),8*USB,9*COM,12VDC

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
