>>Your Current Position: Intel Motherboard

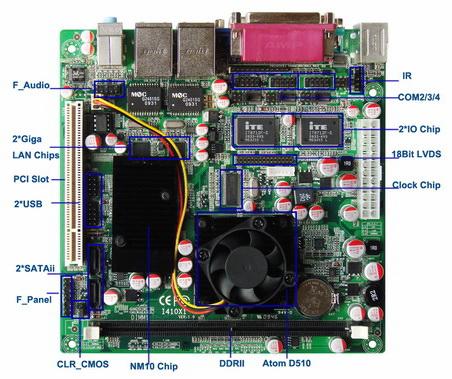

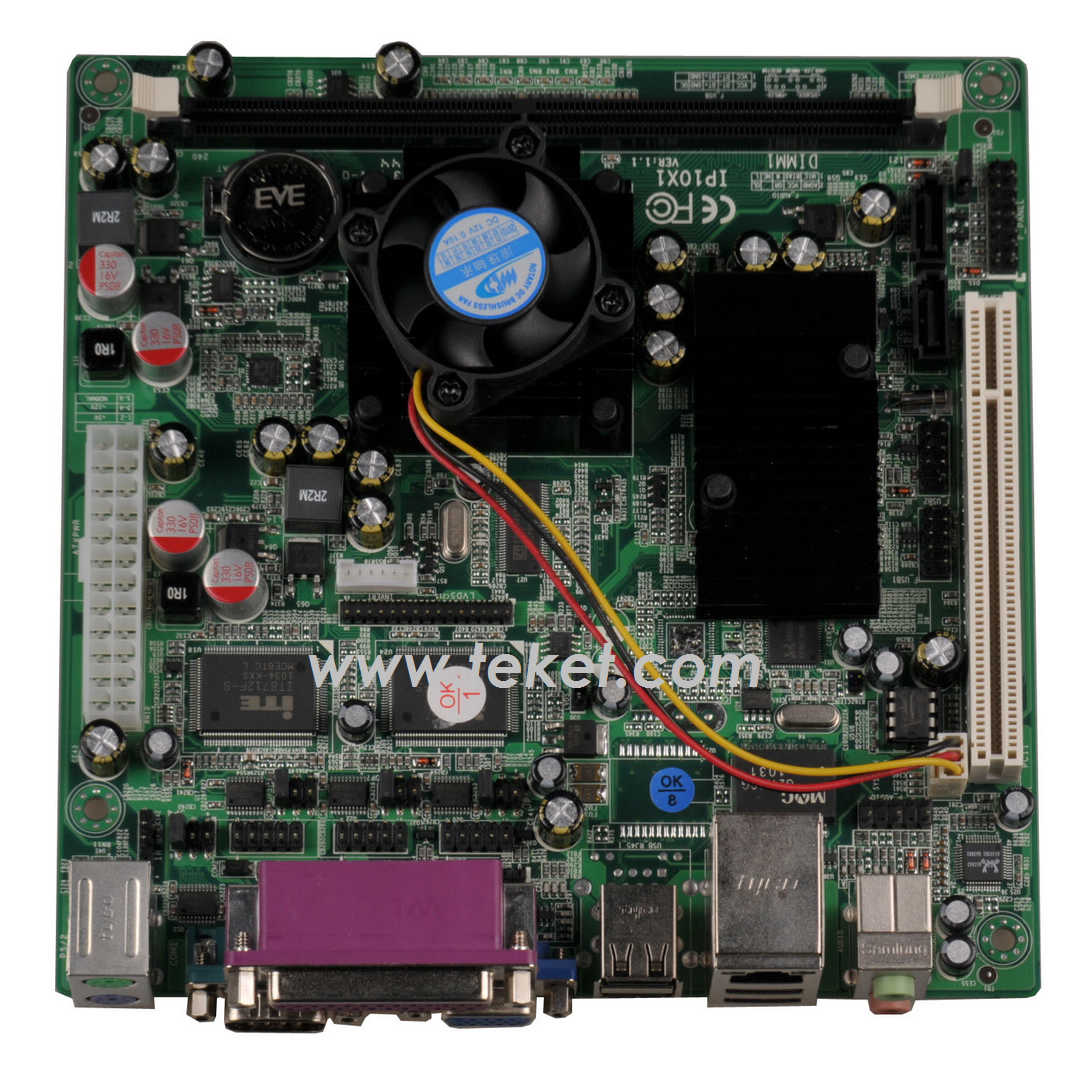

Atom D425 Mini-ITX Motherboard D425XA with ATOM D425 and NM10

D425XA: DIMM DDR2, up to 2GB

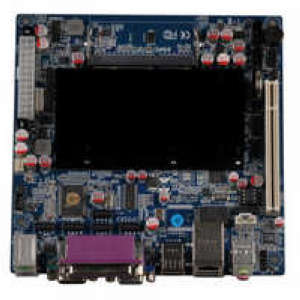

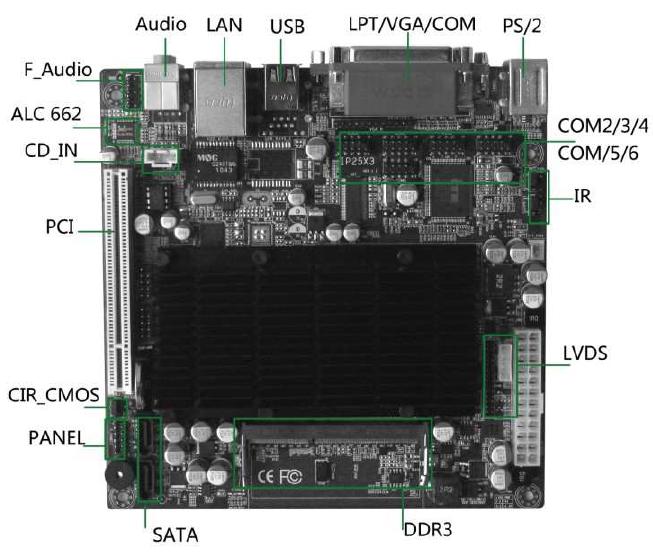

D425XA2: SO-DIMM DDR3, up to 4GB

The Desktop Board D425XA is designed to unleash the power of the new Intel Atom processor D425 which supports the new revolutionary two-chip layout. This new chipset layout reduces the package footprint by 70 percent, enabling easier routing and better heat flow. The Intel NM10 Express Chipset also provides additional flexibility and upgradability with two slots of single channel DDR2 memory at 800/667 MHz supporting up to 4GB maximum.

With breakthrough low-power silicon, the Desktop Board D425XA can be used with a passive thermal solution based on the recommended boundary conditions.

The Desktop Board D425XA represents a fundamental shift in system design¡ªsmall, yet powerful enough to enable a big Internet experience for all audiences.







Specification
CPU Intel Atom D425 1.8Ghz low consumption processor
Front Side Bus N/A
Chipset Chipset: Intel NM10
Memory 1 x DDR2 667/800MHz DIMM, Max up to 2GB
Graphics Onboard Intel GMA3150, support DirectX 9.0C
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard Realtek 8111D 1000LAN, support no disk boot up.
Storage Interface 2 x SATA 3 Gb/s
Expansion Slots 1 x PCI
USB 8*USB 2.0(4 pcs on the back panel,4 pcs via the USB brackets connected to the internal USB headers)
Internal
I/O Connectors 1 x 24-pin ATX main power supply
2 x SATAII connectors
1 x CPU fan header
1 x front panel header
1 x Audio header
2 x USB 2.0 headers
1 x Clear CMOS Header
3 x COM headers
1 x LPT header
1 x IR red way header
1 x VGA_H header
1 x 18bit LVDS header
1 x LVDS_INVERT header

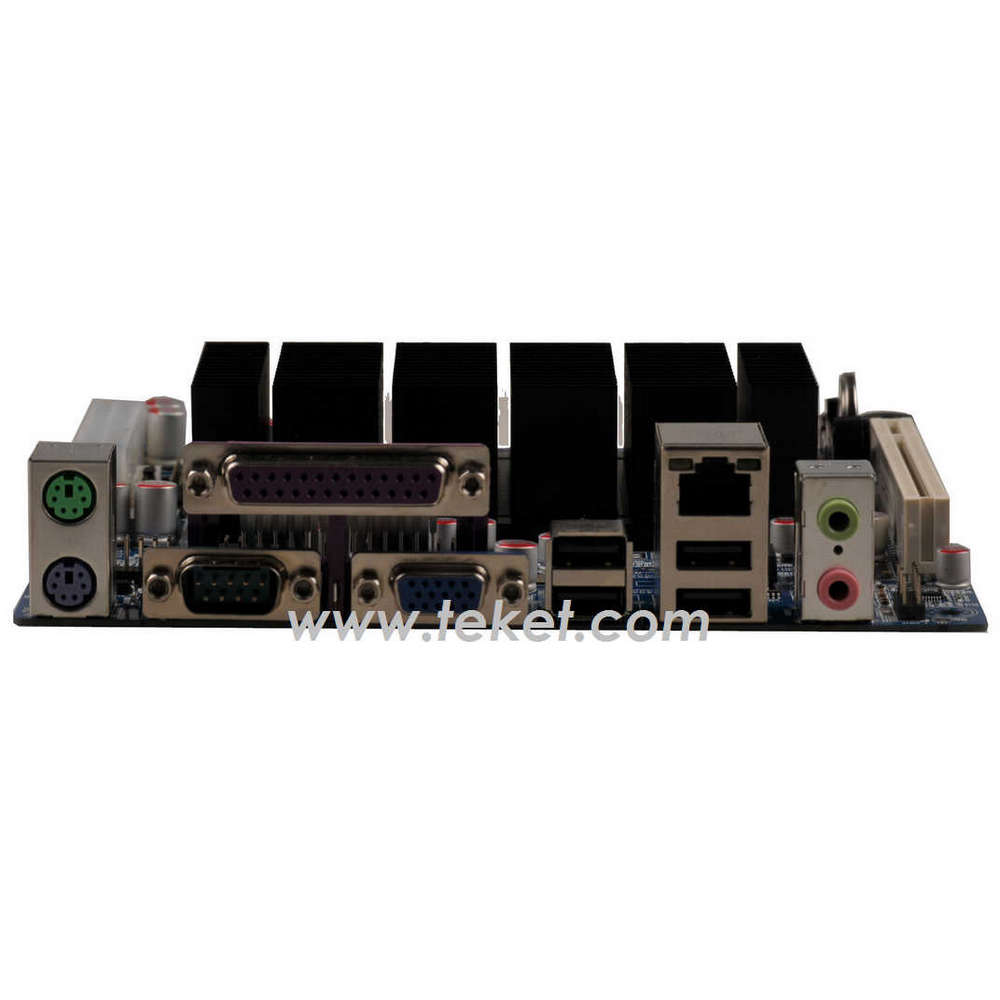

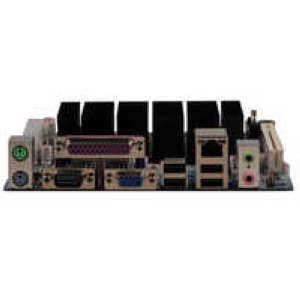

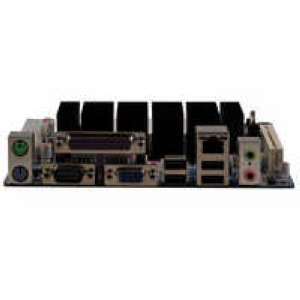

Back Panel
Connectors 1 x PS/2 mouse and keyboard
1 x VGA ports
1 x COM(9Pin with power)
4 x USB 2.0 ports
1 x RJ-45
2 x audio Jacks(6sound channel)
I/O Controller 2 x IT8712F-S
BIOS AMI Authorized 8Mbit BIOS, support RPL/PXE non-disk system
Form Factor Mini-ITX 170 x 170mm
Work Environment
Work Temperature 0~60
Work Humidity 10%~80% relative humidity, non-condensing
Apply Range ATM, Kiosk, Digital Signage, Living Room PC

Net Weight: 415g
Inner Packing: 650g,255x205x70(mm)
Outer Packing:
