>>Your Current Position: Intel Motherboard

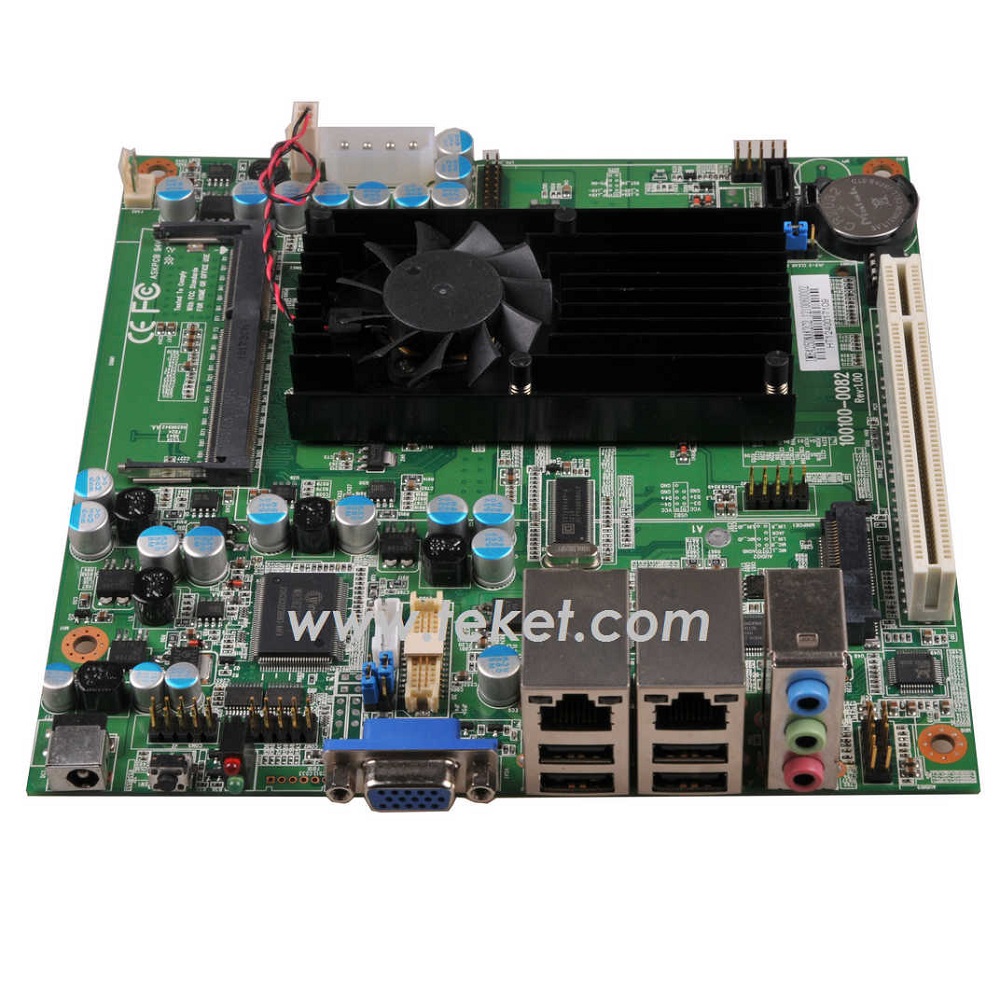

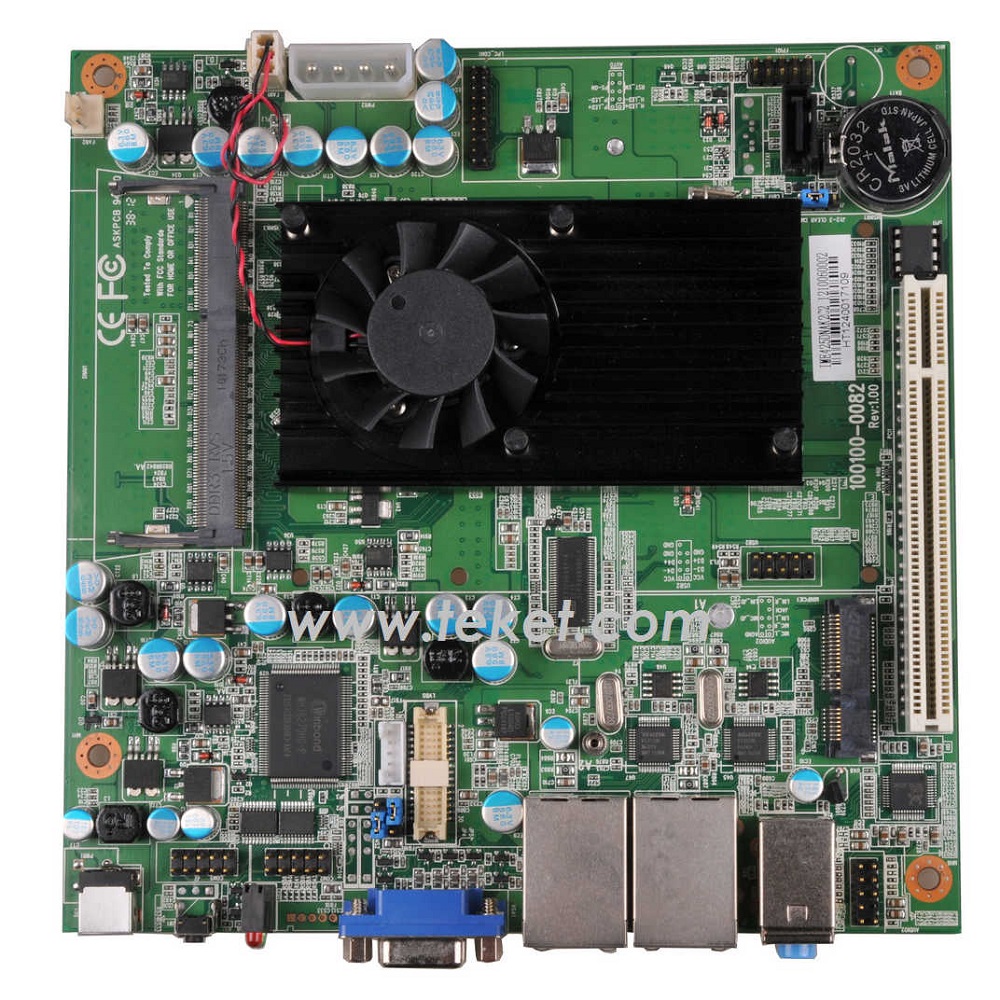

Atom D425 Mini-ITX Motherboard D425ZR with ATOM D425 and NM10

The Desktop Board D425ZR is designed to unleash the power of the new Intel Atom processor D425 which supports the new revolutionary two-chip layout. This new chipset layout reduces the package footprint by 70 percent, enabling easier routing and better heat flow. The Intel NM10 Express Chipset also provides additional flexibility and upgradability with two slots of single channel DDR3 memory at 800/667 MHz supporting up to 4GB maximum.

With breakthrough low-power silicon, the Desktop Board D425ZR can be used with a passive thermal solution based on the recommended boundary conditions.

The Desktop Board D425ZR represents a fundamental shift in system design small, yet powerful enough to enable a big Internet experience for all audiences.




Specification
CPU Intel Atom D425 1.8Ghz Low consumption processor
FSB N/A
Chipset Single chip: Intel NM10 or ICH8M
Memory 1 x SODIMM DDR3 800/1066MHz DIMM, Max support 2GB
Graphics Onboard Intel GMA3150, support DirectX 9.0C
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard Realtek 8111D, 1000M lan support PXE.
Storage Interface 2 x SATA 3 Gb/s Hard disk connector
Expansion Slots 1 x PCI slot
USB Support 8 PCS USB 2.0 Porst (4 pcs need extend)

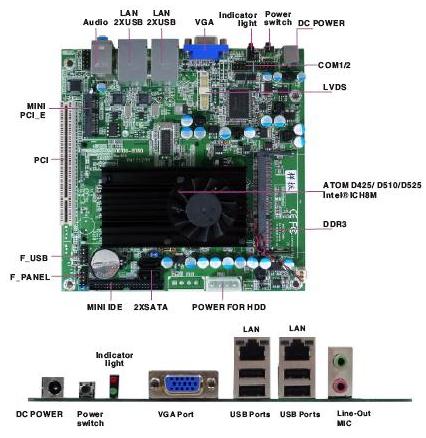

Internal
I/O Connectors
1 x 12V DC main power supply (DC power jack 5pin 2.5mm)
2 x SATA
1 x CPU fan header (fanless option)
1 x front panel header
1 x Audio header
2 x USB 2.0 headers
1 x Clear CMOS Header
2 x COM headers (COM2 support RS422/RS485)
1 x CD_IN Audio header
1 x IR Red-way extend header
1 x VGA_H header
1 x 18bit LVDS header
1 x LVDS_INVERT header
1 x Mini PCIe (wifi or msata ssd option)
1 x mini IDE (option)

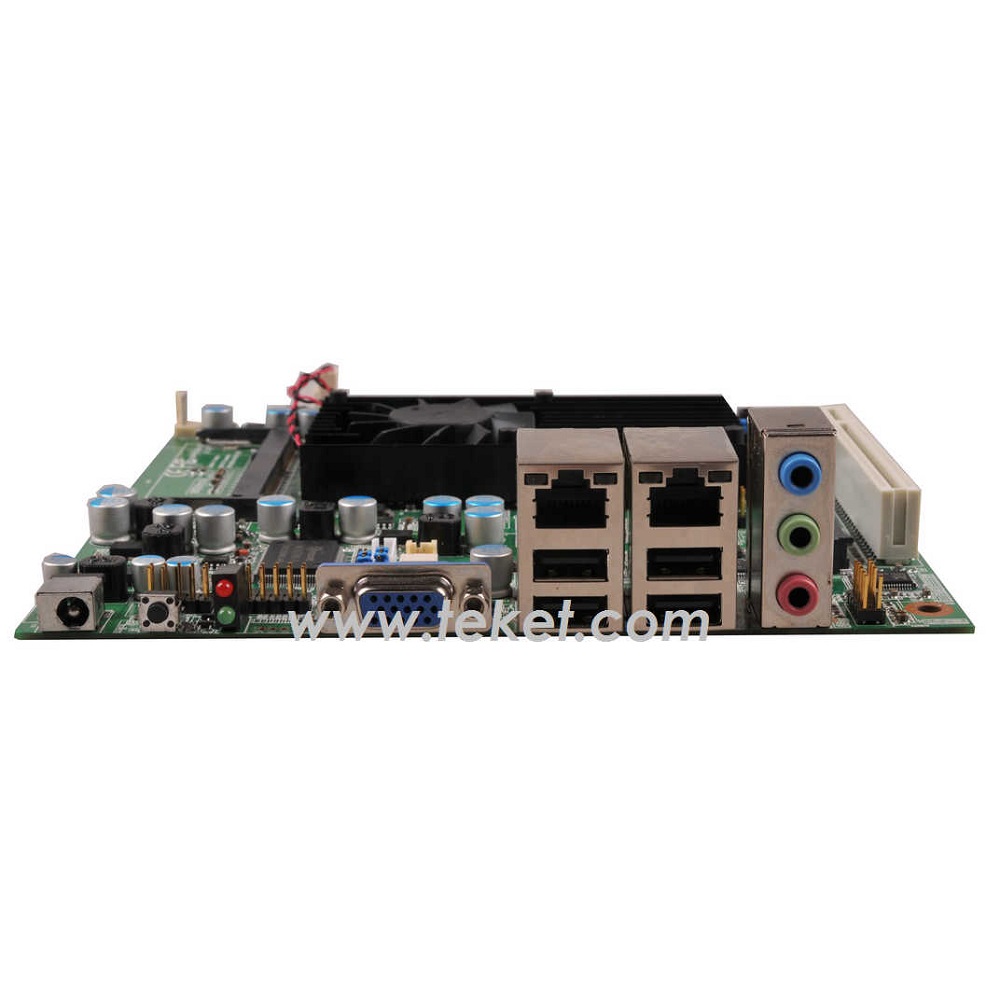

Back Panel
Connectors 1 x PS/2 mouse and keyboard ports
1 x VGA port
1 x COM port (9Pin with power)
1 x LPT port
4 x USB 2.0 port
2 x RJ-45 ports
1 x audio 2 Jacks( Line_out, MIC or Line-in)
I/O Controller 1 x IT8782F
BIOS AMI Authorized 8Mbit BIOS process, support RPL/PXE
Form Factor Mini-ITX 170 x 170mm
Work Environmental
Working conditional temperature -15~60¡⁠
Working conditional humidity 10%~80% relative humidity, non-condensing
Resolution ATM, Kiosk, Digital Signage and Living Room PC

Note: this board is mainly designed for OEM market, we can provide customize service, include removing remove any unnecessary interface or configuration to adapt to the needs of the target market.
