>>Your Current Position: Intel Motherboard

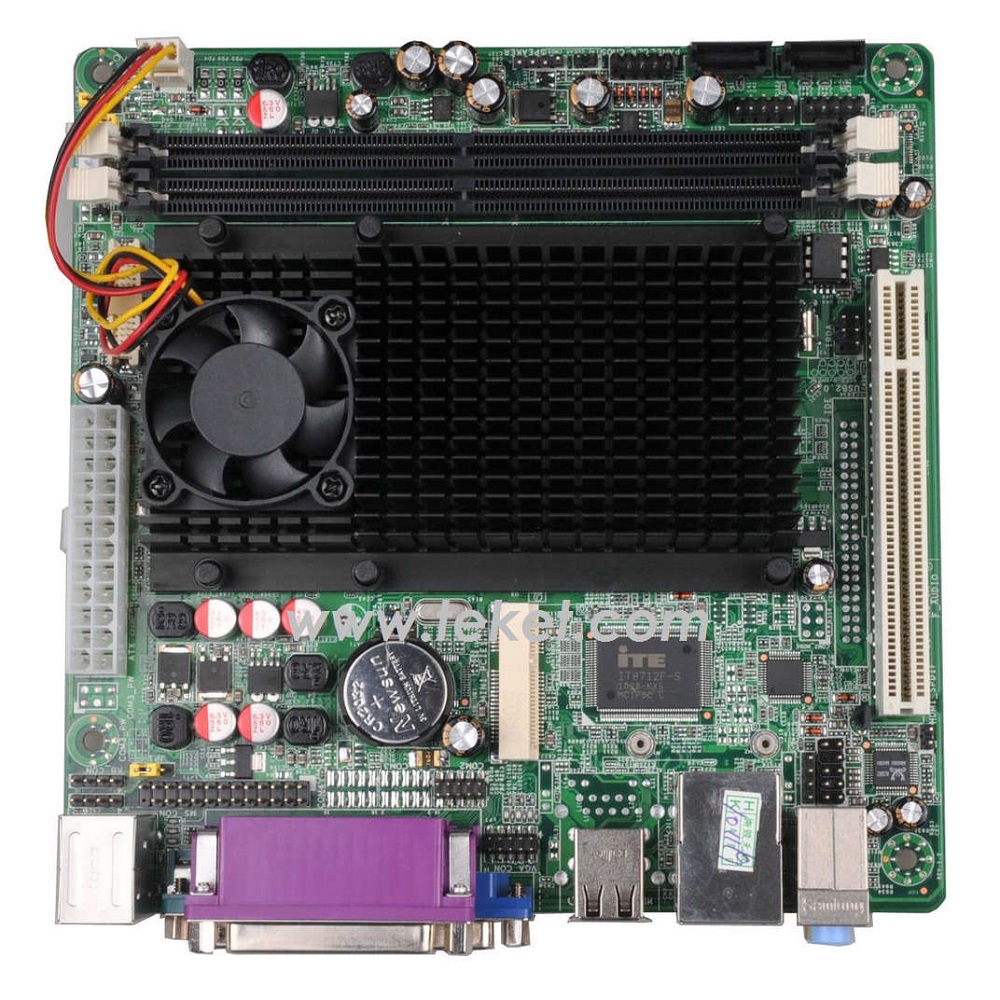

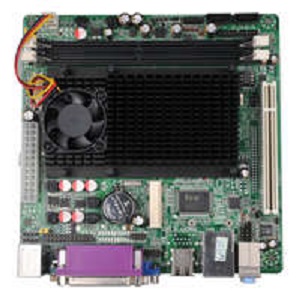

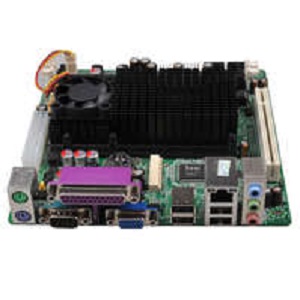

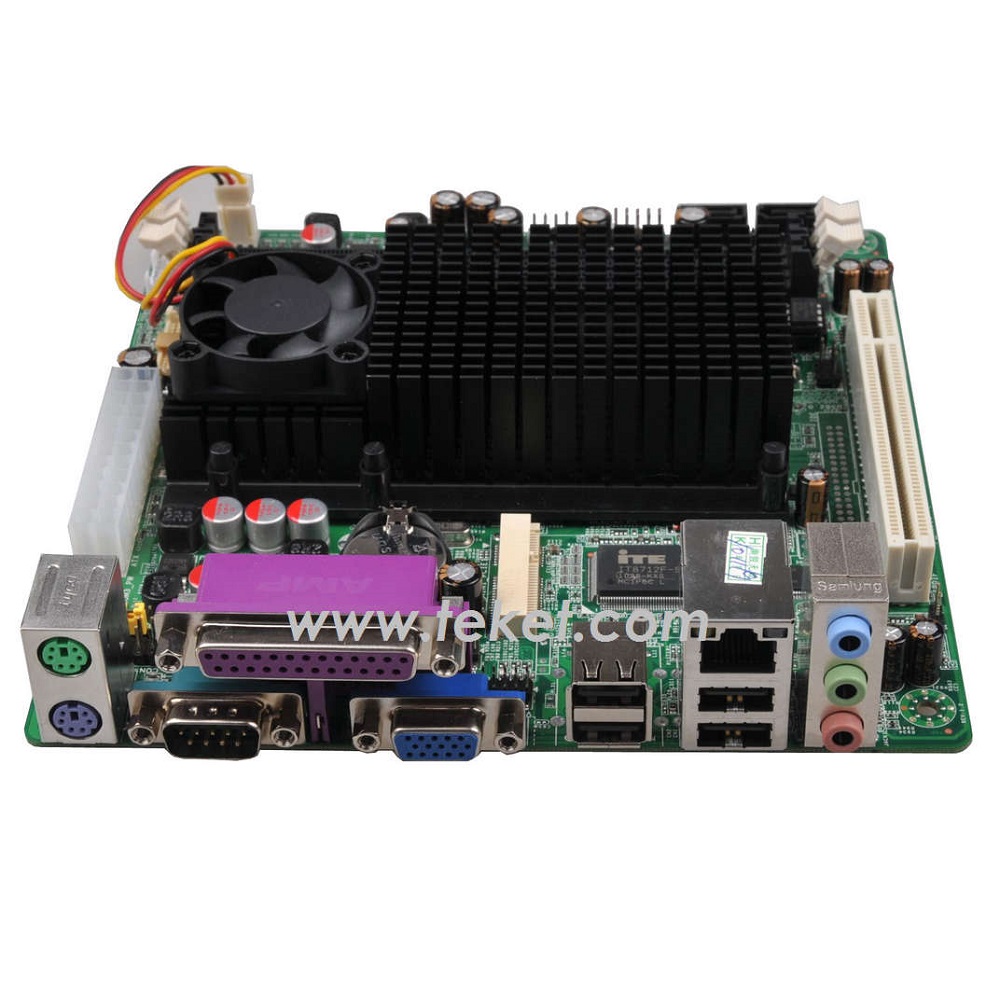

Atom D525 Mini-ITX Motherboard D525LM with ATOM D525 and NM10

The Desktop Board D525LM is designed to unleash the power of the new Intel Atom processor D425 which supports the new revolutionary two-chip layout. This new chipset layout reduces the package footprint by 70 percent, enabling easier routing and better heat flow. The Intel NM10 Express Chipset also provides additional flexibility and upgradability with two slots of single channel DDR2 memory at 800/667 MHz supporting up to 4GB maximum.

With breakthrough low-power silicon, the Desktop Board D525LM can be used with a passive thermal solution based on the recommended boundary conditions.

The Desktop Board D525LM represents a fundamental shift in system design¡ªsmall, yet powerful enough to enable a big Internet experience for all audiences.



Specification
CPU Intel Atom D525 1.8Ghz low consumption processor Dual Core
(Intel Atom D425 1.8Ghz Single Core option)
Front Side Bus: FSB 800Mhz
Chipset Chipset: Intel NM10
Memory 2x DDR2 667/800MHz DIMM, Max up to 4GB
Graphics Onboard Intel GMA3150, support DirectX 9.0C, shader Mode 2.0
Audio Onboard Realtek ALC662 HD audio chip (6 Channel)
LAN1: Onboard Realtek 8111DL 1000Mbps (10/100M option),support no disk boot up.
LAN2: Onboard Realtek 8111DL 1000Mbps (10/100M & USB option)
Suport I/O: ITE 8712KX

Add-in Slots:
MINI PCIE Slots: 1
PCI Slots: 1

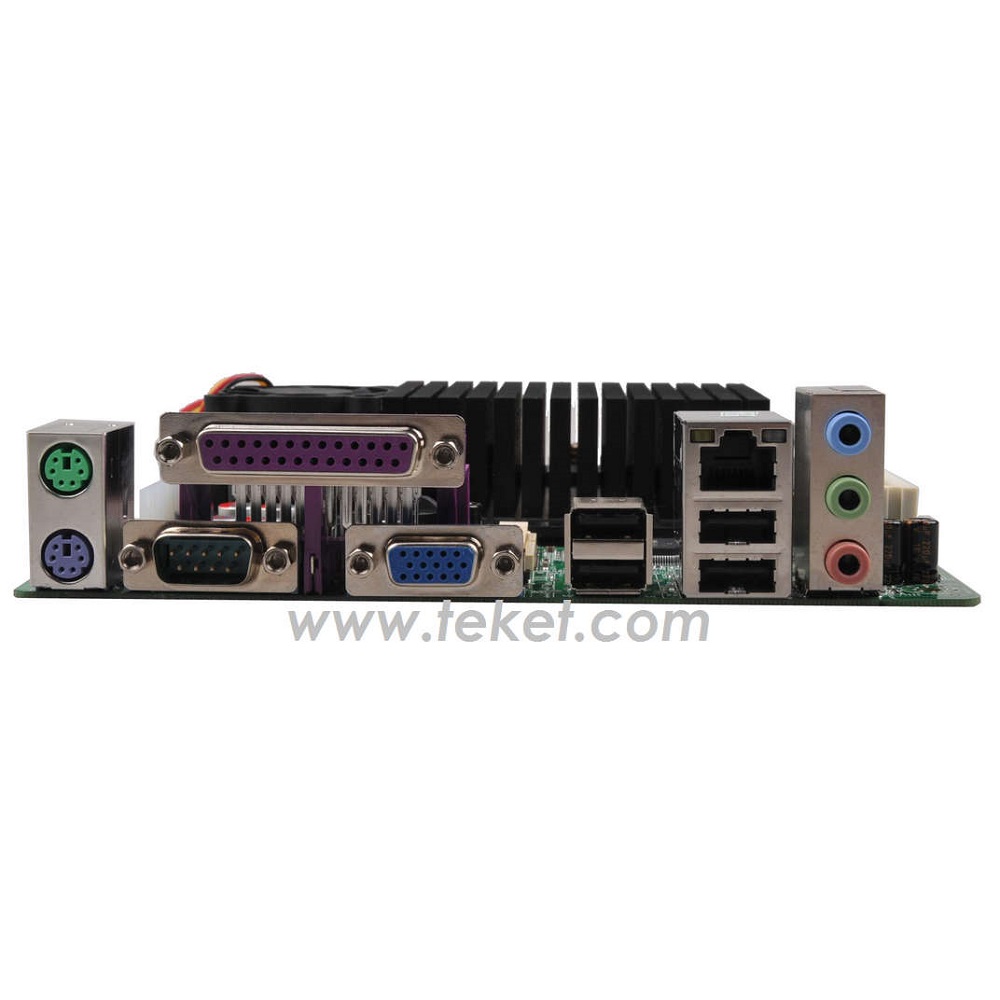

Bacnk Panel:
USB Ports(qty): 4
PS/2 Keybaord + Mouse: 1
VGA Connector: YES
Analog Audio Ports: 1*3 Phone Jack
LPT Port: 1
Serial Port: 1
RJ45 LAN Connector: 2

Inernal Headers
SATA Connectors: 2
IDE Connector: 1(Mini 44pin IDE)
CF Connector: N/A
USB Header(2*5pin 9 keyed): 2 (4USB ports, 1 share w/ MINI-PCIE)
LVDS Connector: 1
Parallel Port Header (2*13): 1
Serial Port Header: 3
Infrared Header: 1
Chassis Man Panel Header (2*5): 1
AUdio Header (front panel mic/hp)(2*5):1
S/PDIF Out Audio header(1x2): 1
Internal Speaker Header(1x4): 1

Power Headers
UNiversal Power Connector: 2*12

Thermal Headers
CPU Fan: 1

BIOS SPI 8MB
Form Factor Mini-ITX 170 x 170mm
Work Environment
Work Temperature 0~60¡⁠
Work Humidity 10%~80% relative humidity, non-condensing
Apply Range ATM, Kiosk, Digital Signage, Living Room PC

Net Weight: 485g
Inner Packing: 770g
Outer Packing:
