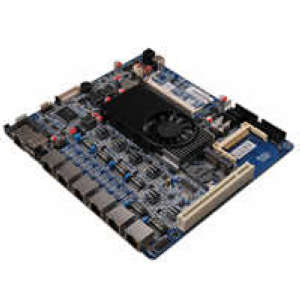

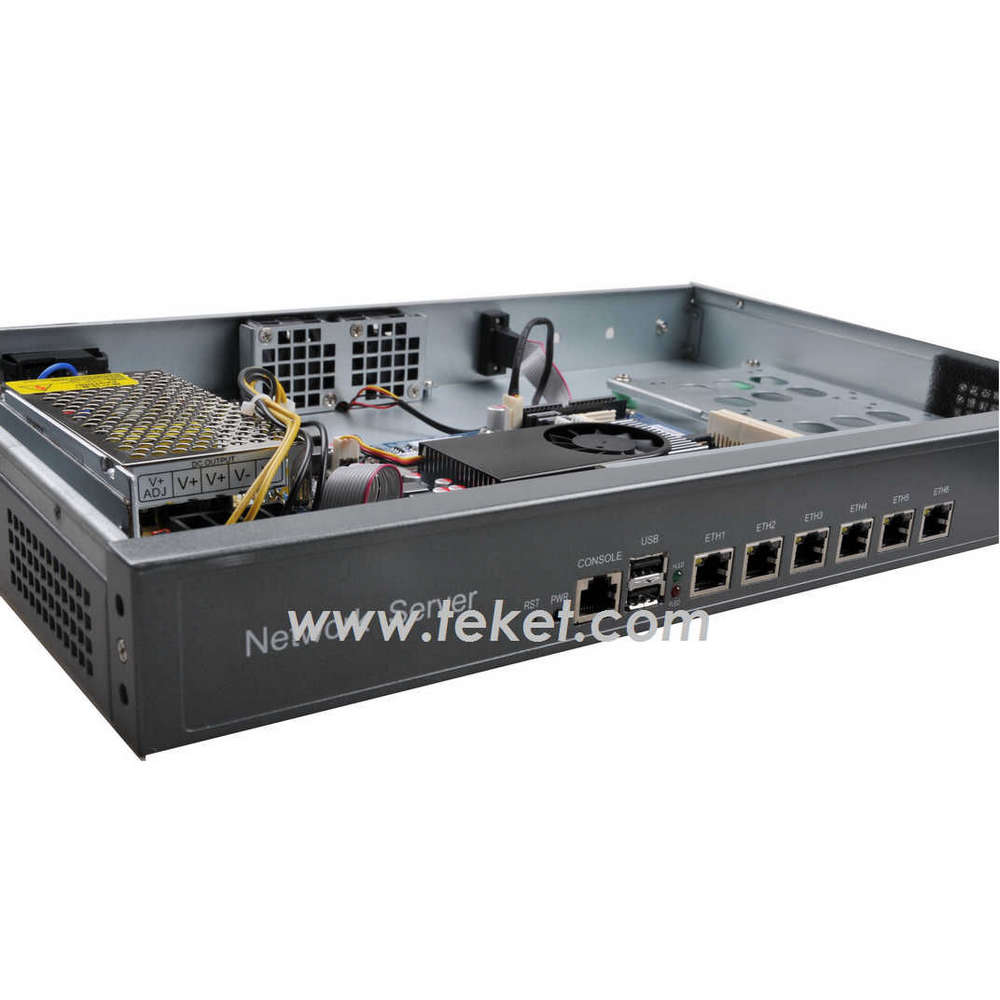

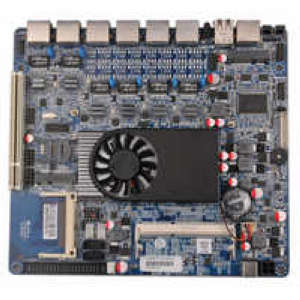

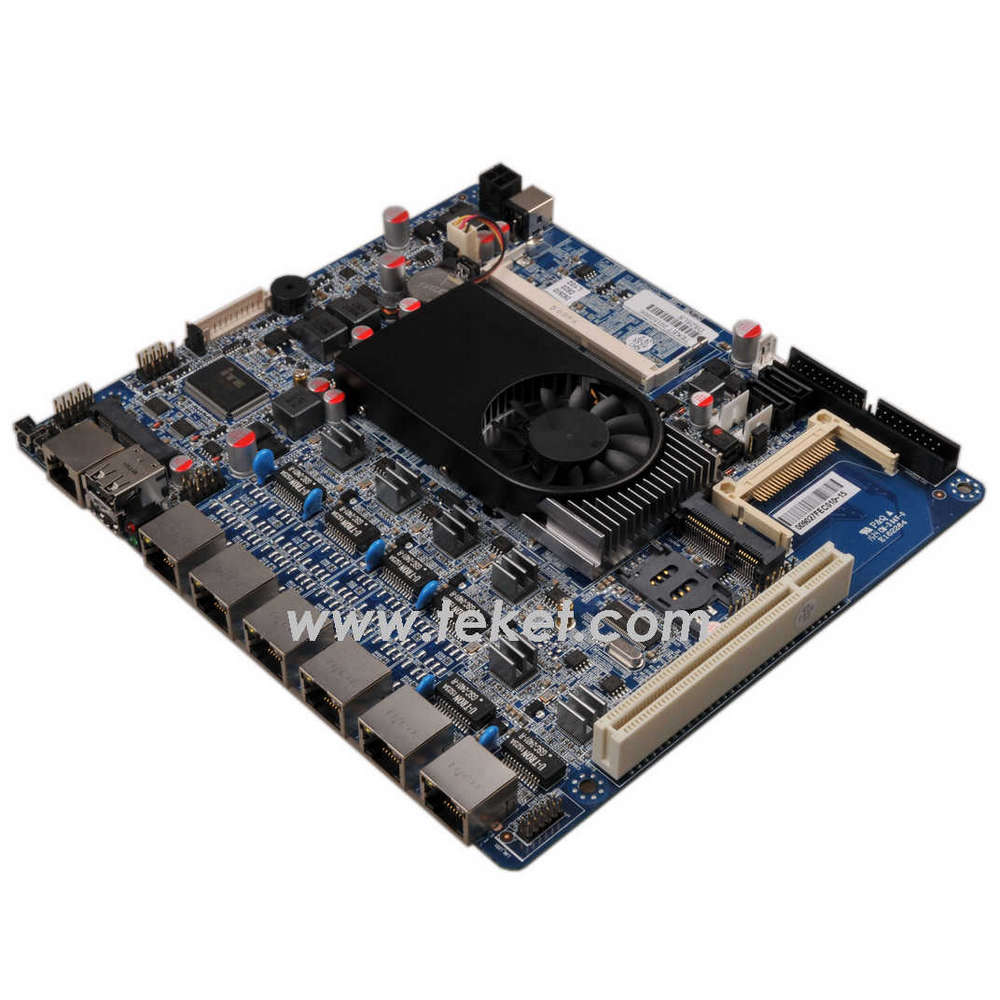

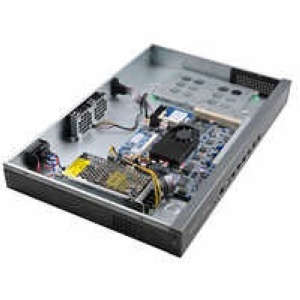

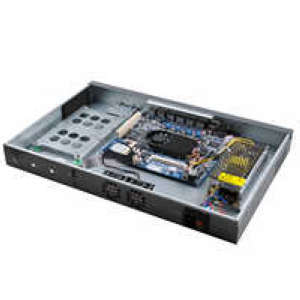

Atom D525 Motherboard D525LS with Intel 6 LAN PORTS and 12V DC IN

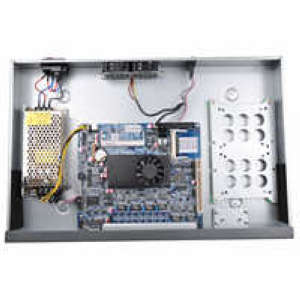

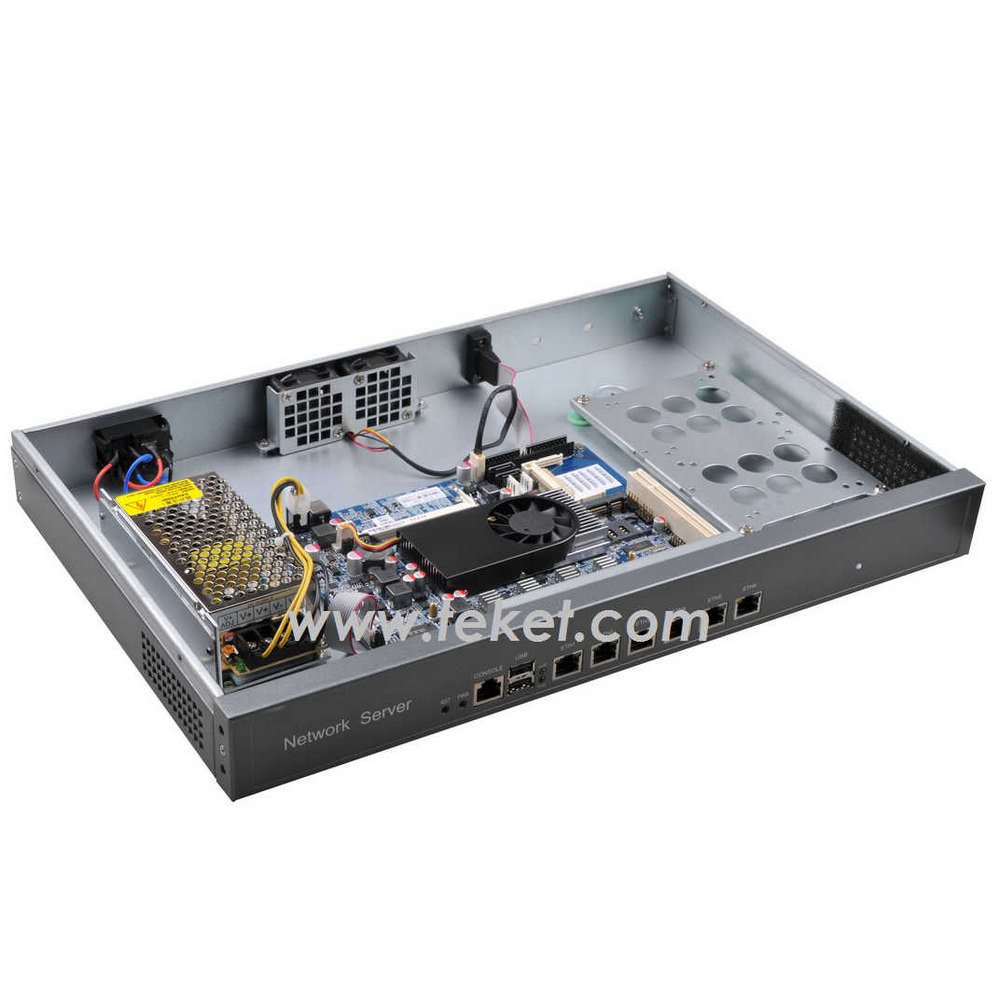

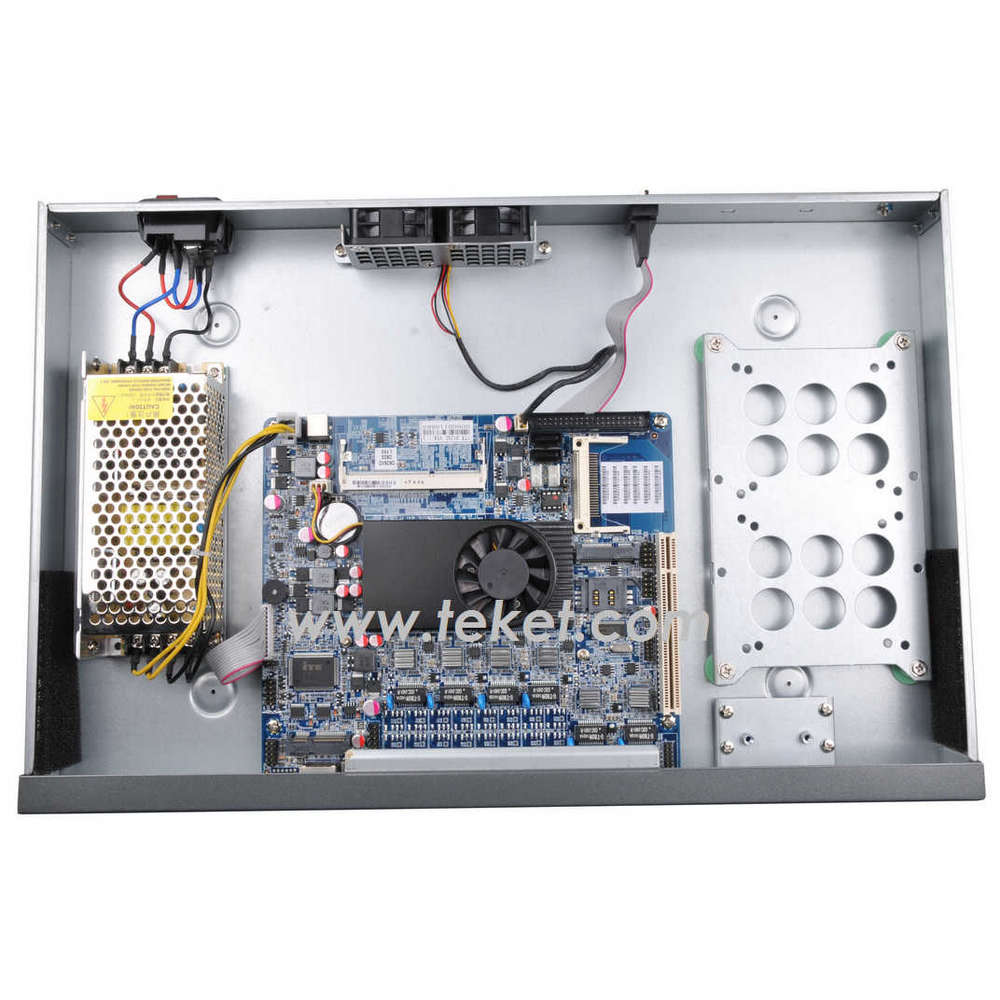

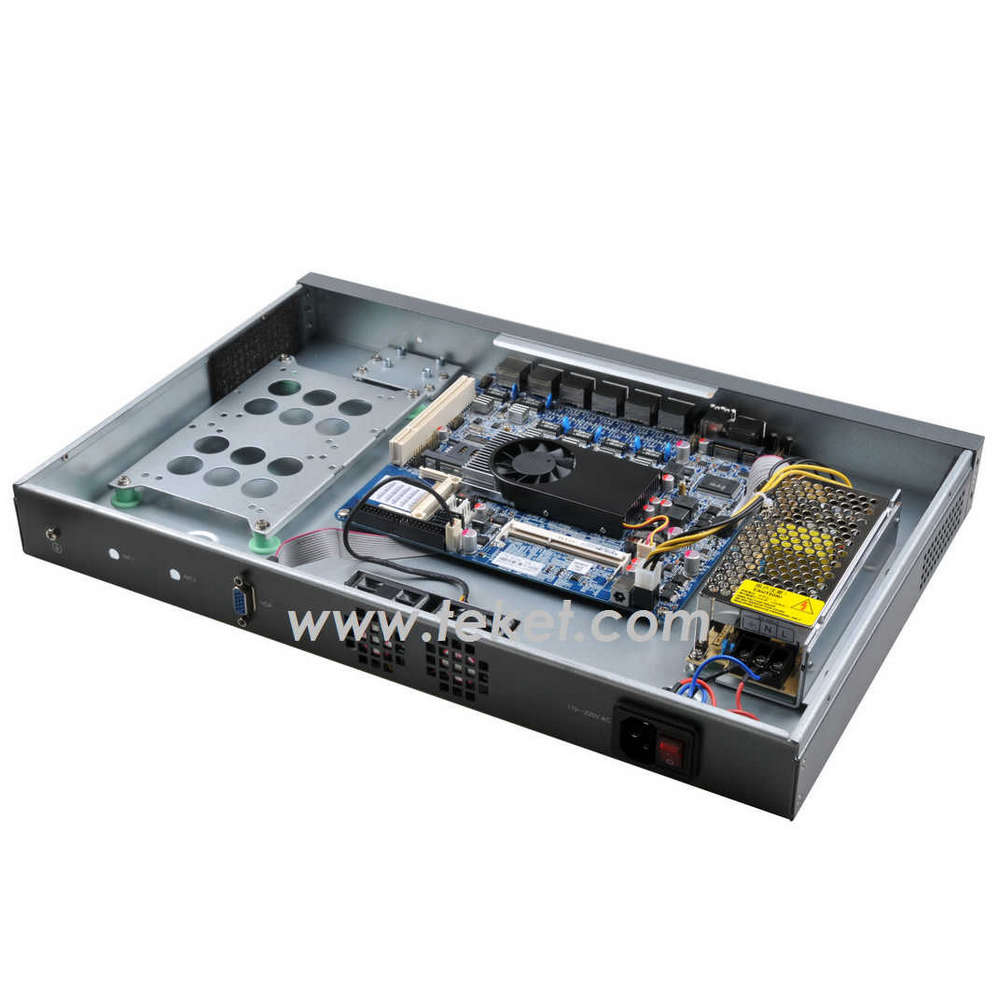

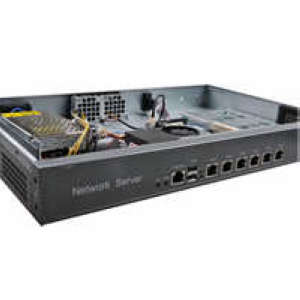

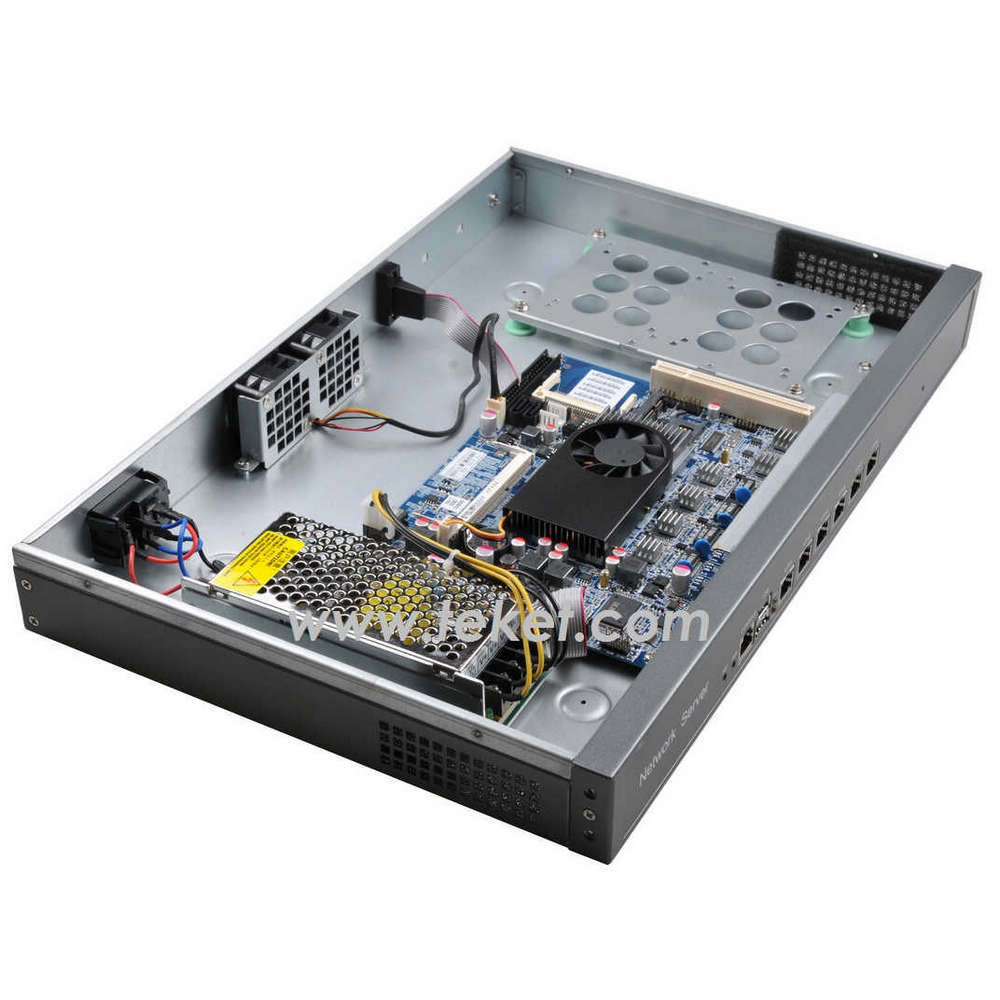

Firewall, Gateway, Network Security ROS,Hi-Spider Router
1),D525 dual core 1.8Ghz, built-in 6 Intel 82583V/82574L Gigabit Ethernet
2),support MINI-PCIE, CF, 44PIN IDE, 12VDC
3),1*COM,1*VGA,2*USB

6 LAN DC Power
D52LS ver1.3
Intel® Atom dual coreD525 Processor (1.80GHz)
Adopt Intel® ICH8M Express chipset
1* DDR3 SODIMM,support 1066/800MHz memory, up to2GB
Intel® GMA3150 Graphics,



CPU
Onboard Intel® Atom dual coreD525 Processor (1.80GHz)
Chipset
Adopt Intel® ICH8M Express chipset
Memory
Provide1* DDR3 SODIMM,support 1066/800MHz memory, up to2GB
Graphics
Integrated Intel® GMA3150 Graphics,
LAN
Integrated 6* Intel® 82583V/82574LGigabit Ethernet ,support wake on LAN/PXE
Storage
1* MSATA Slot,support SSD、USB WIFI,the SSD transfer rate up to3Gbps
2* SATA2.0 HDD interface, the transfer rate up to3Gbps
1* CF card socket
Expansion slots
1* PCI slot
1* MINIPCIE slot, supportUSB WIFI、3G module

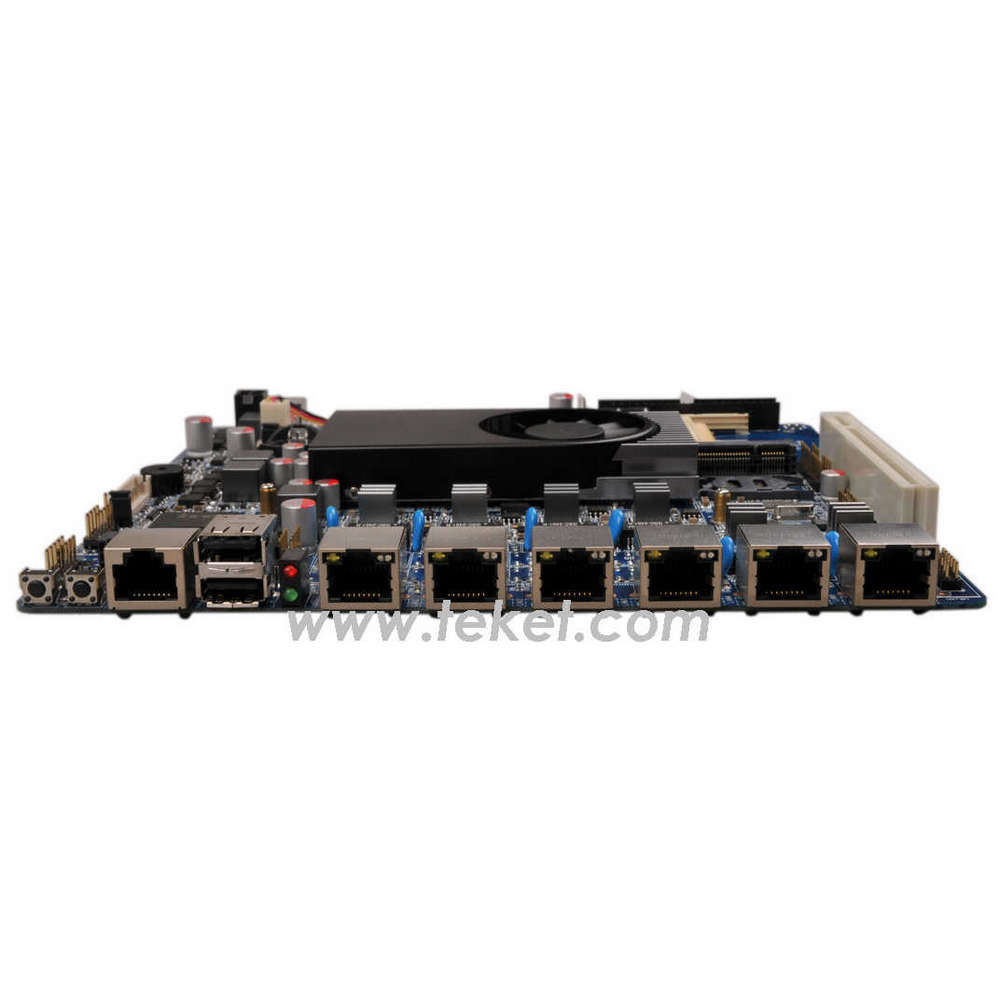

Rear I/O
1* CISCO COM
2* USB 2.0

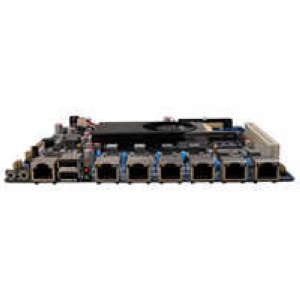

6* RJ-45 Gigabit Ethernet connector
1* power switch
1* Reset switch
1* power/HDD LED
1* 12V DC_JACK input interface
Internal I/O
1* JVGA1 1*12pin
2* LANLED 2*6pin
1* RS232 serial port 2*5pin
4* USB 2.0 2*5pin
1* front panel function buttons and indicator connector 2*5pin
1* PS/2 KB/MS connector
1* 4pin ATX 12V power interface(can do +12V input/output power interface)
2* HDD power supply connector
FAN interface
1*4pin CPU Intelligent fan interface,1* 3pin system fan interface
GPIO
support 4 way input/output GPIO
BIOS
AMI 8Mb DPI Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
DC_12V power input
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
200mm x 180mm

Order Information
D525LS ver1.3 D525,1.80G,1*SODDR3,1*VGA,6*LAN(Intel82583V),6*USB,2*COM,no BYPASS,12VDC
D525LSL ver1.3 D525,1.80G,1*SODDR3,1*VGA,6*LAN(Intel82574L),6*USB,2*COM,no BYPASS,12VDC
