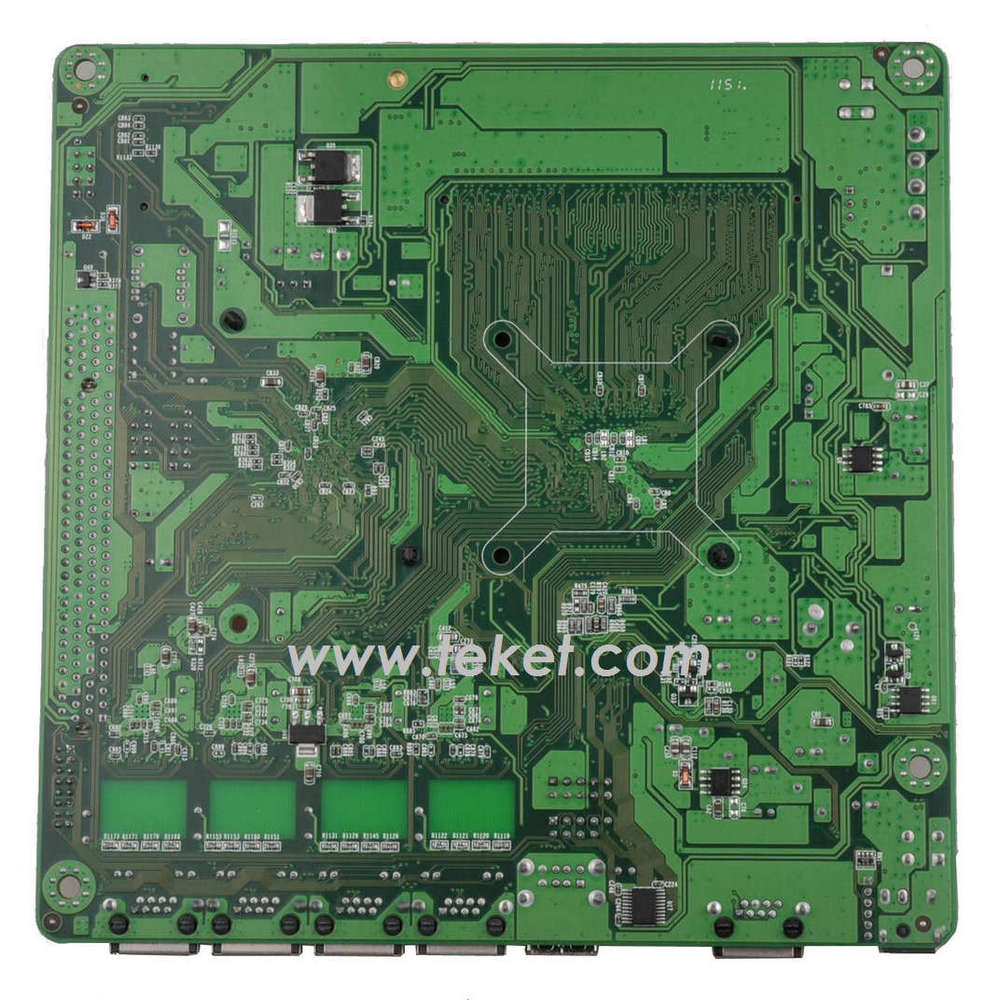

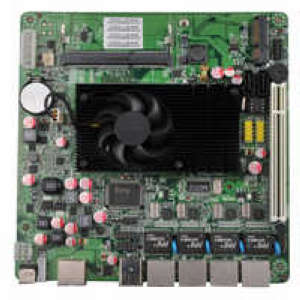

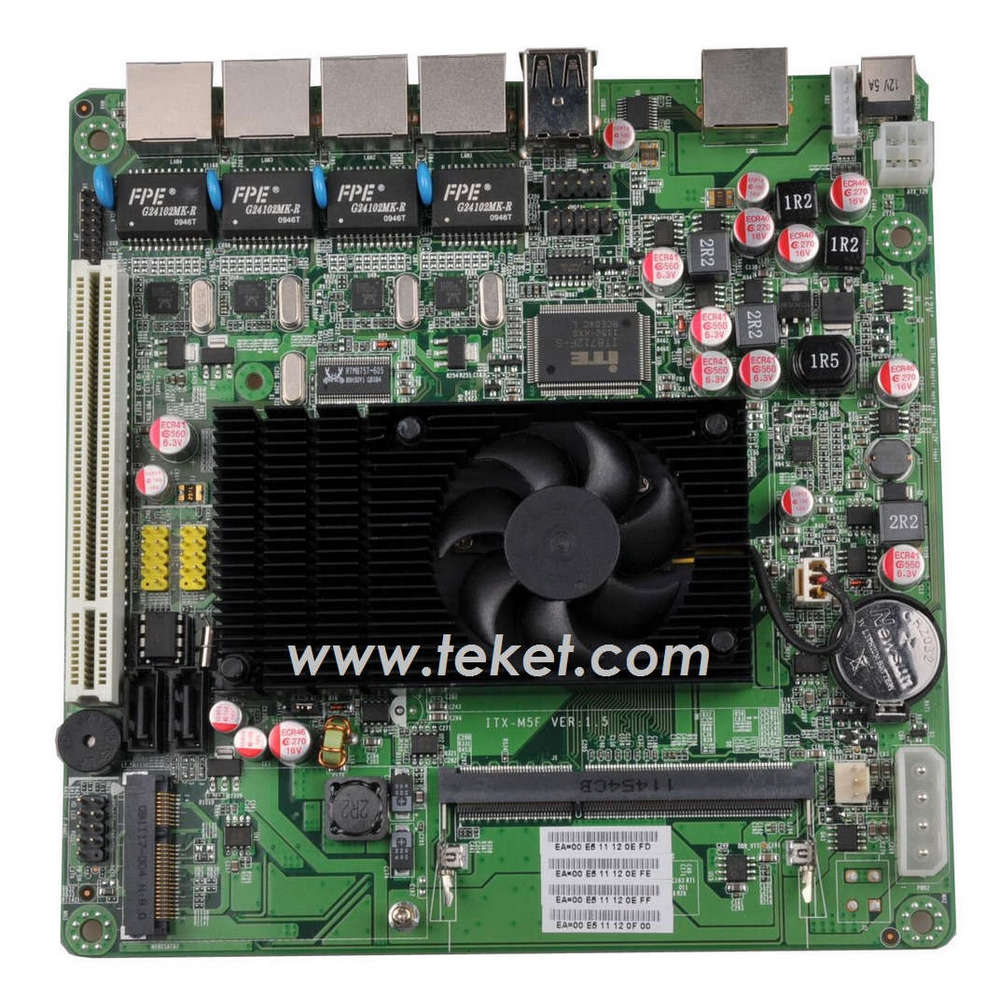

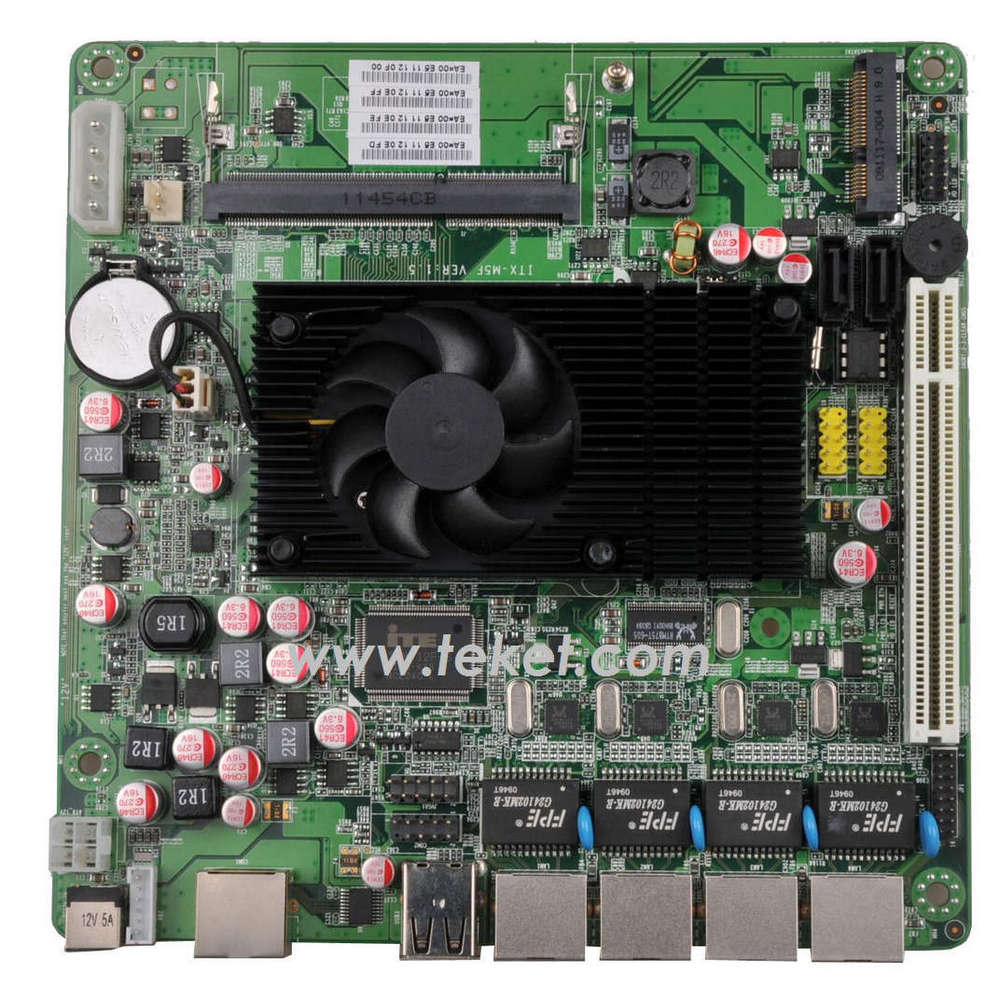

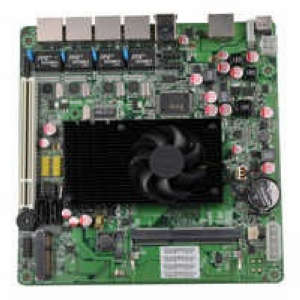

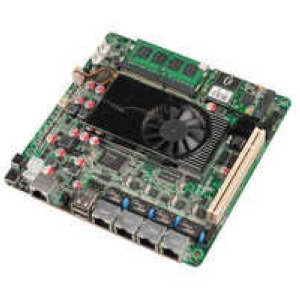

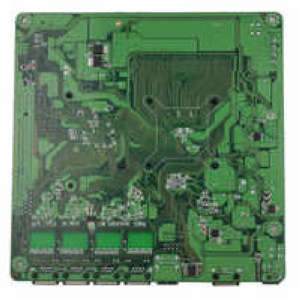

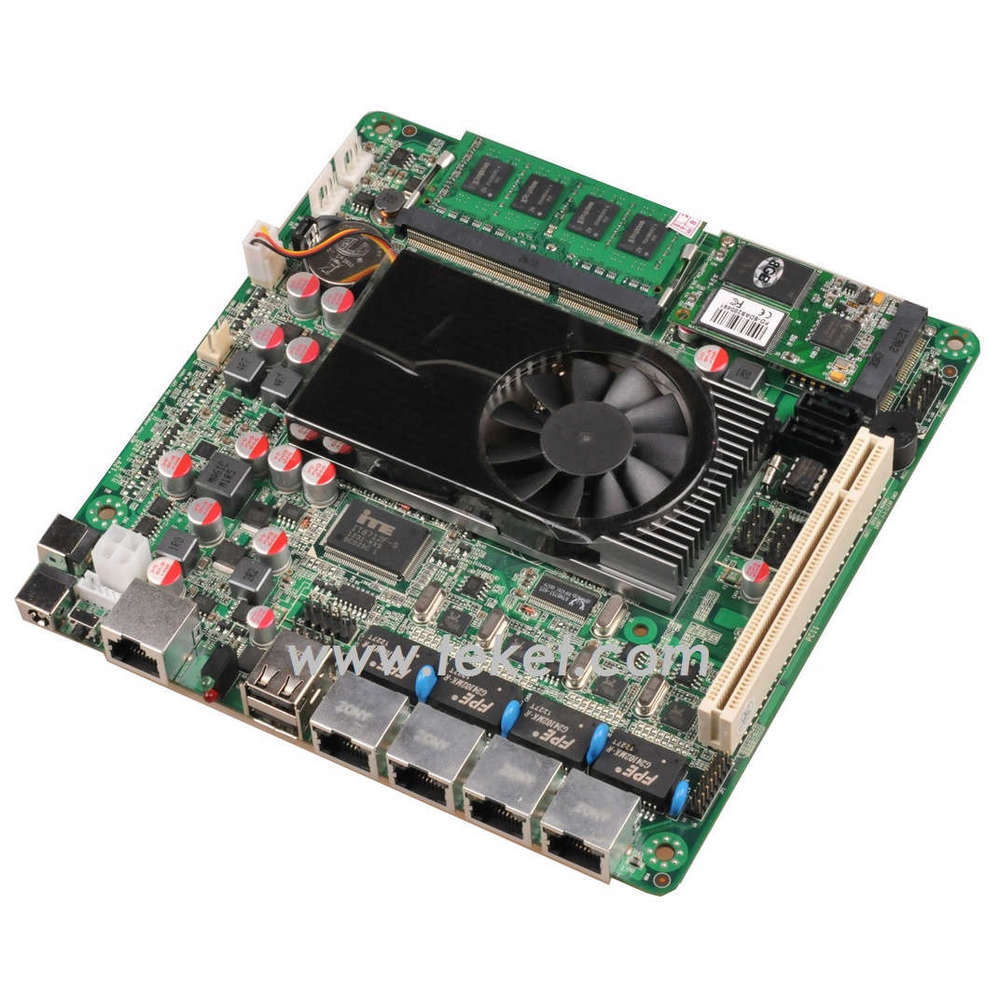

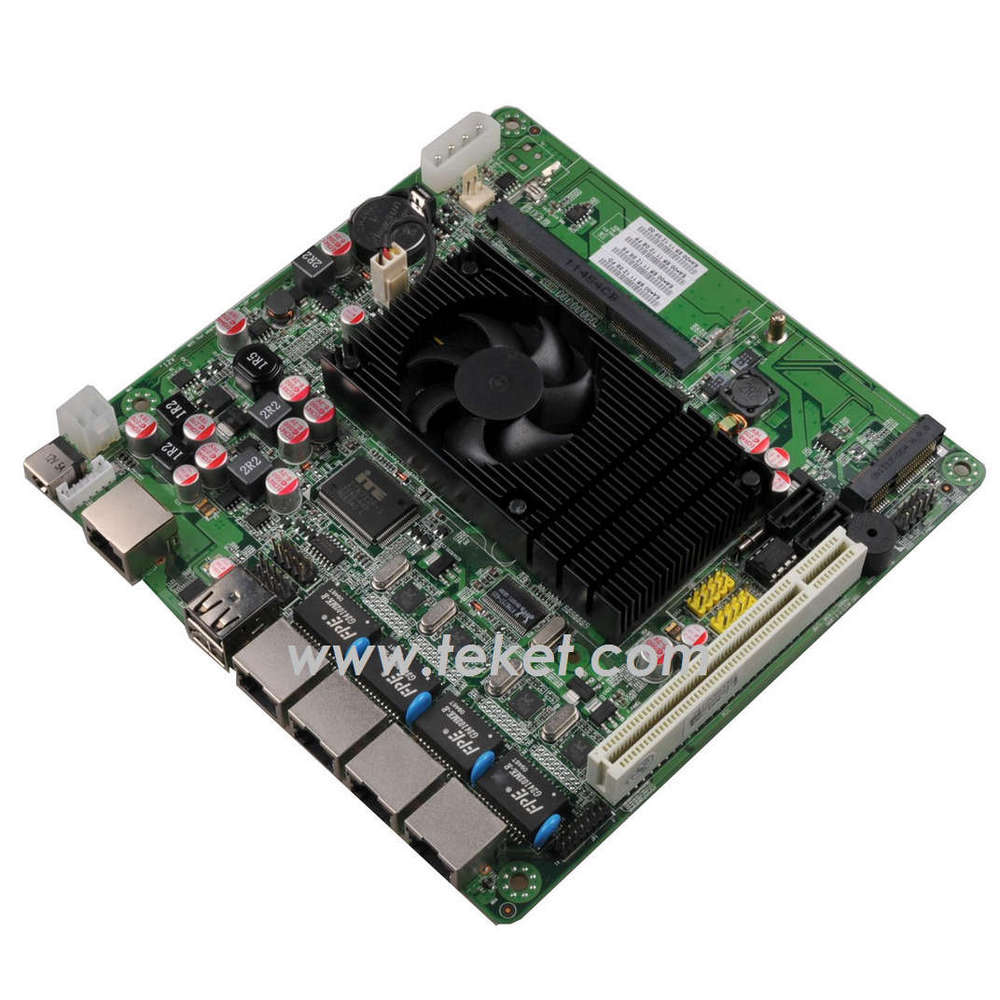

Atom D525 Mini-ITX Motherboard D525MF with 4 LAN PORTS and 12V DC IN

Intel Atom D525 low consumption dual core processors, 45nm, 1.80Ghz, 1024MB level 2 Cache
Chipset: Intel Atom D525+NM10
Graphics: Built-in Intel GMA 3150 graphics (share 128/224MB)
Integrated 12V DC in.

System
CPU Intel Atom D525 1.8Ghz low consumption dual core processor
Chipset Intel NM10 chip
Memory 1 x DDR3 1333/800/667MHz DIMM, Max up to 4GB
Expend: 1 x PCI SLot, 1*PCIE X1 (Support SSD Hard Disk, SATA2/SSD select)
Graphics Onboard Intel GMA3150, support DirectX 9.0C
Audio Onboard Realtek ALC662 HD audio chip

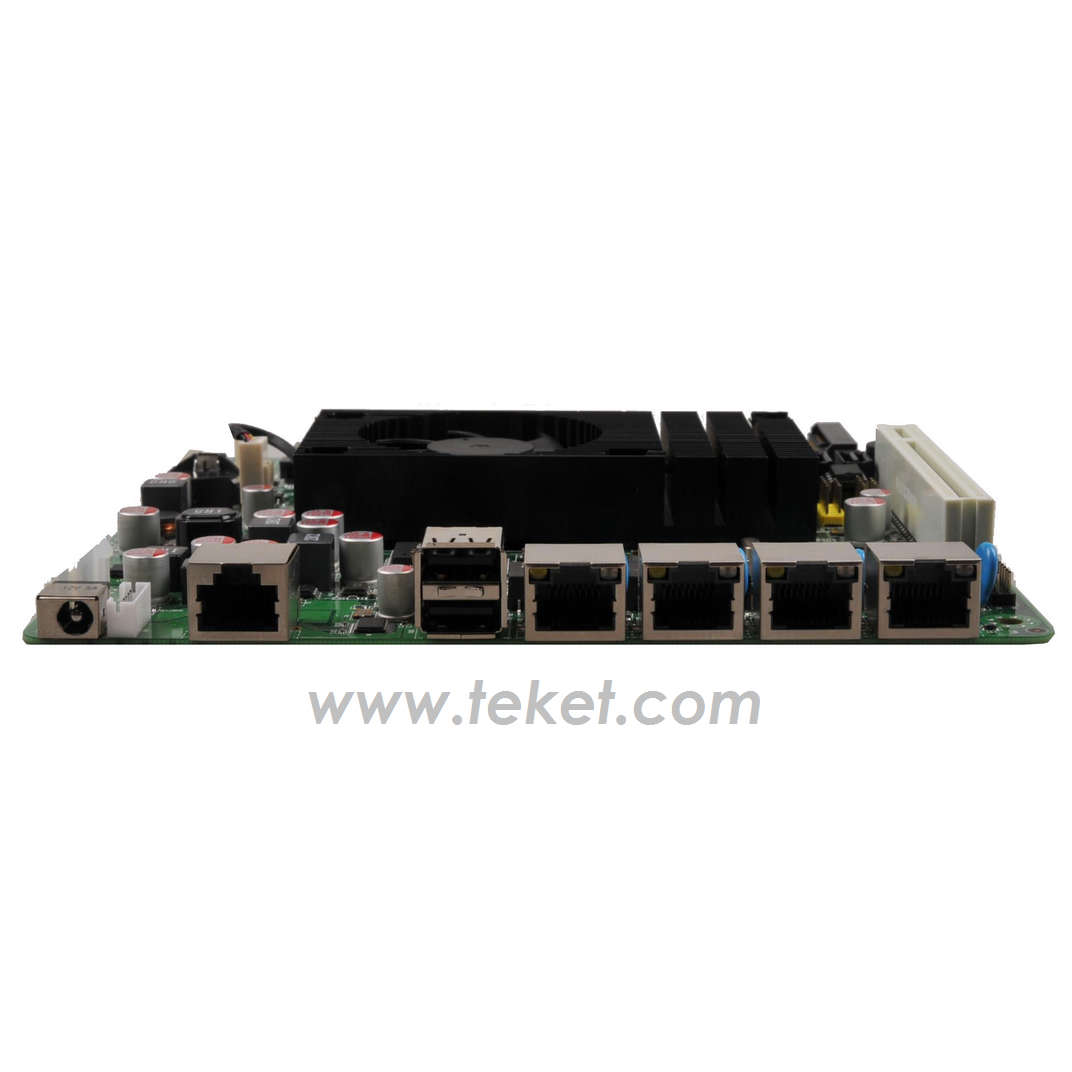

LAN Onboard Dual Realtek 8111E 1000LAN, 4 RJ PORTS.

Storage 2 x SATA 3 Gb/s
Expansion Slots 1*PCI
COM(RS232): 1xCOM (RJ45 connector)

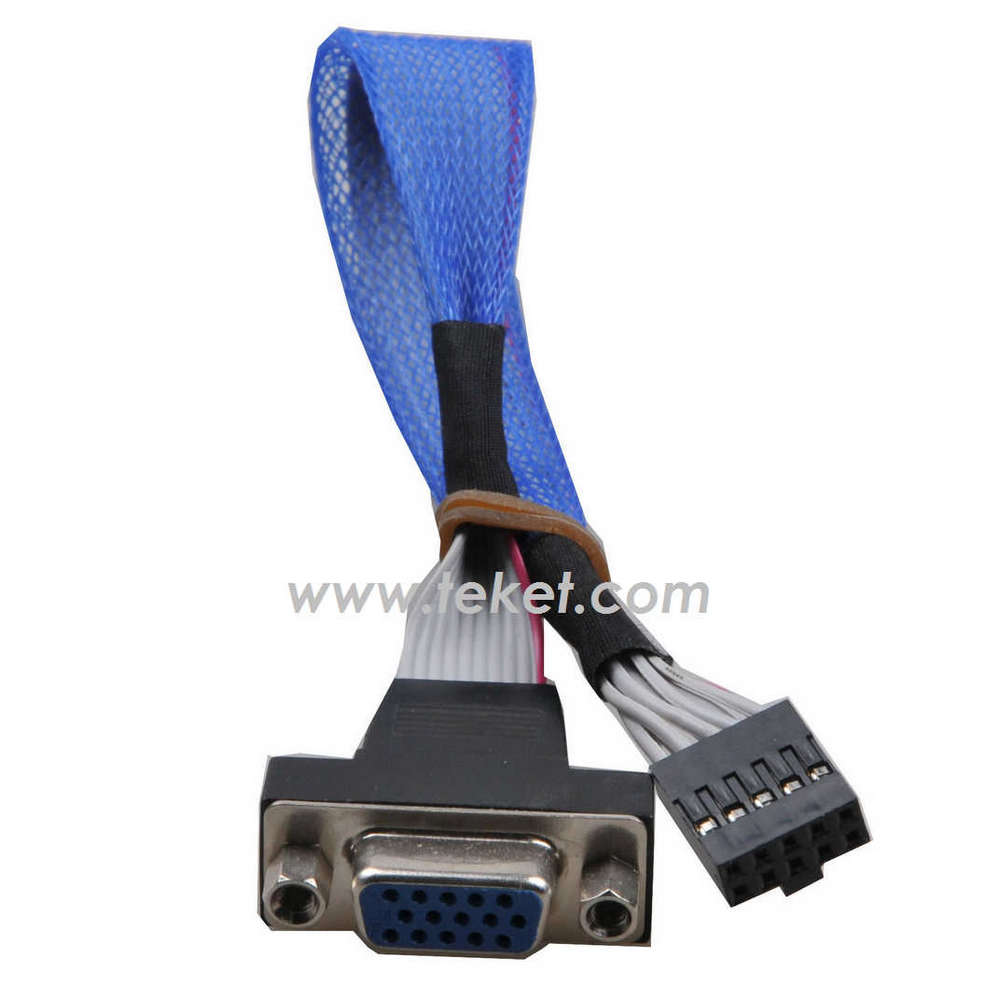

Display 1*VGA
4 USB port
Power Supply: built-in 12V/5A DC IN

BIOS Authorized AMI 8Mbit BIOS
Form Factor Mini ITX 170mmx170mm
Work temperature 0-60
Work humidity 10%~80% relative humidity, non-condensing

Market Segments Supported
Router, Networking/Storage Server/Mail Server/Print Server

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM

D525MF 340g/pc
9.09kg/ctn,20pcs/ctn 500x490x200mm (2013-03-19)

We can provide Board + mSATA + RAM sets as following:

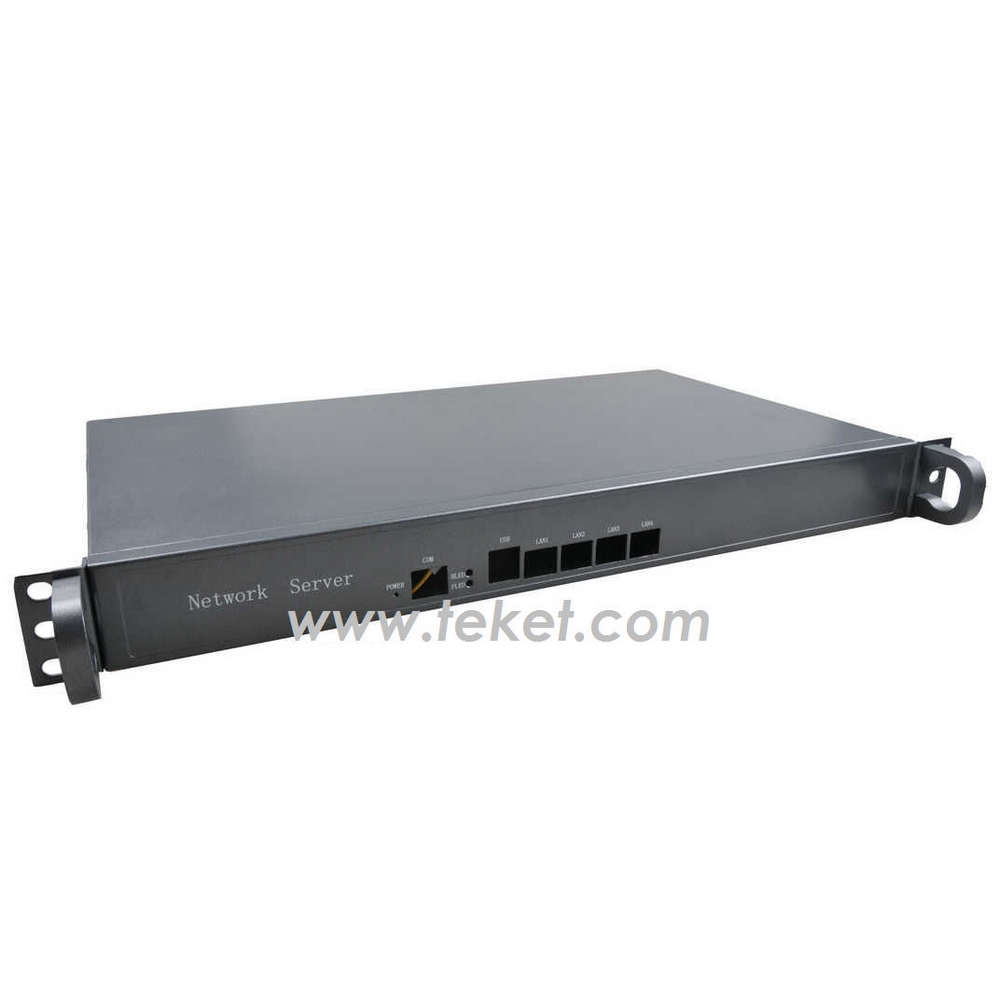

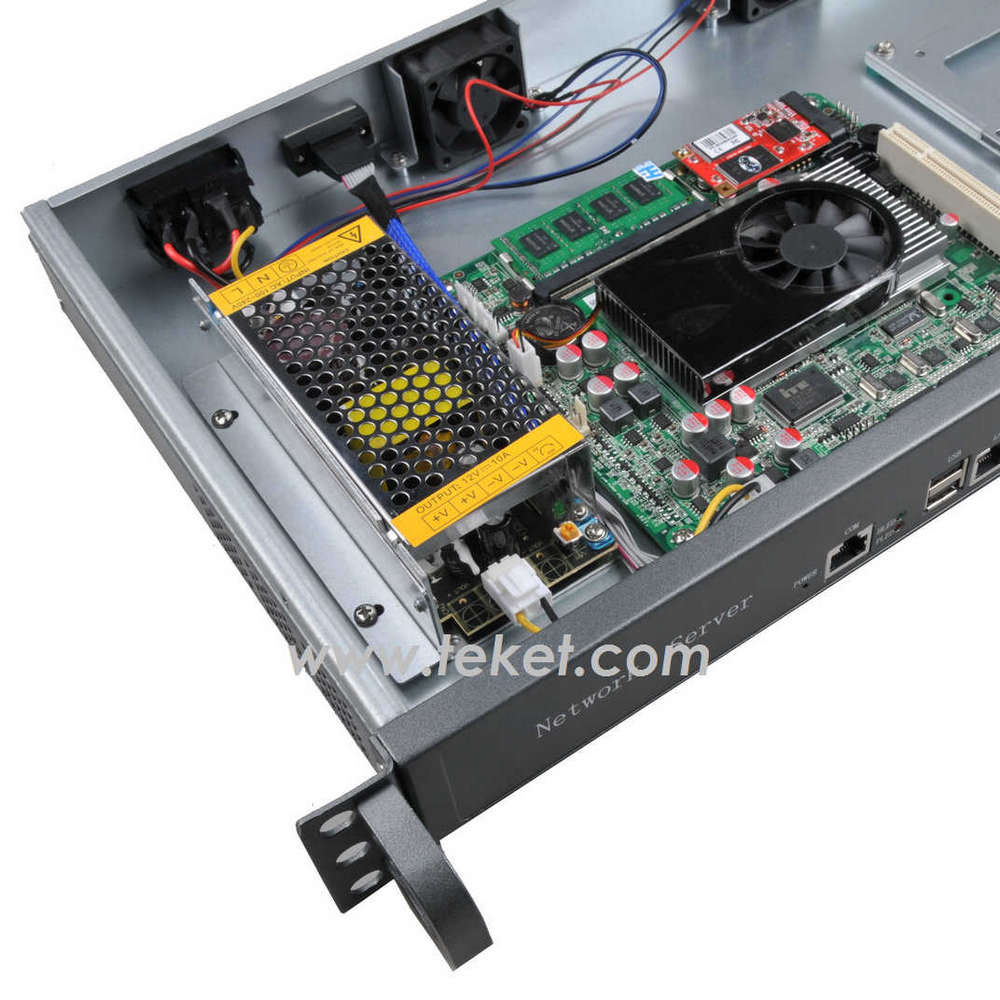

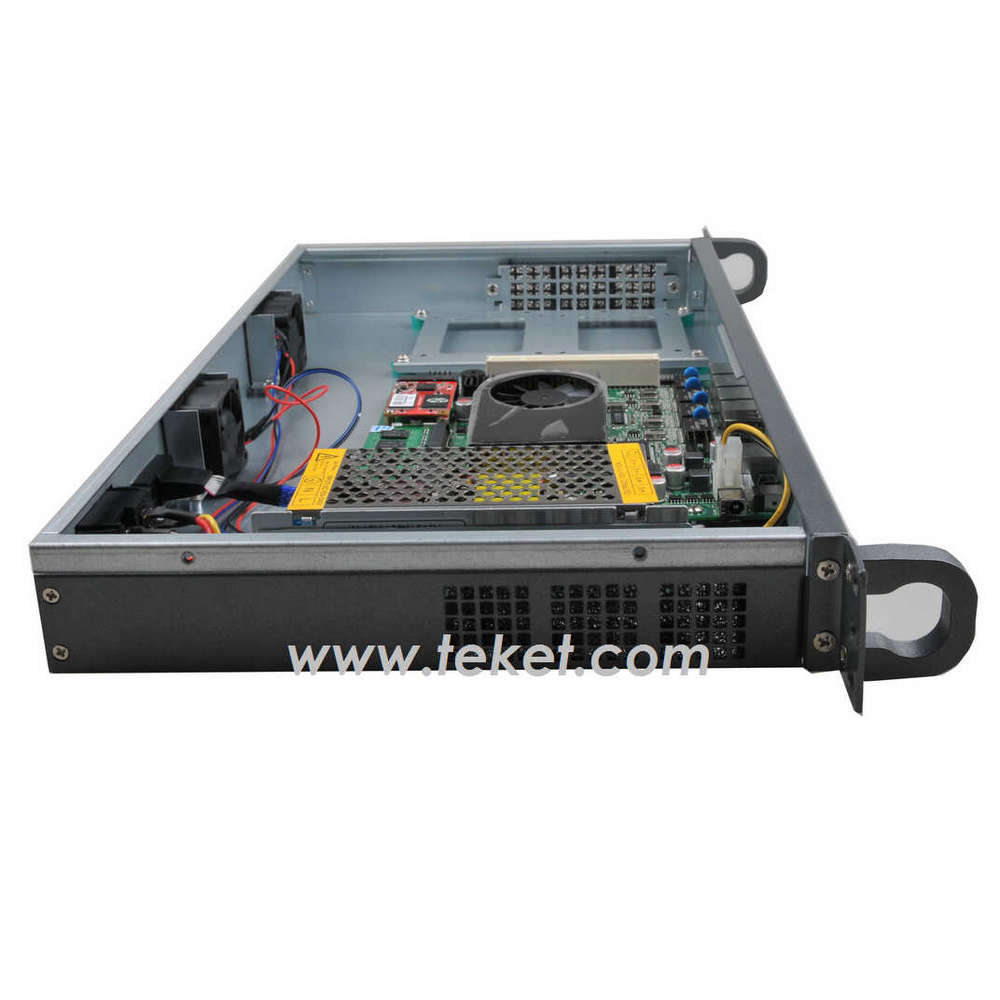

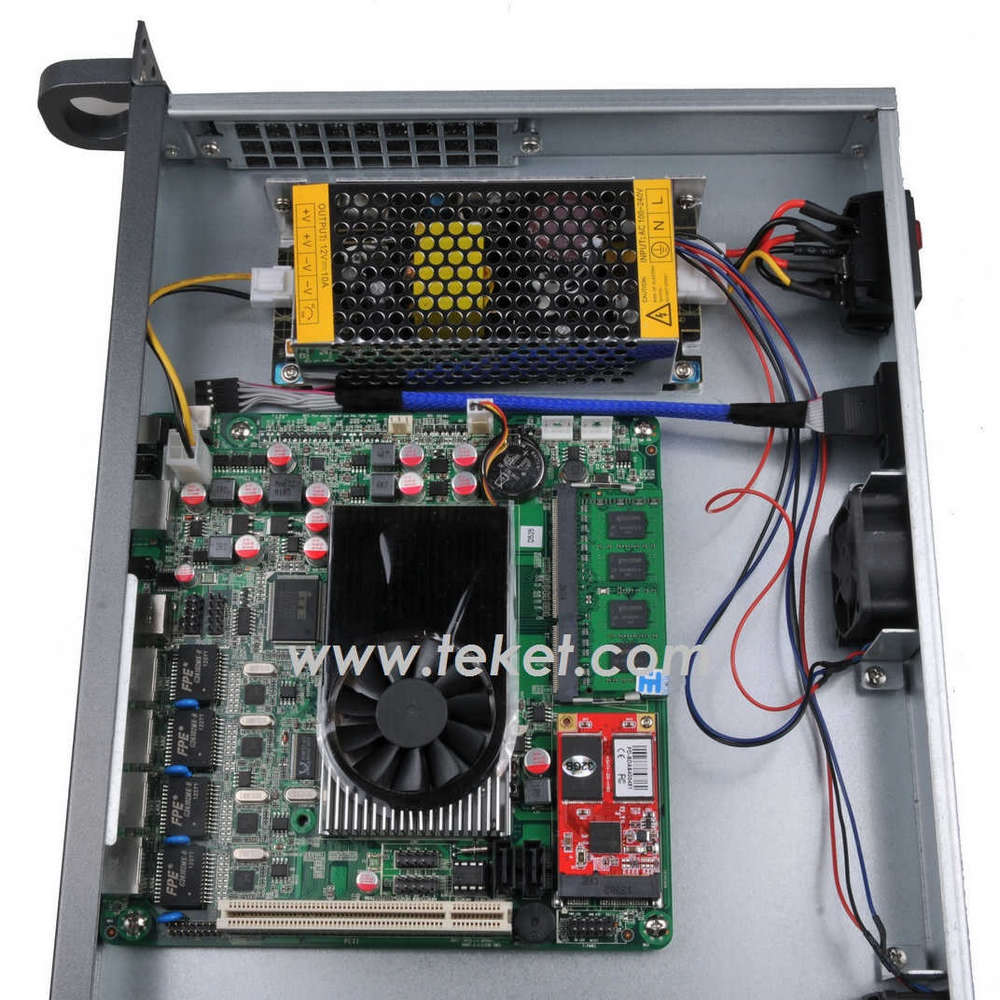

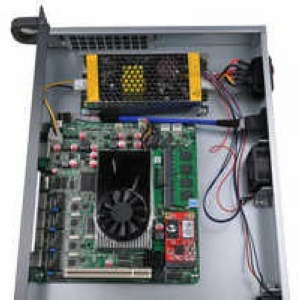

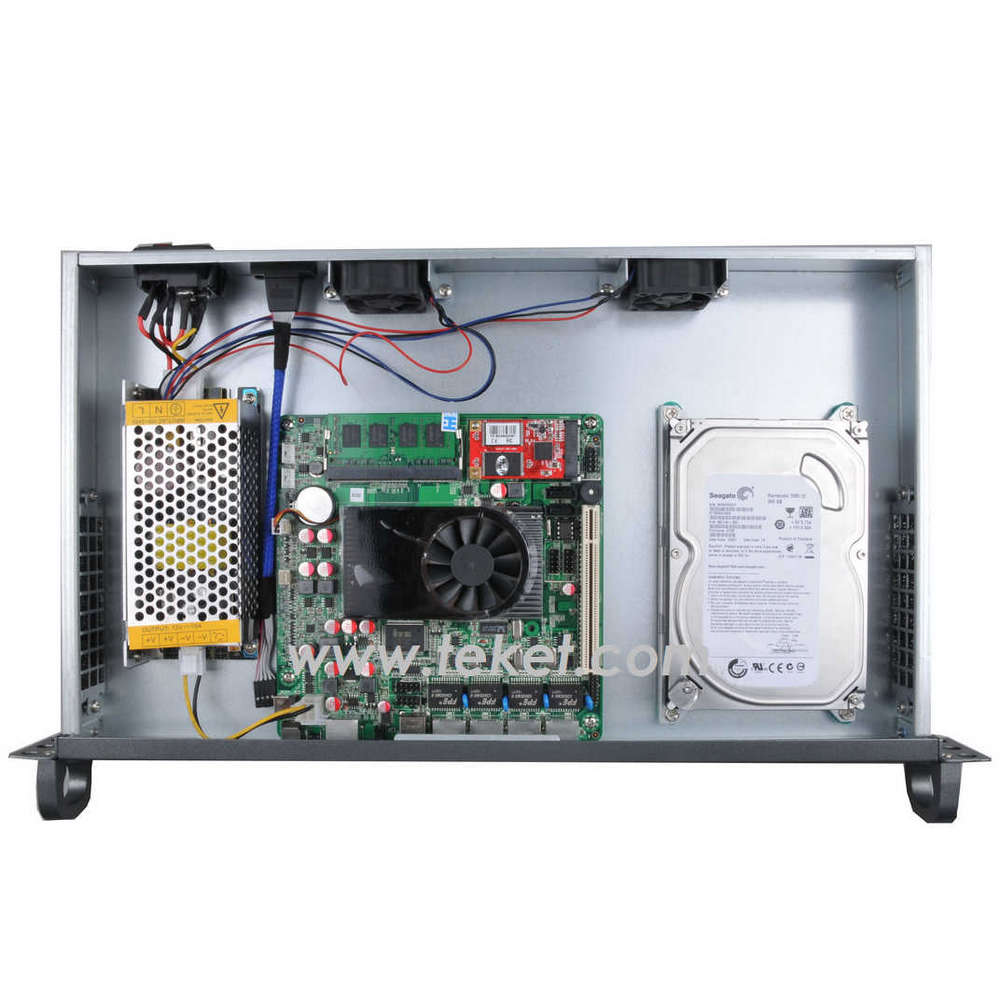

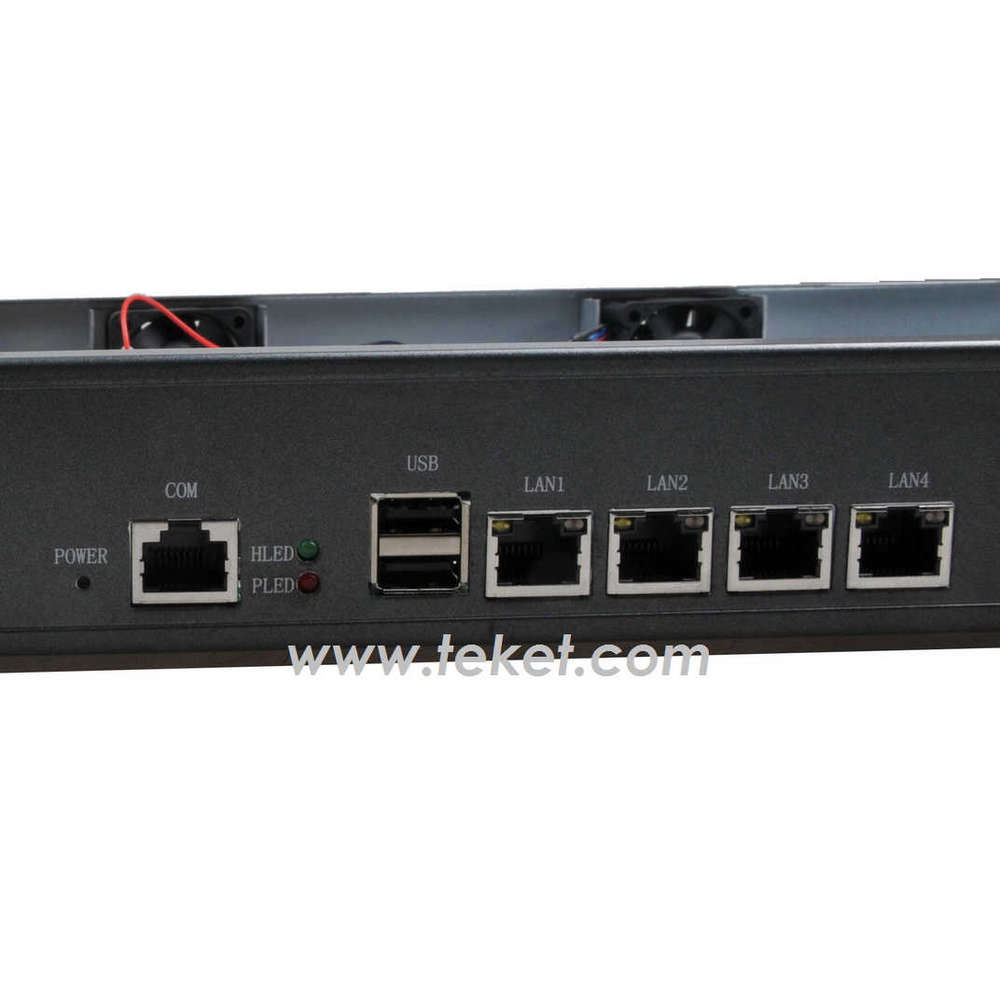

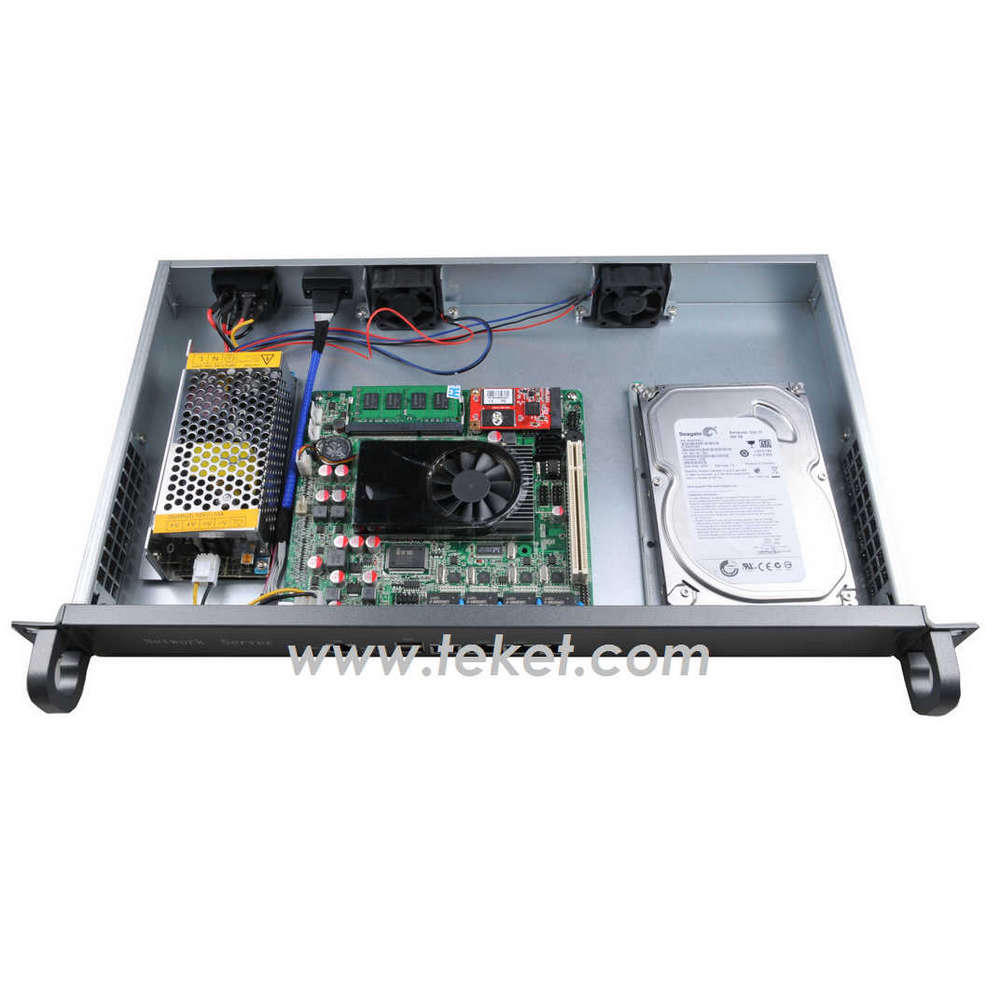

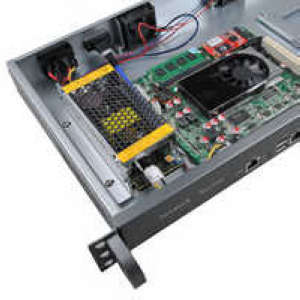

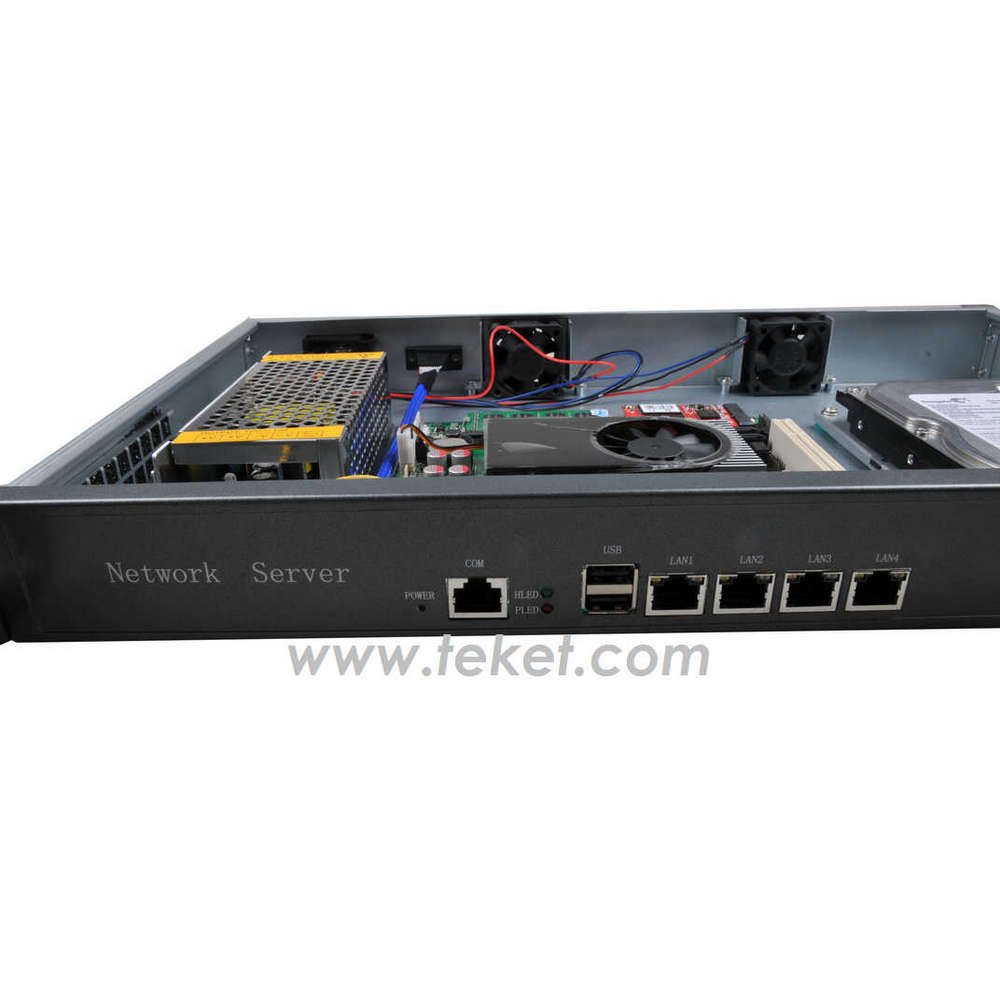

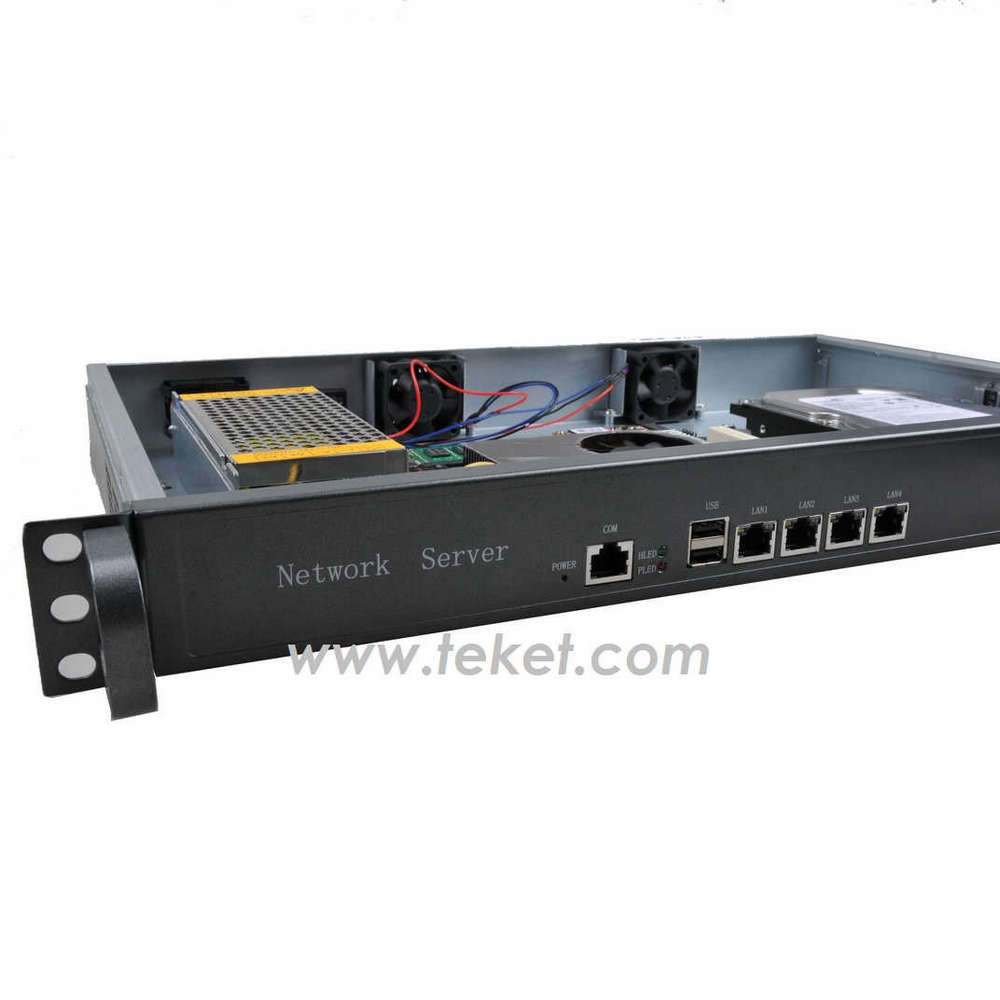

D525MW CHASSIS is available
