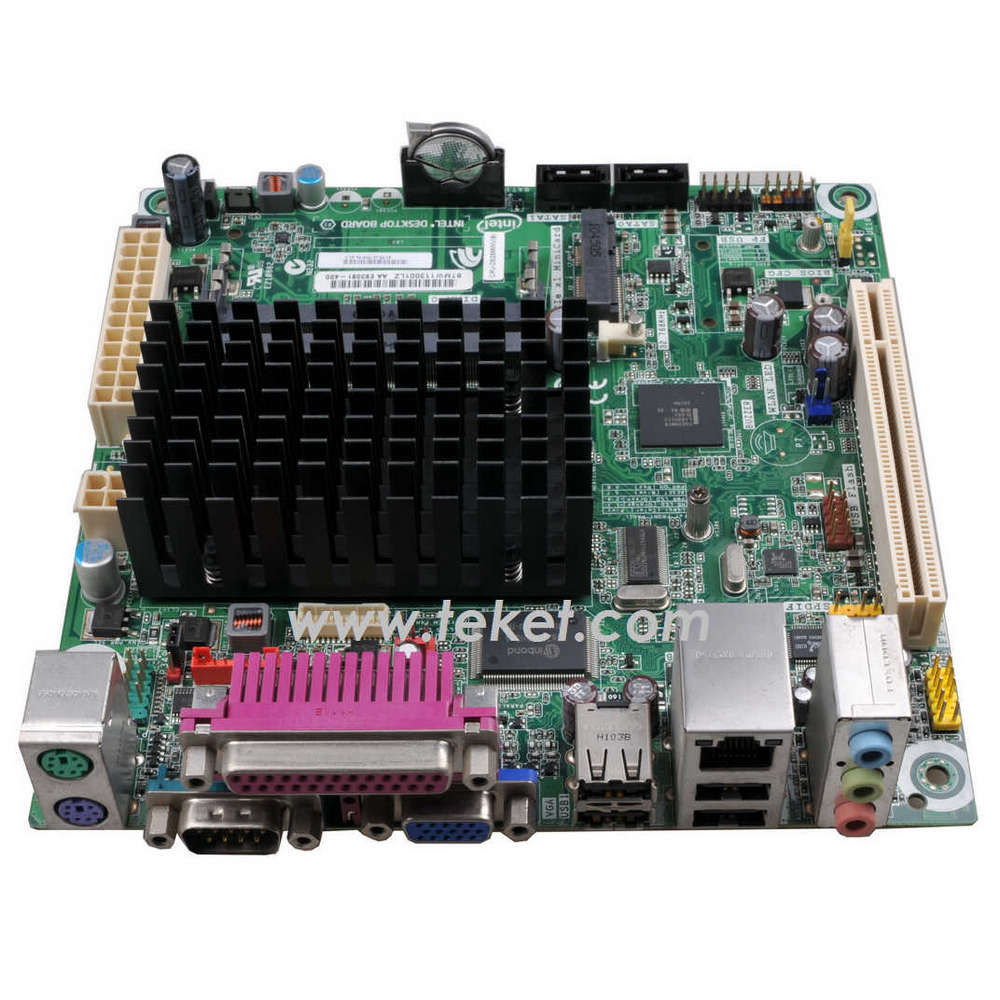

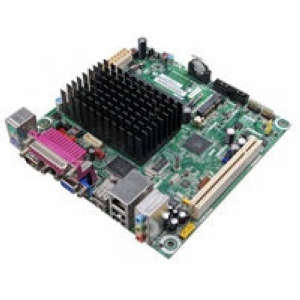

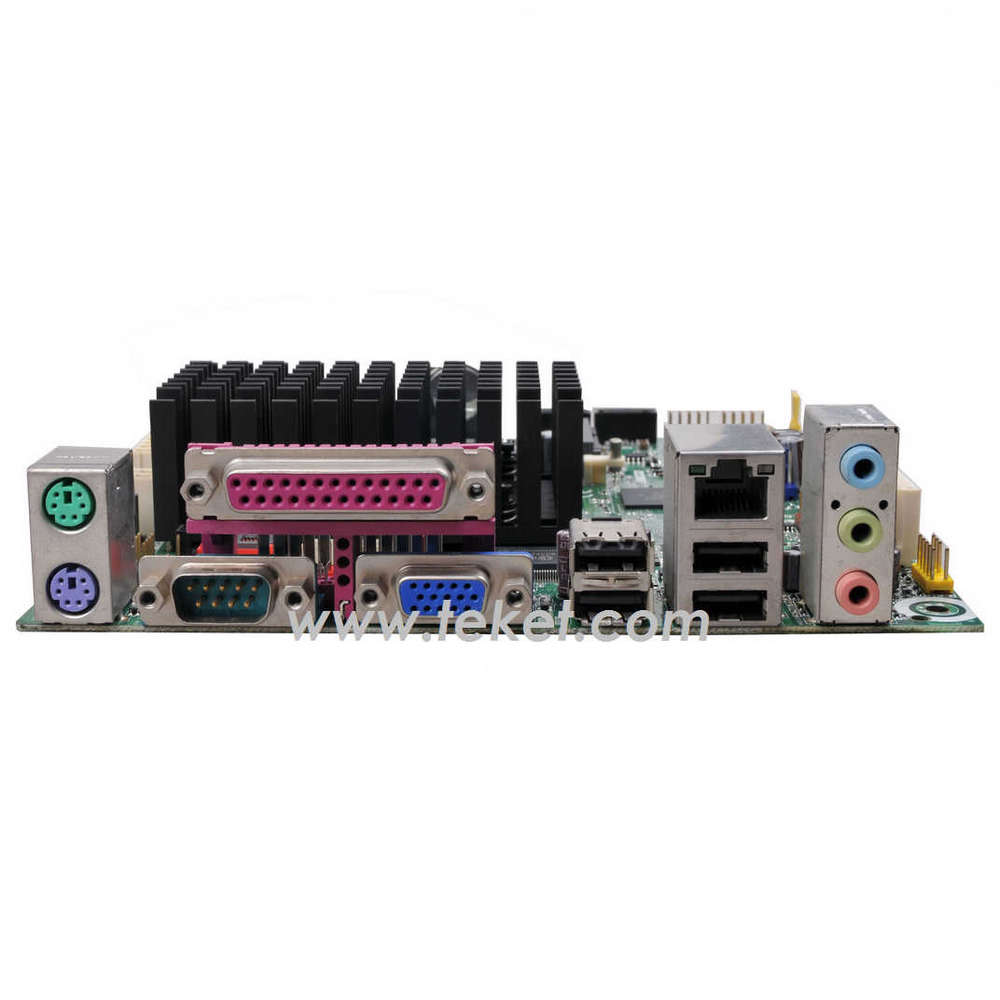

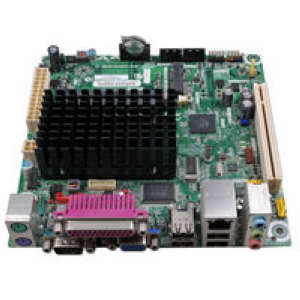

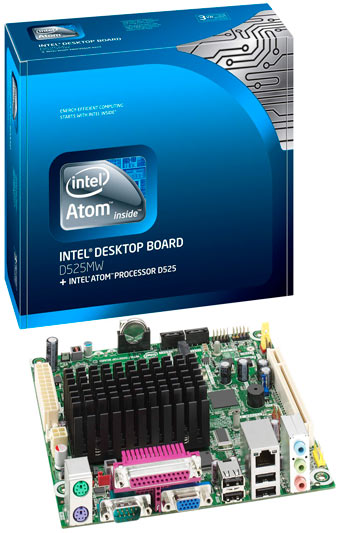

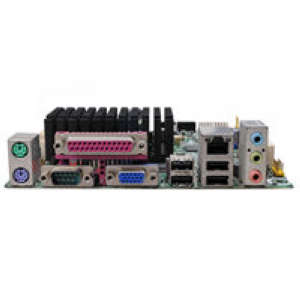

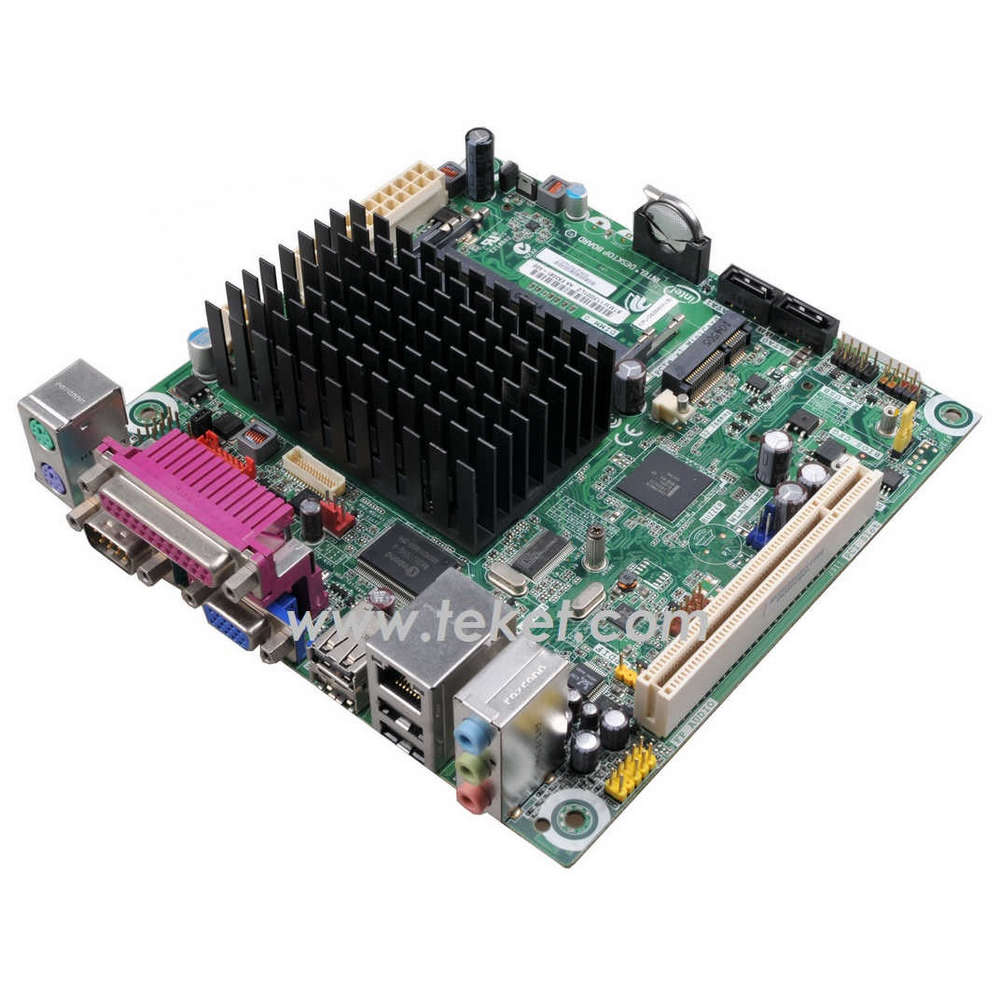

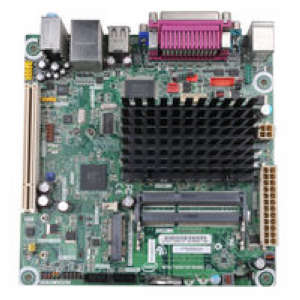

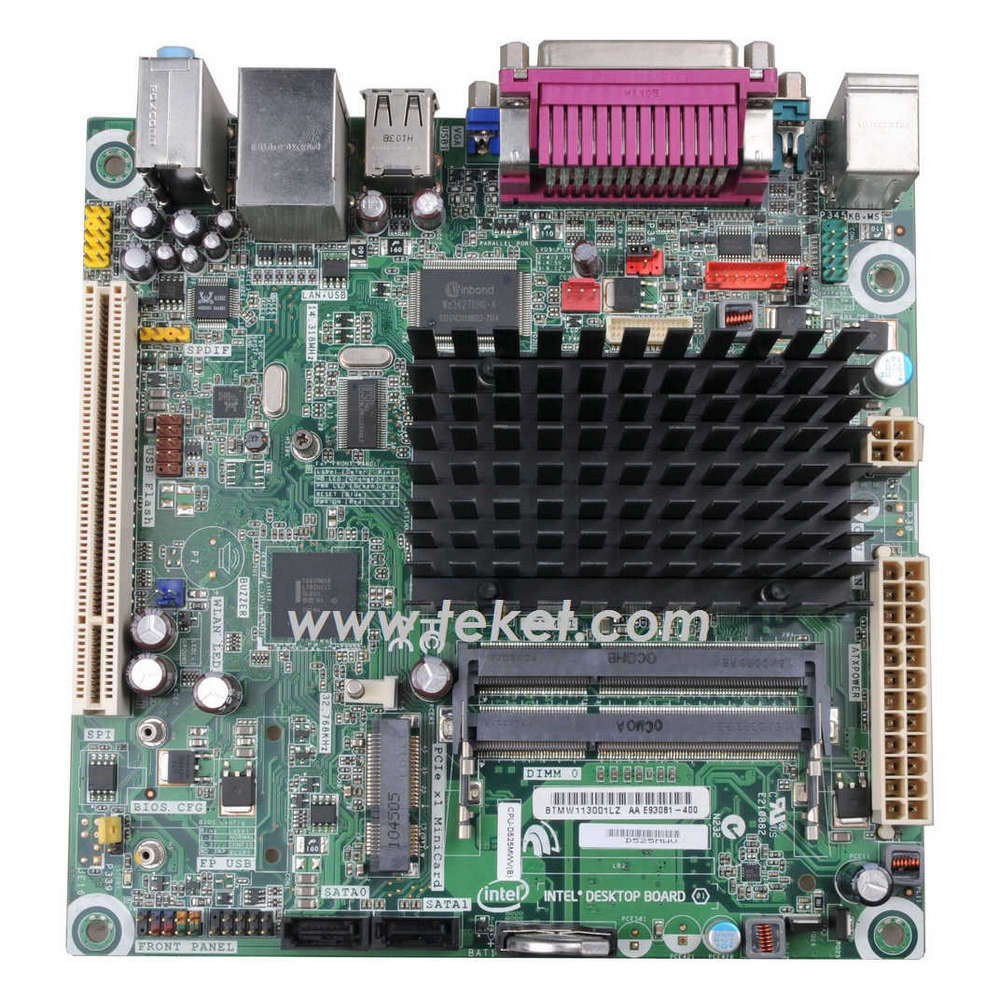

Intel Desktop Board D525MWV with ATOM D525 and NM10

The Intel? Desktop Board D525MWV is designed to unleash the power of the new Intel? Atom? processor D525 which supports the new revolutionary two¨Cchip layout. This new chipset layout reduces the package footprint by 70 percent, enabling easier routing and better heat flow. The Intel? NM10 Express Chipset also provides additional flexibility and upgradability with two slots of single channel DDR3 memory at 1066/800 MHz supporting up to 4GB maximum.
With breakthrough low-power silicon, the Intel Desktop Board D525MWV can be used with a passive thermal solution based on the recommended boundary conditions.1
The Intel Desktop Board D525MWV represents a fundamental shift in system design¡ªsmall, yet powerful enough to enable a big Internet experience for all audiences.

Form factor Mini-ITX/microATX compatible (170mm X 170mm)
AA# ( Altered Assembly) BOX/BLKD525MWV: E93082-xxx
BLKD525MWV: E93081-xxx
LAD525MWV: E93080-xxx
BIOS ID string MWPNT10N.86A
Processor Intel? Atom? processor D525
Memory Single channel DDR3 with two slots for 1066/800 MHz memory support
Support for up to 4 GB maximum of system memory

Chipset Intel? NM10 Express Chipset

Audio Intel? High Definition Audio2 subsystem in the following configuration:

Six channel Intel? High Definition Audio
Front panel mic/headphone header (2x5)

LAN support Integrated 10/100/1000 network connection
Peripheral interfaces Up to eight USB 2.0 ports (4 external ports, 2 via headers, 1 USB for PCI Express* Mini Card & 1 USB for flash card/SSD)
Two Serial ATA 3.0 Gb/s ports
PS/2 ports (Keyboard and Mouse)
One Serial Header and One Serial Port
One Parallel Port

Expansion capabilities One PCI Conventional bus connector
One PCI Express* Mini Card

Video VGA port
For LAD/BLKD525MWV:

LVDS connector

Warranty 3-year warranty
Standard Warranty Replacement (SWR)

SPECIFICATIONS
Essentials
Status Launched
Launch Date WW42 2010
Form Factor Mini-ITX
Socket BGA
Embedded Options Available No
Supplemental SKU No

Memory Specifications
Max Memory Size
(dependent on memory type) 4 GB
Memory Types DDR3-800
# of Memory Channels 1
# of DIMMs 2
ECC Memory Supported No

Graphics Specifications
Integrated Graphics Yes
Graphics Output VGA
Dual Display Capable No
Discrete Graphics N/A

Graphics
Intel? Graphics Technology provides a visually stunning experience optimized for Blu-ray* and HD video with Windows Vista* support1 and comes standard with many notebooks, desktop computers and motherboards¡ªwithout the need to add an external and costly graphics card.Learn more >

Expansion Options
PCI Support 1
PCIe x1 Gen 2.x 0
PCIe x4 Gen 2.x 0
PCIe x8 Gen 2.x 0
PCIe x16 Gen 2.x 0

I/O Specifications
USB 2.0 Configuration (Back + Internal) 4+3
# of SATA Ports 2
# of eSATA Ports 0
RAID Configuration N/A
# of PATA Ports 0
# of Parallel Ports 1
# of Serial Ports 2
Serial Port via Internal Header Yes
Audio (back channel + front channel) 6ch
Integrated LAN 10/100/1000
Firewire 0+0
# of PS2 Ports 2


Package Specifications
Max CPU Configuration 1
Energy Star Yes
Halogen Free Options Available No

Net Weight: 430g
Inner Packing:
Outer Packing: 5.63kg/ctn,10pcs/ctn,580x235x215(mm)
