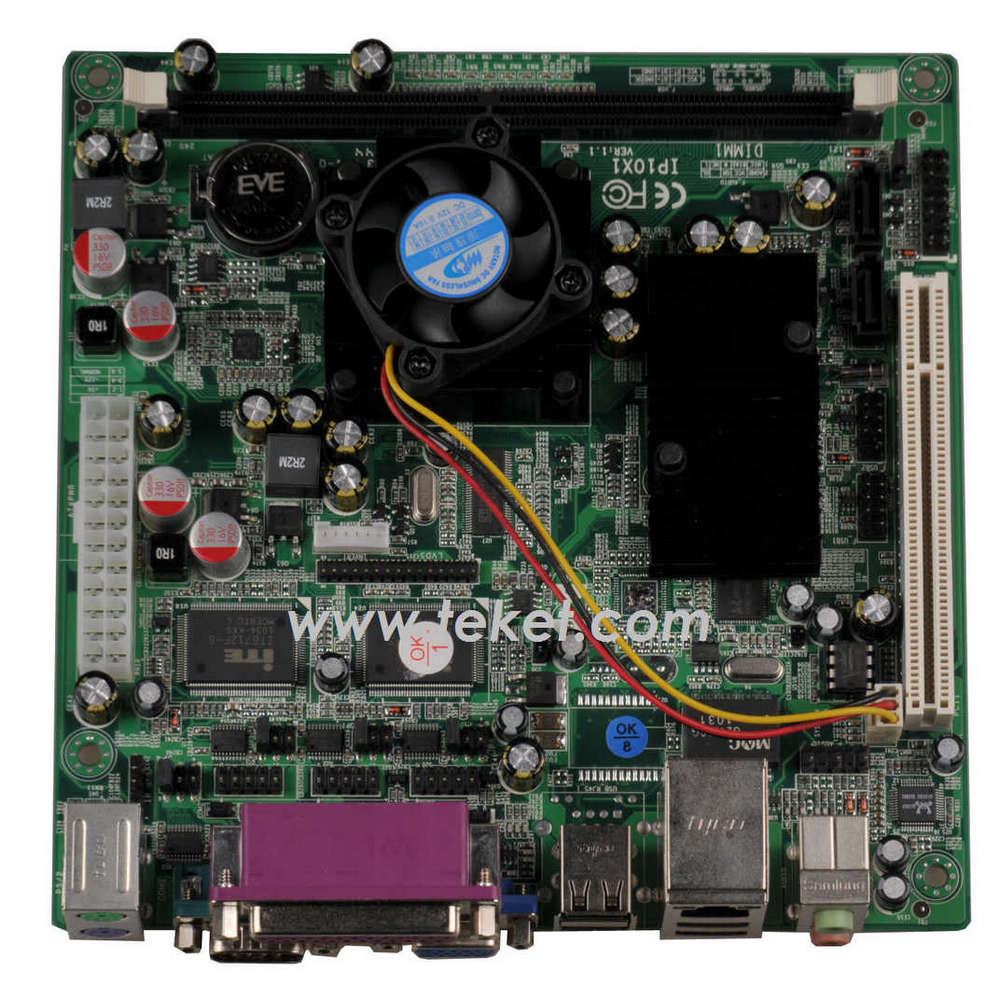

Atom D525 Mini-ITX Motherboard D525XA with ATOM D525 and NM10

D525XA: DIMM DDR2, up to 2GB

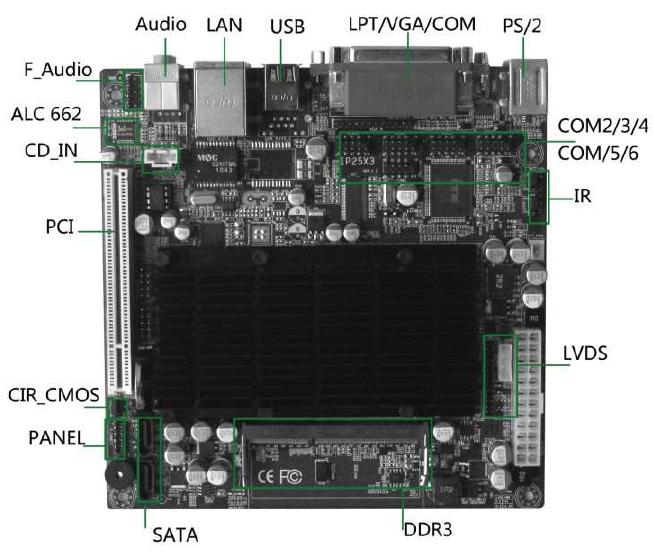

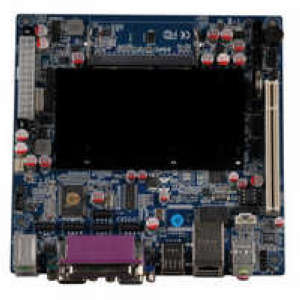

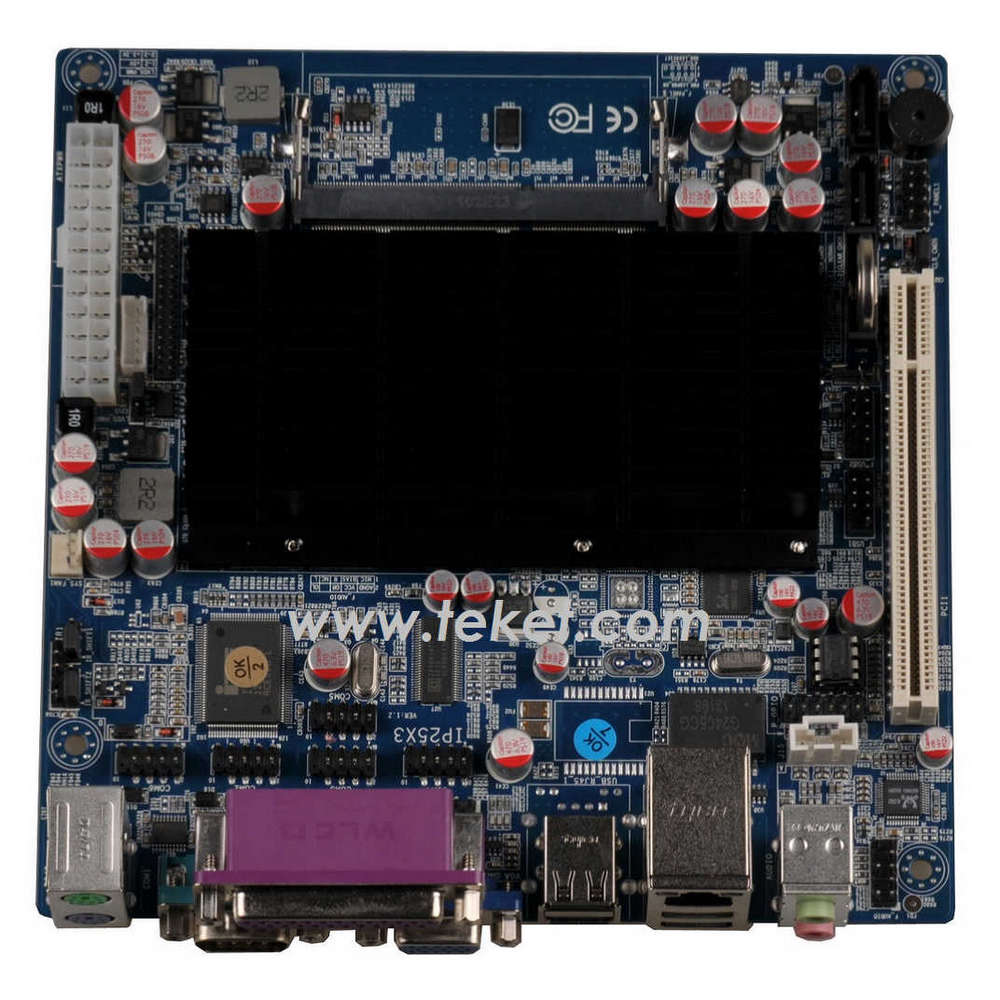

D525XA2: SO-DIMM DDR3, up to 4GB

Using Intel Atom D525 low consumption dual core processors, provide LVDS,VGA Asynchronous
dual view; and 4pcs COM ports, 2 Giga LAN, 8pcs USB and with IR function.


System
CPU Intel Atom D525 1.8Ghz low consumption dual core processor
Chipset Intel NM10 chip
Memory 1 x DDR2 667/800MHz DIMM, Max up to 2GB
Graphics Onboard Intel GMA3150, support DirectX 9.0C
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard Dual Realtek 8111D 1000LAN, support no disk boot up.
Storage 2 x SATA 3 Gb/s
Expansion Slots 1*PCI
Display 1*VGA+1*18Bit LVDS
BIOS Authorized AMI 8Mbit BIOS
Form Factor Mini ITX 170mmx170mm
Work temperature 0¡⁠~ 60¡⁼br> Work humidity 10%~80% relative humidity, non-condensing

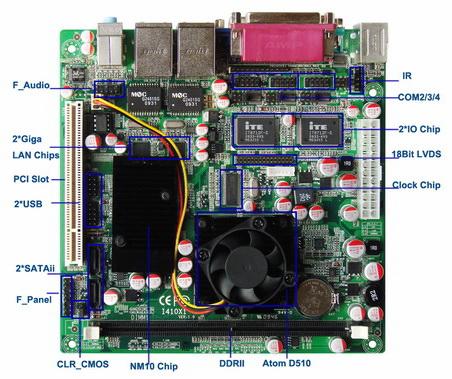

Internal I/O Connectors
1 x 24-pin ATX main power supply
2 x SATAII connectors
1 x CPU fan header
1 x Front panel header
1 x Audio header
2 x USB 2.0 headers
1 x Clear CMOS Header
3 x COM headers
1 x LPT header
1 x IR red way header
1 x VGA_H header
1 x 18bit LVDS header;
1 x LVDS_INVERT header¡¡

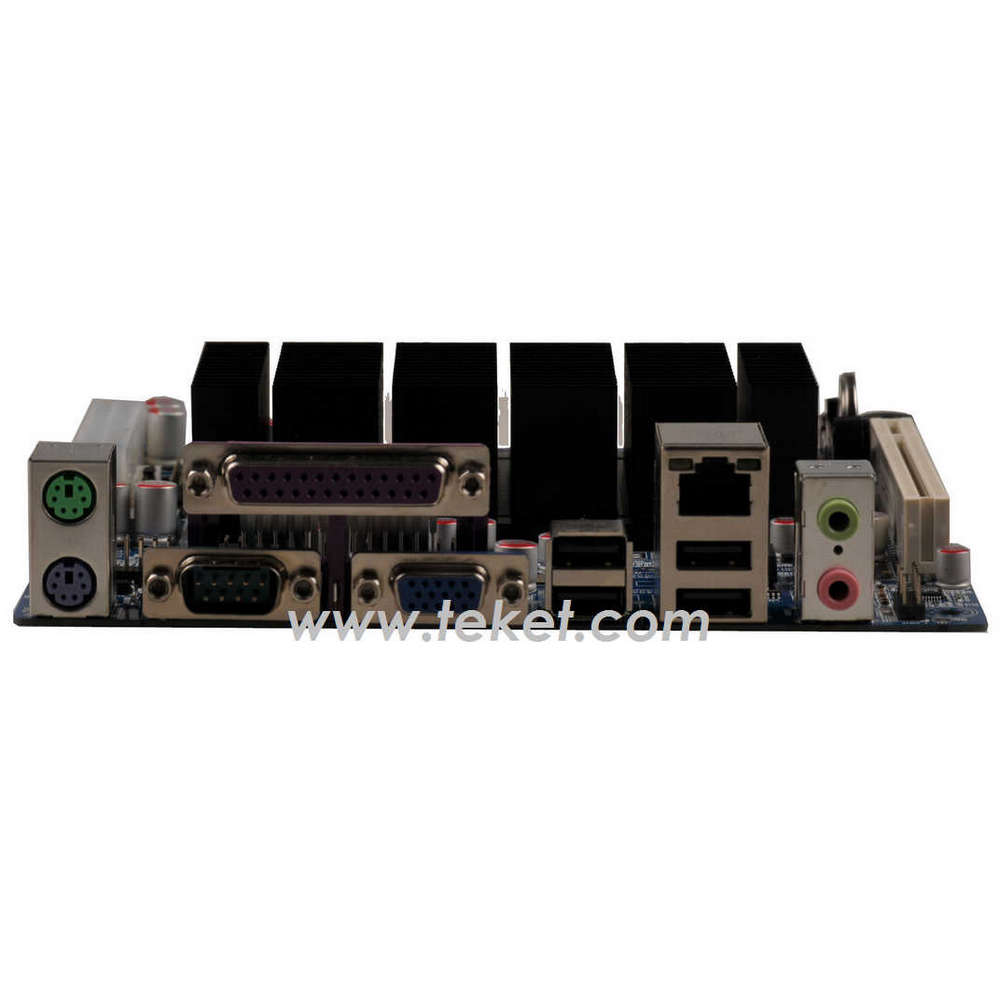

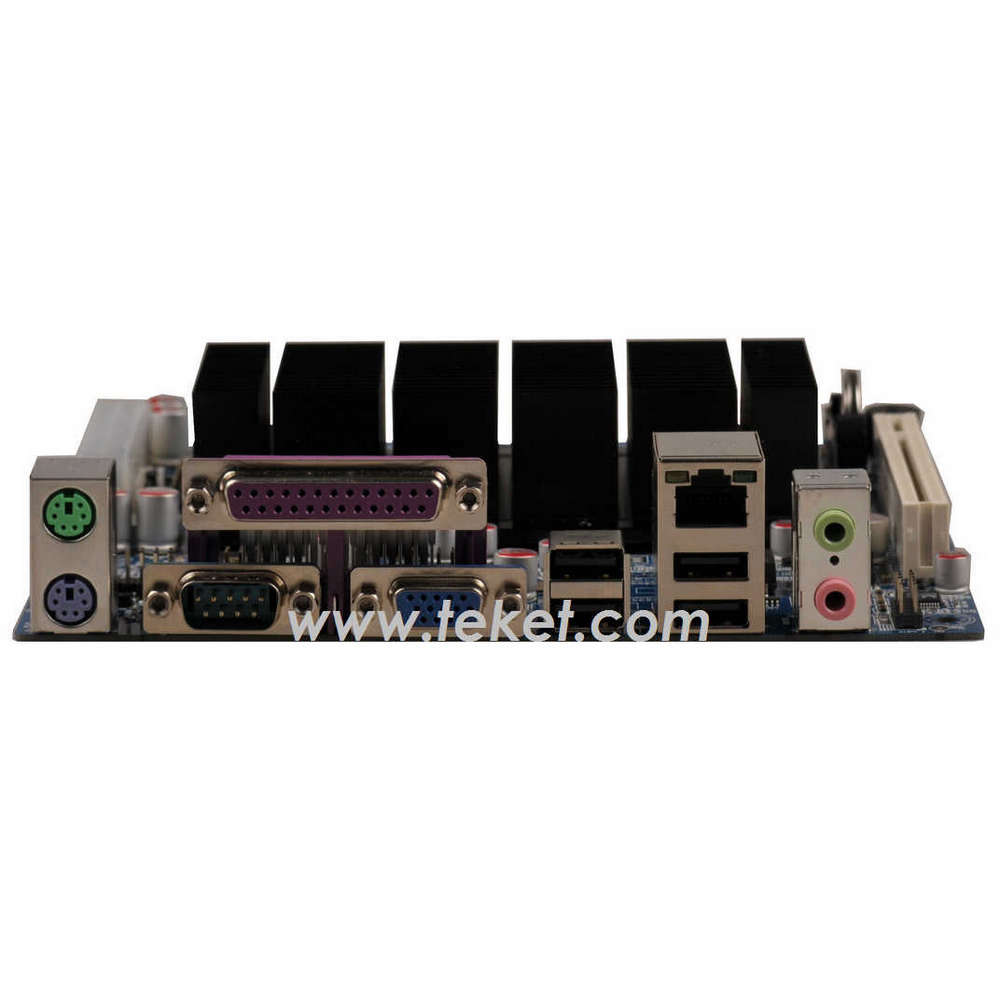

Back Panel Connectors
1. 1 x PS/2 mouse and keyboard
2. 1 x COM(9Pin with power) ; 1 x VGA port
3. 1 x LPT port
4. 2 x RJ-45 ports
6. 4 x USB 2.0 ports
5. 3 x audio Jacks

OEM Customized
2*Giga LAN, COM, LPT, USB and Audio Jacks, PS/2 port etc

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM


Mini ITX
30
System
CPU
Chipset
Memory
Graphics
Audio
LAN
Storage
Expansion Slots
Display
BIOS
Form Factor
Work temperature
Work humidity
Internal I/O Connectors
1 x 24-pin ATX main power supply
2 x SATAII connectors
1 x CPU fan header
1 x Front panel header
1 x Audio header
2 x USB 2.0 headers
1 x Clear CMOS Header
3 x COM headers
1 x LPT header
1 x IR red way header
1 x VGA_H header
1 x 18bit LVDS header;
1 x LVDS_INVERT header¡¡
Back Panel Connectors
1. 1 x PS/2 mouse and keyboard
2. 1 x COM(9Pin with power) ; 1 x VGA port
3. 1 x LPT port
4. 2 x RJ-45 ports
6. 4 x USB 2.0 ports
5. 3 x audio Jacks
OEM Customized
2*Giga LAN, COM, LPT, USB and Audio Jacks, PS/2 port etc
Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client ;Net top.
Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
