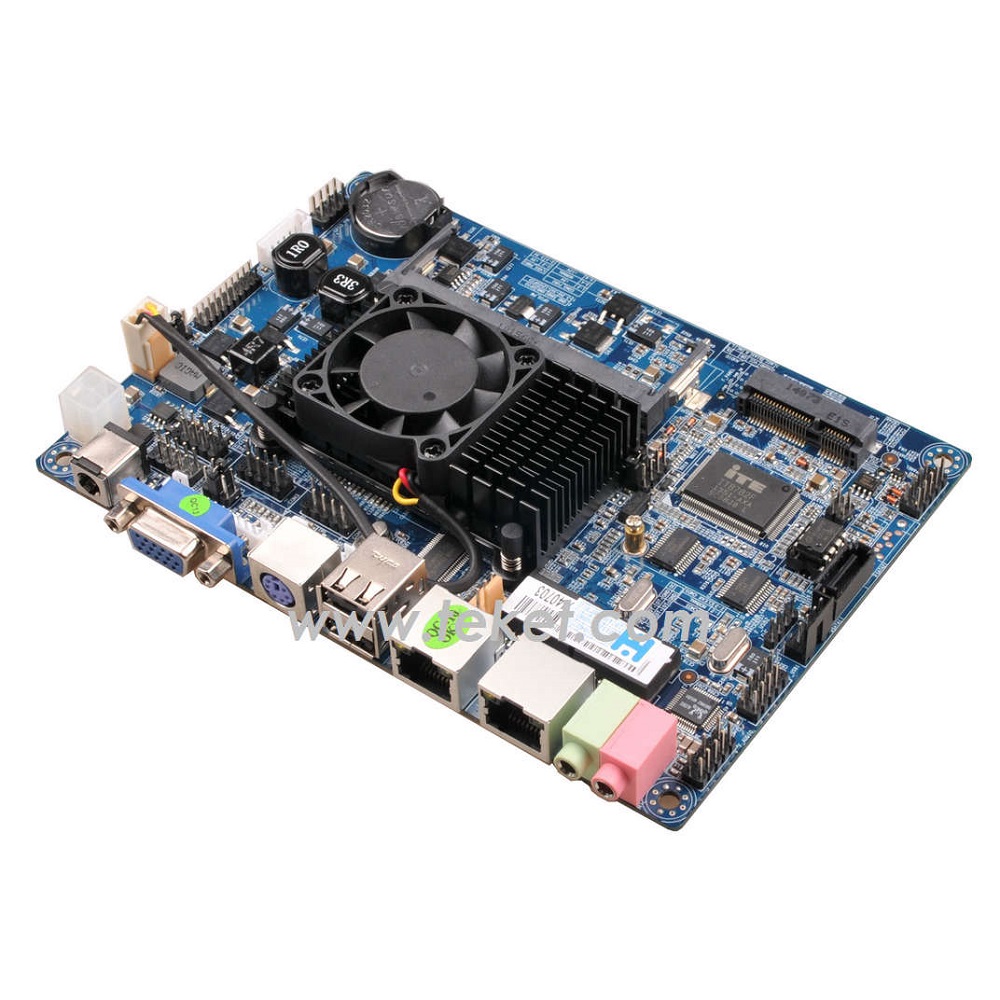

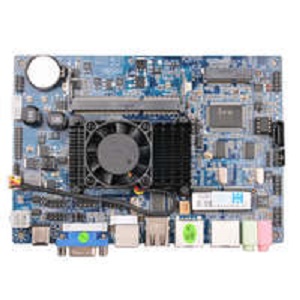

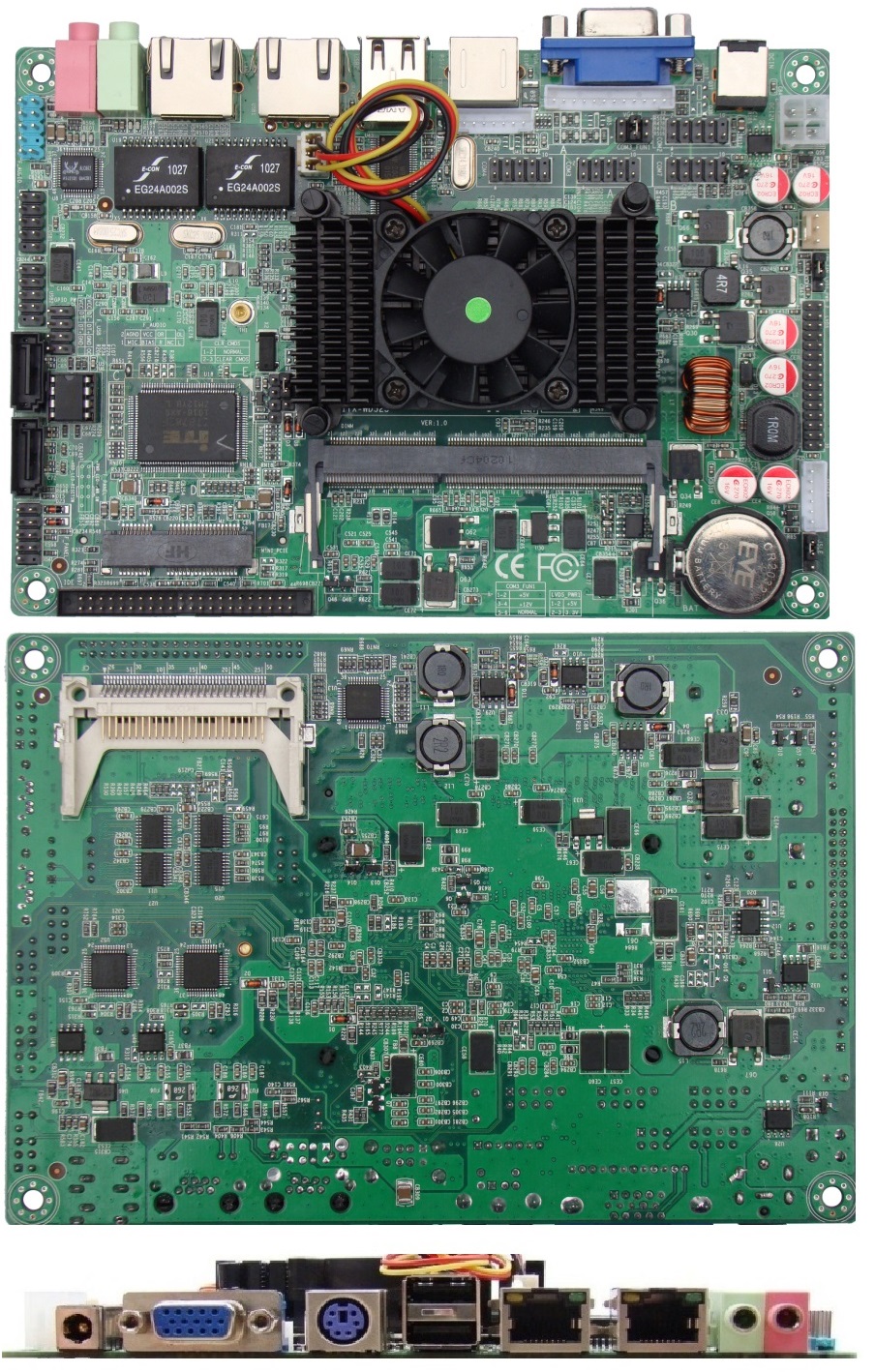

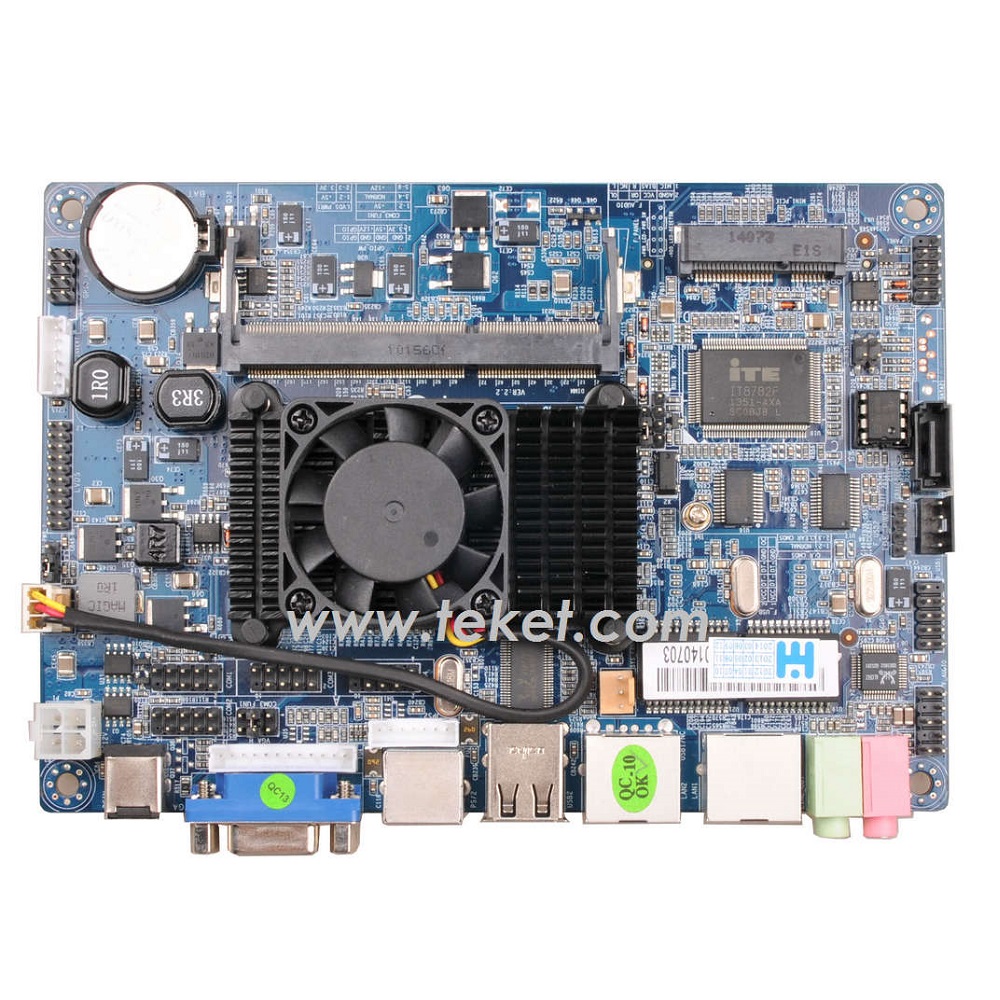

Intel Atom D525 SBC 3.5" Motherboard D52LSE

For Industral
D525,NM10,2*COM,2*LAN,VGA,PS/2,CF,1*IDE,TV-out,21VDC,LVDS,GPIO


Product Spec:
Intel ATOM CPU D525 dual core 1.8Ghz
? Intel ATOM D525+NM10 chipset
? support 1*DDR3 1066/1333 MHz memory, support for memory capacity 4GB
? onboard Intel GM3150 graphics chip, support DirectX 9
? 1 MINI-IDE
1 MINI PCIE
2 SATAII 300Mb/s,
6 USB2.0 interfaces (2 external), 4 serial ports (for needle)
? integrated 6 channel sound chip
2 Realtek 8111C, 10/100/1000M Ethernet controller, support diskless

Processor Intel ATOM D525 1.8GHz
Chipset Intel NM10 single chip
System memory, 1 DDR3 1066/1333MHz 200PIN SODIMM slot
maximum support 4GB memory
Graphics display, Intel GM3150, DirectX 9
Expansion slot. 1 CF groove
The onboard IDE 1 MINI-IDE
1 MINI PCIE
Onboard Serial ATA 2 SATA interface
The onboard LAN, 2 Realtek 8111C, 10/100/1000M Ethernet controller
Onboard audio chip ALC655 2/4/5.1 channel output
The front I/O interface
.2 USB pin support 4 USB2.0 ports
.2 fan connector CPU and system fan
.1 group pre sound pin
.4 sets of serial port pin
.1 groups of LVDS pin
.1 groups of 1X12PIN VGA pin
.1 groups of GPIO pin
.1 groups of PS2 pin

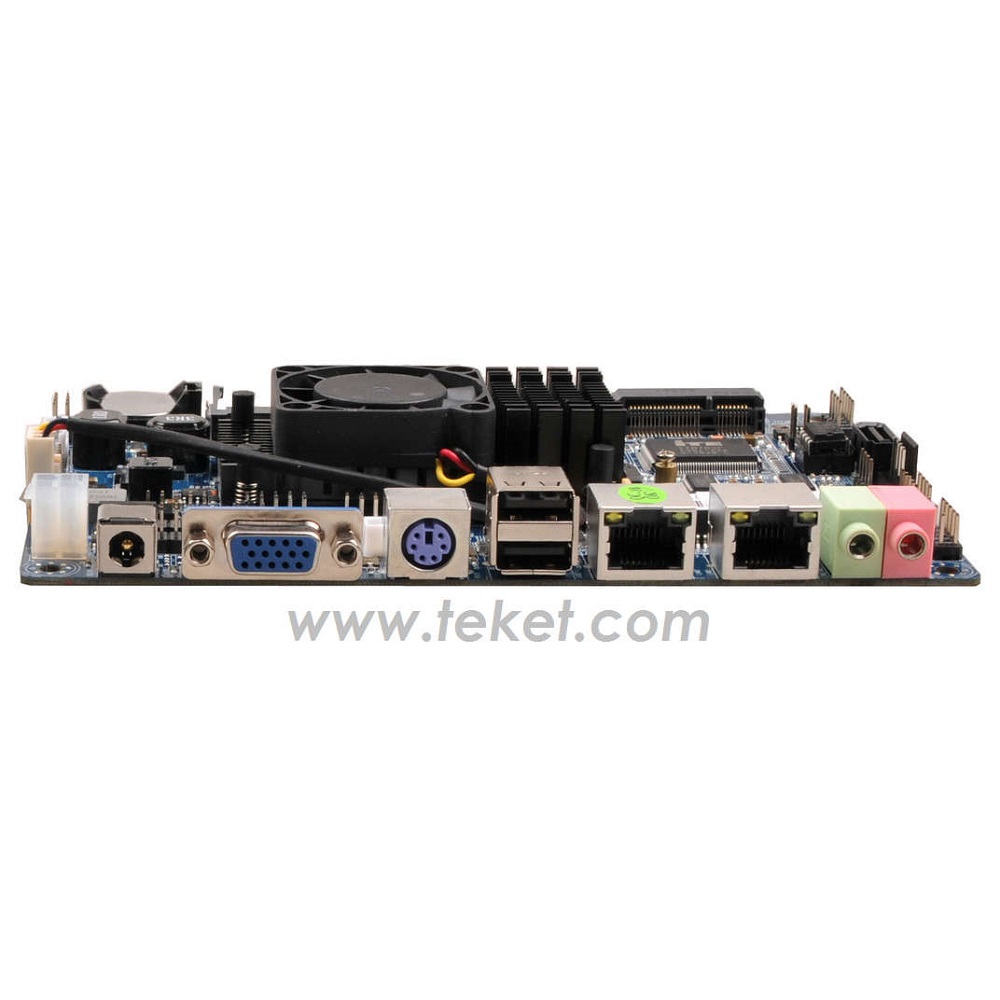

Rea I/O interface
2 USB2.0 ports
1 VGA interface..
1 DC input interface
.single PS2 interface
. 2 RJ-45 LAN port

System monitoring and management
.wake on LAN
.The power management system
.temperature control, voltage control
.fan speed monitoring
BIOS: AMIBIOS,4/8Mbit flash
Working environment humidity 0% ~ 95% (relative humidity, no condensation)
factor: 3.5",6 layout PCB, 155x118mm
Work environment temperature: 0°C to 50°C
Display:
1*VGA,DB15
LVDS: 1*30pin,dual channel,18bits
DVI:no


Display mode dual display support dual display mode (replication mode, extended mode (DOS) single color)
