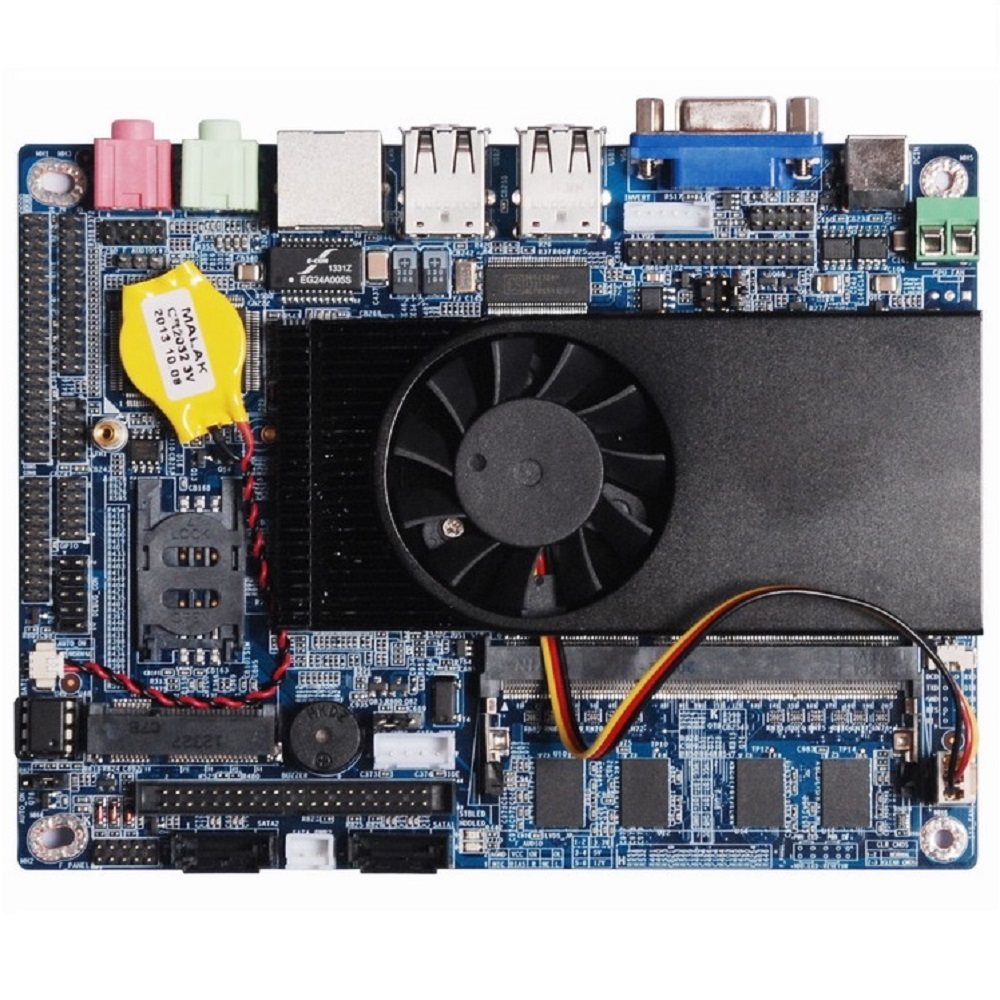

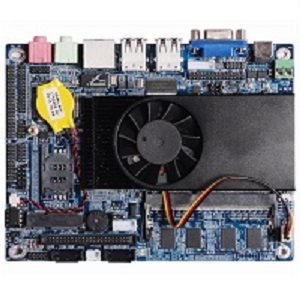

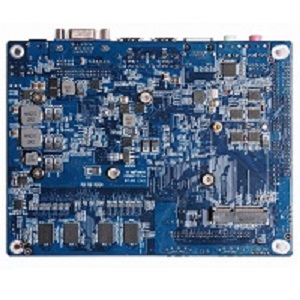

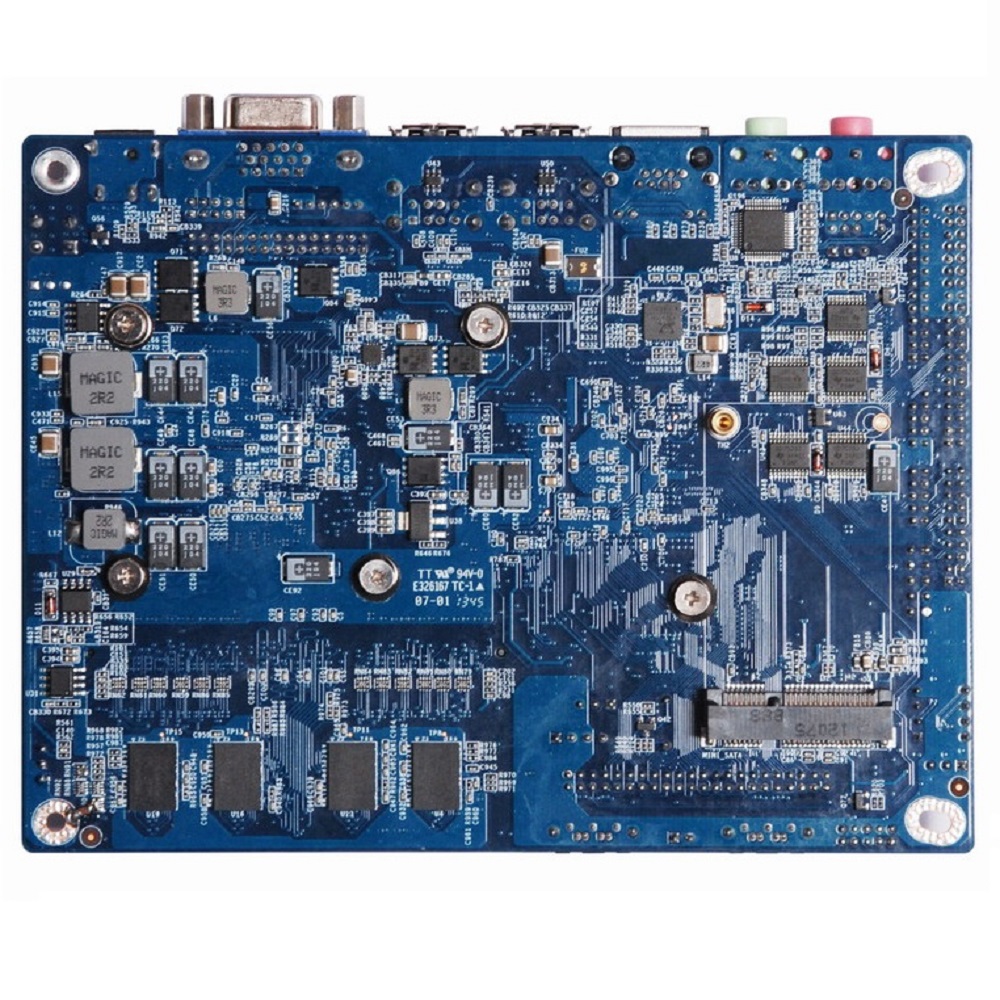

Intel Atom D525 SBC 3.5" Motherboard D52RSE

For Industral
D525,NM10,2*COM,1*LAN,VGA,PS/2,CF,1*IDE,TV-out,21VDC,LVDS,GPIO,2G RAM onboard





CPU: Intel ATOM dual core D525 1.8GHz
Chipset: Intel D525 + +NM10
Graphics: Intel Graphics Media Accelerator GMA3150
Expansion slot: 1*CF(NA)
IDE onboard: 1*44pin IDE
MINI-PCIE: 2*MINI PCIE
SATA onboard: 2*SATA
LAN onboard: 2*LAN,2 Realtek 8111E, 10/100/1000M Ethernet controller
System memory: 2G DDR3 onboard
Audio: ACL662,2/4/5.1 ouput
The front I/O interface:
The 1 set of USB headers
2 fan connector CPU and system fan
The 1 set of VGA headers
The 1 group of pre sound pin
The 1 set of 1*6PIN INVERT
The 1 set of LVDS headers
The 1 set of GPIO headers
The 1 set of printing needle
The 6*COM pin
2*SATA power supply pin

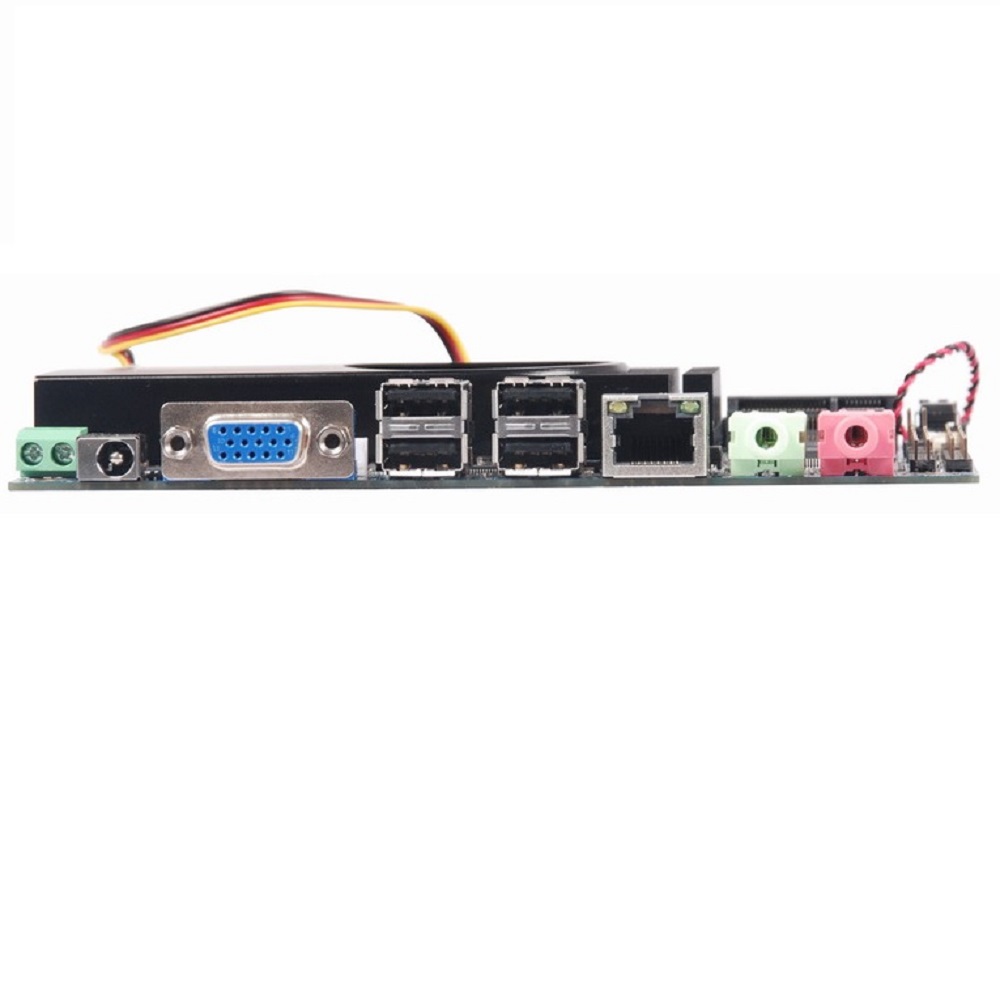

Rear I/O interface:
.4 USB2.0 ports
.1 VGA interface.
.1 DC input interface
.1 PS2 interface
.1 LAN ports
System monitoring and management
.wake on LAN
.The power management system
.temperature control, voltage control
.fan speed monitoring
BIOS: AMIBIOS,4/8Mbit flash
Working environment humidity 0% ~ 95% (relative humidity, no condensation)
factor: 3.5",6 layout PCB, 155x118mm
Work environment temperature: 0°C to 50°C
Display:
1*VGA,DB15
LVDS: 1*30pin,dual channel,18bits
DVI:no
Display mode dual display support dual display mode (replication mode, extended mode (DOS) single color)
