>>Your Current Position: Intel Motherboard

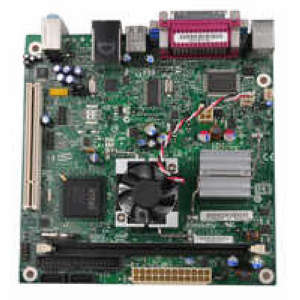

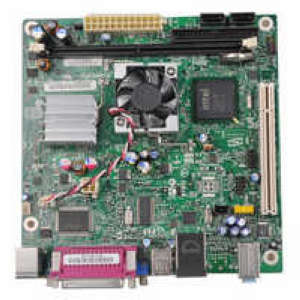

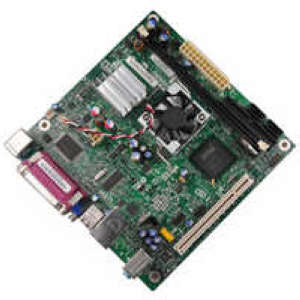

Intel Desktop Board D945GCLF2/D945GCLF2D with integrated Intel Atom Processor

D945GCLF2: with TV-OUT
D945GCLF2D: without TV-OUT

The Intel Desktop Board D945GCLF2D is designed to support Internet-centric computing, delivering incredible capabilities in the new flexible Mini-ITX form factor. Featuring the integrated 45nm Intel? Atom? processor 330 and the Intel? 945GC Express Chipset, this board is an energy-efficient solution for home users as well as for unique vertical markets. Designed with Intel¡¯s leading edge 45nm Hi-k metal gate processor, this board delivers incredible opportunities to communicate, listen, watch, play, and learn via Internet connectivity.

Depending on your target usage, you can choose Intel Desktop Board D945GCLF2D which has a TV-out (S-Video) connector or the more affordable Intel Desktop Board D945GCLF2D without the TV-out connector.

Features and benefits
Form factor Mini-ITX /micro-ATX compatible (6.75 inches by 6.75 inches [171.45 millimeters by 171.45 millimeters])

Processor Integrated Intel Atom processor 330 with a 533 MHz system bus
Memory One 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR2 533/667 MHz DIMMs
Support for up to 2 GB of system memory




Chipset Intel? 945GC Express Chipset and Intel? I/O Controller Hub 7 (ICH7)

Audio Realtek* ALC662 audio codec (5.1 channel HD audio)
Video Intel? Graphics Media Accelerator 950 and optional S-video output support (only available on D945GCLF2)
I/O Control SMSC* LPC47M997 based Legacy I/O controller for serial, parallel, and PS/2* ports
LAN Support 10/100/1000 Mbps LAN subsystem using the Realtek* LAN adapter device
Peripheral interfaces Eight USB 2.0 ports
Two Serial SATA ports (3.0 GB/s)
One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
One serial port
One parallel port
PS/2* keyboard and mouse ports
Expansion capabilities One PCI Conventional* bus connector

You can consider the VGA to TV(video out) convertor if you need the TV out funciton of D945GCLF2. the D945GCLF2D is the same as D945GCLF2, only without TV out function.



Intel orginal mini-itx atom board D945GCLF2D in stock
Intel orginal mini-itx atom board D945GCLF2D in stock
We can provide the plastic case and metal shell chassis for these motherboard.

D945GCLF2D advantage:
1),Run faster than D410PT,D425KT on the current market
2),The same dual-core CPU, performance close to D525MWV
3),Prices much cheaper than D525MWV D2500 and D2700 board
4),provide the appropriate chassis, power, memory and flash memory

new intel orginal mini-itx board D945GCLF2D in stock replace D410PT
new intel orginal mini-itx board D945GCLF2D in stock replace D425KT
new intel orginal mini-itx board D945GCLF2D in stock replace D510MO
new intel orginal mini-itx board D945GCLF2D in stock replace D525MWV
new intel orginal mini-itx board D945GCLF2D in stock replace D2500HN
new intel orginal mini-itx board D945GCLF2D in stock replace D2500CC,D2500CCE
new intel orginal mini-itx board D945GCLF2D in stock replace D700DC,D2700MUD
new intel orginal mini-itx board D945GCLF2D in stock replace DN2800MT

Net Weight:
Inner Packing: 680g,210*190*75mm
Outer Packing: 3.70kg/ctn,5pcs/ctn,385x200x210(mm)
