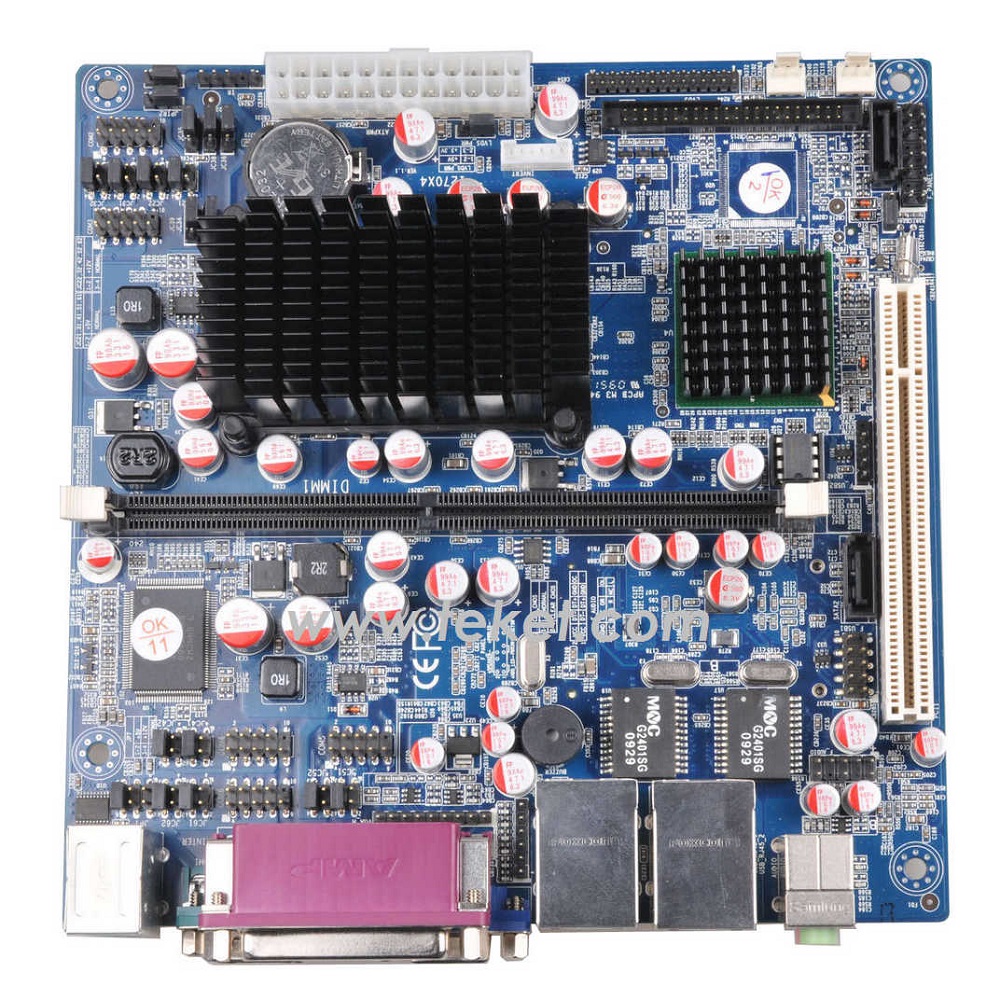

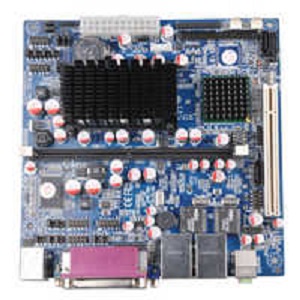

Intel Atom N270 Mini-ITX Motherboard D945GSEAB CF slot

This motherboard is designed for thin client in the banking system

Overview:

1. INTEL(R) 945GSE + ICH7M Chipset
2. Support INTEL(R) Atom N270 CPU (45nm,512K Cache, 1.60 GHz, 533 MHz FSB)
3. Build-in INTEL(R) GMA 950 Graphics Core
4. Supports 2x Gigabit LAN
5. 6 serial port(RS232)
6. Mini-ITX Form Factor(17cm x 17cm)



Product Description:

CPU: INTEL(R) Atom N270 CPU (45nm,512K Cache, 1.60 GHz, 533 MHz FSB)

Chipset:
INTEL(R) 945GSE + ICH7M chipset
Build-in INTEL(R) GMA 950 Graphics Core(Share Memory Size: 128/224MB),support DirectX 9.0
Front Side Bus 533MHz

Memory:
1*DIMM Sockets for un-buffered Single Channel DDR2 667/533/400 SDRAM up to 2 GB

Expansion Slots:
1 * PCI slot
1 * MINI PCI-E slot

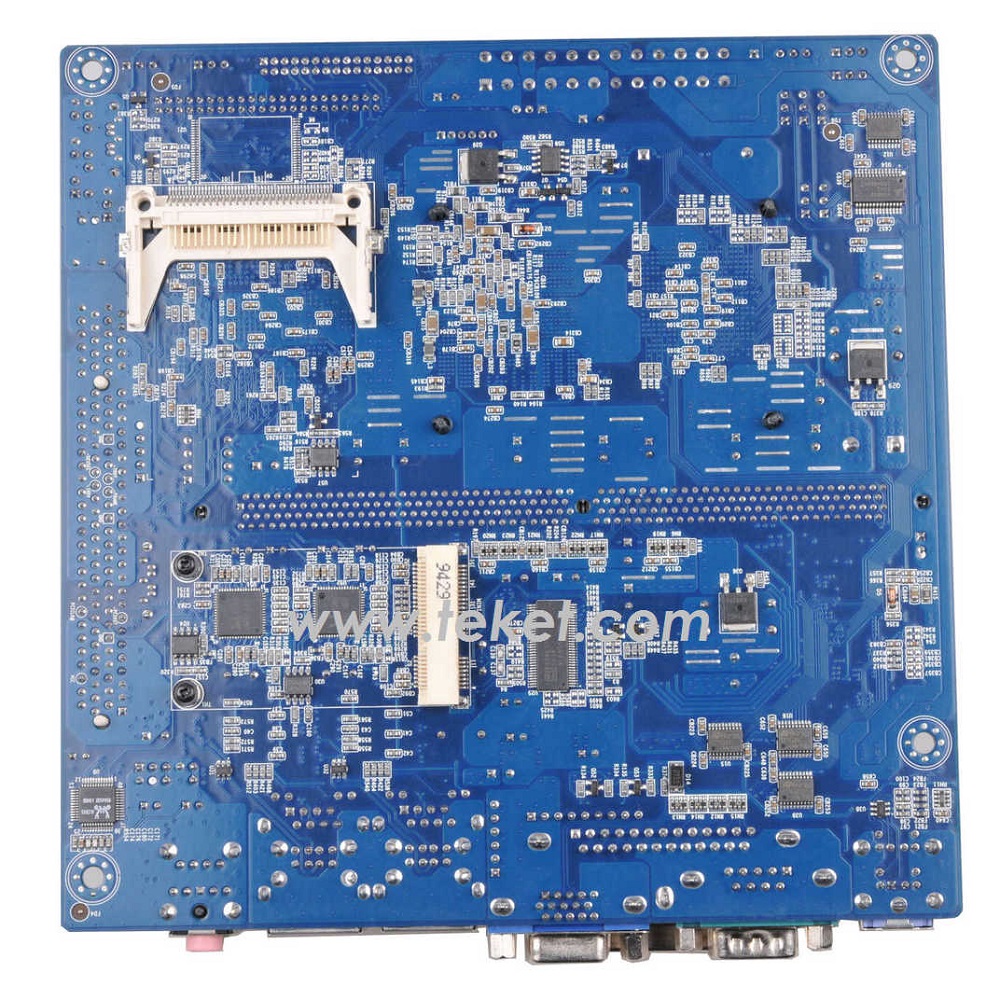

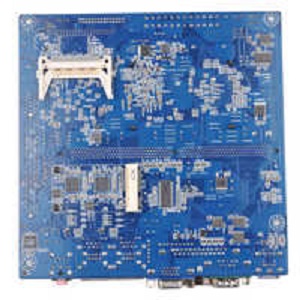

1 * CF card Dimm slot

Storage:
2 * Serial ATA2 3Gb/s connectors
1 * Floppy connector
1 * Ultra DMA 100/66 44pin IDE connector
1 * Onboard 1/2G Flash (Optional)

Audio: Realtek ALC662 6-Channel HD Audio CODEC

Ethernet LAN: Realtek RTL8111C PCI-E Gigabit Ethernet LAN

USB Embedded 6*USB 2.0/1.1

Special Features:

Intel Diamond Ville Platform
Support ACPI S3
Support CPU Smart FAN
Support DC FAN

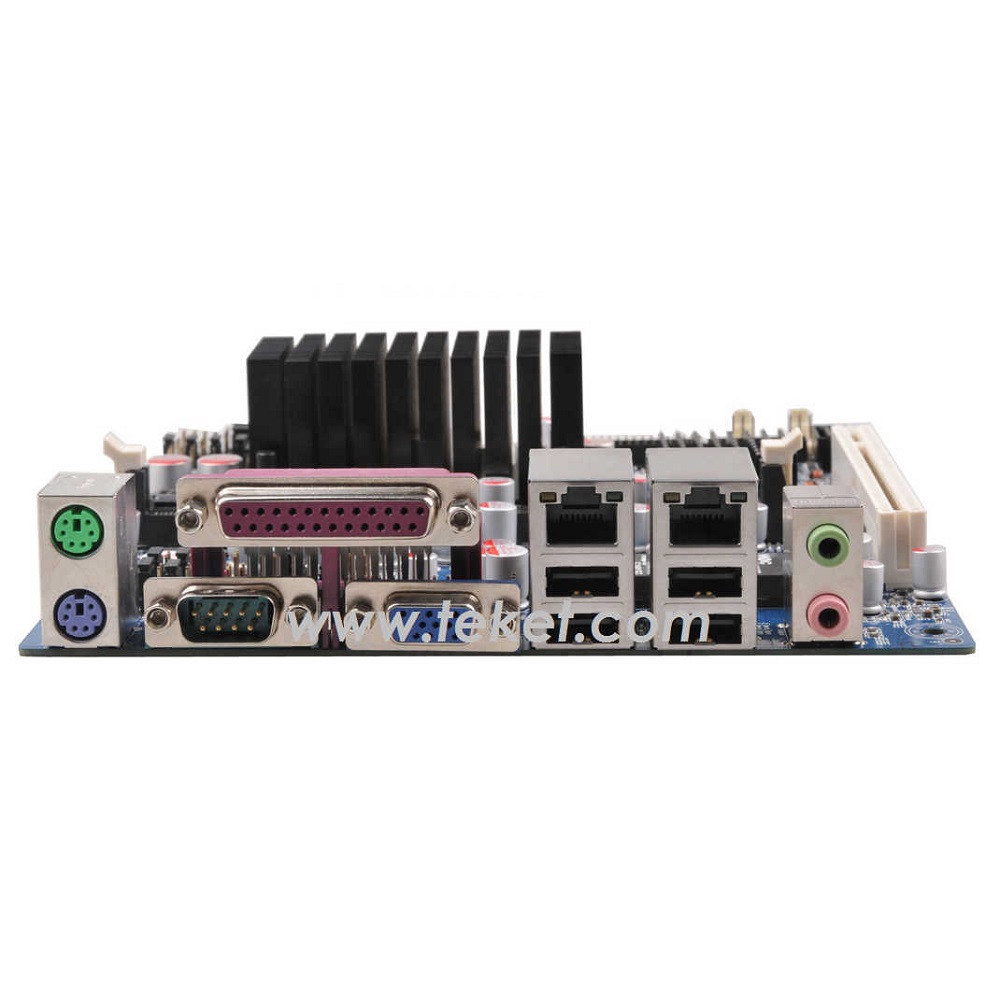

Rear Panel I/O:
4 * USB 2.0/1.1 ports
1 * Keyboard connector
2 * LAN RJ-45 port
2 * Audio I/O ports (MIC and line-out)
1 * VGA port
2 * COM port (1 pin with power)
1 * Parallel port (LPT)

Internal I/O:
3 * USB 2.0/1.1 headers for 3 USB 2.0 ports NB / Chassis Fan connectors;
1 * 24-pin ATX Power connector
1 * 18bit LVDS header (Optional)
1 * TV-OUT header (Optional)
1 * HDTV-OUT header (Optional)
5 * COM header support 1*RS-422/285 1*RS-232
1 * AUDIO header

Other:
1 x Clear CMOS Header
1 x CPU fan header
1 x system fan header
1 x front panel header

BIOS: Award 8MB SPI/DIP Flash, support RPL/PXE non-disk system

Form Factor: Mini ITX Form Factor(17cmx17cm)
