>>Your Current Position: Intel Motherboard D945GSEJT

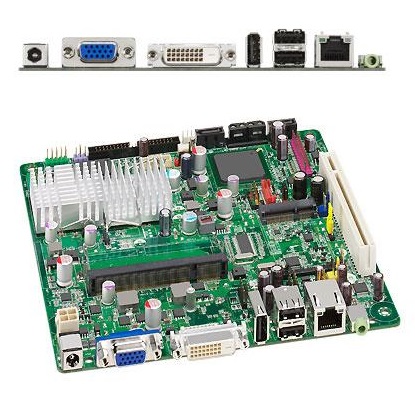

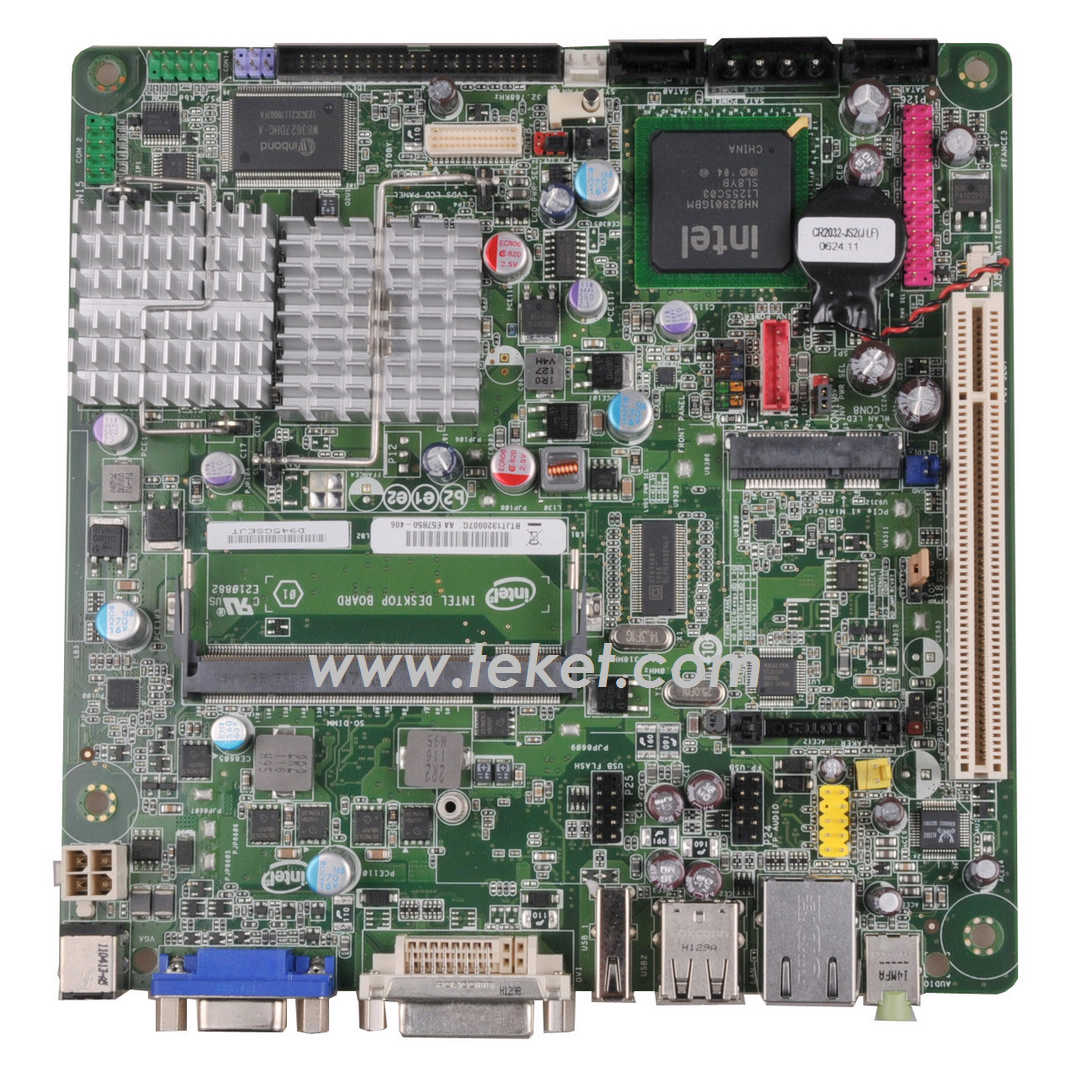

Intel Atom N270 Mini-ITX Motherboard D945GSEJT all-in-one slim 12VDC

Feature Summary
Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170 millimeters
[6.7 inches] x 170 millimeters [6.7 inches])
Processor Passively-cooled, soldered-down Intel? Atom? processor N270
Main Memory * One 200-pin Double Data Rate 2 (DDR2) Small Outline Dual Inline
Memory Module (SO-DIMM) socket with gold-plated contacts
* Support for DDR2 533 MHz SO-DIMMs (DDR2 800 MHz and
DDR2 667 MHz validated to run at 533 MHz only)
* Support for up to 2 GB of system memory

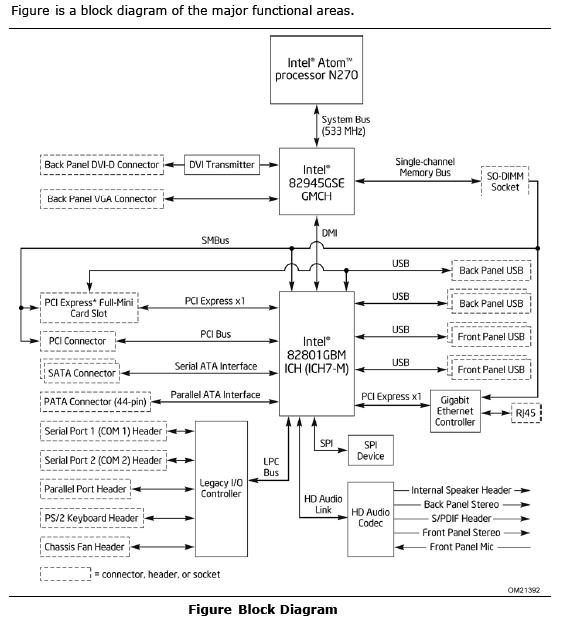

Chipset Mobile Intel? 945GSE Express Chipset consisting of:
* Intel? 82945GSE Express Chipset Graphics and Memory Controller
Hub (GMCH)
* Intel? 82801GBM I/O Controller Hub (ICH7-M)
Graphics * Integrated graphics via the Intel? Graphics Media Accelerator 950
(Intel? GMA 950) with support for:
* Analog displays (VGA)
* Digital displays (DVI-D)
Audio * RealTek* ALC662 audio codec
* Support for Intel? High Definition Audio
* Support for 2 + 2-channel (stereo) audio
* Onboard S/PDIF header






Expansion
Capabilities
One PCI* bus add-in card connector
One PCI Express* Full-Mini Card slot
Peripheral
Interfaces
* Seven USB 2.0 ports including:
D Three ports routed to the back panel
D Four ports routed to two onboard USB headers (one header
supporting an Intel? Z-U130 USB Solid-State Drive)
* One parallel ATA (PATA) interface (44-pin) with ATA-100/66 support
* Two Serial ATA (SATA) (3.0 Gb/s) connectors and one power
connector
* One parallel port header
* Two serial port headers
* One PS/2* keyboard header
BIOS * Intel? BIOS
* Support for Advanced Configuration and Power Interface (ACPI),
Plug and Play, and SMBIOS
LAN Support * 10/100/1000 Mb/s (Gigabit) Ethernet LAN Subsystem using a
RealTek* 8111DL Gigabit Ethernet Controller
Power
Management
* Support for Advanced Configuration and Power Interface (ACPI)
* Wake on USB, PCI, PCI Express, PS/2, LAN, and front panel

Intel orginal all-in-one slim mini-itx board D945GSEJT+DDR+ KIT
Intel orginal all-in-one slim mini-itx board D945GSEJT+DDR+SSD KIT
Intel orginal all-in-one slim mini-itx board D945GSEJT+DDR+LVDS KIT
Intel orginal all-in-one slim mini-itx board D945GSEJT+DDR+LVDS+SSD KIT
Intel orginal all-in-one slim mini-itx board D945GSEJT+DDR+LVDS+WIFI KIT
Intel orginal all-in-one slim mini-itx board D945GSEJT+DDR+LVDS+SSD+WIFI KIT

new intel orginal mini-itx board D945GSEJT in stock replace D410PT
new intel orginal mini-itx board D945GSEJT in stock replace D425KT
new intel orginal mini-itx board D945GSEJT in stock replace D510MO
new intel orginal mini-itx board D945GSEJT in stock replace D525MWV
new intel orginal mini-itx board D945GSEJT in stock replace D2500HN
new intel orginal mini-itx board D945GSEJT in stock replace D2500CC,D2500CCE
new intel orginal mini-itx board D945GSEJT in stock replace D2550CC,D2550CCE,D2550MUD
new intel orginal mini-itx board D945GSEJT in stock replace D700DC,D2700MUD
new intel orginal mini-itx board D945GSEJT in stock replace DN2800MT

Net Weight: 352g
Inner Packing:
Outer Packing: 4.82kg/ctn,10pcs/ctn,370x255x195(mm)
