>>Your Current Position: Intel Motherboard

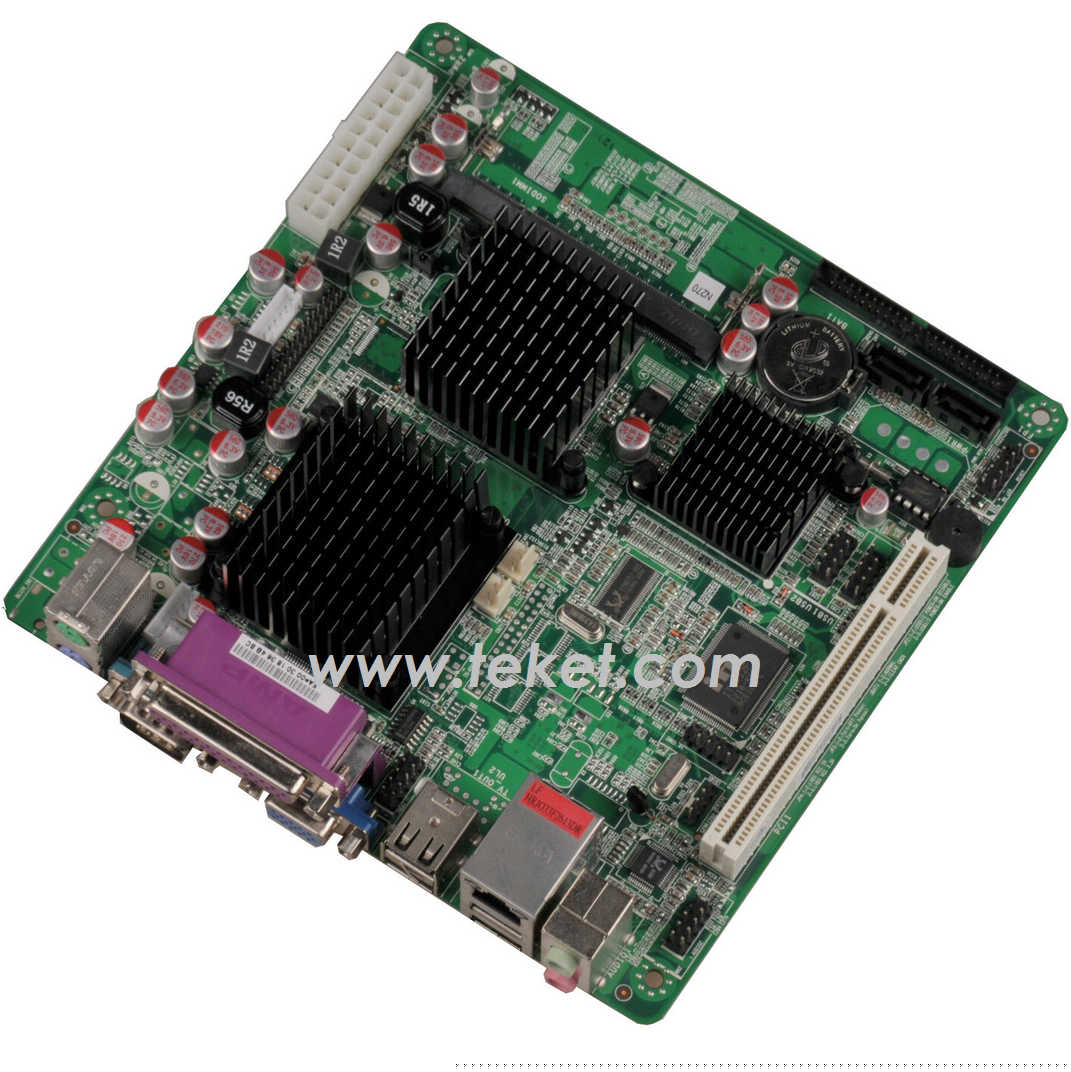

Intel Atom N270 Mini-ITX Motherboard D945GSEMA

NOTE: the D945GSEMA is the same as D945GSEMH, the same pcb, dffercice as following:
D945GSEMA: remove 12VDC, 1*lan, 2*COM, 18 bit LVDS (S-video/TV-out option)
D945GSEMH: built-in 12VDC,2*lan, 5*COM, 24 bit LVDS (S-video/TV-out option)

Intel Atom Processor N270 single-core CPU on board Mini-ITX mortherboard
with intel 945gse chipset


Features
-Intel Atom processor N270 single-core with 533Mhz FSB
-DualView with different content & resolution
-5 COM ports for reansaction terminal applications
-Fast Ethernet and Giga LAN supported

System
CPU
-N270, onboard Intel Atom (Mobile Diamondville) single core FCBGA 437-pin
1.60G Hz CPU speed with 512KB cache
-FSB 533MHz system bus

System Memory
- Single-channel DDR2 memory architecture
- 1 x 240-pin DDR2 SO-DIMM socket support up t-2 GB
- Support DDR2 533/400 DDR2 SDRAM

Chipset
- Intel 945GSE & Intel ICH7M

BIOS AMI BIOS with 4Mbit Flash ROM
Supports Plug and Play 1.08 APM 1.2 Multi Boot,
DMI Supports ACPI revision 1.0 specification
SSD: CompactFlash Type-II Socket
Expansion Interface: PCI expansion slot
Battery: Lithium 3V.196mAH

12V DC in
24bit dual channel lvds display

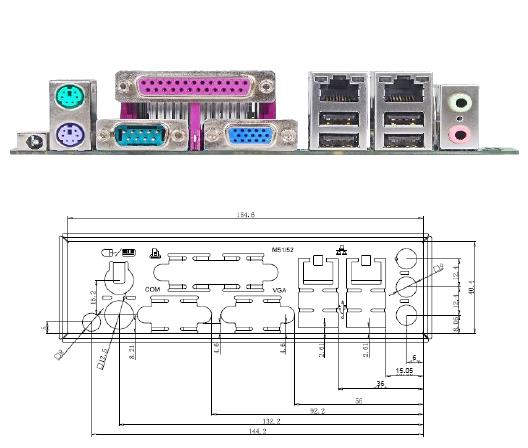

Rear
I/--1 x PS/2 keyboard & PS/2 mouse connectors
-4 x USB ports
-2 x RJ 45 LAN connector
-1 x Audi-port (Line Out/ Mic in)
-1 x VGA Port
-1 x Serial Port (COM1)
-1 x Parallel Port

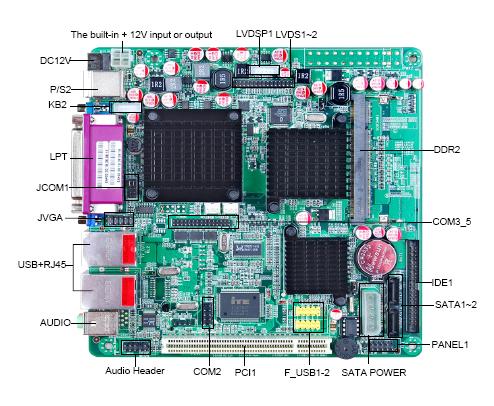

Internal I/-& Headers -1 x 20-pin ATX Power Supply Connector
-1x USB 2.0 header support additional 2 USB ports
-1 x SYS_FAN connector
-1 x 44-pin IDE connector
-1 x Front panel switch/LED header
-1 x Front panel audi-header
-2 x Serial ATA connectors
-4/7 x Serial port headers
-1 x Intruder header
-1 x Parallel port header
-1 x VGA header
-1 x Digital I/-header
-1 x LVDS header, 18 or 24 bit

VGA Frame Buffer Size -Max.up t-128MB frame buffer sharing system memory

Accessories -1 x 40/44 pin IDE cable
-1 x SATA/Power cable
-1 x SATA cable
-1 x Print cable
-2 x COM Port cable
-1 x I/-shield
-1 x User Manual
-1 x Driver CD

Ethernet -Realtek RTL8102E 10/100 LAN
-Realtek RTL8111C Giga LAN

Audi--Realtek ALC662 High Definition audi-CODEC

Resolution -Single display mode:
CRT: 1680 x 1050 ; LVDS LCD: 1600 x 1200
-DualView mode CRT: 1680 x 1050 ; LVDS LCD: 1600 x 1200, 1600 x 900

Operation Humidity -10%~90% relative humidity, non-condensing

Operation Temperature -0-60>

Size -170 x 170 mm
