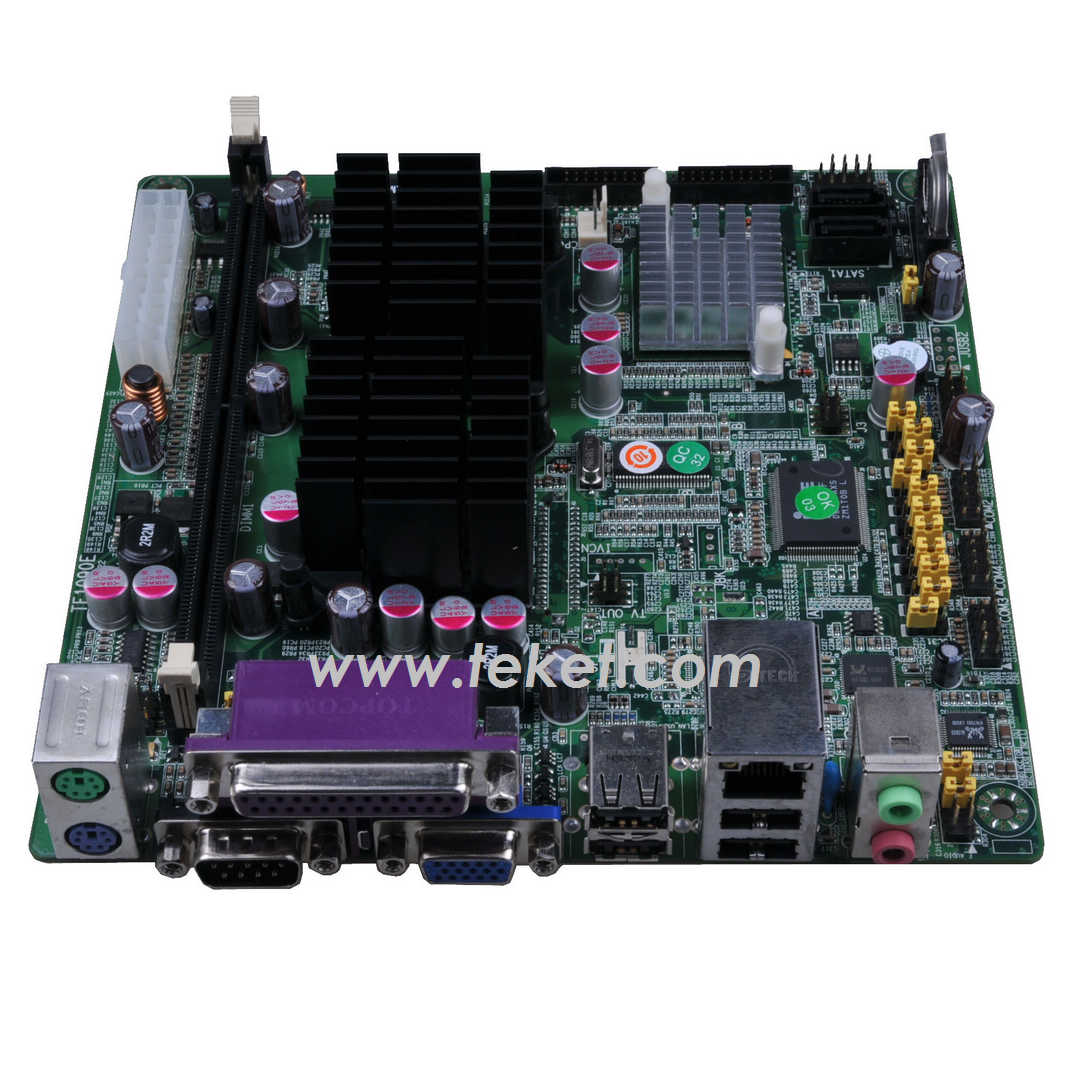

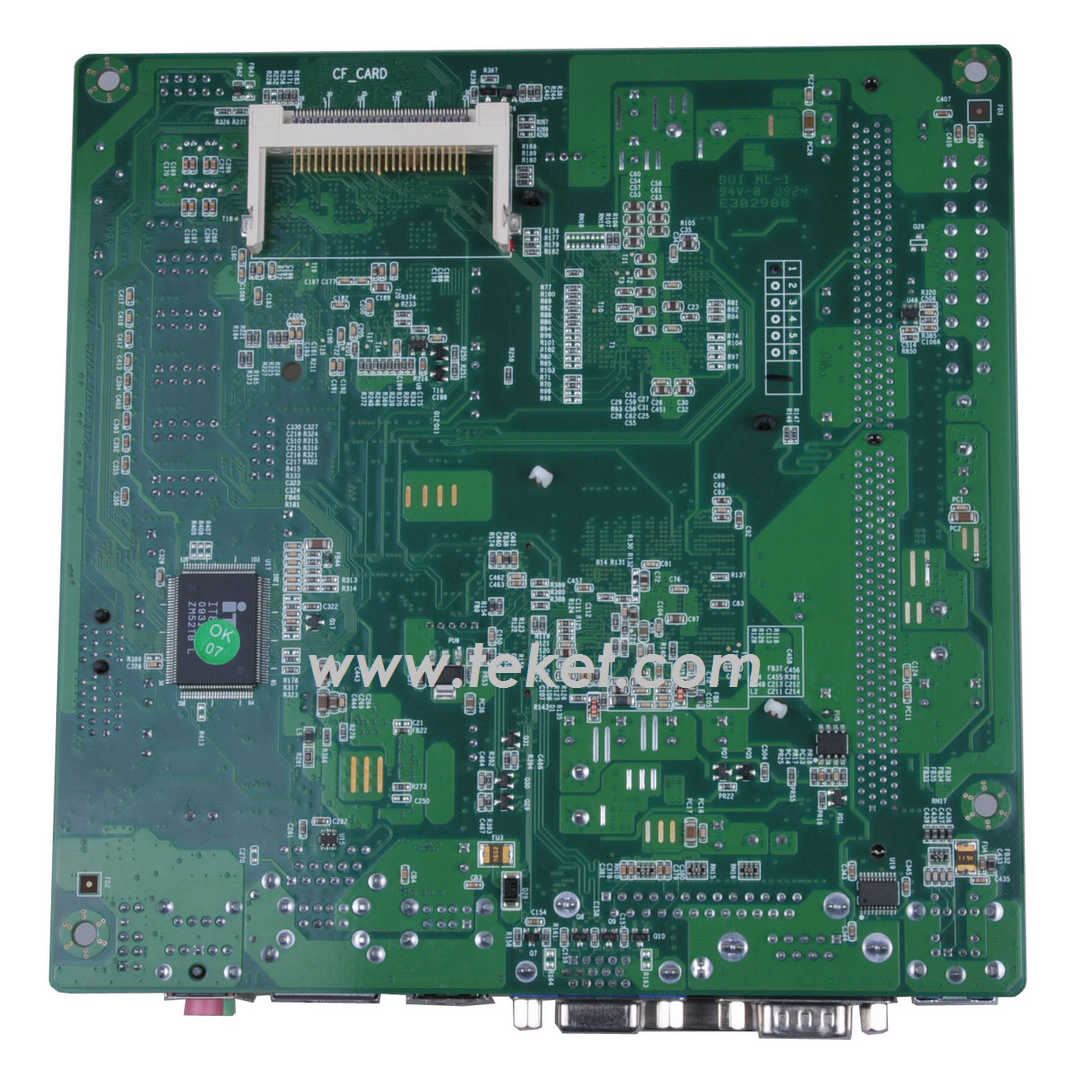

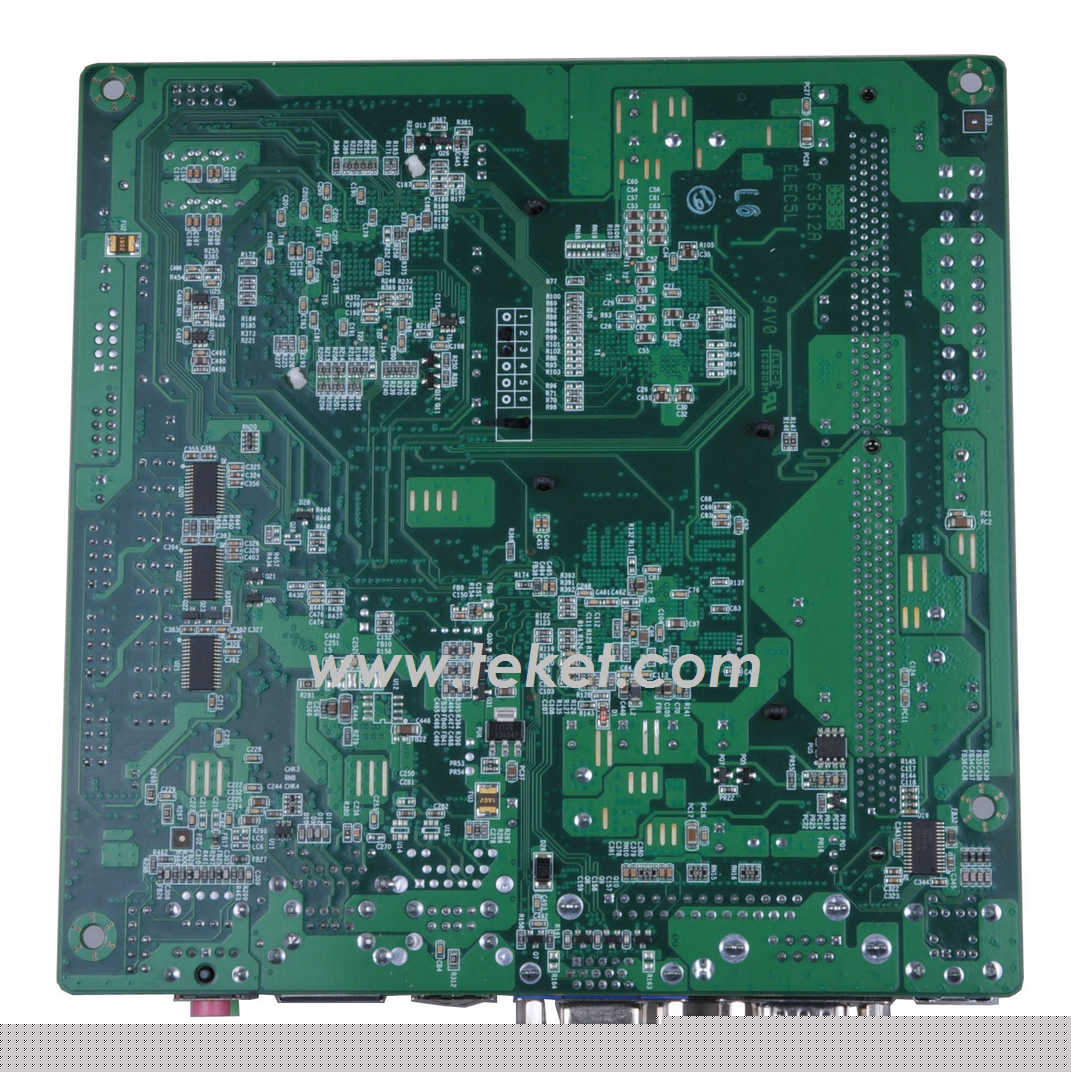

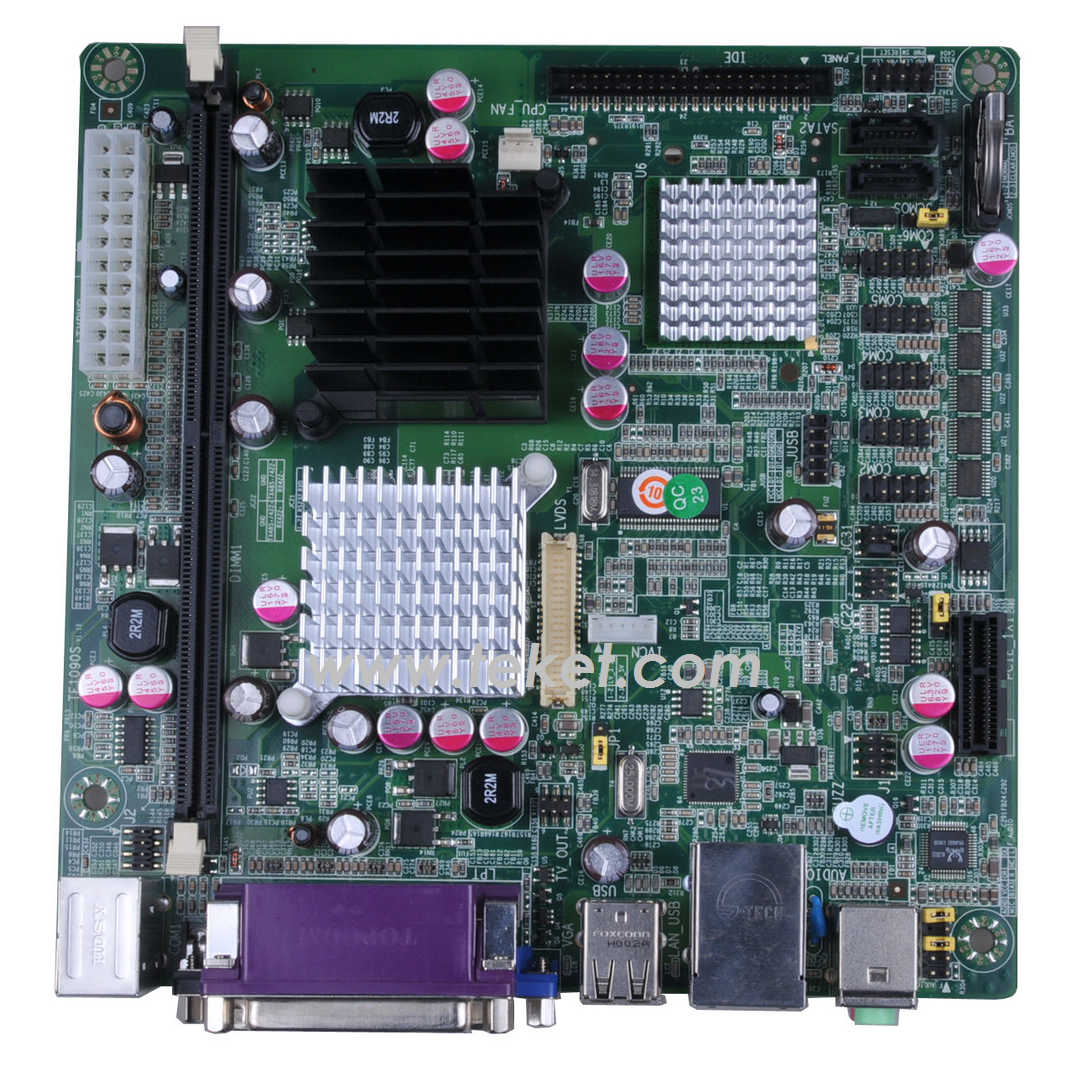

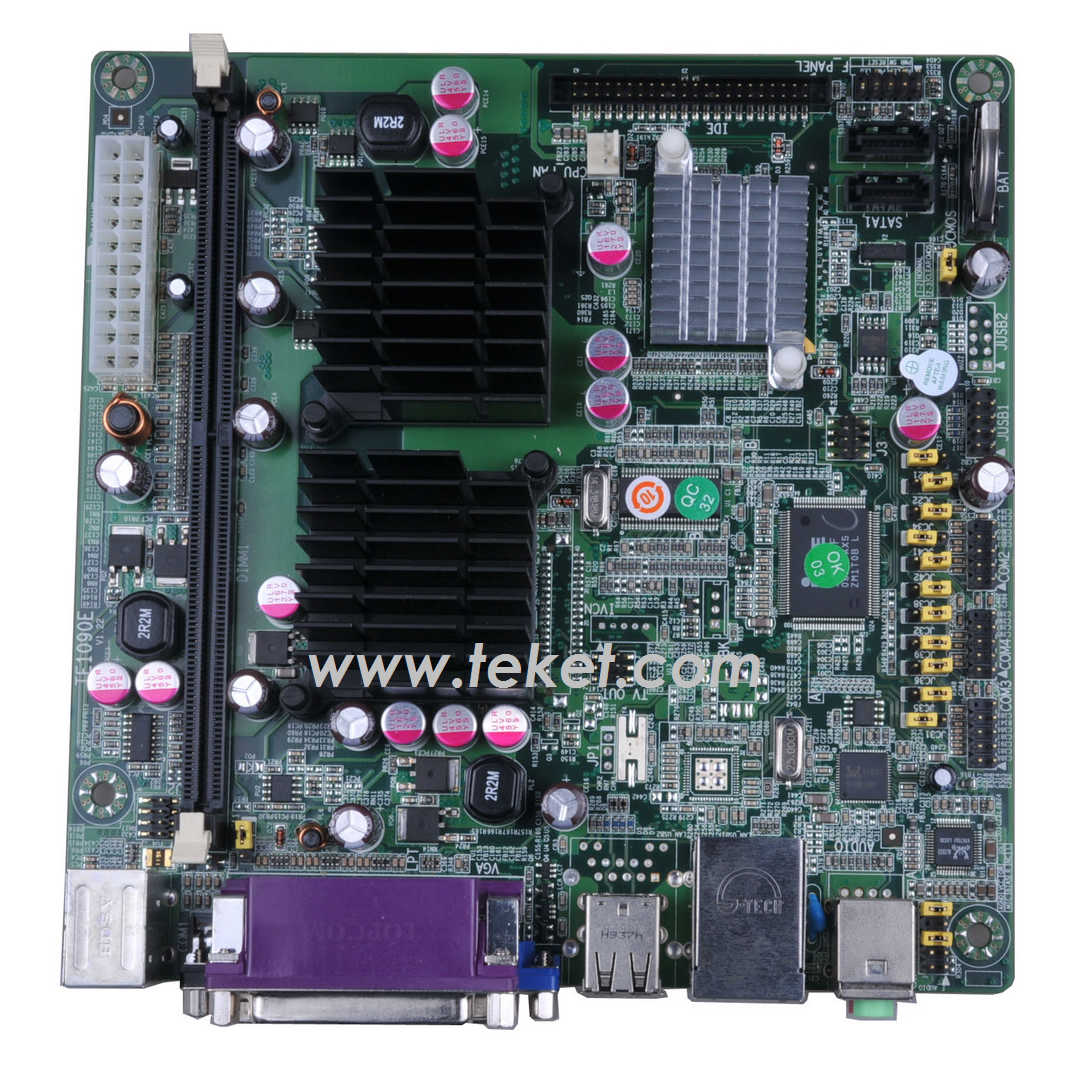

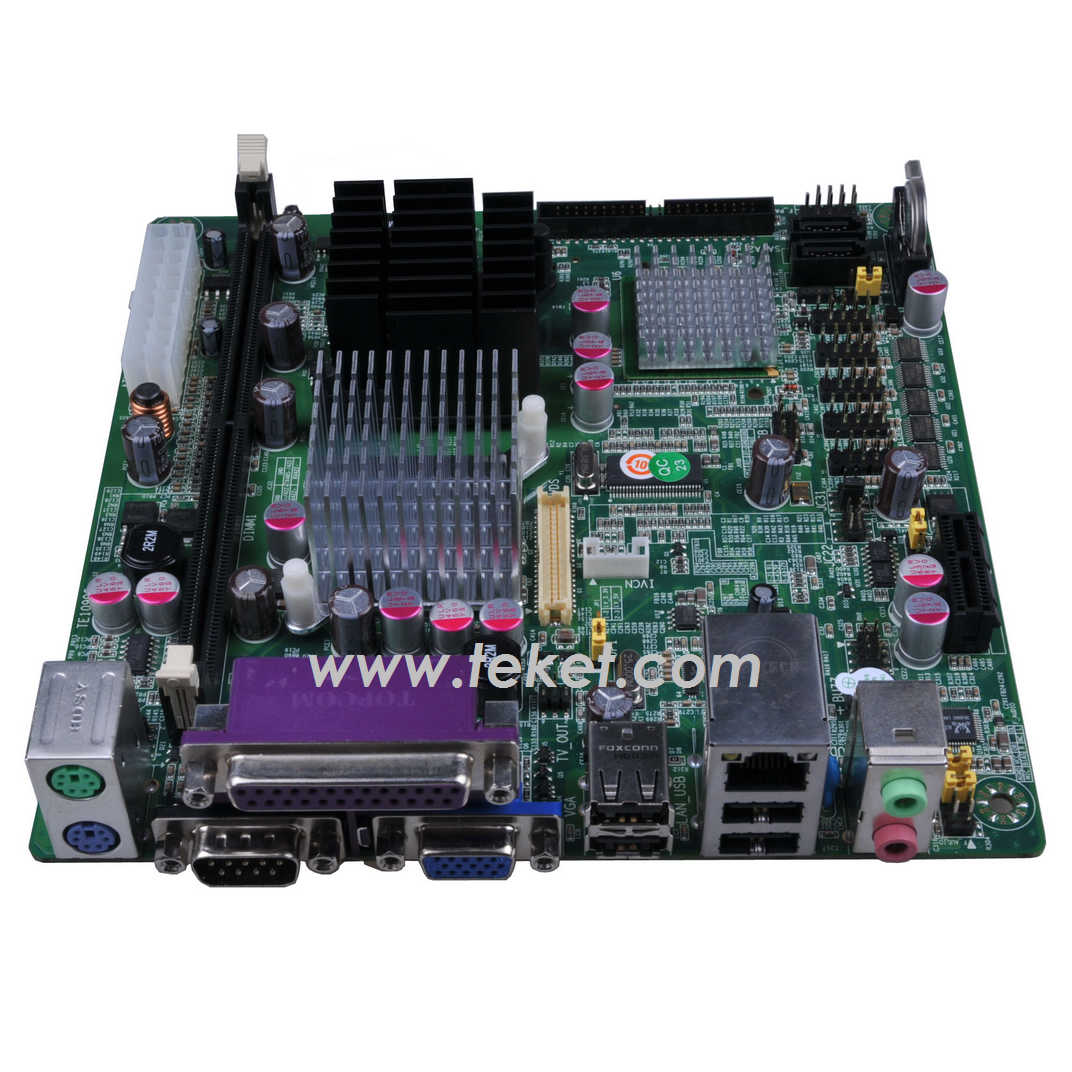

Intel Atom N270 Mini-ITX Motherboard D945GSETE CF slot

Product specifications
1.Hardware features
Item Description
PCB Form Factor Mini-ITX
Dimensions 170mm*170mm
PCB Layer 6 Layers
PCB Color Green
CPU Support Socket Type FCBGA8 package(437Pins)
FSB / HT FSB 533MHz
CPU Type Intel Diamondville 1.6GHz/512KB/533MHz Processor
Chipset North bridge Intel 945GSE/945GMS
South bridge Intel ICH7M
Supper I/O ITE8782F/ITE8781F Colay
Audio code AC97,Realtek ALC655/ALC203 Colay
LAN chipset Realtek RTL8111B/RTL8111C
Video code OnboardVGA
Memory Socket type 1*240Pin DIMM Socket
Memory type DDRII400/533MHz
Maximum support Up to 1GB
Peripherals PCI Slot N/A
PCI-E PCI-E X1 Slot
SATA 2*SATA Port
IDE 1*44Pin IDE Compatible Ultra DMA-33/66/100
CF 1 *Compact Flash slot
GPIO 2 In,2 Out
LPT 1*Standard LPT Port£¬1*LPT pin
COM 6 * COM COM2 optional RS232, 422485, COM3 support 5V, 12V voltage options.
USB Port 6*USB, 2 I/O interface, 4 pin on board.
LVDS Port 1*LVDS Port
TV Port 1*TV Port support S-video, A/V output.
VGA Port 1*DB15 VGA Port
PS/2 1*PS/2 connector +pin,support K/B,M/S,
Watch-dog Support 1-65535grade,Time interval 1 seconds
The working environment temperature 0 ~ 45 ¡䪠humidity 5% -95% Storage temperature -10 ¡仢r> Power consumption CPU TDP 2.5W
Power ATX Power supply




CPU Description
Socket type FCBGA8 package
CPU Support Intel Diamondville 1.6GHz/512KB/533MHz Processor
Front Side Bus FSB533MHz
CPU power TDP 2.5W
CPU power supply (the specific plan adopted)
Fanless CPU cooling fan support

Chipset Description
North bridge Intel 945GSE/945GMS
South bridge Intel ICH7M
Flash ROM Winbond 8 Mbit SPI Flash ROM
Notes Please note that North and South Bridges. CPU air duct


Graphical display description
Shows that the core chip and GMA950 (200MHz)
VGA DB15 interface interface type
TV 2 * 3 Pin pin
LVDS 2 * 20Pin Socket
Significant support for dual-display mode Dual mode (copy mode. Expansion mode)
Support mode Support for CRT resolutions up to QXGA
Support for dual-channel LVDS resolutions up to UXGA

D945GSETE: Standard version
D945GSEBK: Simplified version (No LVDS, 4 Serial Port Only)

Net Weight: 320g
Inner Packing: 600g,205x200x70(mm)
Outer Packing:
