Intel Atom N270 Mini-ITX Motherboard D945GSEYS CF slot

Product Description:
Specification
CPU Intel Atom 1.6GHz N270 2.5W fanless CPU
Chipset Intel 945GSE+ICH7-M
Memory 1 * 240pin SODIMM DDR2 400/533MHz of memory up to 2GB
Graphics ? Intel Graphics Media Accelerator 950£¬support DirectX 9.0
Audio ALC655 2/4/5.1sound channel
LAN 2* Realtek 8111C,10/100/1000M (D945GSEGA 1*1000M LAN)


Product Description:
Specification
CPU Intel Atom 1.6GHz N270 2.5W fanless CPU
Chipset Intel 945GSE+ICH7-M
Memory 1 * 240pin SODIMM DDR2 400/533MHz of memory up to 2GB
Graphics ? Intel Graphics Media Accelerator 950£¬support DirectX 9.0
Audio ALC655 2/4/5.1sound channel
LAN 2* Realtek 8111C,10/100/1000M (D945GSEGA 1*1000M LAN)

Storage Interface
1*MINI IDE (44pin IDE)
2*SATA

Expansion Slots
1*PCI
1*CF

USB 8*USB 2.0 (4 pcs on the back panel,4 pcs via the USB brackets connected to the internal USB headers)
Internal

I/O Connectors ?
4*USB 2.0 headers
2*fan connectors
1*ATX power connector
1*front panel Audio header
6*COM (R232) Headers
1*LVDS Header

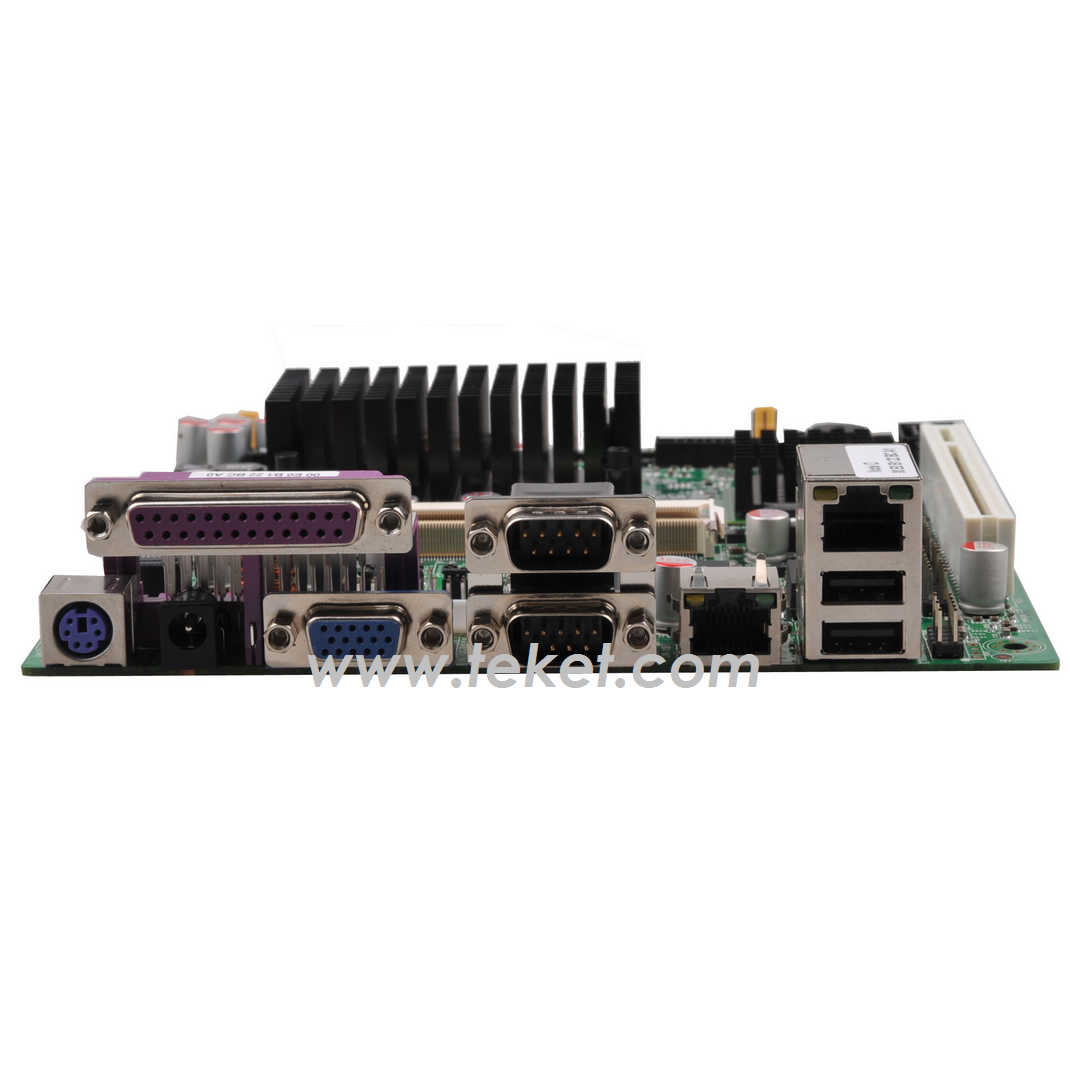

Back Panel
Connectors
1*PS/2 keyboard port
1*PS/2 mouse port
1*LPT port
1*VGA port
2*RJ-45 LAN ports
4*USB2.0 ports
2*Audio Jacks
1*12V port (12VDC IN)

BIOS: AMIBIOS, 4/8Mbit Flash
Operation system Support Windows XP, Windows 2000£¬Linux, Win CE,
H/W Monitoring ? CPU/System temperature detection
System voltage detection
System fan speed detection
BIOS Authorized AMI BIOS

Form Factor Mini ITX 170mmx170mm

Working conditional temperature 0¡⁠ ~ 50¡⁠
Working conditional humidity 0% ~ 95%
Factor: MINI-ITX (6 layer PCB), 170x170mm
