>>Your Current Position: Intel Motherboard



Thin compact Intel Atom Slim All-in-one (AIO) Mini-ITX Motherboard DN2800MT

All-In-One
1) Dual-core AtomTM with Hyper-Threading
2) Slim form factor; <20mm z-height
3) Meets channel All-In-One specification

Feature Summary
http://www.intel.com/content/www/us/en/motherboards/desktop-motherboards/desktop-board-dn2800mt.html?wapkw=Intel Desktop Board DN2800MT

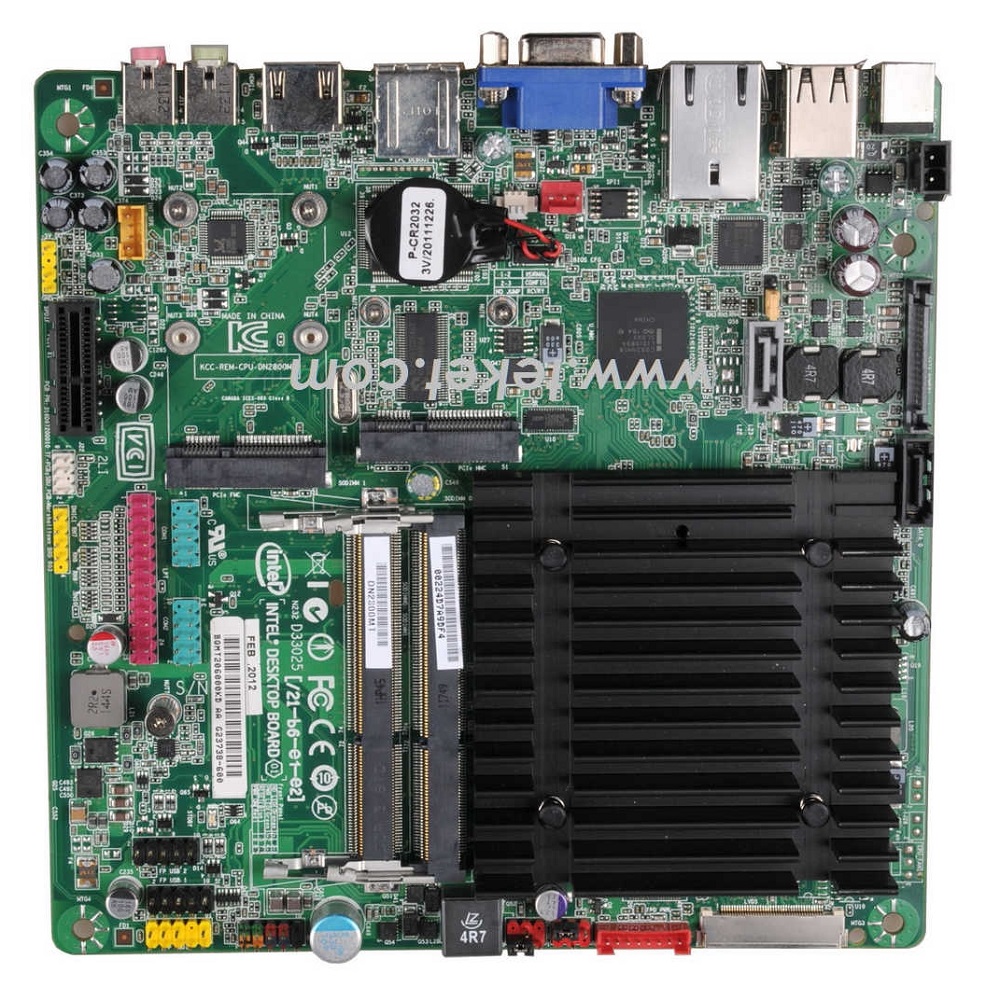

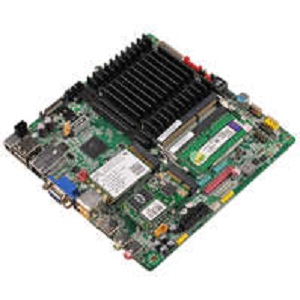

Intel? Desktop Board DN2800MT
Tagged AsIntel? Desktop Board DN2800MT

Intel? Desktop Board DN2800MT is integrated with the new Intel? Atom? processor D2800 and the Intel? NM10 Express Chipset to offer a thin mini-ITX desktop computer system. The board features a 10/100/1000 integrated Intel? LAN, 1080 high-definition playback with HDMI, and Intel? High Definition Audio (Intel? HD Audio).

With the new low-power silicon, the Intel Desktop Board DN2800MT can be used in chassis that require no fan for heat dissipation. This board is designed for ultra small form factor (~1 liter) and All-In-One chassis.

While this desktop board is small in size, it delivers a rich multimedia and Internet experience with the support of 1080 high-definition video playback.



Features and configurations

Form factor
Mini-ITX / Micro-ATX compatible (170mm X 170mm)

AA# (Altered Assembly)
BOX/BLKDN2800MT: G23738-XXX

LADN2800MT: G38034-XXX

BIOS ID string
MTCDT10N.86A with Intel Fast Boot Technology

Processor
At product launch, this Intel? Desktop Board DN2800MT supports:

Intel? Atom processor D2800 with fanless heatsinkView all compatible Intel? processor numbers

Memory
Two SO-DIMM slots for 1066/800 MHz DDR3 single-channel memorySupport for up to 4 GB of system memory
Chipset
Intel? NM10 Express Chipset

Audio
Intel? High Definition Audio (Intel? HD Audio) subsystem in the following configuration:

2+2 Intel? HD Audio via codec:
Stereo line-out (back panel jack)
S/PDIF output (internal header)
In-chassis stereo speakers output (internal header)
DMIC digital microphone input (internal header)
Analog line-in (back panel jack)
Front panel HD Audio/AC¡¯97 (internal header)

LAN support
Integrated Intel? 10/100/1000 network connection

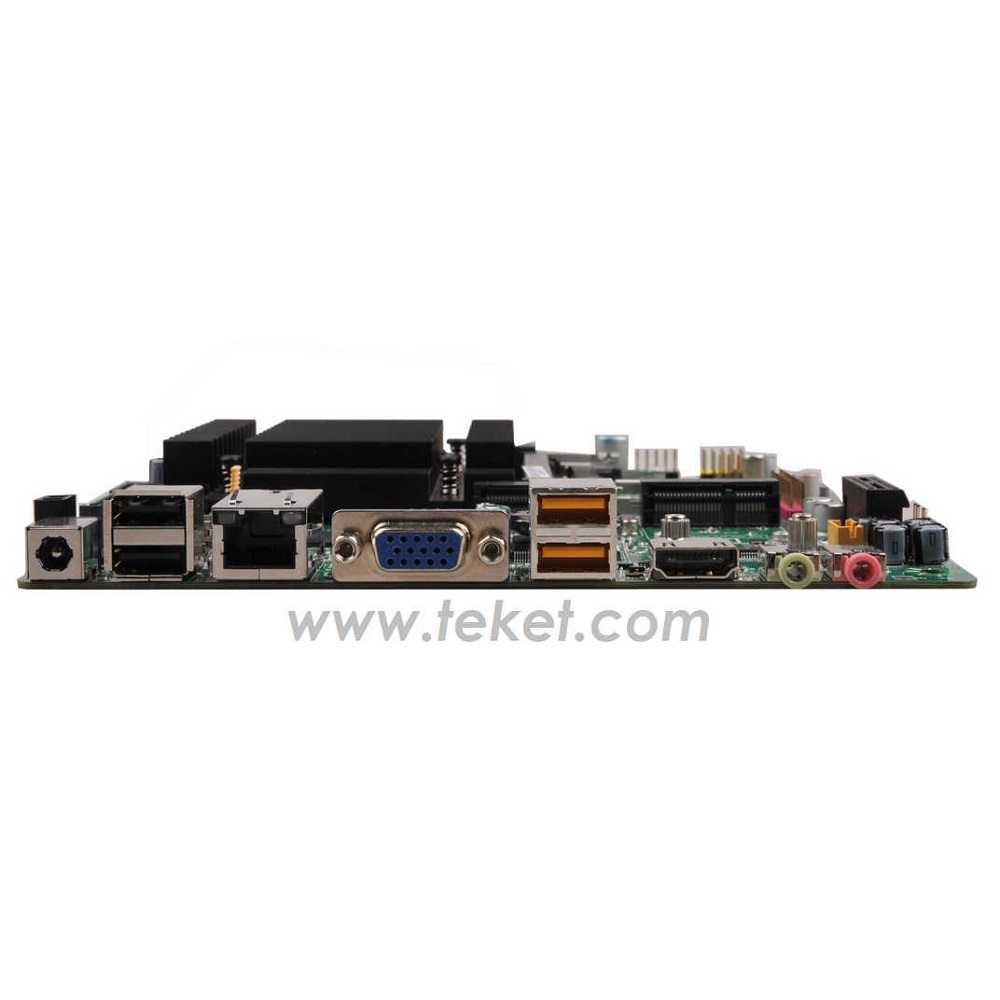

Peripheral interfaces
Two USB 2.0 high-current/fast charging ports (back panel)Two USB 2.0 ports (back panel)
Four USB 2.0 headers (internal)
Two Serial ATA 3.0 Gb/s ports (one multiplexed with mSATA)Two Serial port headers (one Z-U130 flash drive compatible)
One Parallel header (internal)

Expansion capabilities
One PCI Express* x1 slotOne PCI Express* Mini Card (Half-size)
One PCI Express* Mini Card (Full/Half-size adjustable) with mSATA support

Video

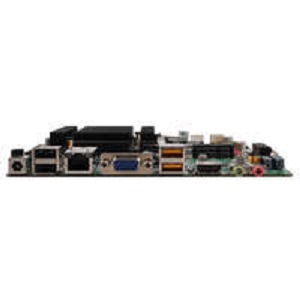

VGA & HDMI ports (back panel)

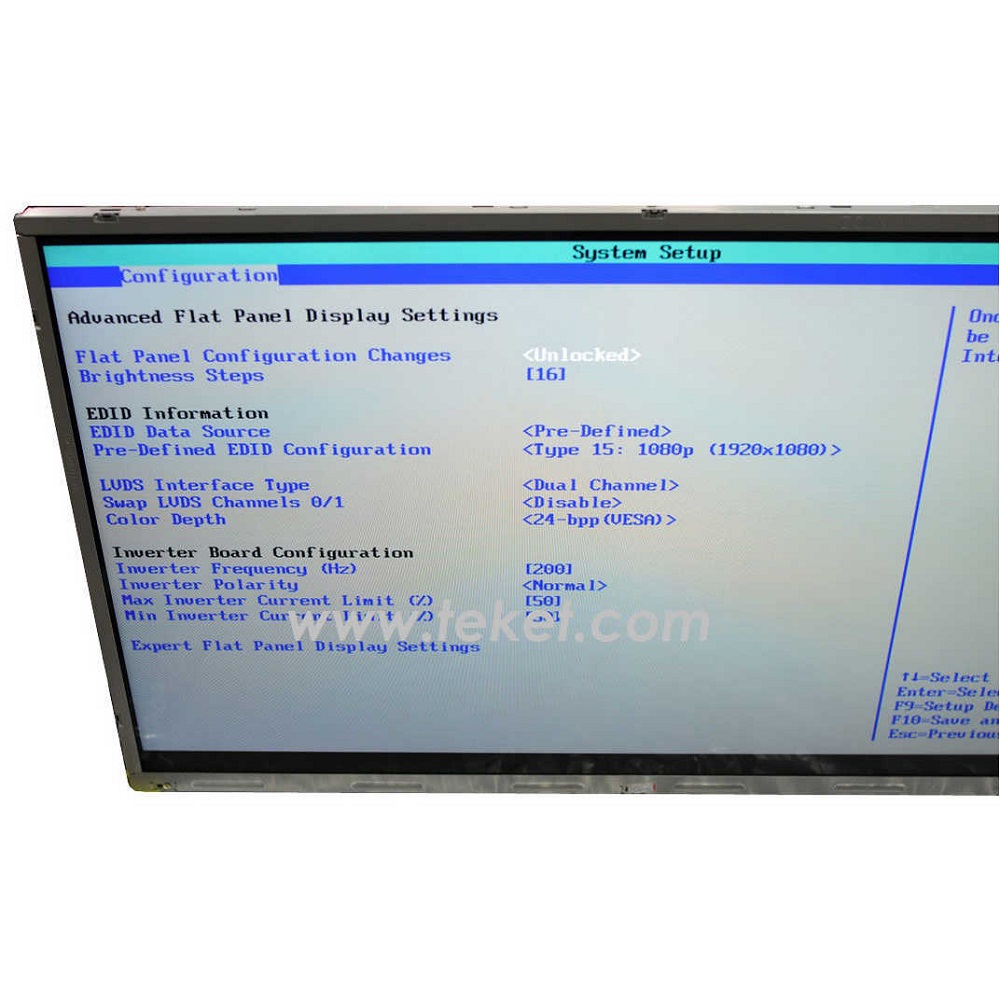

eDP/LVDS connector (up to 24-bpp)

Warranty
3-year warranty (BOX/BLK)
Standard Warranty Replacement (SWR)

Net Weight: 448g
Inner Packing:
Outer Packing: 5.7kg,10pcs/ctn,450x215x230(mm)

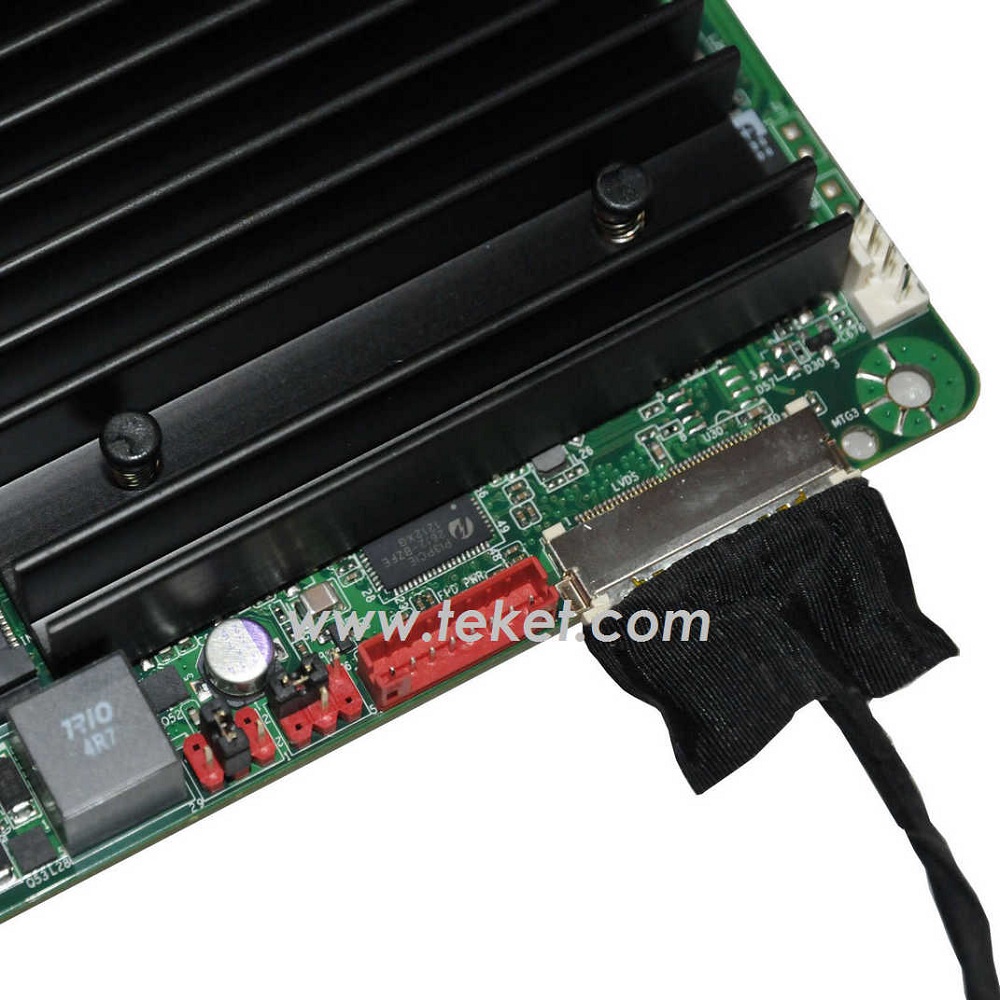

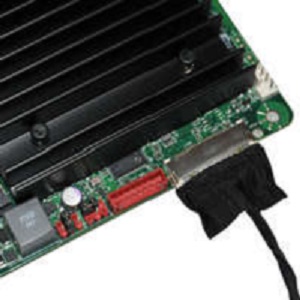

Board connector: ACES 88341-40
Mating plug: ACES 88441-40 or Starconn 107F40

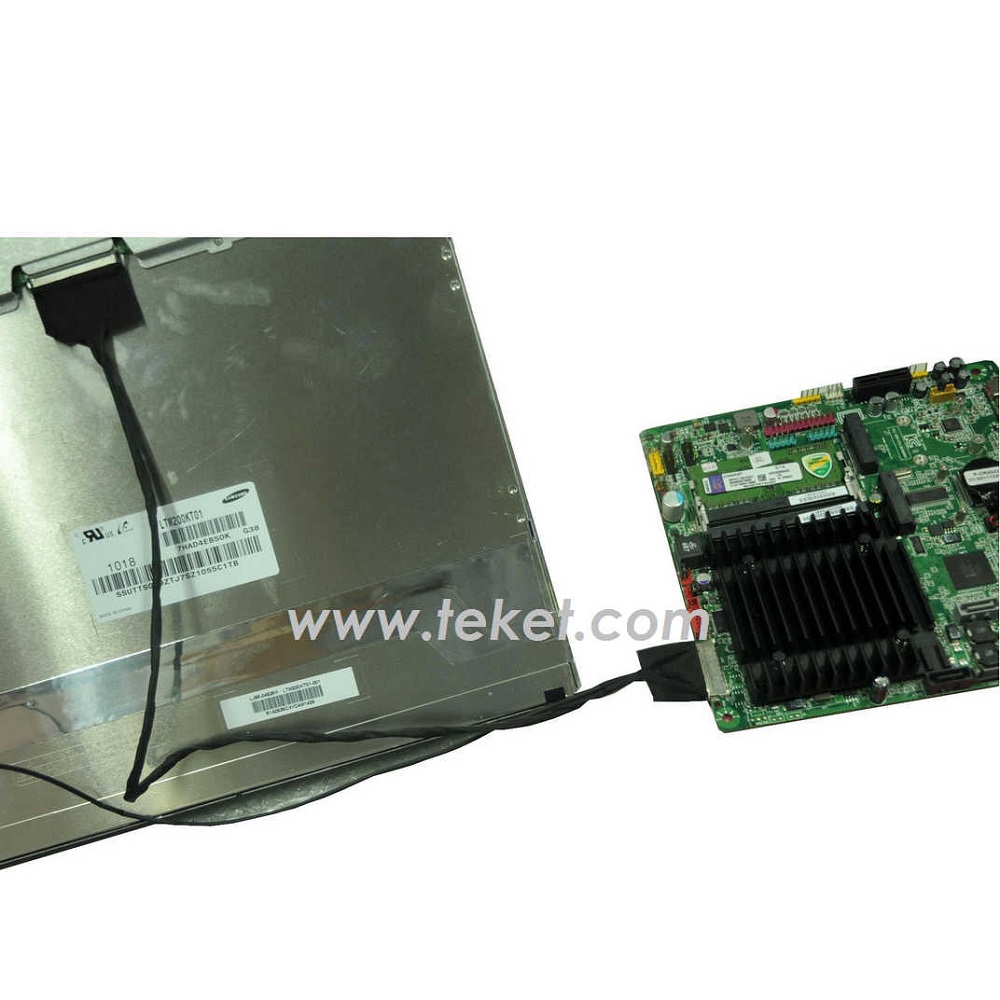

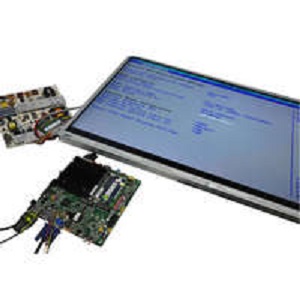

We can provide Board + mSATA + WIFI + RAM + LVDS sets as following

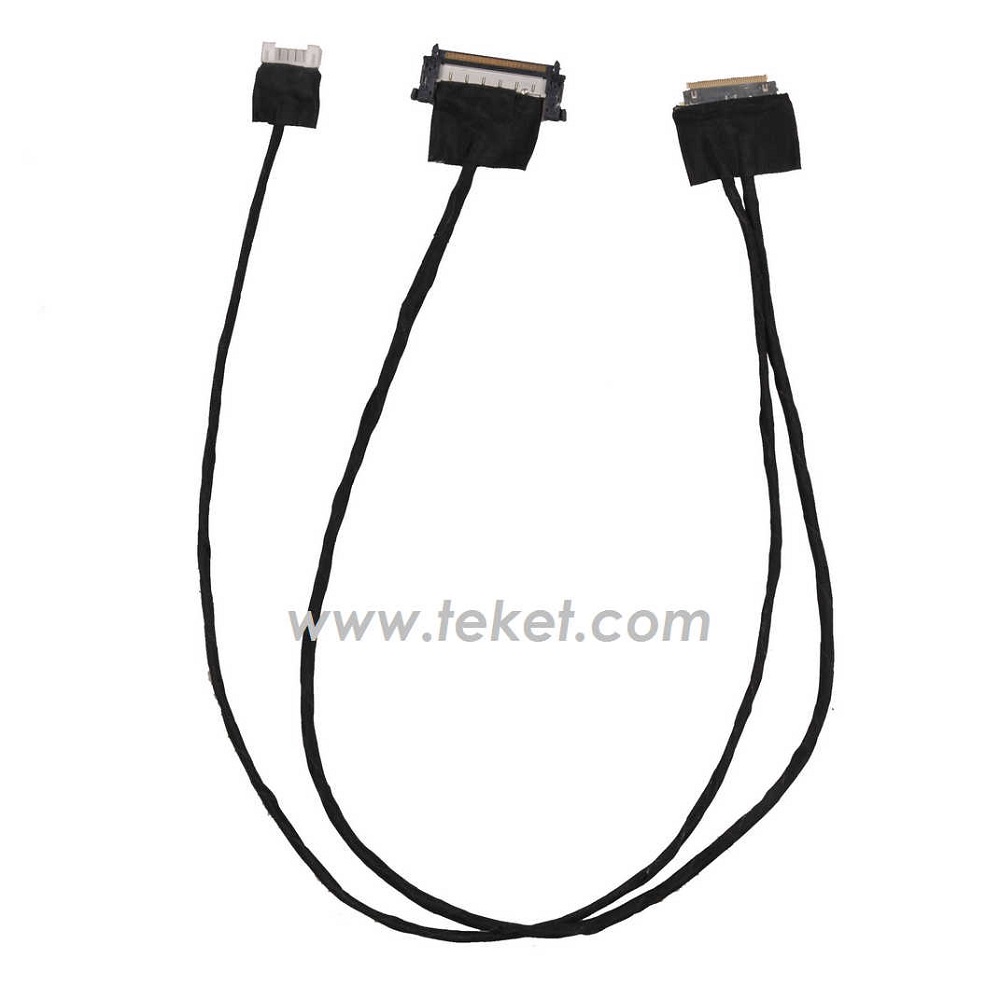

We have the lvds cable in stock for the following panels for yr reference:
(Motherboard use Intel orginal DN2800MT)
1),CHIMEI Innolux V315 serial panel (31.5") (CMO V315B6-L01)
2),CHIMEI Innolux or LG or SAMSUNG 15.6" panel (LG LP156WH4-TLN2,SAMSUNG LTN156AT05,CMO N156B6-L06 )
3),LG serial 32",37",42" 55" panel (LG LC260EUN-SDP1,LC320EUN-SEM2,LC420EUN-SEF1)
4),SAMSUNG 20",22",23",32" panel (SAMSUNG LTM200KT07,M270HW01-V2)
