>>Your Current Position: Intel Motherboard

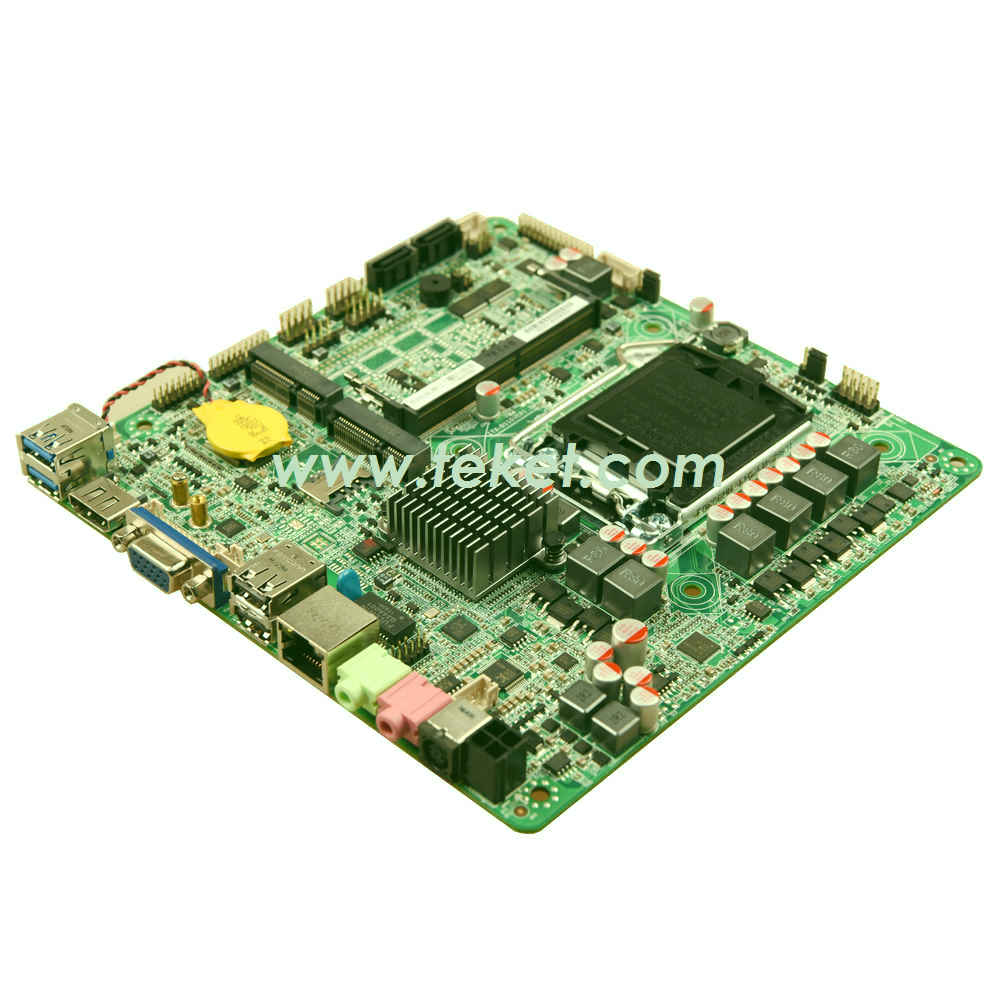

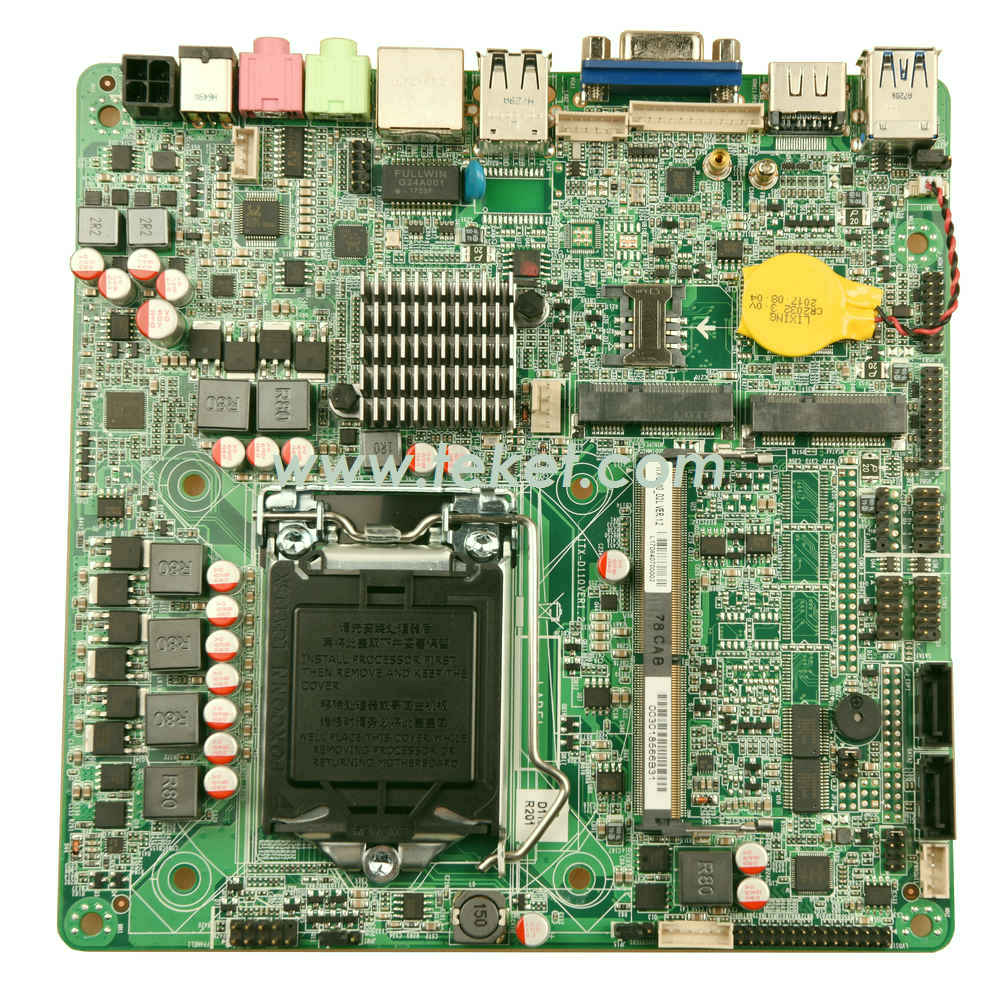

H110 Chipset LGA1151 socket MINI-ITX Motherboard H110DT

For Industral application
Skylake-S
H110DT VER:1.1
LGA1151 6th Intel® Core™ i3/i5/i7/Celeron/Pentium SKYLAKE-S Processor
Intel® H110 express chipset, Compatible Intel®Q170/ Q150/H170/Z170/H110 chipset
1* DDR4 SODIMM memory slot,support 2133/1866MHz memory, up to 16GB

Processor
Support LGA1151 6th Intel® Core™ i3/i5/i7/Celeron/Pentium SKYLAKE-S Processor
Chipset
Adopt Intel® H110 express chipset, Compatible Intel®Q170/ Q150/H170/Z170/H110 chipset
Memory
1* DDR4 SODIMM memory slot,support 2133/1866MHz memory, up to 16GB

Graphics
Support DirectX12,OpenGL4.4,support 4K/60Hz display
1* VGA ,the highest resolution as 1920X1200@60Hz
2* HDMI1.4 ,the highest resolution as 4096X2304@24Hz(HDMI1 and DP optional)
1* Embedded DisplayPort ,the highest resolution as 4096x2304@60Hz
1* support dual channel 24bit LVDS( with Embedded DisplayPort optional)
LAN
2* RTL8111F Gigabit Ethernet,support wake on LAN/PXE
Storage
2* SATA3.0 HDD interface,the transfer rate up to 6Gbps
1* MSATA slot, supportSSD, the transfer rate up to6Gbps
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier
Power amplifier support 2Ω/5W dual channel
Expansion slots
1* MiniPCIE slot,support WIFI/3G/4G module

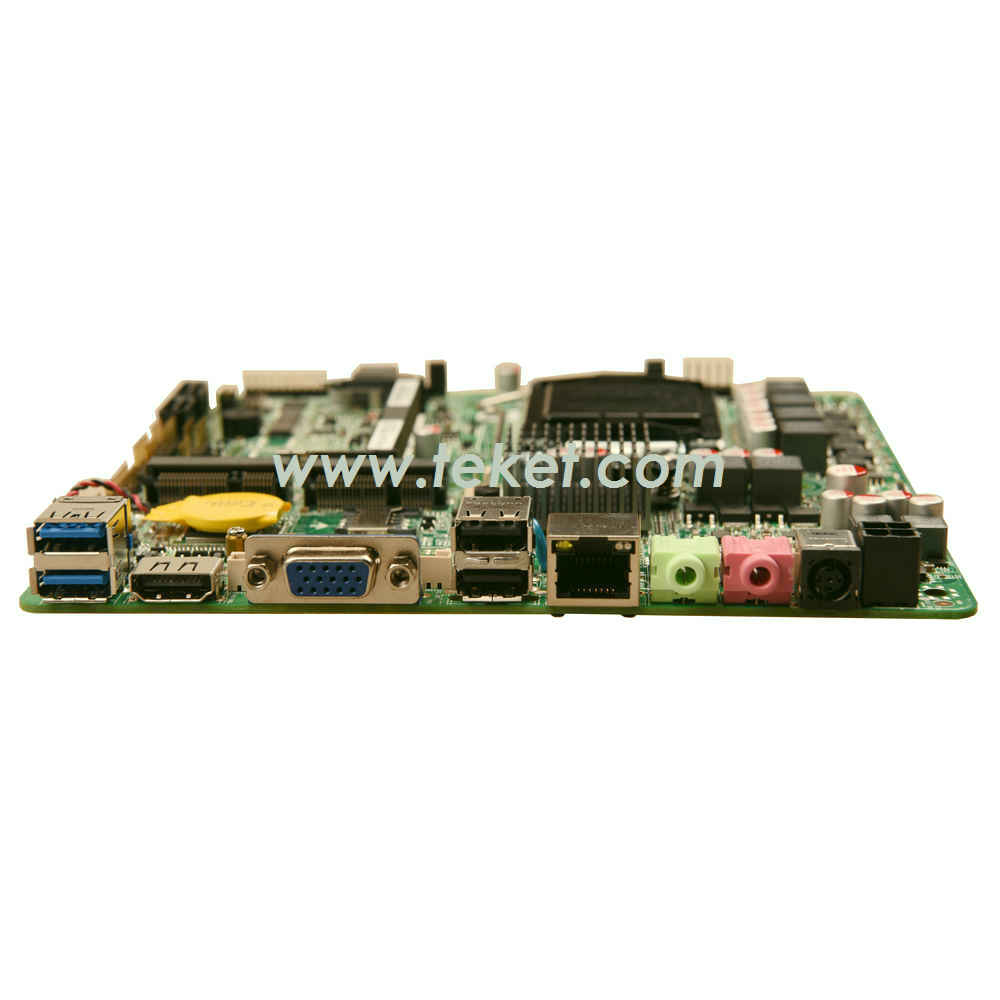

Rear I/O
2* USB3.0
1* HDMI (with DisplayPort optional)
1* VGA
2* RJ45 Gigabit Ethernet Connector,LAN2 and USB1 optional
1* Line-out(Green),1*MIC(Red)
1* DC12V Power input interface
Internal I/O
1* JVGA 1*12pin ,the same signal with VGA
1* JHDMI 2*8pin(with Display Port optional)
1* LVDS 2*15pin, support dual channel 24bit(with Embedded DisplayPort optional)
1* backlight power supply connector 1*6pin
6* RS232 serial ports,the 9th of COM1support charged function,COM3 support RS485/422
3* USB2.0 2*5pin , F_USB2 only support1* USB2.0,
2* USB3.0 2*10pin
1* Embedded DisplayPort 2*15pin
1* PS/2 KB/MS connector 1*6pin
1* Front panel audio connector 2*5pin
1* amplifier connector 1*4pin
1* HDD power supply connector 1*4pin
1* Front panel function buttons and indicator interface 2*5pin
FAN interface
1*4pin CPU Intelligent fan interface;
BIOS
64Mb Flash ROM
System
Windows® 7/ 8.1/ 10
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Support DC12~19V power supply(suggest using 19V)
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95%(relative humidity; non-condensing)
Dimension
170mm x 170mm

Order Information
H110DT Ver1.1 LGA1151,2*DDR4,1*VGA,1*HDMI,1*DP,2*LAN(RTL8111F),ALC662,10*USB,6*COM(COM3 for RS485/422),ATX
