>>Your Current Position: Intel Motherboard

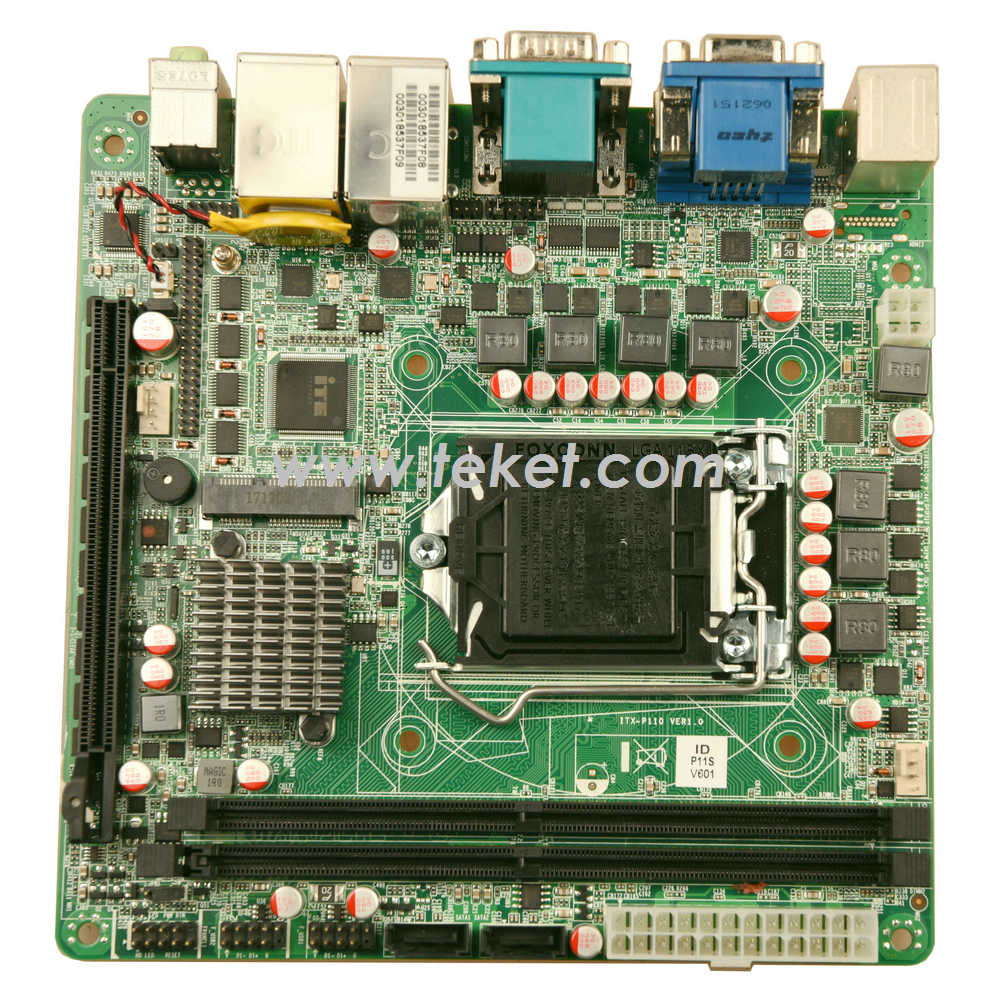

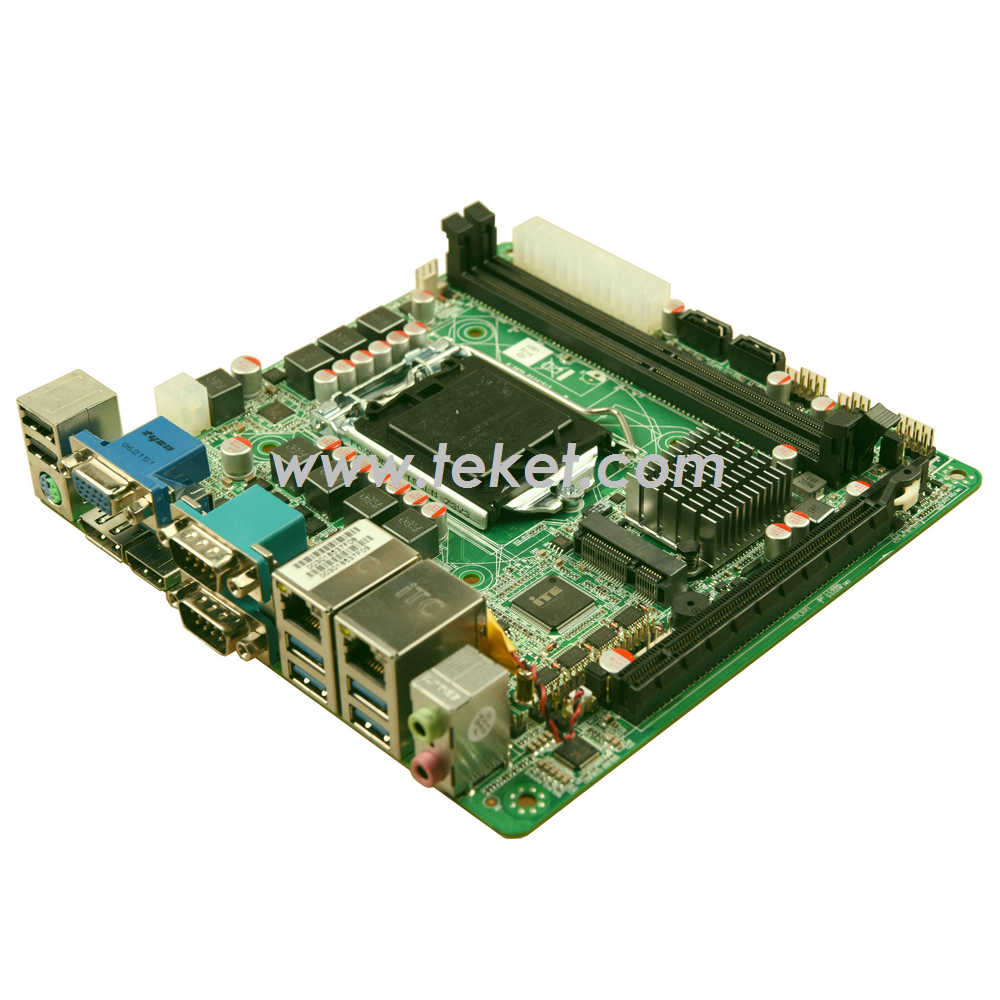

H110 Chipset LGA1151 socket MINI-ITX Motherboard H110PE

For Industral application
Skylake-S
H110PE VER:1.1
Support LGA1151 6th Intel® Core™ i3/i5/i7/Celeron/Pentium Processor
Adopt Intel® H110 chipset
2* DDR4 DIMM memory slot,Support double channel 2133/1866MHz Memory,Up to 32GB
Integrated Intel® HD Graphics
1*VGA,1*DP.1*HDMI1.4 interface
Integrated 2* RTL8111F Gigabit Ethernet,Support wake on LAN/PXE
1*PCIE3.0x16 Slot

CPU
Support LGA1151 6th Intel® Core™ i3/i5/i7/Celeron/Pentium Processor
Chipset
Adopt Intel® H110 chipset
CompatibleIntel®Q170/ Q150/H170/Z170/H110 chipset
Memory
2* DDR4 DIMM memory slot,Support double channel 2133/1866MHz Memory,Up to 32GB
Graphics
Integrated Intel® HD Graphics, Support DirectX12,OpenGL4.4,Support 4K/60Hz display
1* VGA Support the highest resolution as1920X1200@60Hz(Default,with HDMI2.0 Optional)
1* Display Port,Support the highest resolution as 4096x2304@60Hz(Optional ,with HDMI1.4 optional)
1* HDMI1.4 ,Support the highest resolution as 2560×1600 @60Hz(Default,with Display Port optional)
LAN
Integrated 2* RTL8111F Gigabit Ethernet,Support wake on LAN/PXE
Storage
1* SATA3.0 ,the transfer rate up to 6Gbps
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier
Expansion Slots
1* PCIE3.0 X16 slot
1* Mini-PCIE slot,support WIF

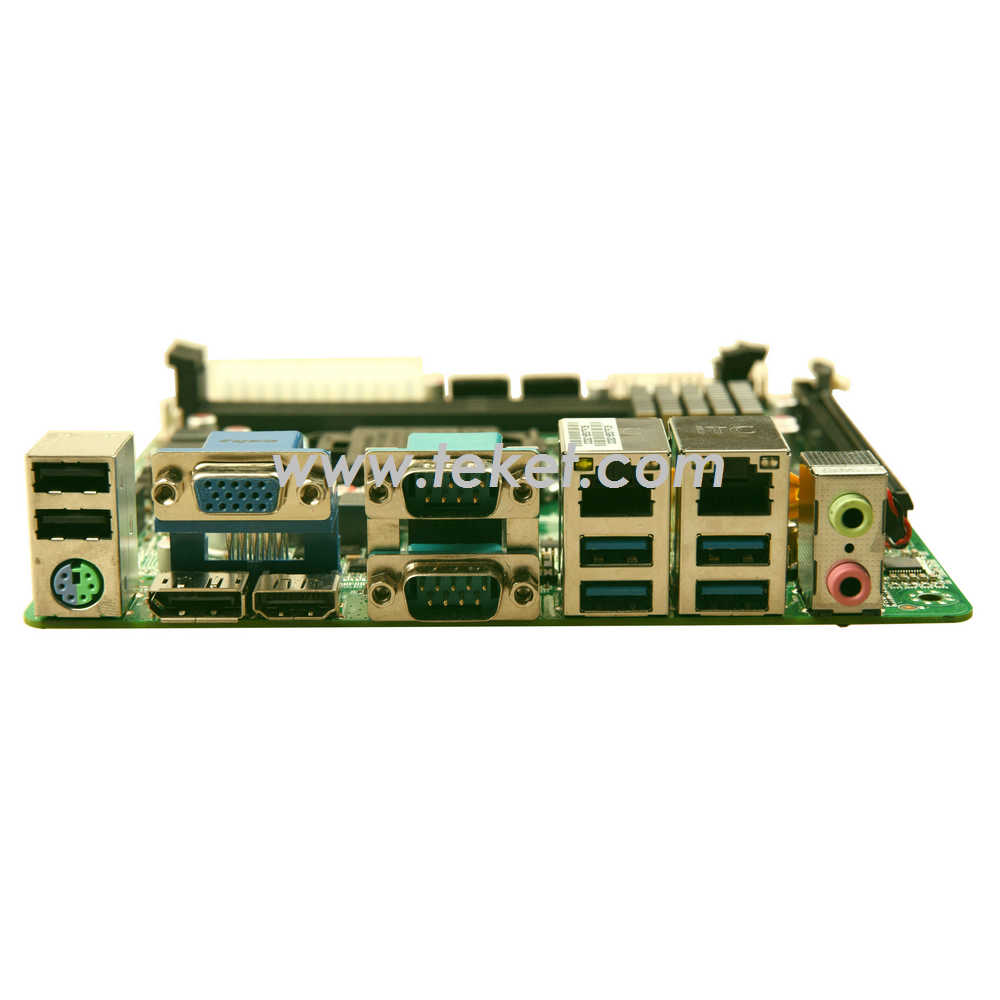

Rear I/O
1* PS/2 (can expandable keyboard and mouse)
1* DB15 VGA (Default ,with HDMI2.0 optional)
1* HDMI1.4 (Default with Display Port optional)
1* Display Port (Optional ,with HDMI1.4 two choose one)
2* DB9 RS232 serial Port ,the 9th pin of COM1 support 5V/12V charged function
2* USB2.0
4* USB3.0
2* RJ-45 Gigabit Ethernet connector
1* Double deck audio interface(audio output and MIC input)
Internal I/O
4* USB2.0
4* RS232 serial port(COM3 supportRS232/RS485/RS422)
1* front panel audio connector 2*5pin
1* front panel function buttons and indicator connector 2*5Pin
1* 24pin ATX Power input 1* 4pin ATX Power input
FAN Interface
1*4pin CPUFAN;1*4pin System FAN
BIOS
64Mb Flash ROM
Operating System
Windows® 7/ 8.1/ 10
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
ATX power input
Operating Temp.
-10°C~60°C
Storage Temp
-20°C~70°C
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
170mm x 170mm

Order Information
H110PE Ver1.1 LGA1151,2*DDR4,1*VGA,1*HDMI,1*DP,2*LAN(RTL8111F),ALC662,10*USB,6*COM(COM3 for RS485/422),ATX
