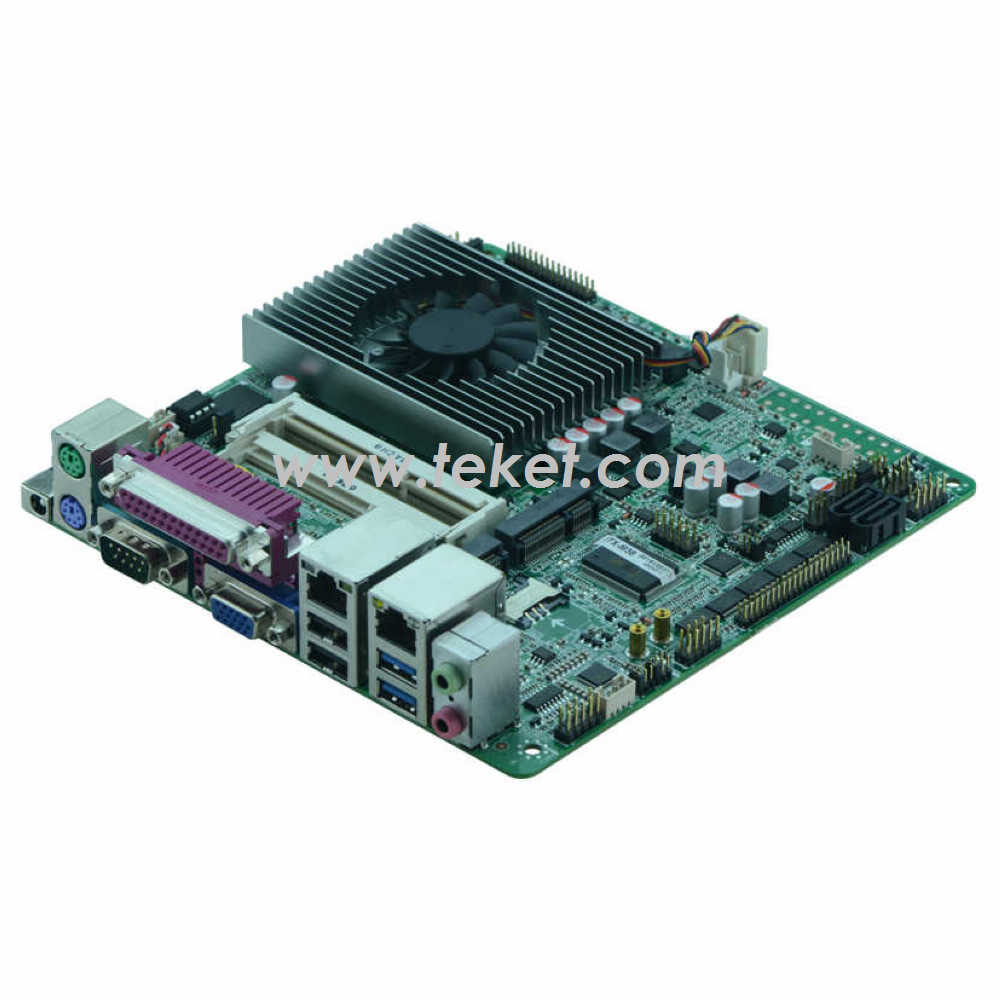

Intel Mini-ITX board Skylake-U,Celeron 3855U,Pentium,i3-6100U,i5-6300U,i7,DDR3L,VGA+HDI+LVDS,2*LAN,9*USB,6*COM,2*PS2,LPT,12VDC,H38UD

For Industral application

Skylake-U
H38UD VER1.1
Intel? Celeron? 3855U 1.6GHz Dual core processor
2* DDR3L SODIMM,support Dual channel 1600\1333MHz RAM,Max up to 16GB
Intel? HD Graphics 510,Support 1*VGA,1*HDI,1*LVDS
2*RTL8111F Gigabit LAN,Support WOL/PXE
5*USB2.0,4*USB3.0,1*LPT
6* RS232 COM,COM3 Support RS485/422
DC 12V Power supply or20Pin ATX Power


Model No. H38UD VER1.1
Processor
Integrated Intel? Celeron? Processor 3855U 1.6GHz dual core processor,TDP15W
Compatible Intel? SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor
Chipset
NC
Memory
2* DDR3L SODIMM ,support duan channel 1600\1333MHz memory, up to16GB
Graphics
Integrated Intel? HD Graphics 510 supportDirectX 12 OpenGL 4.4, support 4K
Provide 1*VGA, the highest resolution as :1920X1200@60Hz
1*HDI1.4 , the highest resolution as :4096X2304@24Hz
1* support dual channel24bit LVDS
LAN
Provide 2* RTL8111F Gigabit Ethernet ,support wake on LAN/PXE
Storage
Provide 1* SATA3.0 HDD interface,the transfer rate up to 6Gbps.
1* MSATA slot, support SSD,the transfer rate up to 6Gbps
1*eMMC Embedded memory chip,16G
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out. amplifier
Expansion slots
Provide 1* Mini-PCIE slot,support WIFI、3G model

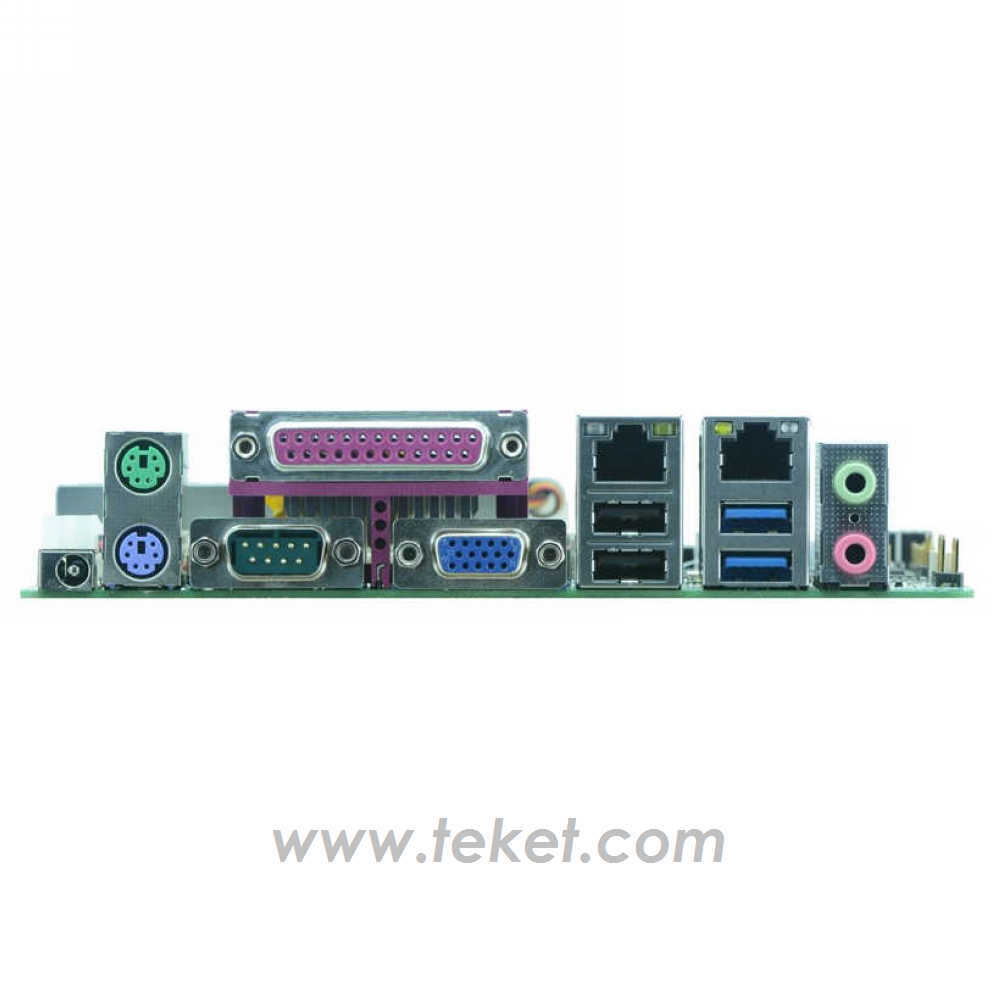

Rear I/O
1* DC12V power input interface(DC power input have this interface)
1* PS/2 Mouse and keyboard interface
1* DB9 serial port, the pin of 9th supportcharged function
1* VGA
1* LPT
2* RJ45 Gigabit Ethernet ports
2*USB2.0 ,2*USB3.0
1*Line-out(Green),1*MIC(Red)

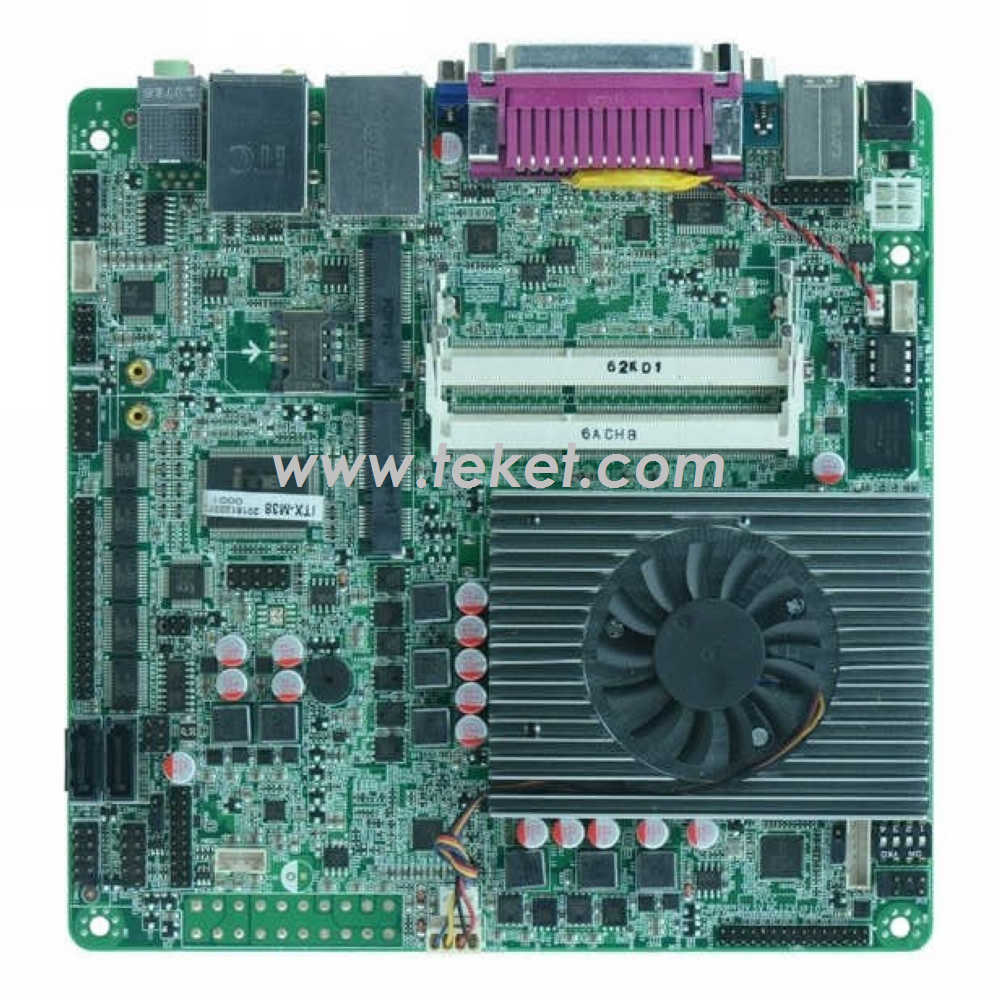

Internal I/O
1* JHDI 2*8pin
1* LVDS 2*15pin support dual channel24bit
1* screen backlight power sypply connector 1*6pin
2* USB2.0 2*5pin
1* USB2.0 1*4pin
2* USB3.0 2*10pin
5* RS232 serial ports口,COM3 supportRS485/RS422 mode, the 9th pin ofCOM2 support charged function
1* HDD power supply connector 1*4pin
1* Front panel audio connector 2*5pin
1* power amplifier connector 1*4pin
1* 4pin ATX power interface, can do12V power input/output interface(DC power input have this interface)
1* 20pin ATX power interface( optional, ATX power input have this interface)
1* front panel function buttons and indicator connector 2*5pin
1*GPIO
1*SIM socket
FAN
1* 4pin CPU Intelligent fan interface,1*3pin system fan interface
BIOS
64Mb Flash ROM
GPIO
support 4 way input/output GPIO
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
DC 12V Power supply or20Pin ATX power sypply
Operatin Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
170mm x 170mm

Order information:
H38UD-3855U,3855U,1.60G.2*SODDR3L,1*VGA,1*HDI,2*ch/24bit LVDS,2*LAN(RTL8111F),9*USB,6*COM(RS285/422),12VDC
