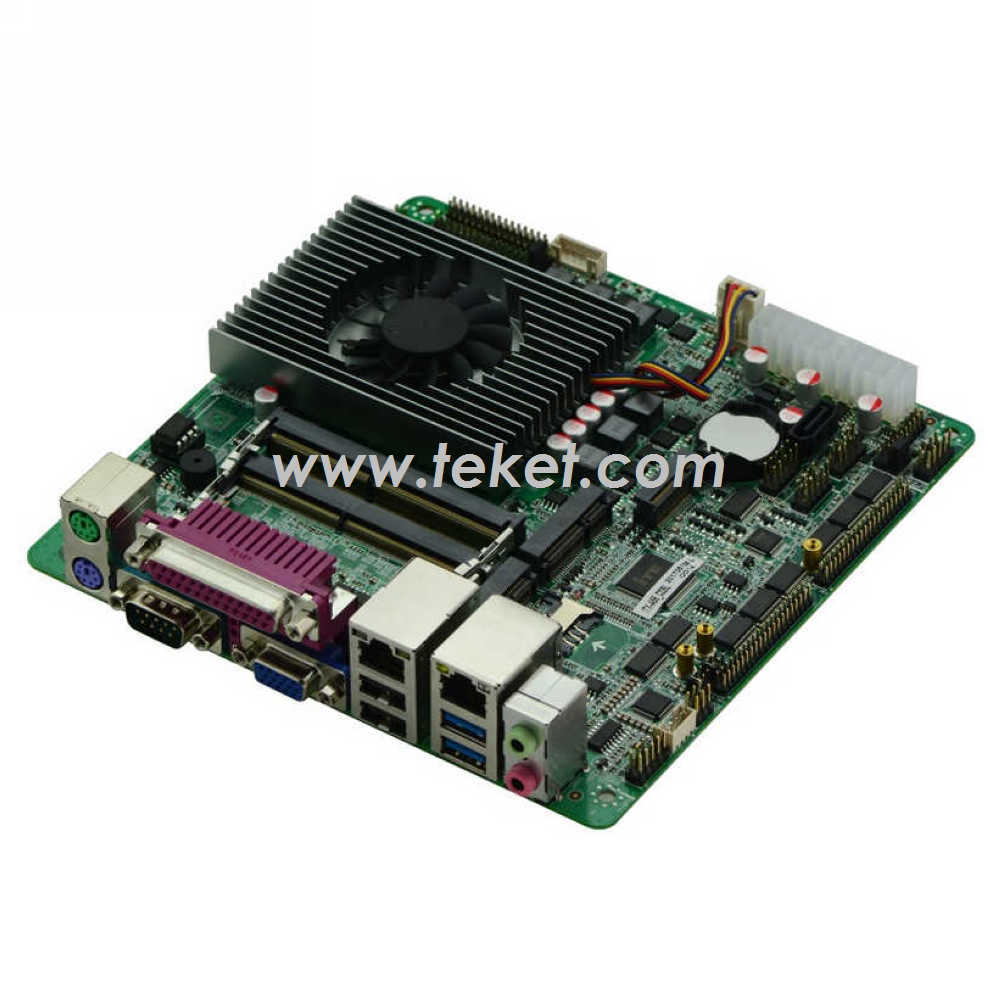

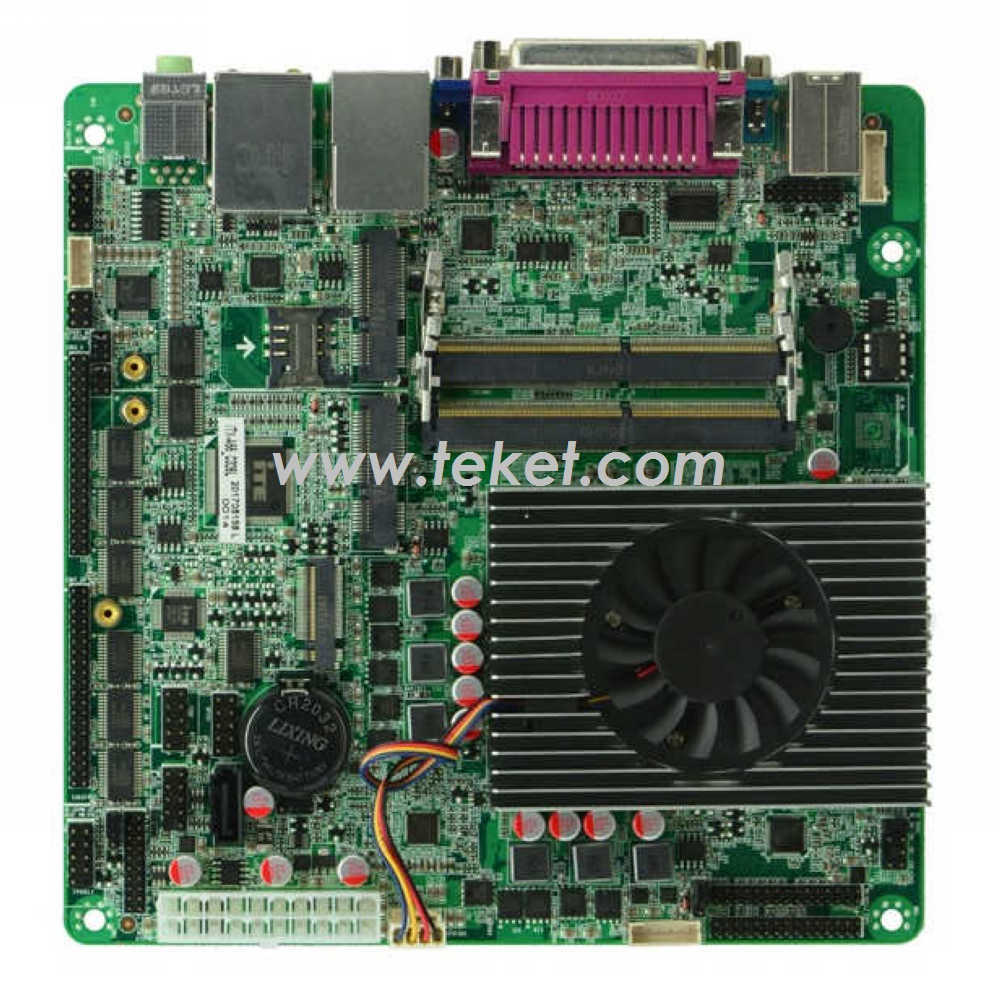

Intel Mini-ITX board Skylake-U,Celeron 3855U,Pentium,i3,i5,i7,2*DDR4,VGA+HDMI+LVDS,2*LAN,8*USB,9*COM,2*PS2,LPT,ATX POWER,H55UA

H55UA
Integrated Intel? Celeron? 3855U 1.6GHz dual core processor
2* DDR4 SODIMM ,support dual channel memory, up to 32GB
Integrated Intel? HD Graphics 510,
Provide 1*VGA,1*HDMI,1*LVDS port or 1*EDP port
Provide 2* RTL8111F Gigabit Ethernet ,support wake on LAN/PXE
4*USB2.0,4*USB3.0,1*LPT
10* RS232 serial ports,COM3 support RS485/422

Integrated Intel® I5-6360U 2.0GHz dual-core processor, TDP power consumption 15W
Compatible with Intel® Skylake-U Celeron\/Pentium\/I3\/I5\/I7 Low Power Processor
2* DDR4 SODIMM Memory Slot,Support for 2133MHz memory,Up to 32GB support
Integrated Intel ® HD Graphics 540 Core Graphics
1*VGA,1*HDMI,1*Support for dual-channel 24BIT LVDS interface
2* RTL8111F Gigabit Card Chip, Support network wake-up\/PXE function
2* USB 3.0 Interface,6*USB 2.0 Interface,1*LPT
10* RS232 COM,COM3 Support RS485/RS422






Model
H55UA
Processor
Integrated Intel? Celeron? Processor 3855U 1.6GHz dual core processor TDP 15W
Compatible Intel? SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor
Chipset
SOC
Memory
2* DDR4 SODIMM memory slot.,support dual channel memory, up to 32GB
Display
Integrated Intel? HD Graphics 510, support DirectX 12 OpenGL 4.4, support 4K
Provide 1*VGA port, the highest resolution as:1920X1200@60Hz
1*HDMI1.4 port, the highest resolution as :4096X2304@24Hz
1* support dual channel24bit LVDS

1*Embedded display port (with LVDS port optional)Processor Integrated Intel ® I5-6360U 2.0GHz dual-core processor, TDP power consumption 15W
Compatible with Intel® Skylake-U Celeron/Pentium/I3/I5/I7 Low Power Processor
Chipset SOC
Memory 2* DDR4 SODIMM Memory slot,Supports 2133MHz memory, up to 32GB
Display Integrated Intel ® HD Graphics 540 Core Graphics
1*VGA,1*HDMI,1*Support for dual-channel 24BIT LVDS interface
Support for VGA, HDMI, LVDS synchronous/asynchronous display
Network 2* RTL8111F Gigabit card chip, support for network wake-up\/PXE function
Storage
1* SATA3.0 Hard drive interface SATA1, transmission speed up to 6Gbps
1* MSATA Slot, SSD support, transmission speed up to 6Gbps
Audio
On-board ALC662 6-channel hi-fi audio controller with MIC/Line-out amplifier support
Amplifiers are recommended 2Ω5W Horn
Extended slot
1* Mini-PCIE Slot Support WIFI/3G Module

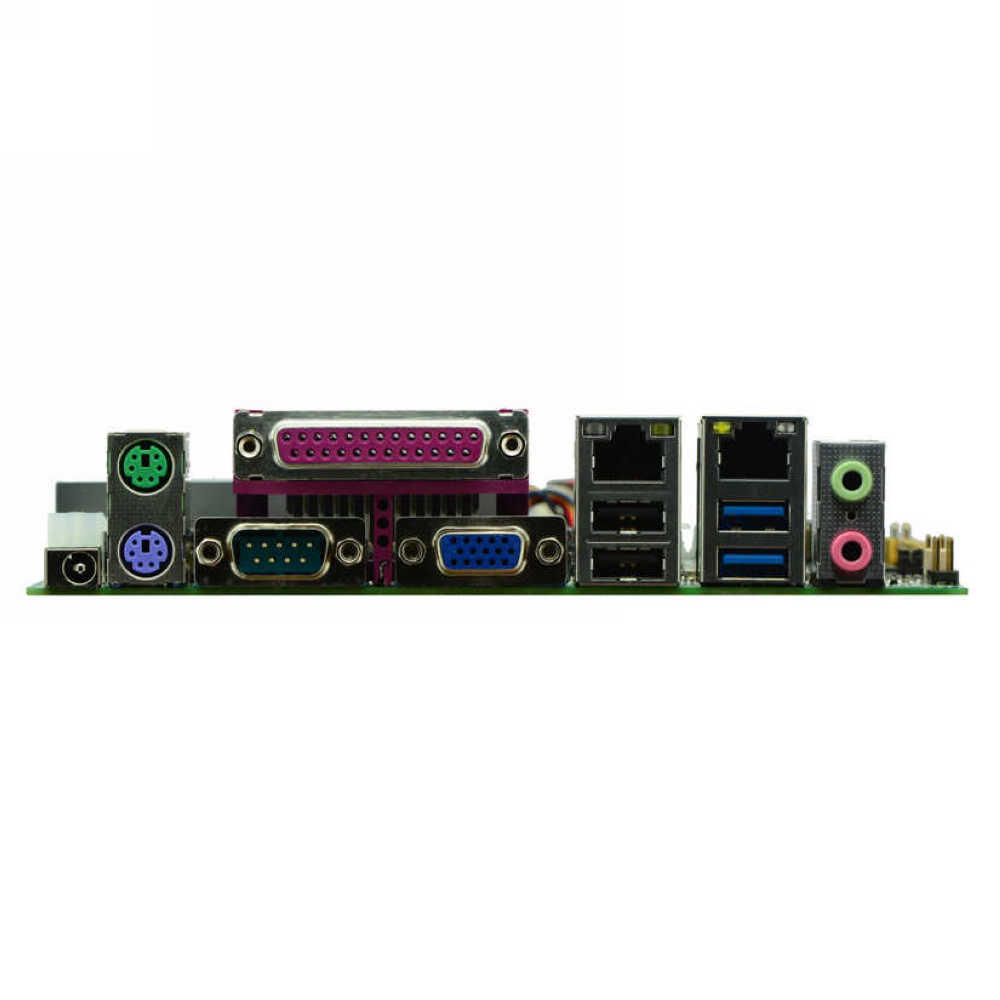

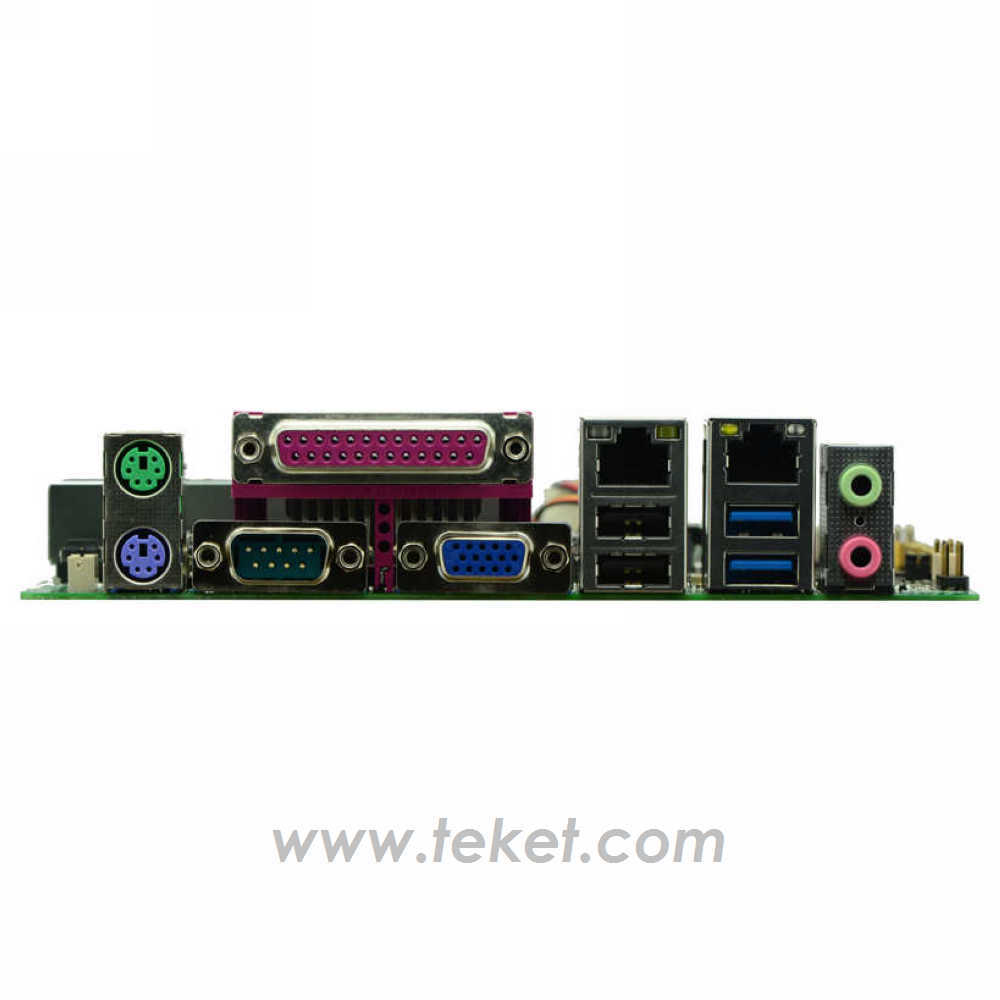

Backplane I/O Interface
2*USB3.0 interface, 2*USB 2.0 interface
1*PS/2 Keyboard interface (purple),1*PS/2 mouse interface (green)
1*RS232 COM
1* VGA Interface
2* RJ-45 Gigabit network interface
1* Line out(Green)
1* Mic(Red)
1* LPT Interface
Built-in I/O interface
1* LVDS Interface 2*15pin,Support for dual-channel 24BIT
1* On-screen backlit power supply interface 1*6pin
1* Screen brightness adjustment interface 1*4pin
1* HDMI Interface2*8Pin,
9* RS232 Serial interface,COM3 Support for RS485/RS422
4* USB2.0 Interface,2*5Pin
1* PS/2 Mouse keyboard interface 1*6Pin
1* Front audio interface 2*5pin
1* SIM Card
1* Front panel function buttonand LED interface 2*5pin
1* 20pin ATX Power interface
1* 4pin Amplifier interface
FAN interface
1* 4pin CPU Smart Fan Interface
GPIO
Support for 4-way input and output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support for hardware reset (256 levels, 0 to 255 seconds)
Operating system
Windows 7/Windows 10/Linux
Power type
ATX Power Input
Operating temperature
-10℃~60℃
Storage temperature
-20℃~70℃
Working humidity
5%-95% relative humidity, no condensation
Size
170mm x 170mm


Ording information
H55UA-3855U Ver1.2(3855U) Celeron 3855U,2*SODDR4,1*VGA,1*HDMI,1*LVDS,0*EDP,2*LAN(8111F),8*USB,10*COM(COM3 RS485/RS422),ATX
H55UA-6360U
Ver1.2(6360U) i5-6360/2.0G,2*SODDR4,1*VGA,1*HDMI,1*LVDS,0*EDP,2*LAN(8111F),8*USB,10*COM(COM3 RS485/RS422),ATX


Model Name Definition: B is for base config, A is for atx power supply, D is for DC12V, Digital string 12 is 1*LAN port and 2*COM ports.

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
