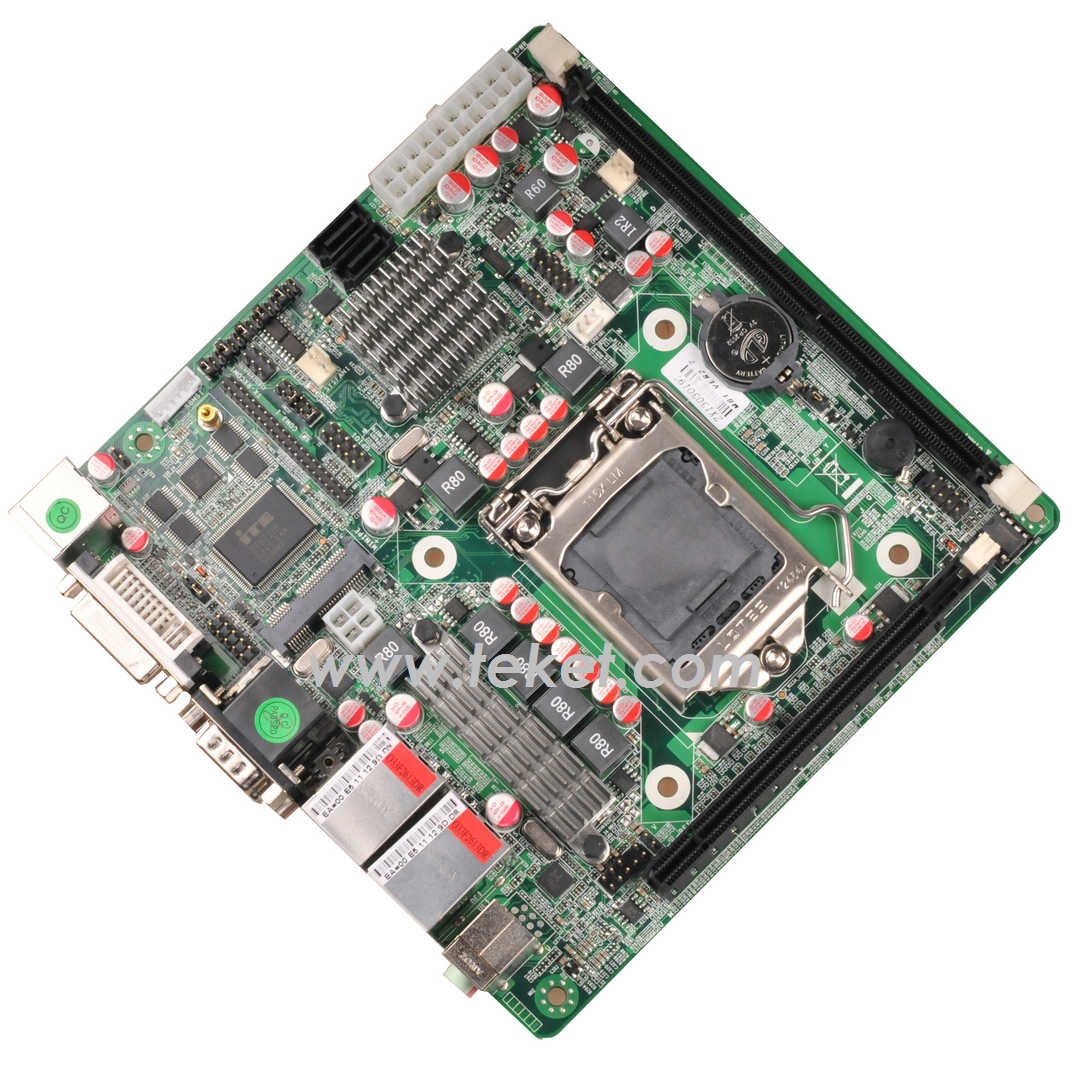

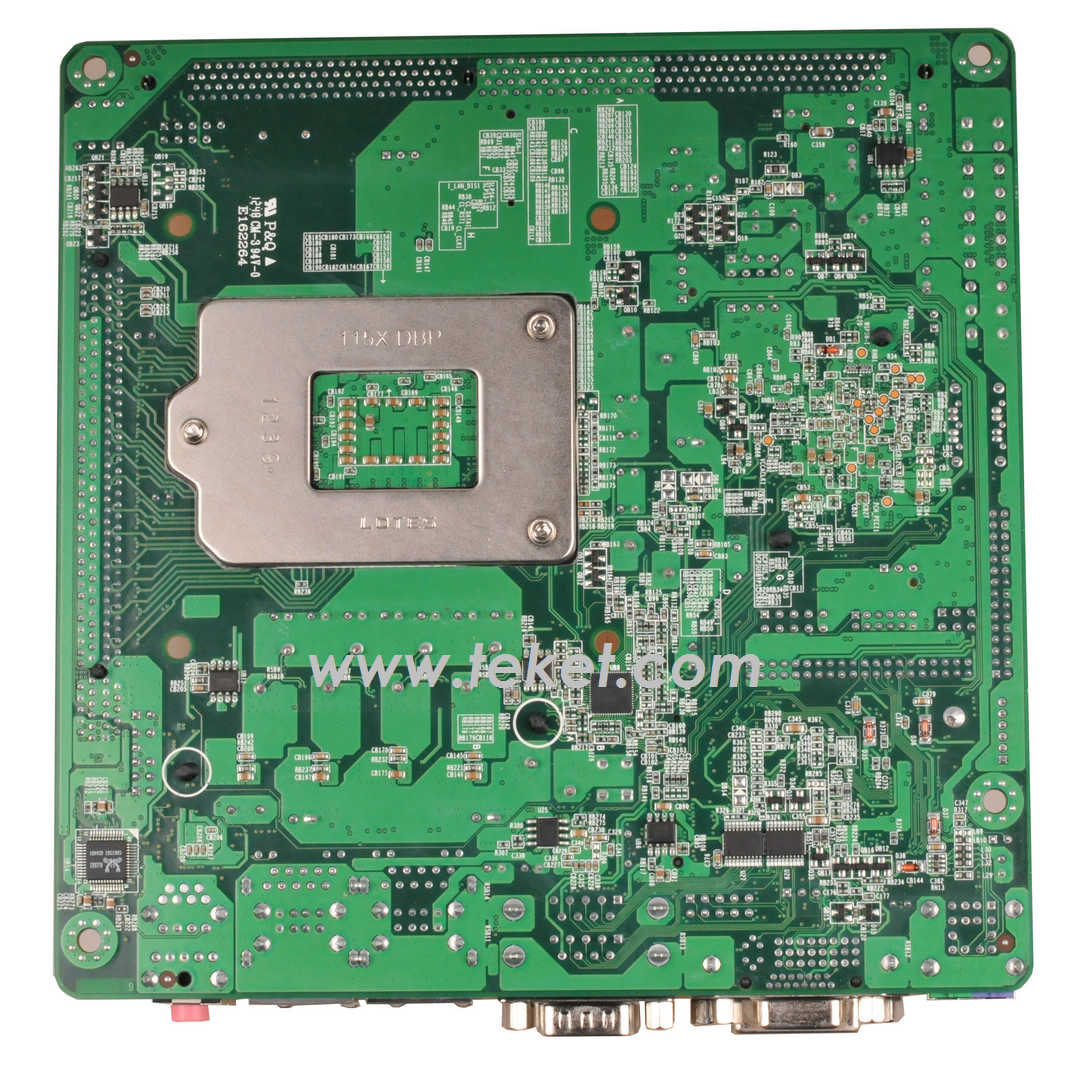

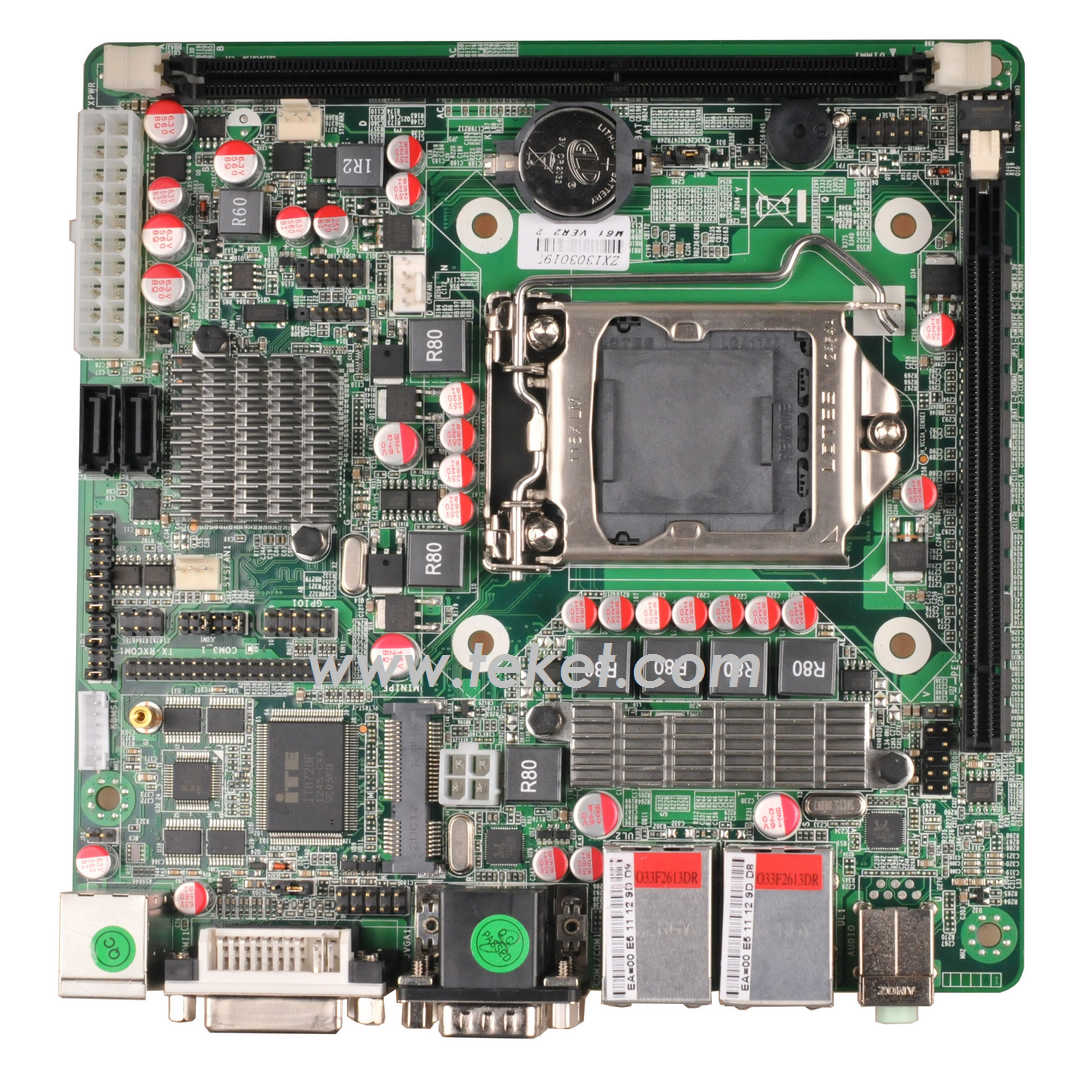

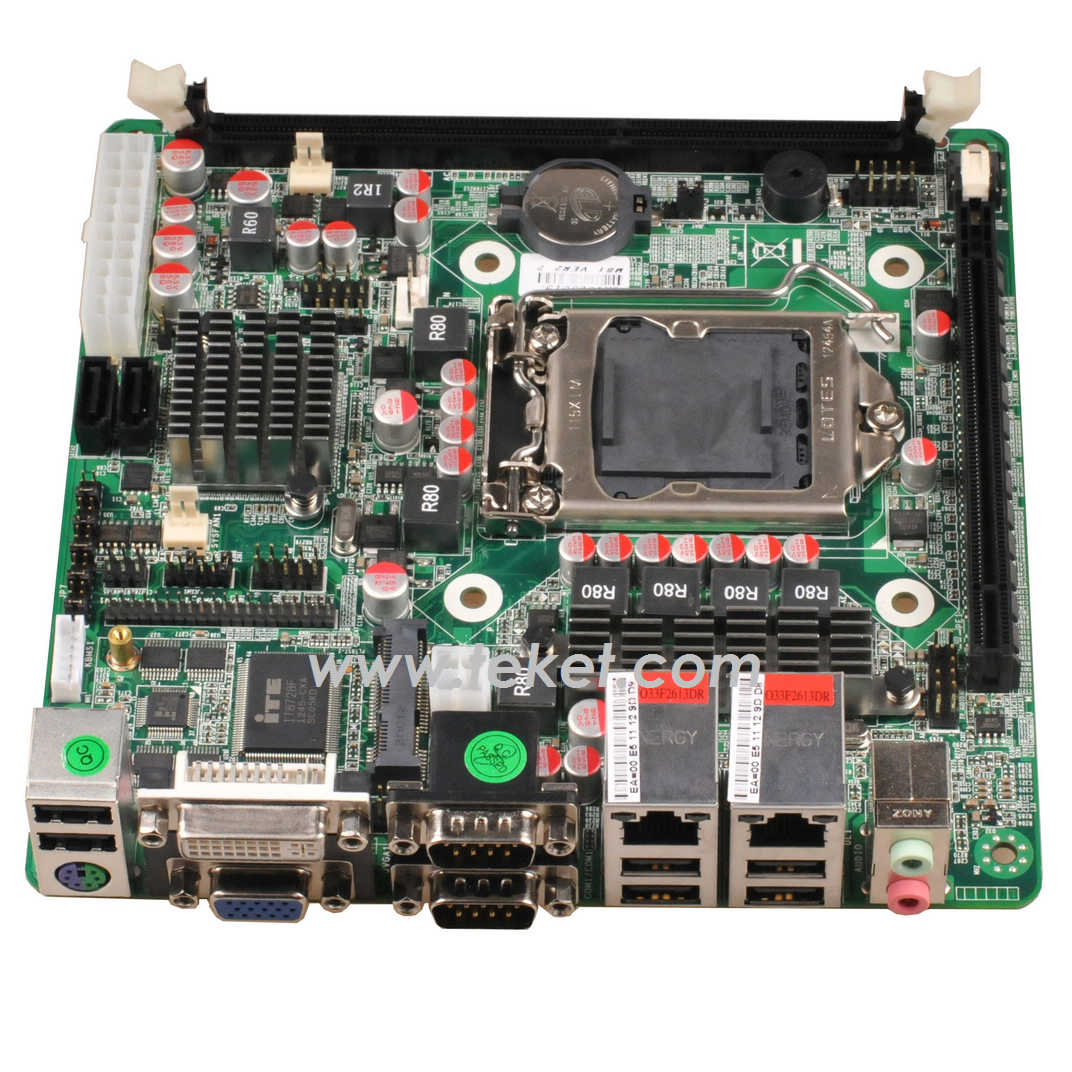

Intel Ivy Brige H61 Chipset LGA1155 socket MINI-ITX Motherboard dual 2*LAN PCIEx16 ATX POWER H61PE

For Industral application
H61PE Ver1.0
Intel® LGA1155 packaged Corei3/i5/i7/Pentium/Celeron 2nd/3rd series Processor.
Intel® H61 Chipset
1* DDRIII DIMM slot, support 1600/1333MHz memory, max. up to 8 GB
Integrated Intel® HD Graphics controller
Support 1*VGA,1*DVI
Integrated 2* RTL8111E(F) Gigabit Ethernet, Support wake on LAN/PXE.
6*RS232 serial port,COM1 support RS485/422

CPU
Support Intel®LGA1155 packagedCorei3/i5/i7/Pentium/Celeron2nd/3rd series Processor.
Chipset
Adopt Intel® H61 Express chipset
Memory
1* DDR3 DIMM memory slot,support 1333/1066MHz memory, up to 8GB
Graphics
Integrated Intel® HD Graphics
Provide 1*VGA,1*DVI
Support single display, double display, double extension
LAN
Integrated 2* RTL8111E(F) Gigabit Ethernet, Support wake on LAN/PXE.
Storage
Provide 2* SATA2.0 HDD interface, the transfer rate up to3Gbps
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out.
Expansion slots
1* PCI-Express 2.0 16x slot
1* MINIPE slot,support SSD,WIFI,USB WIFI(default is SSD)

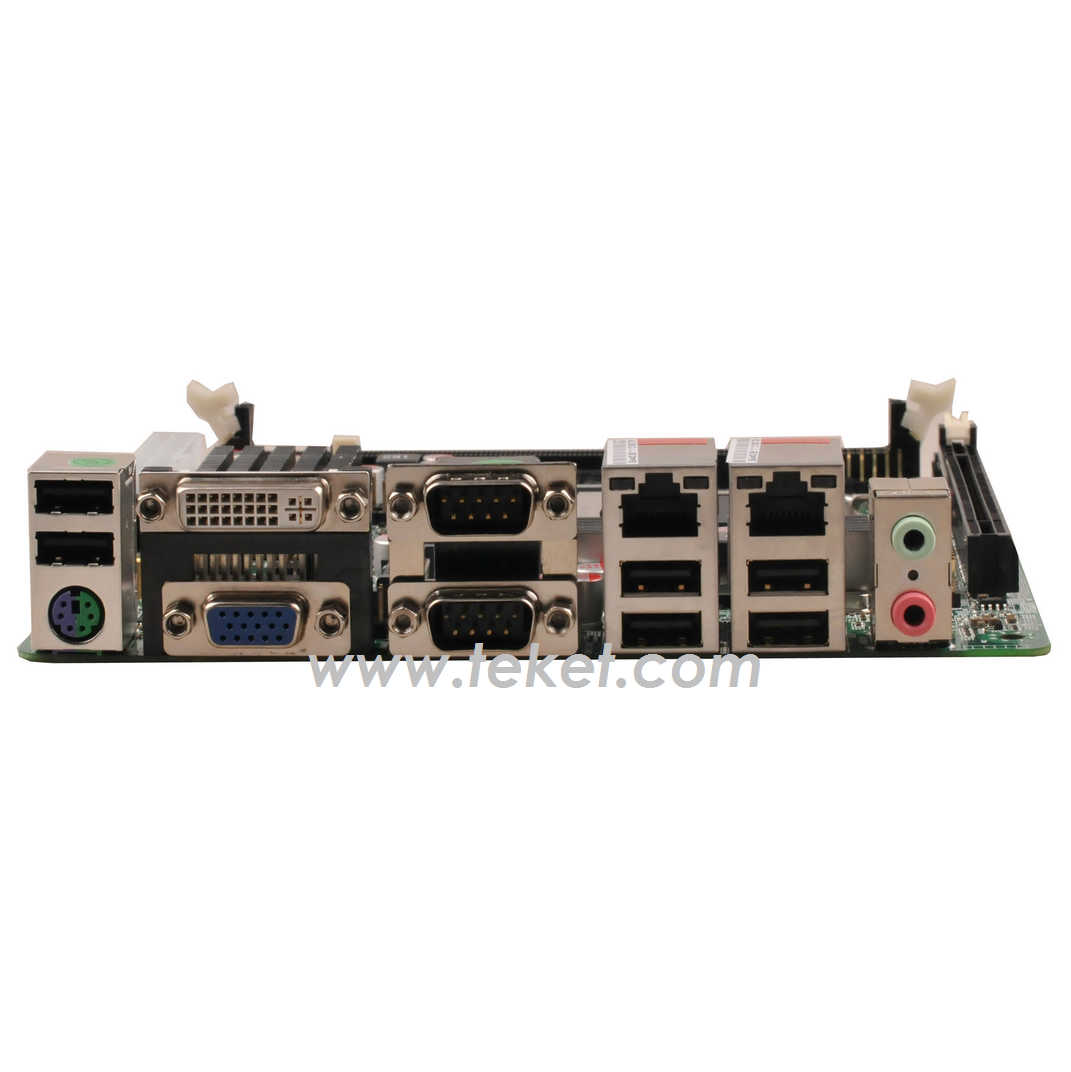

Rear I/O
6* USB 2.0
1* PS/2 KB/MS connector
1* DVI
1* VGA
2* RS232 serial port, the 9th pin support charged function(COM1 support RS485/422)
2* RJ-45 Gigabit Ethernet connector
1* double standard audio interface(support MIC、Line out)
Internal I/O
1* JVGA1,2*5pin same signal with VGA
4* RS232 serial port, the 9th pin support charged function
2* USB 2.0 2*5pin
1*USB2.0 1*4pin
1* PS/2 KB/MS connector 1*6Pin
1* front panel function buttons and indicator connector 2*5pin
1* front panel audio connector 2*5pin
1* 20pin ATX power interface
1* 4pin ATX power interface
Fan interface
1* 4pin CPU Intelligent fan interface, 2* 3pin system fan interface
BIOS
32Mb Flash ROM
GPIO
support 4 way input/output GPIO
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt ATX power supply
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95%(relative humidity; non-condensing)
Dimension
170mm x 170mm
