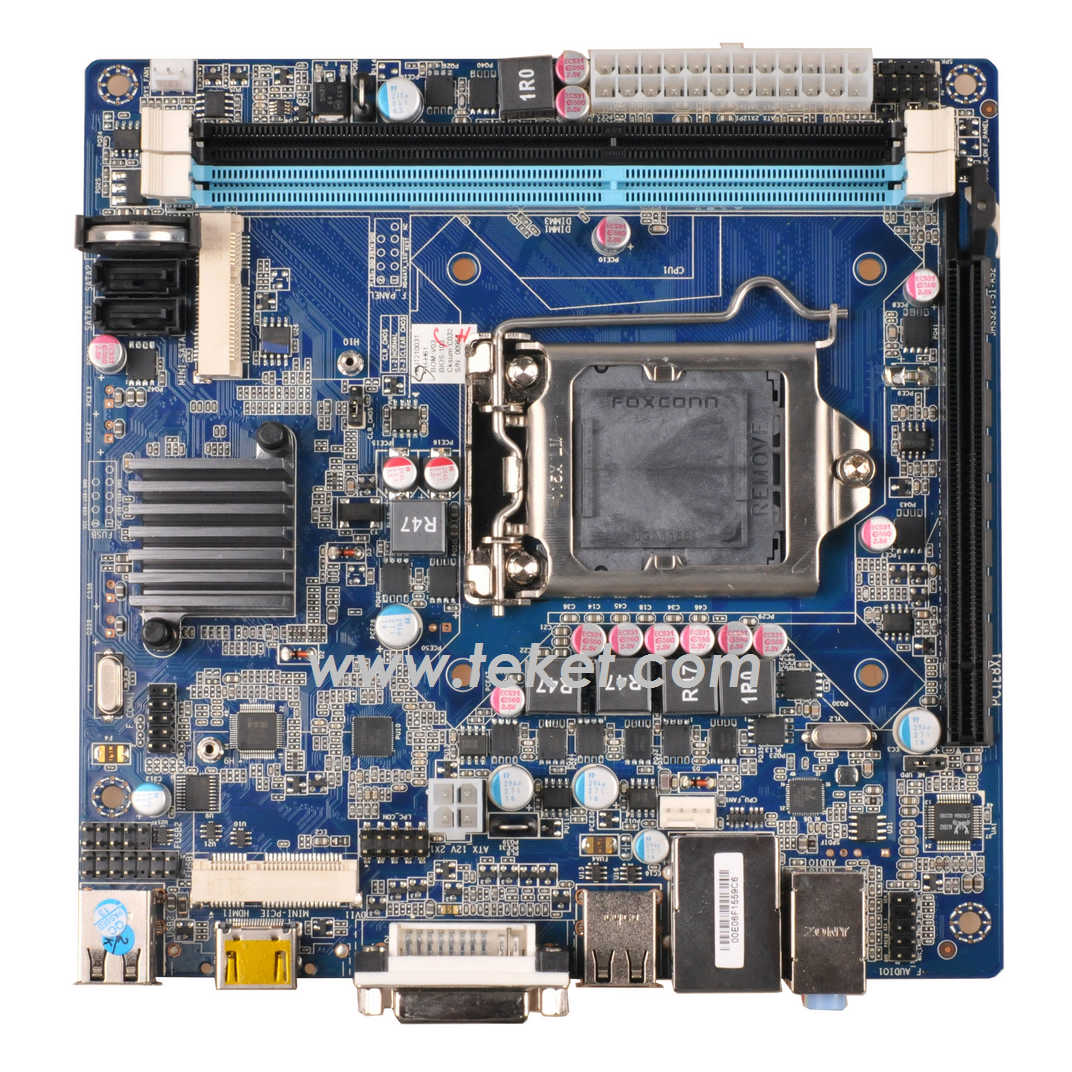

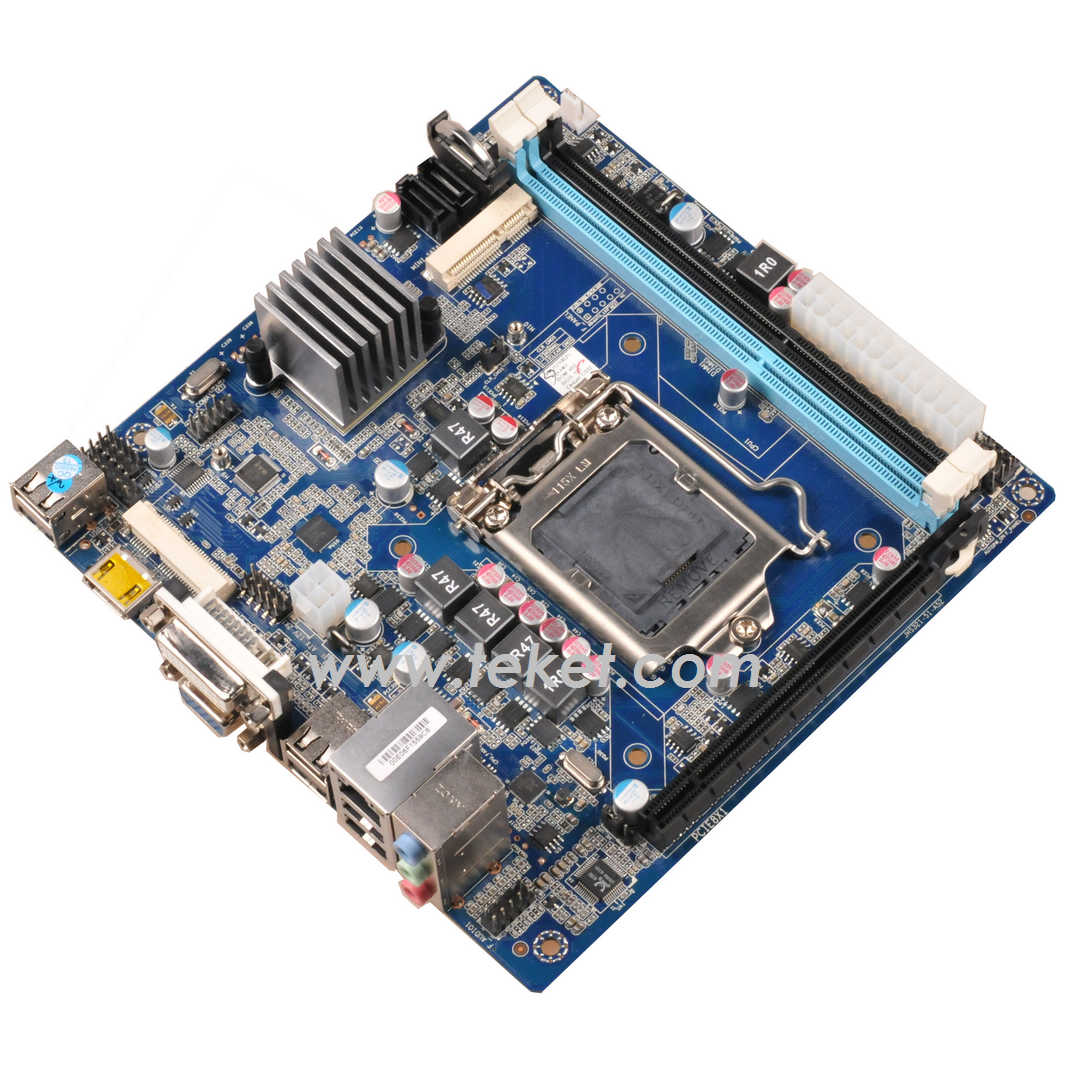

H61 Chipset LGA1155 socket MINI-ITX Motherboard H61TH

For HTPC, suggest CPU: Pentiun G640, I3 3220 I3 3225

H61TH intel H61 chipset, the ultra-compact Mini-ITX motherboard to support second-generation Intel Core i3/i5/i7 central processing unit, a high-definition graphics acceleration technology, support HDMI, VGA, DVI and HD output interface, a 8XPCIe slot, scalable discrete graphics. The board is equipped with two DDR3 DIMM memory slots. Maximum support 8G.

Support for the second generation of Intel Core i3/i5/i7 central processing unit
Has an 8X PCIe slots, scalable graphics card
2 half-high MINI-PCIe slot, wireless network expansion equipment
Two DDR3 SO-DIMM slots, maximum support 8GB dual channel memory

CPU: support for the second generation of Intel Core i3/i5/i7 central processing unit
Chipset: Intel H61 chipset
Graphics: Integrated Intel HD graphics core
Memory dual memory slot, DDR3 1333MHz Memory, Max.8GB
Audio: Integrated 6-channel audio ALC662 audio codec chip
The NICs: single 1000M card
PCI: slot 1xPCI-E 8X
Mini-PCIe: 2 half-height Mini-PCIe, one support mSATA
USB: 10xUSB2.0, Rear 6, built-in 4
COM: 1 standard 9pin COM

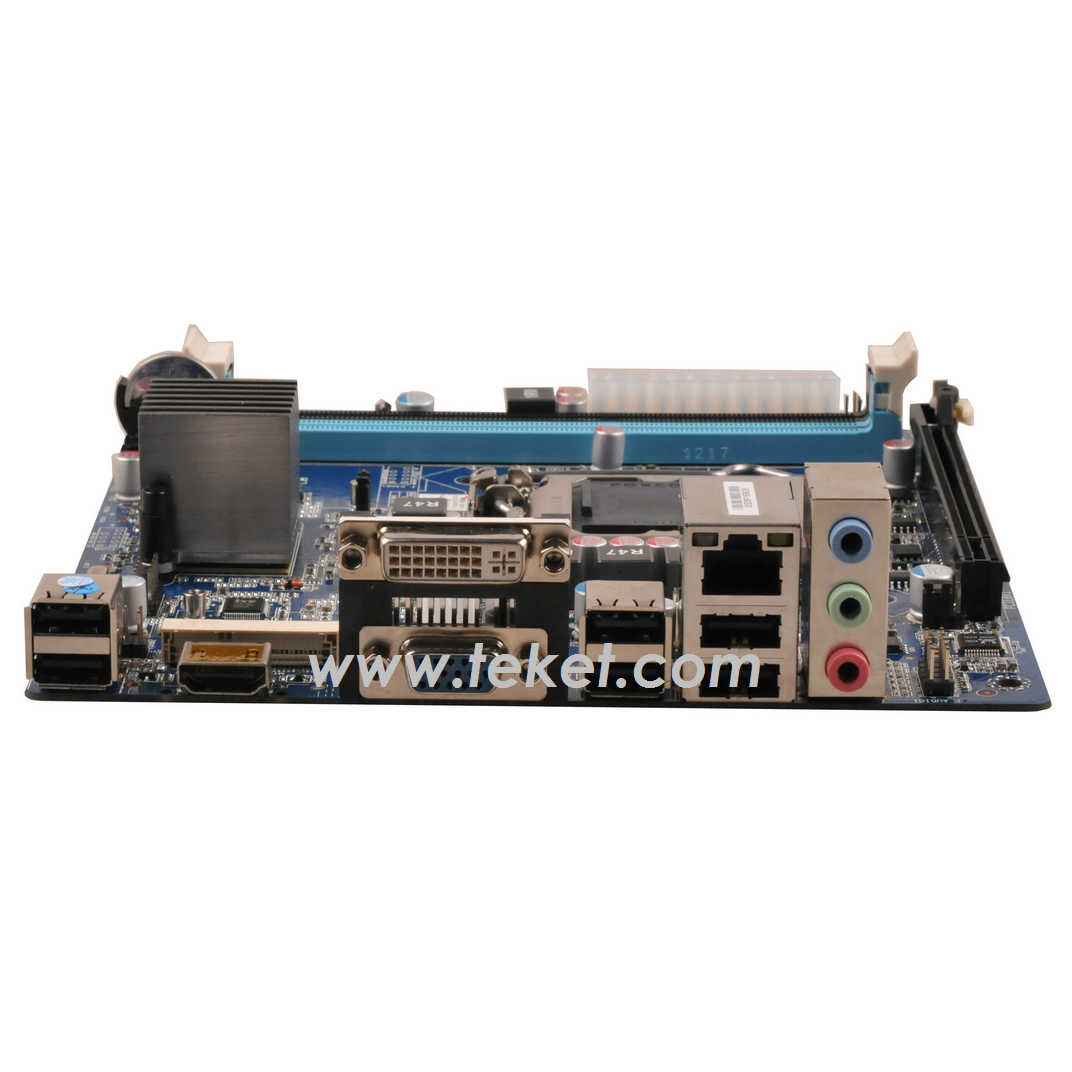

I/O shield:
1x1000M LAN
1x3jack Audio interface
Internal I/O connector:
2x5pin front panel pins
2x5pin front audio pins
4 built-in USB pin
A hardware power-on auto boot jump cap
The 9pin a standard COM
Clear CMOS jumper cap
Powered: 24PIN +4 PIN ATX power connector
Factor: Mini-ITX, 17x17cm
Heat radiator onboard for chipset
