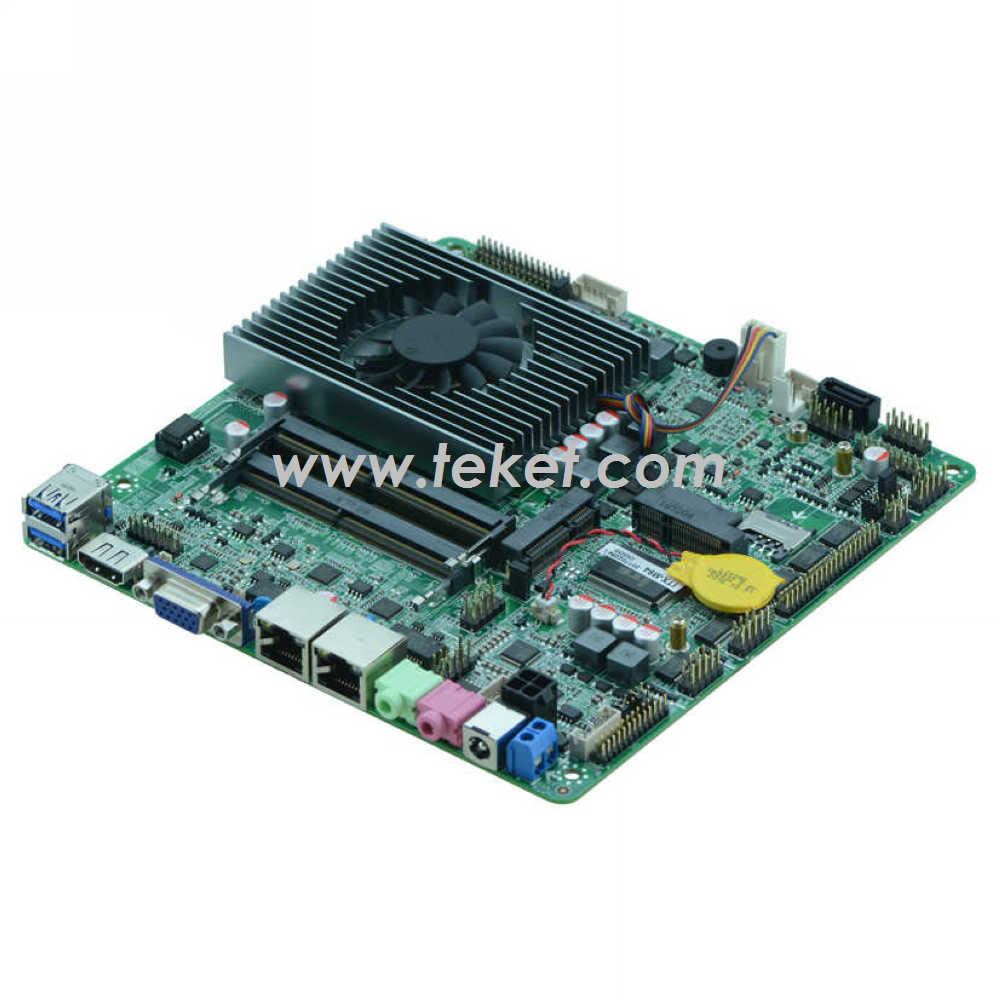

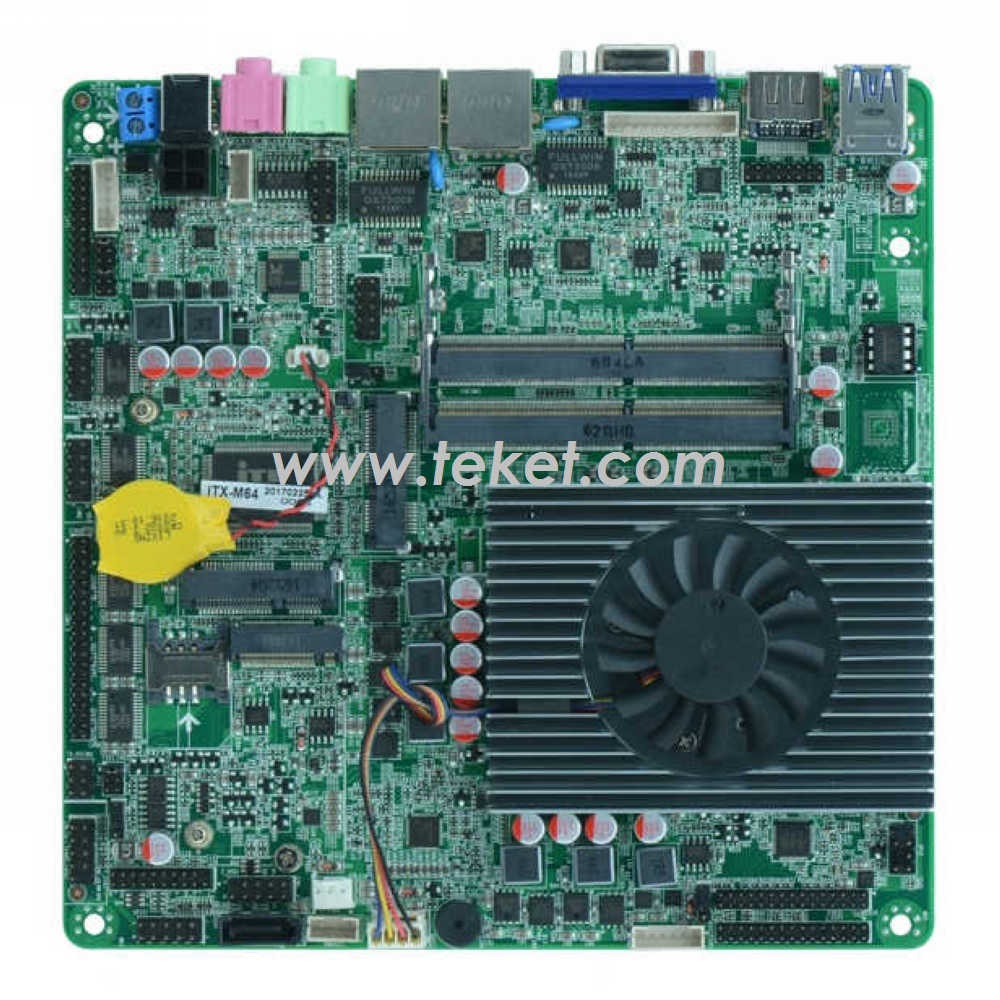

Intel Slim All-in-one Mini-ITX board Skylake-U,Celeron 3855U,Pentium,i3-6100U,i5-6300U,i7,DDR3L,VGA+HDMI+LVDS,1*LAN,8*USB,6*COM,12VDC,H64UT

H64UT
Intel Slim Skylake-U,Celeron 3855U,Pentium,i3-6100U,i5-6300U,i7,DDR3L,VGA+HDMI+LVDS,1*LAN,8*USB,6*COM,12VDC
Intel? Celeron? Processor 3855U 1.6GHz/I3 6100U 2.3GHz/I5 6300U 2.4GHz dual core processor
Intel? SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor
Intel? HD Graphics 510/520,support DirectX 12 OpenGL 4.4,support 4K/60Hz
2*DDR4 SODIMM, support dual channel 2133MHz memory, up to 32GB




Model
H64UT
Processor
Integrated Intel? Celeron? Processor 3855U 1.6GHz/I3 6100U 2.3GHz/I5 6300U 2.4GHz dual core processor
Compatible Intel? SKYLAKE-U Pentium/Celeron/I3/I5/I7 low power processor
Chipset
NC
Memory
2*DDR4 SODIMM, support dual channel 2133MHz memory, up to 32GB
Graphics
Integrated Intel? HD Graphics 510/520,support DirectX 12 OpenGL 4.4,support 4K/60Hz
Provide 1*VGA port, the highest resolution as :1920X1200@60Hz
1*HDMI1.4 port,the highest resolution as :4096X2304@24Hz
1* support dual channel24bit LVDS (with EDP optional)
1*Embedded Display Port, the highest resolution as:4096x2304@60Hz
LAN
Integrated 2* Realtek RTL8111F Gigabit Ethernet(LAN2 andUSB1 optional)
Support wake on LAN/PXE
Storage
Provide 1* SATA3.0 ,the transfer rate up to 6Gbps
Provide 1* M.2 standard slot,support M.2 2242 standard SSD(with MSATA optional)
1* MSATA slot, support SSD Solid-state disk,the transfer rate up to 6Gbps
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out. amplifier
Amplifier proposed using 2Ω5W speakers
Expansion slots
Provide 1* Mini-PCIE slot, supportWIFI、3G module

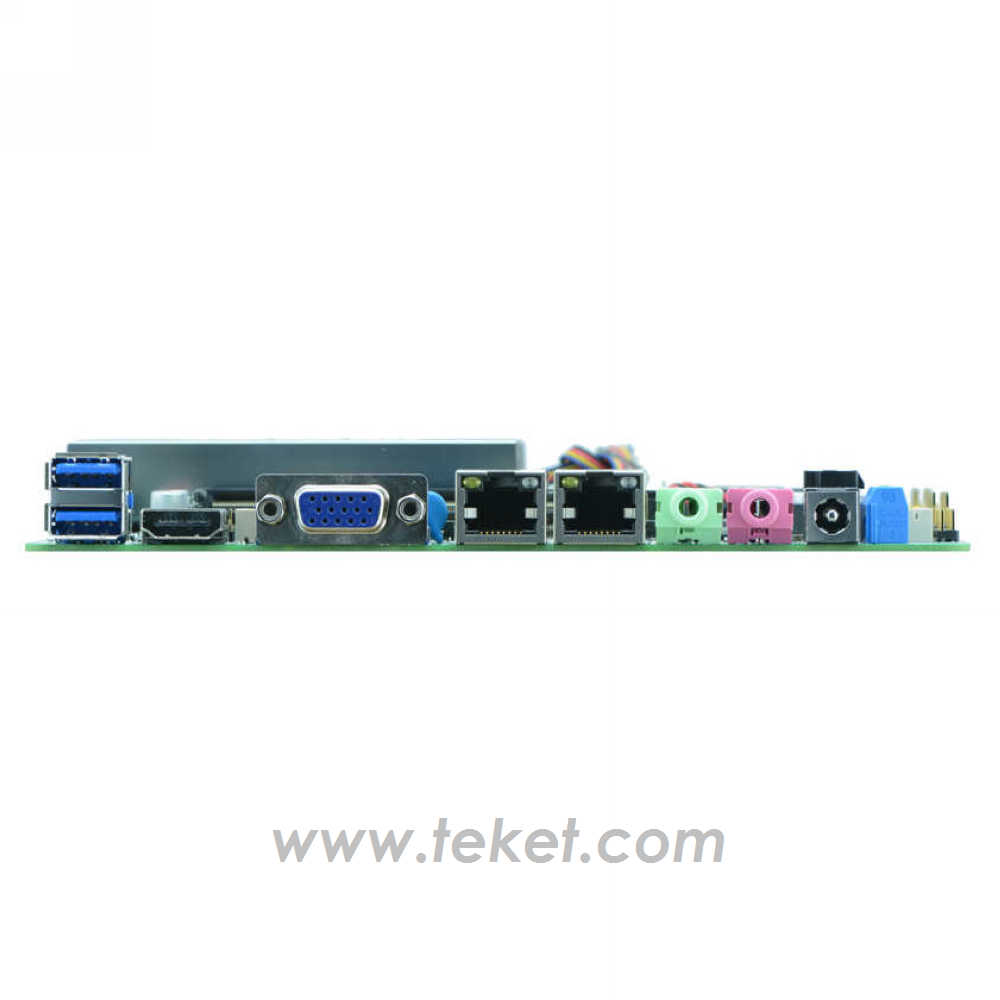

Rear I/O
2* USB3.0 ports
1* HDMI port(with Displayport optional)
1* VGA port
2* RJ45 Gigabit Ethernet connector(LAN2 andUSB1 optional)
1*Line-out(Green),1*MIC(Red)
1*DC12V power port
Internal I/O
1* JVGA1 port 1*12pin( the same signal withDB15)
1* JHDMI port 2*8pin( the same signal withHDMI)
1* JEDP port 2*15pin , with LVDS optional
1* LVDS port 2*15pin,support 24bit,with EDP optional
1*LVDS backlight power supply connector 1*6pin
6* RS232 serial ports(can do 2 or 6* serial ports),COM3 support RS485/422 mode
1* PS/2 KB/MS connector 1*6Pin
4* USB2.0 ports 2*5pin, F_USB4 and USB1 optional
2*USB3.0 ports 2*10pin
1* LPT parallel port 2*13Pin
1* front panel audio connector 2*5pin
1* front panel function buttons and indicator connector 2*5Pin
1* HDD power supply connector
1* power amplifier connector 1*4pin
1* SIM card socket
1* 4pin ATX power port(can do 12V power input/output port)
1* 2pin 12V DC power input port
FAN interface
1*4pin CPU intelligent fan port, 1* 3pin system fan port
GPIO
Support 4 way input /output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt DC 12V power supply
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
170mm x 170mm

Ording information
H64UT-3855 3855U,1.6G.2*SODDR3L,1*VGA,1*HDMI,2ch24bitLVDS,1*LAN(RTL8111F),8*USB,6*COM(RS485/422),12VDC
H64UT-I36100 i3-6100U,2.3G.2*SODDR3L,1*VGA,1*HDMI,2ch24bitLVDS,1*LAN(RTL8111F),8*USB,6*COM(RS485/422),12VDC
H64UT-I56300 i5-6300U,2.4G.2*SODDR3L,1*VGA,1*HDMI,2ch24bitLVDS,1*LAN(RTL8111F),8*USB,6*COM(RS485/422),12VDC

Model Name Definition: B is for base config, A is for atx power supply, D is for DC12V, Digital string 12 is 1*LAN port and 2*COM ports.

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
