Intel Slim All-in-one Mini-ITX board Skylake-U,i5-6200U,i5-6360U,DDR3L,LVDS 211AT Dual LAN,8*USB,2*COM,12VDC

Model:H671T
Intel Skylake-U,Kabylake-U Pentium Celeron i3/i5/i7 low power processor
Intel SKYLAKE-U i5-6200U,i5-6360U
2* DDR3L SODIMM ,support dual channel 1600MHz Memory,up to 16GB
Integrated 1* Intel WGI211AT Gigabit Ethernet
Integraged Intel® HD Graphics 520 support DirectX 12 OpenGL 4.4




Model:H671T
Integrated Intel® i5-6200U,i5-6360U processor
Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 Low Power processor
Chipset
NC
Memory
2* DDR3L SODIMM,support dual channel 1600MHz memory,up to 16GB
Graphics
Integraged Intel® HD Graphics 520 support DirectX 12 OpenGL 4.4, support synchronous/asynchronous three display
Provide 1*VGA,The highest resolution is ：1920X1200@60Hz
1*HDI1.4, The highest resolution is：4096X2304@24Hz
1* support dual channel 24bit LVDS
LAN
Integrated 2* Intel WGI211AT Gigabit Ethernet Support wake on LAN/PXE
Storage
Provide 1* SATA3.0 HDD interface,the transfer rate up to 6Gbps
1*MSATA support Intel SSD protocal, the transfer tate up to 6Gbps
1*M2 slot, support M.2 2280 SATA SSD (MSATA/TPM-4COM optional)
Audio
Onboard ALC892 7.1+2 channel high fidelity audio controller, support MIC/Line-out. amplifier
Amplifier proposed using 2Ω5W speakers
Expansion slots
Providde 1* Mini-PCIE slot,support WIFI、3G module
1* MSATA slot, support SSD,the transfer rate up to 6Gbps
Rear I/O
2* USB3.0
1* HDI (Dispaly port optional)
1* VGA
1* RJ45 Gigabit Ethernet connector
2* USB2.0
1*Line-out(Green），1*MIC(Red）
1*DC12V power interface

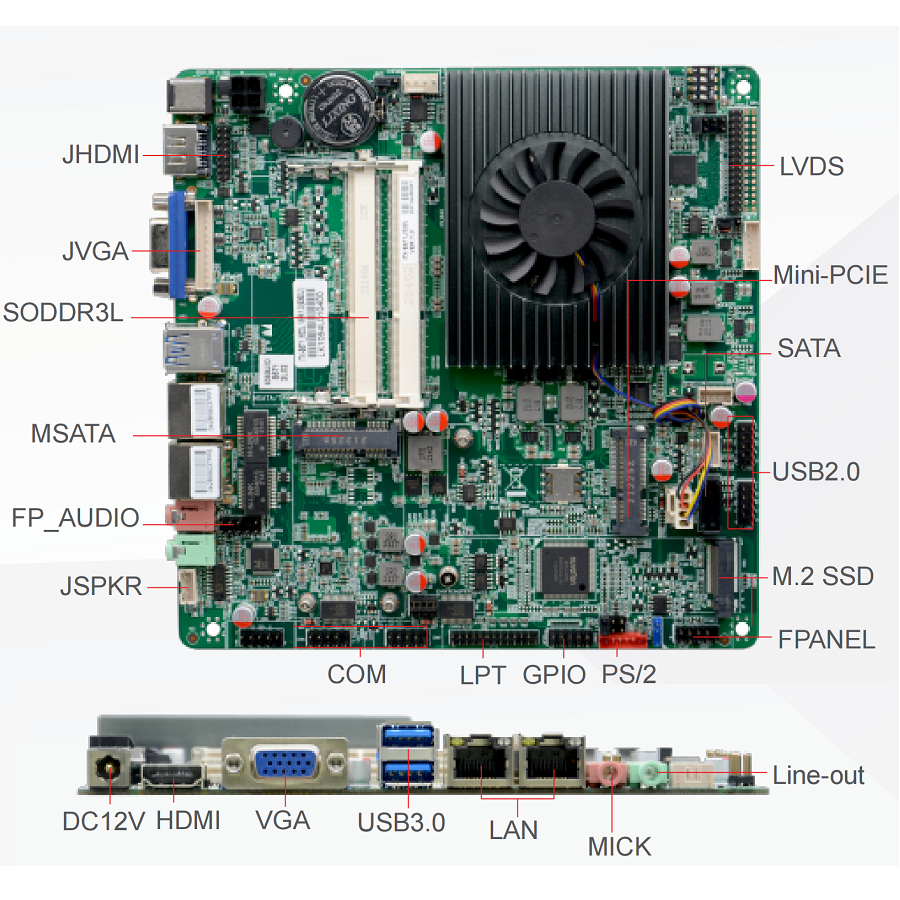

Internal I/O
1* JVGA1 1*12pin(the same signal with DB15)
1* JHDI 2*8pin(the same signal with HDI)
6* RS232 serial ports（2* serial ports and 6* serial ports optional） ,COM1/COM2 support 9th pin charged function,COM3 support RS485/422
1* PS/2 KB/MS connector 1*6Pin
2* USB2.0 2*5pin
1* USB2.0 1*4pin
2*USB3.0 2*10pin
1* LPT parallel port 2*13Pin
1* front panel audio connector 2*5pin
1* front panel function buttons and indicator connector 2*5Pin
1* LVDS 2*15pin, support duan channel 24bit(double 8)
1* LVDS backlight power supply connector 1*6pin
1* HDD Power supply connector
1* power amplifier connector 1*4pin
1* SIM card socket
1* 4pin ATX power interface(can do 12V power input/output interface)
1* 2pin 12V DC power input interface
FAN interface
1*4pin CPU intelligent fan interface, 1* 3pin system fan interface
GPIO
Support 4way input/output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt DC 12V power supply
Operating Temp.
-10℃～60℃
Storage Temp.
-20℃～70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
170mm x 170mm

Ording information

H671T-I56200 i5-6200U,2.3Ghz,2*SODDR3L,1*VGA,1*HDI,LVDS,1*LAN(211AT),8*USB,2*COM(RS485/422),12VDC
H671T-I56360 i5-6360U,2.0Ghz,2*SODDR3L,1*VGA,1*HDI,LVDS,2*LAN(211AT),8*USB,2*COM(RS485/422),12VDC

Model Name Definition: D is for base config, A is for atx power supply, D is for DC12V, Digital string 12 is 1*LAN port and 2*COM ports.

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
