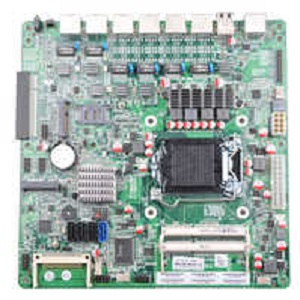

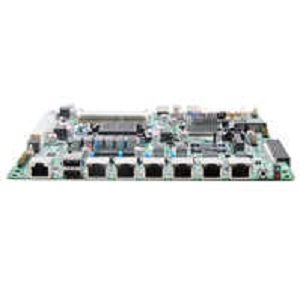

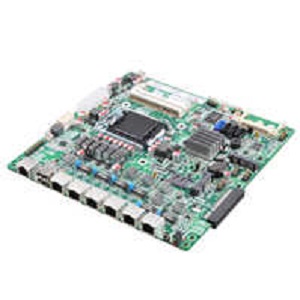

Intel H67 B75 LGA1155 Motherboard H67LS B75LS with Intel 6 LAN PORTS ATX POWER

H67,LGA1155,Intel HD,6*intel 82583V,cf,44pin ide,mini-pcie,msata,52p cf,1*com,1*vga,2*usb,220x220mm

Firewall, Gateway, Network Security ROS,Hi-Spider Router
Intel LGA1155 i7/i5/i3 H67 chipset 6 LAN Gigabit Ethernet BYPASS, Network Security ROS

LGA1155 Intel® Core™ i3/i5/i7 32nm/22nm Processor
Intel® B67 Chipset
2* SO DDRIII 1066/1333MHz,Max. up to 16GB
Intel® HD Graphics
Support VGA out
6* Intel 10/100/1000Mbps Ethernet,Support
Wake-on-LAN and PXE function
1* Mini-PCIE (support WIFI/3G)

CPU LGA1155 Intel® Core™ i3/i5/i7 32nm/22nm Processor
Chipset Intel® B67 Chipset
Memory 2* Dual channel SO-DIMM DDRⅢ 1066/1333MHz, Max. up to 16GB
Graphics Intel® HD Graphics,support VGA display output
Expansion Slots 1* PCI-E 8X, can be extended Optical interface module/Electrical interface module
1* Mini-PCIE, support WIFI/3G
LAN 6* Intel® 82574L 10/100/1000Mbps Ethernet
Support Wake-on-LAN and PXE function,LAN1~4 supports 2 groups of BYPASS function.
Storage 1* SATAⅢ 6Gb/s
3* SATAⅡ 3Gb/s
1* MSATA 6Gb/s
1* CF card
Rear I/O 1* COM (CISCO standard interface)
2* USB 2.0
6* RJ-45 LAN
1* POWER
1* LED1(POWERLED/HDDLED)
Internal I/O 1* JVGA 2*5pin
1* LAN_LED 2*13pin
1* RS232
4* USB 2.0
1* FP1 (2*5pin Front panel buttons and LED connected)
1* PS/2
1* SIM
Fun interface 1* CPUFAN、2* SYSFAN 4pin
GPIO 1* GPIO (Support 4-way GPIO function)
BIOS 32MB SMT Flash ROM
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power Input ATX 20pin Power
Operating Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 0%-95%(relative humidity; non-condensing)
Dimension 220mm x 220mm

1),Intel LGA1155 i7/i5/i3 Sandy Bridge cpu
2),Intel H67 high speed chipset
3),dual SO-DIMM DDR3 1333/1066 up to 16GB
4),built-in Intel HD graphics, VGA
5),6 intel 82583V Gigabit Ethernet, LAN1-4 support BYPASS
6),1*PCI 8x, PCIE V1.0
7),4*SATA, 1*MSATA, 1*CF slot
8),1*MINIPCIE, support WIFI or 3G

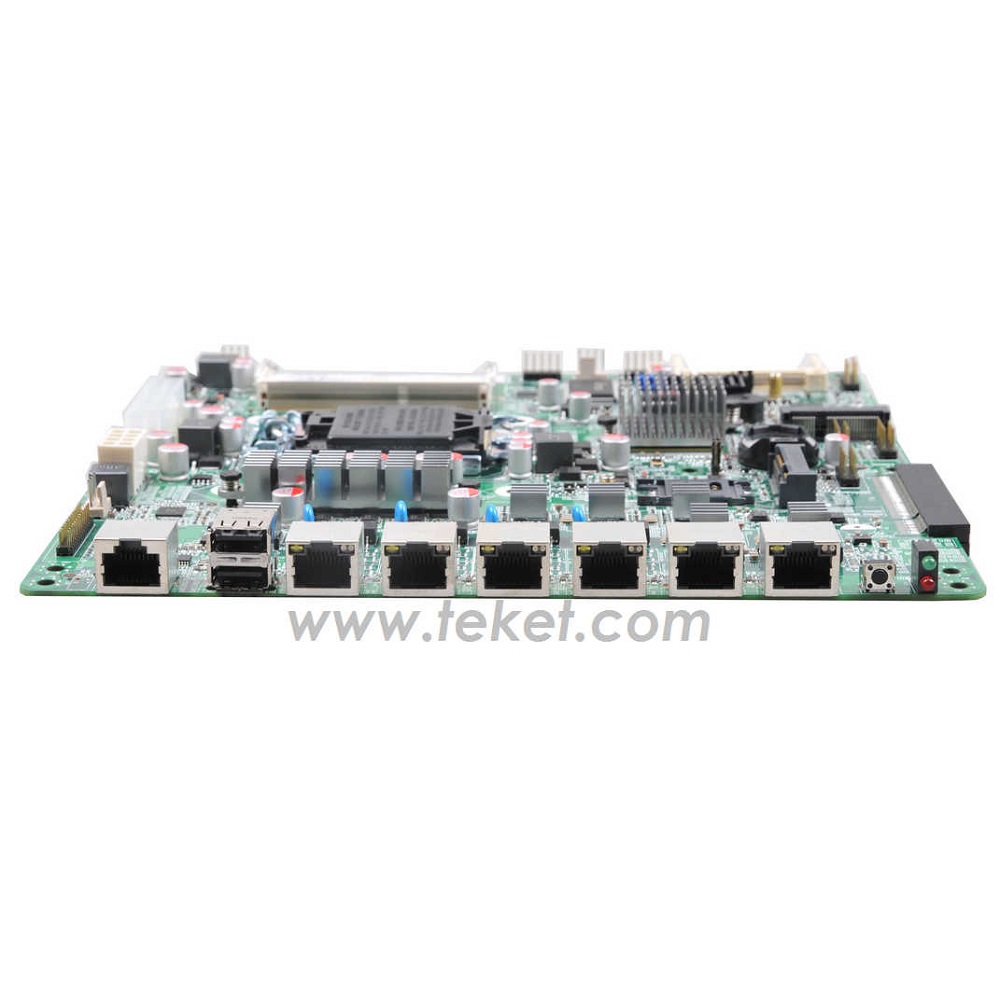

Spec

Extended
1*PCI 8x, support PCIE V1.0
1*MINI pcie slot, support WIFI and 3G module

Storage
1*SATA III 6Gb/s
2*SATA II 3Gb/s
1*MINI SATA (SSD 6Gb/s)
1*CF

Network
6*Intel 82583V Gigabit Ethernet
suport network wakeup,PXE,LAN1-4 support bypass

BACK I/O
1*COM(RJ45)
2*USB 2.0
6*RJ45
1*POWER
1*LED(POWERLED/HDDLED)

Internel I/O
1* CPUFAN,2*SYSFAN(1*3pin)
2* PWOUT(power for HDD)
1* ps/2 keyboard and mouse
1* JVGA (2*5pin)
1* FP1(2*5pin front panel, but and led)
1* RS232 connector
4* USB 2.0 interface
1* LAN_LED 2*13pin
1* GPIO (2*5)4*GPIO
BIOS AMI 16MB DPI Flash ROM
Watch dog 256 grade, 0-255sec
ATX 20PIN or DC12V power supply
size: 220mm x 220mm




H67LS LGA1155,SO/DDR3,Intel HD,6*82583V,no BYPASS,no LVDS,1*VGA,6*USB,2*COM,no RS485/RS422,ATX
B75LS LGA1155,SO/DDR3,Intel HD,6*82574L,2 group BYPASS,no LVDS,1*VGA,6*USB,2*COM,no RS485/RS422,ATX

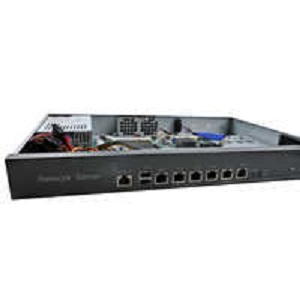

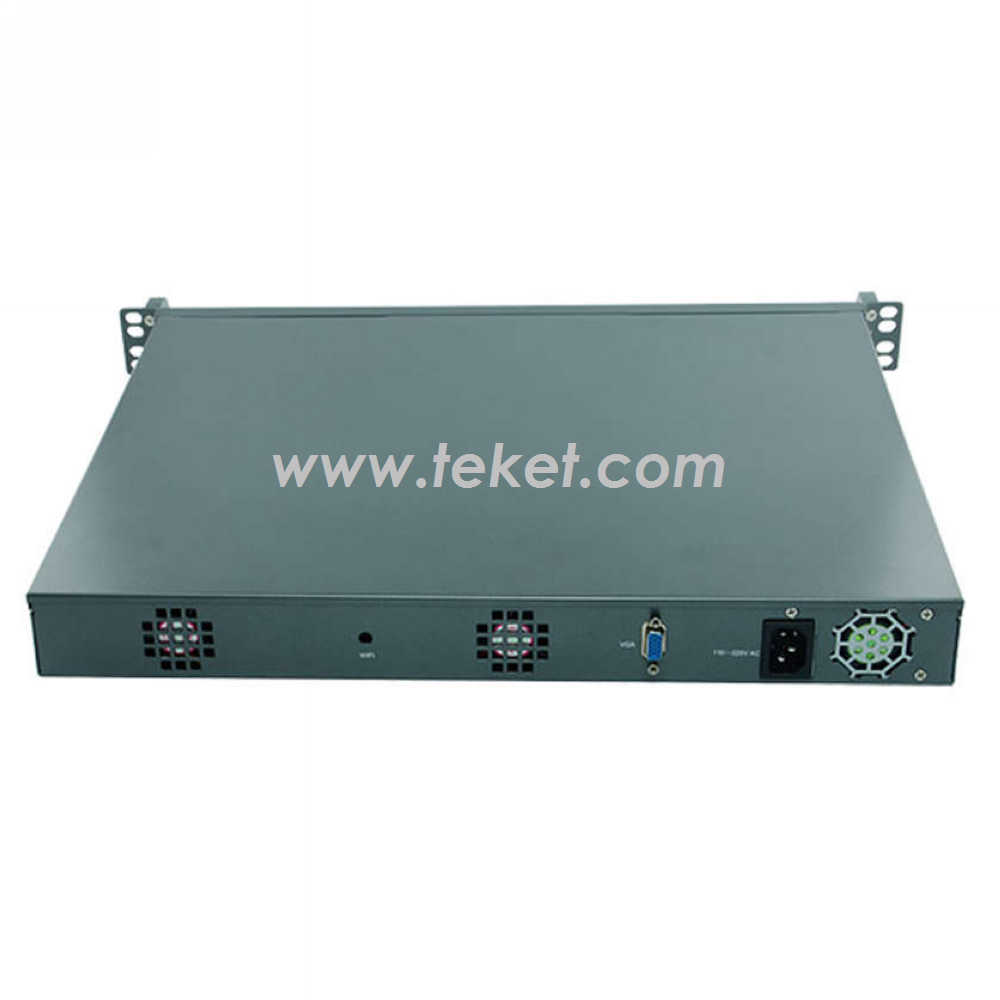

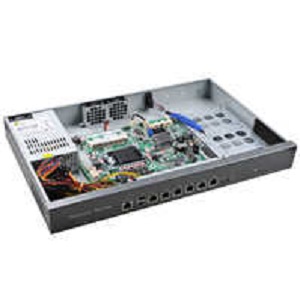

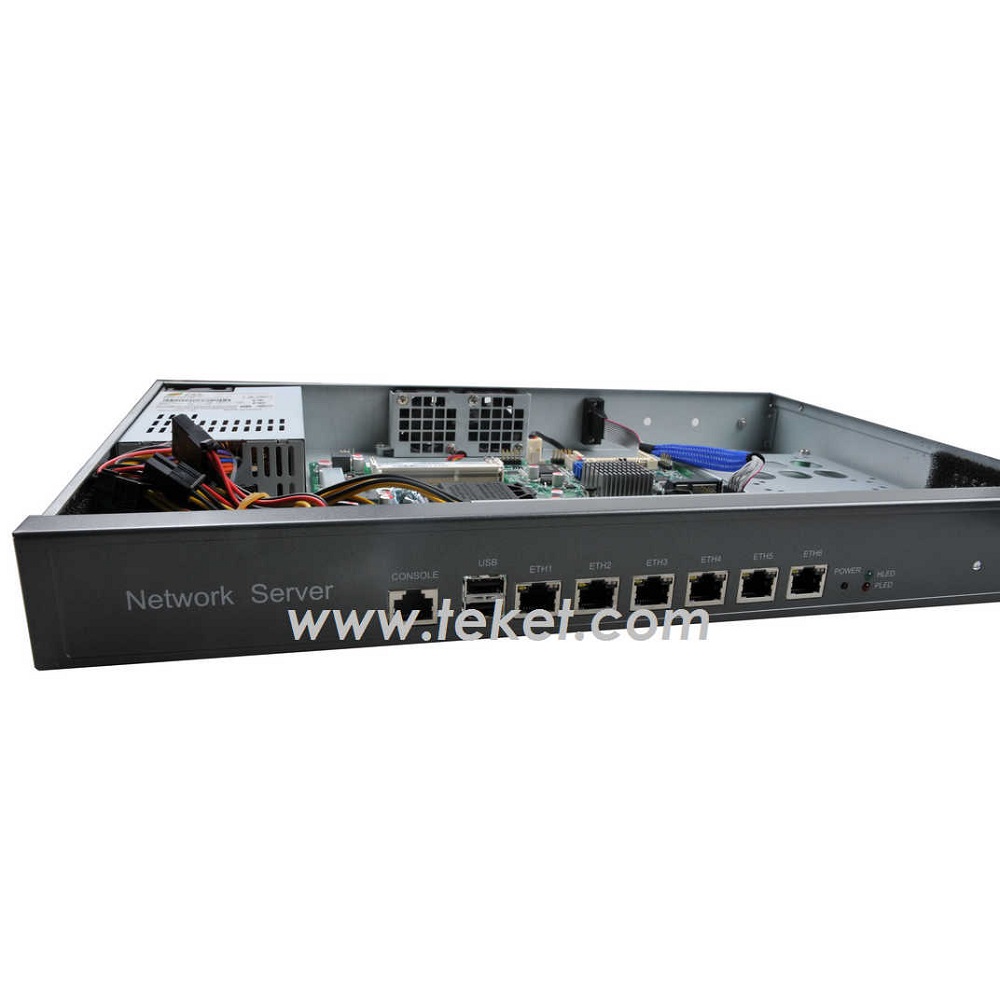

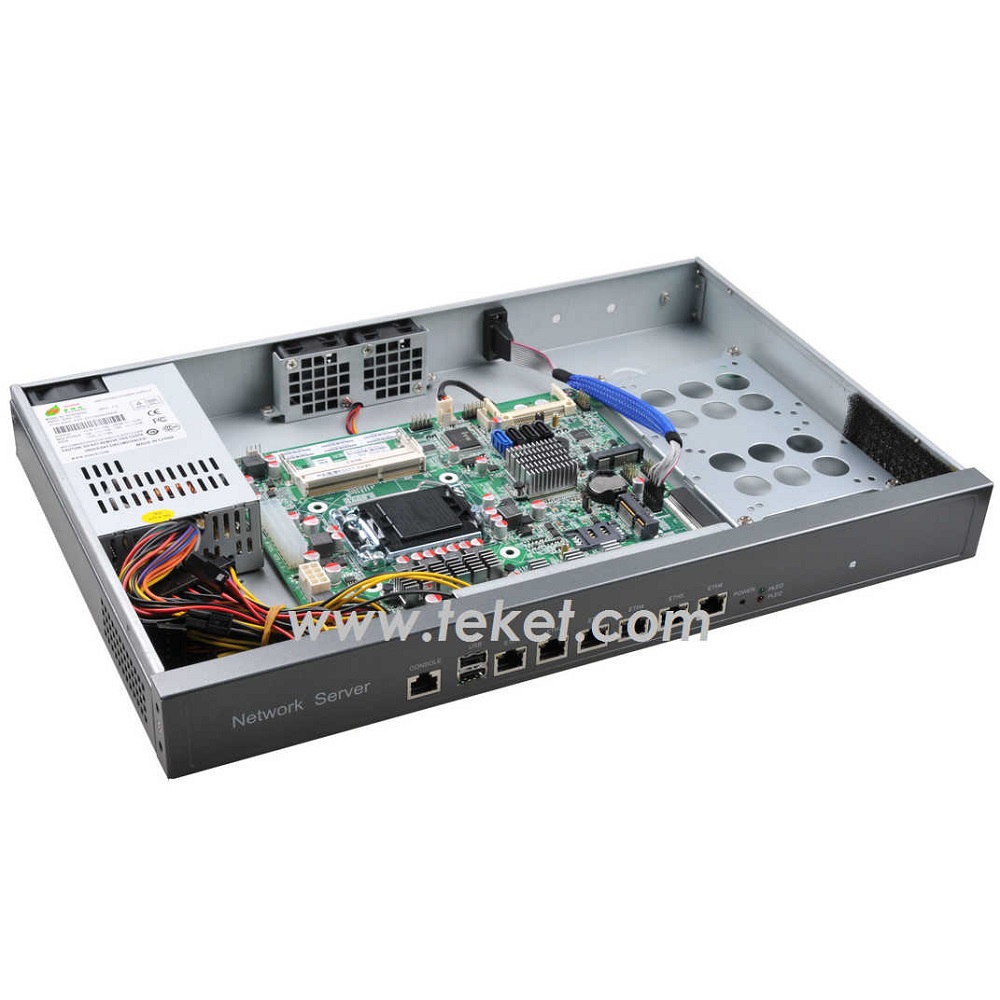

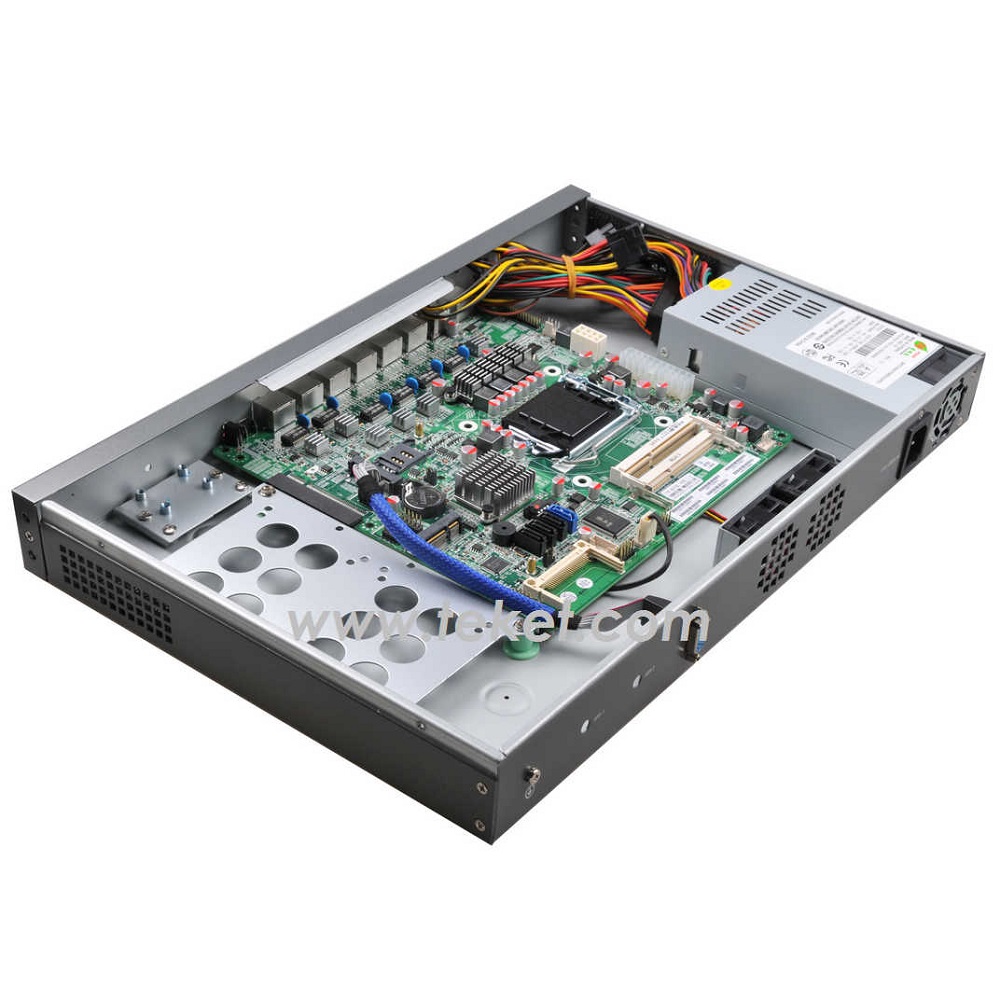

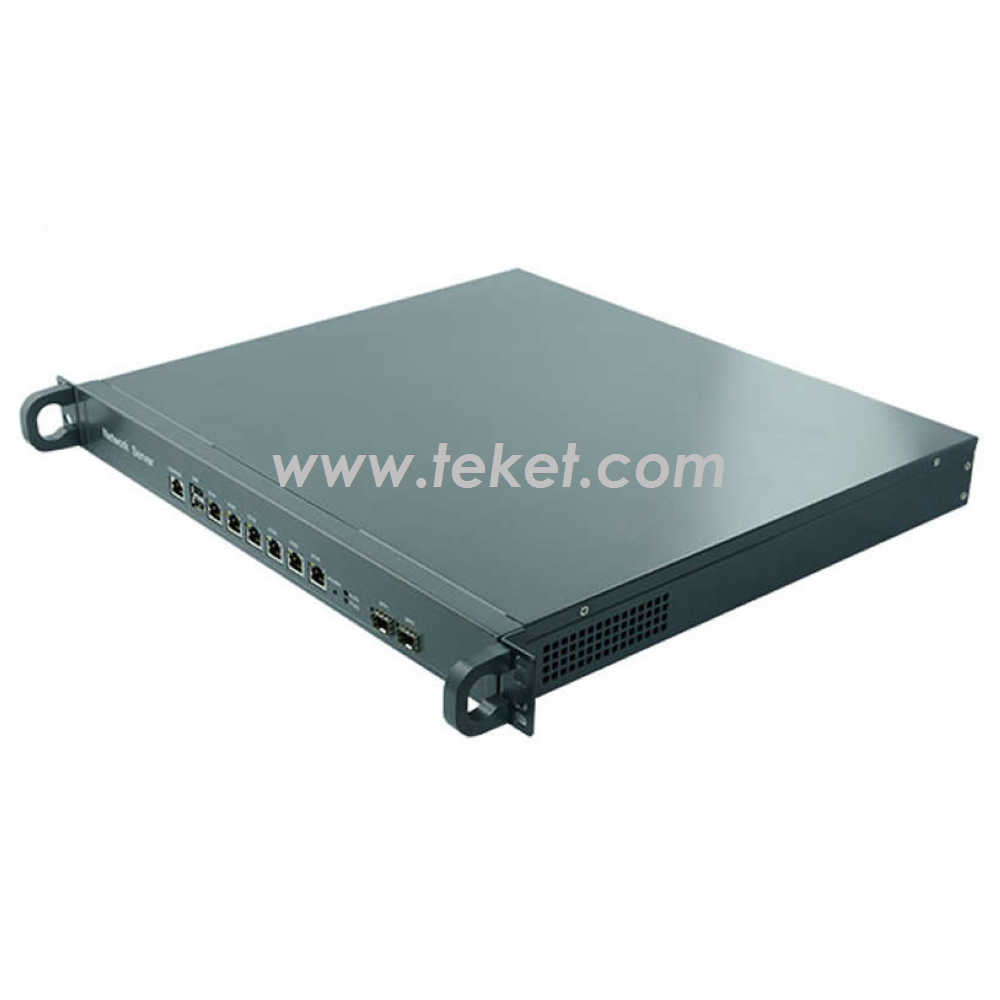

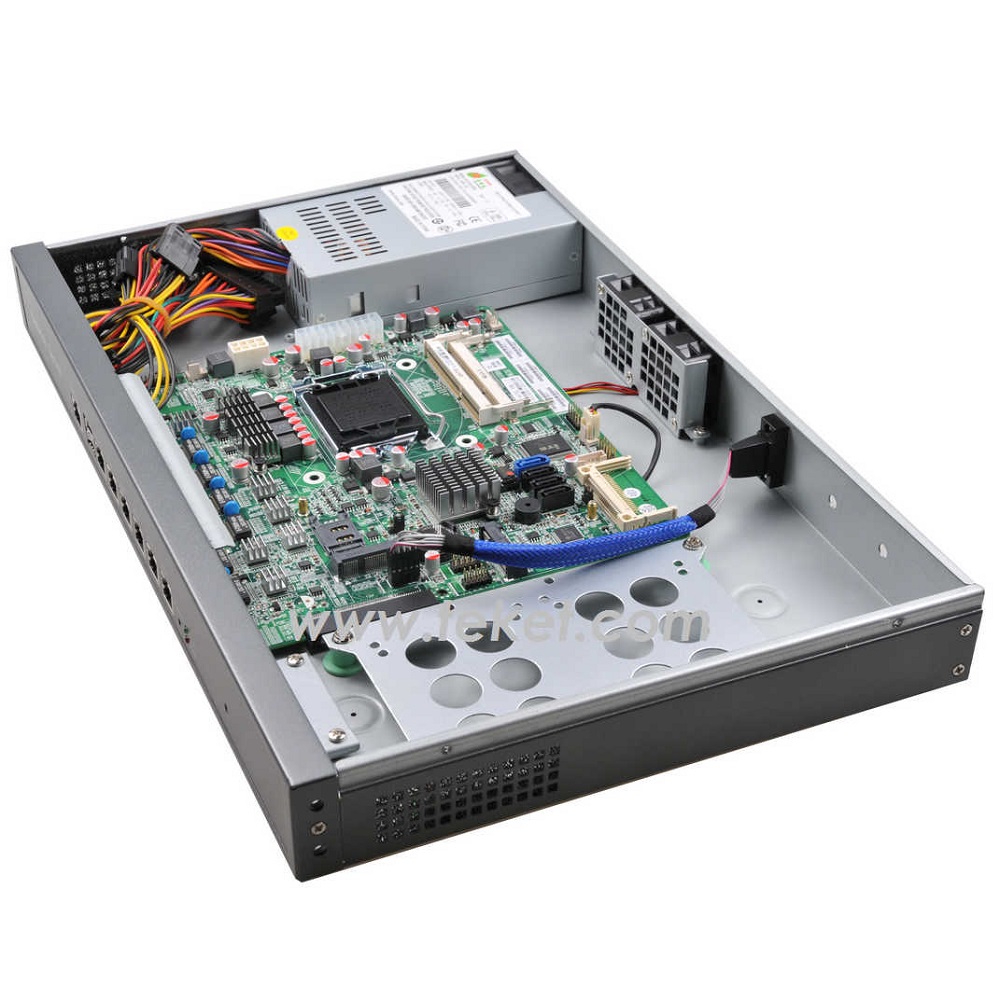

1U series firewall appliance

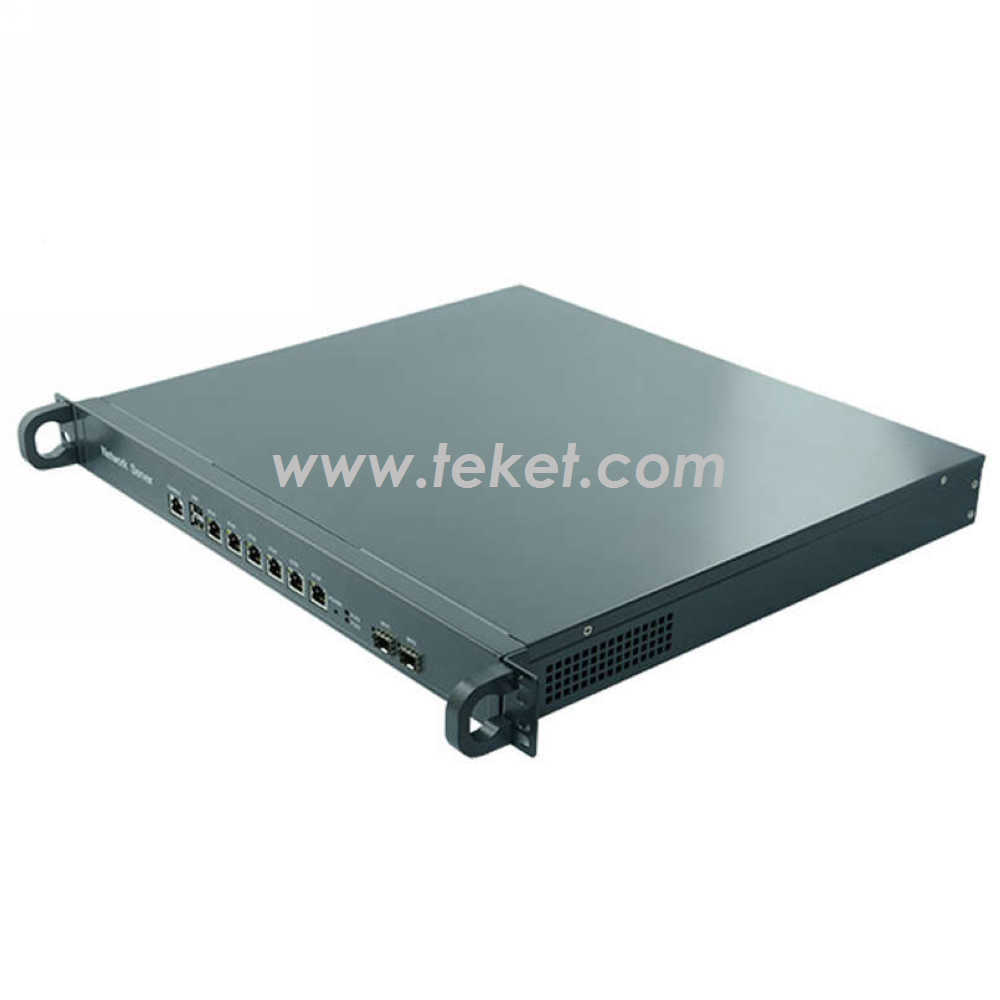

1U 6 LAN ATX Power(Optical fiber Extened) H67 or B75

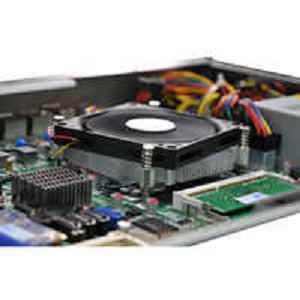

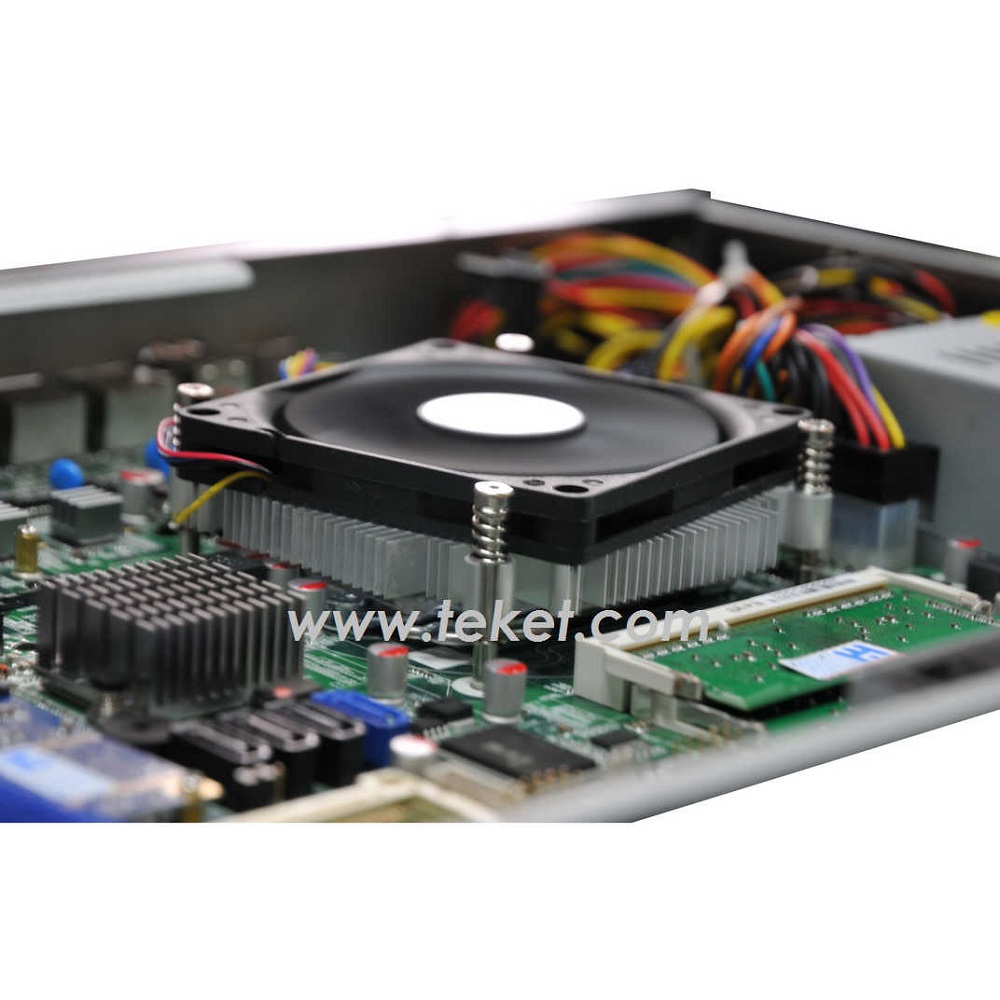

Turbine copper fan heat sink structure
AI alloy chassis, compact structure, flexible installation
Support Intel LGA1155 series processor
1xVGA,2xUSB2.0,1xCOM
Intel 82583Vchipset, support 6xGbit Ethernet ports
Dimensions : 430mm*380mm*46mm

Product Specifications
Chassis
Color
Light silver black
Dimensions
430mm*380mm*46mm (L*W*H)
Structure
Al alloy Fan cooling structure
Material
Galvanized steel sheet

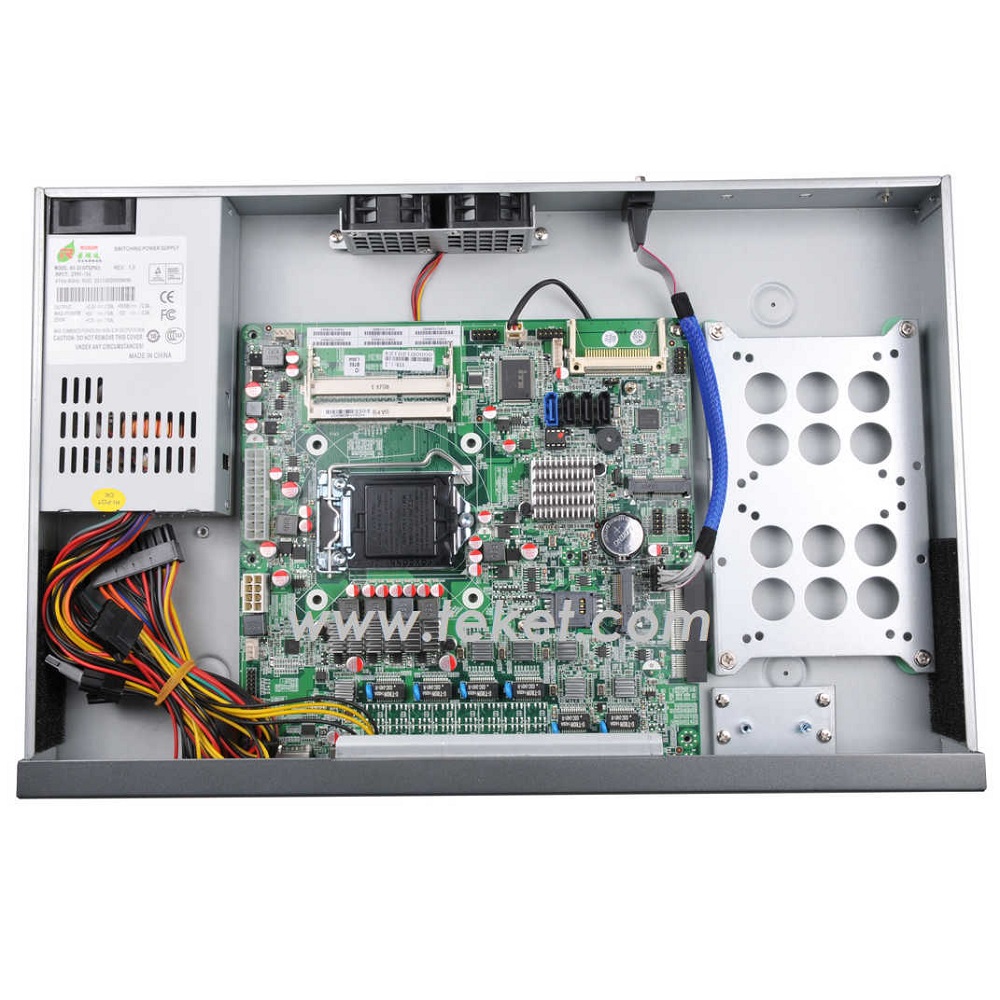

Motherboard
Model No.
H67SL
Processor
Support LGA1155 Intel® Core™ i3/i5/i7 CPU
Graphics
Intel®HD Graphics
Memory
1*DDR3/1.5V/2GB memory
Storage
2.5’HDD
N/A
CF
N/A
SSD
16G
System Feature
Ethernet
Intel 82583V, 1000/100/10Mbps,6x LAN
Intel 82580DB 1000Mbps, 2xSFP
USB
2* USB2.0
Serial Port
1* COM
Display
1* VGA
Audio
N/A
Expansion Interface
2* MINIPCIE(1 is MSATA,1 is for WIFI )
Indicator
Power Indicator Light,HDD Indicator Light
System Control
System Switch and AC power connector
Wireless
N/A
Power
Power
220W
Reliability
Installation
1U Rackmount
Operating T
-10°C~60°C
Storage T
-20°C~70°C
Relative humidity
5%-95%, no condensing
Vibration
0.5g rms/5-500HZ/random/operating



Order Information
1U-H67LSO, LGA1155,H67LS,6*82583V,2*82580DB,1*COM,2*USB,220W,ROS
1U-H67LSW, LGA1155,H67LS,6*82583V,2*82599ES,1*COM,2*USB,220W,ROS
1U-B75LSO, LGA1155,B75LS,6*82574L,2*82580DB,1*COM,2*USB,220W,ROS
1U-B75LSW, LGA1155,B75LS,6*82574L,2*82599ES,1*COM,2*USB,220W,ROS
