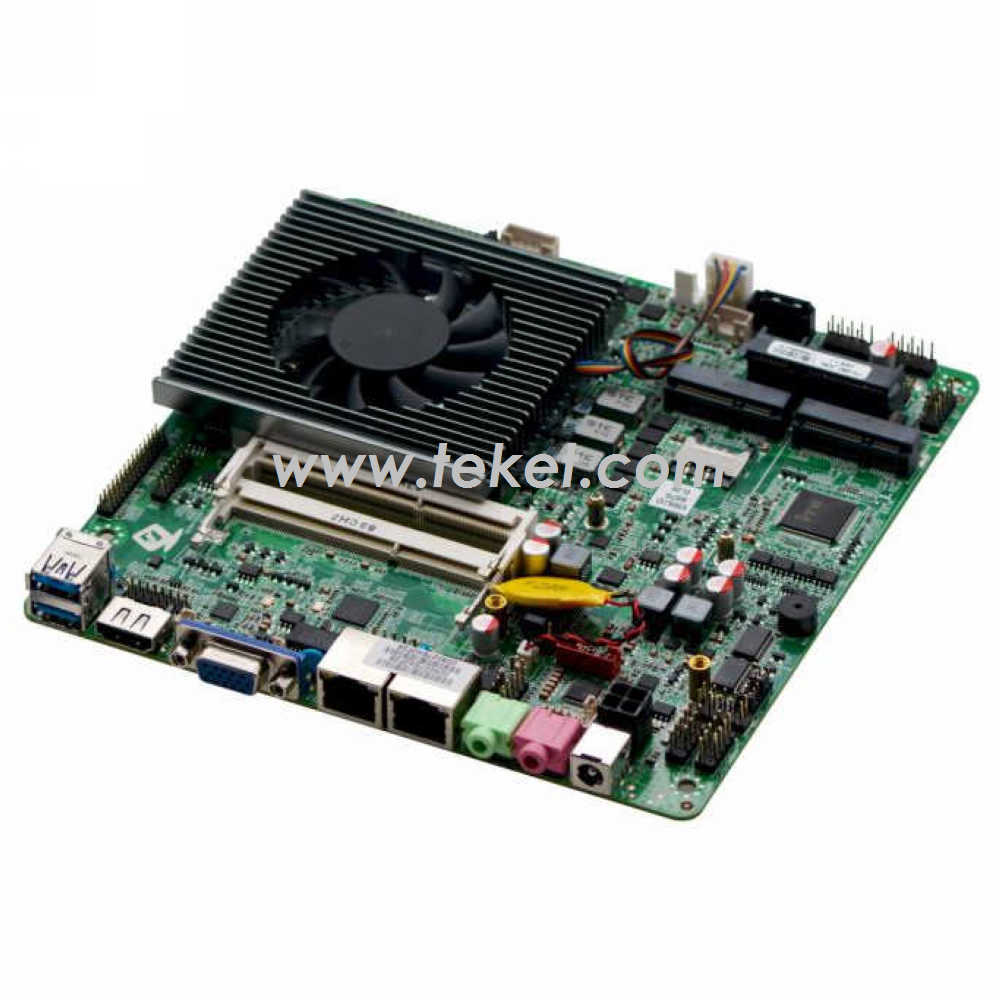

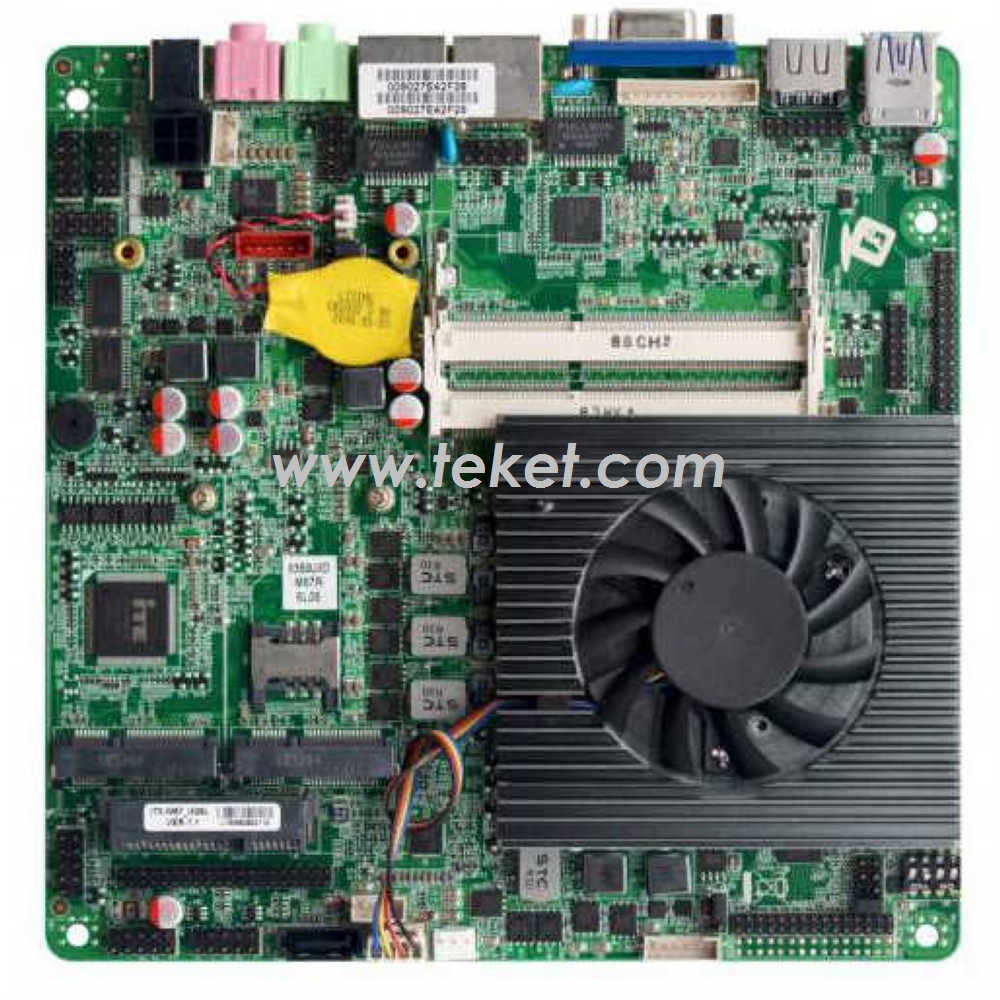

Intel Slim All-in-one Mini-ITX board Skylake-U,i5-6287u,i5-6360u,i7-6660u,DDR3L,LVDS or EDP,2*LAN,8*USB,2/6*COM,12VDC,H67UT

H67UT
Intel? SKYLAKE-U
i5-6287u,i5-6360u,i7-6660u7 low power processor
2* DDR3L SODIMM ,support dual channel 1600MHz Memory,up to 32GB
Integrated 1* Intel WGI211AT Gigabit Ethernet
Integraged Intel® HD Graphics 540 support DirectX 12 OpenGL 4.4




Model
H67UT
Processor
Integrated Intel®
i5-6287u,i5-6360u,i7-6660u7 processor
Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 Low Power processor
Chipset
NC
Memory
2* DDR3L SODIMM,support dual channel 1600MHz memory,up to 32GB
Graphics
Integraged Intel® HD Graphics 540 support DirectX 12 OpenGL 4.4, support synchronous/asynchronous three display
Provide 1*VGA,The highest resolution is :1920X1200@60Hz
1*HDMI1.4, The highest resolution is:4096X2304@24Hz
1* support dual channel24bit LVDS
LAN
Integrated 1* Realtek RTL8111F Gigabit Ethernet(LAN2 andUSB1 Optional)
Support wake on LAN/PXE
Storage
Provide 1* SATA3.0 HDD interface,the transfer rate up to 6Gbps
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out. amplifier
Amplifier proposed using 2Ω5W speakers
Expansion slots
Providde 1* Mini-PCIE slot,support WIFI、3G module
1* MSATA slot, support SSD,the transfer rate up to 6Gbps

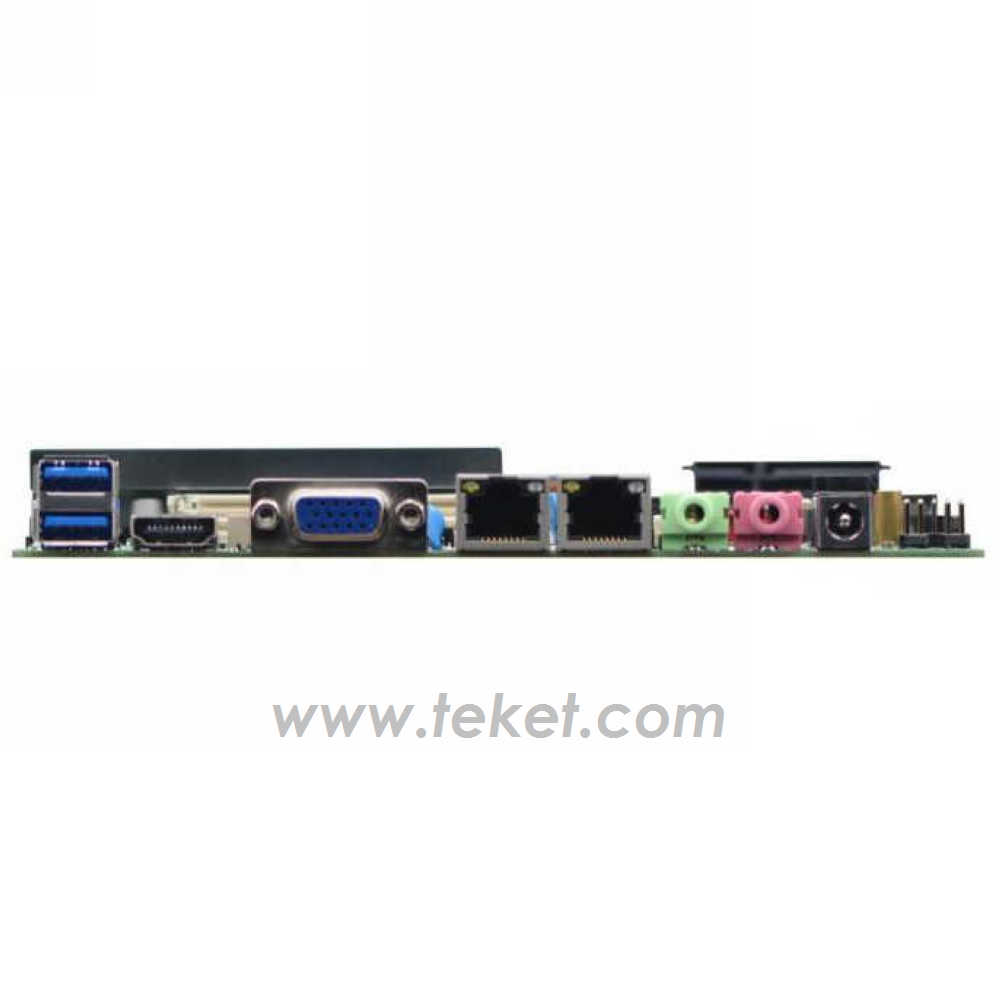

Rear I/O
2* USB3.0
1* HDMI (Dispaly port optional)
1* VGA
1* RJ45 Gigabit Ethernet connector(LAN2 andUSB1 optional)
2* USB2.0 (USB1 and LAN2 optional)
1*Line-out(Green),1*MIC(Red)
1*DC12V power interface
Internal I/O
1* JVGA1 1*12pin(the same signal with DB15)
1* JHDMI 2*8pin(the same signal with HDMI)
6* RS232 serial ports(2* serial ports and 6* serial ports optional) ,COM1/COM2 support 9th pin charged function,COM3 support RS485/422
1* PS/2 KB/MS connector 1*6Pin
2* USB2.0 2*5pin
1* USB2.0 1*4pin
2*USB3.0 2*10pin
1* LPT parallel port 2*13Pin
1* front panel audio connector 2*5pin
1* front panel function buttons and indicator connector 2*5Pin
1* LVDS 2*15pin, support duan channel 24bit(double 8)
1* LVDS backlight power supply connector 1*6pin
1* HDD Power supply connector
1* power amplifier connector 1*4pin
1* SIM card socket
1* 4pin ATX power interface(can do 12V power input/output interface)
1* 2pin 12V DC power input interface
FAN interface
1*4pin CPU intelligent fan interface, 1* 3pin system fan interface
GPIO
Support 4way input/output GPIO
BIOS
64Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt DC 12V power supply
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95% (relative humidity; non-condensing)
Dimension
170mm x 170mm

Ording information
H67UT-I56287 i5-6287u,3.1Ghz,2*SODDR3L,1*VGA,1*HDMI,2ch24bitLVDS,1*LAN(211AT),8*USB,6*COM(RS485/422),12VDC
H67UT-I56360 i5-6360u,2.0Ghz,2*SODDR3L,1*VGA,1*HDMI,2ch24bitLVDS,1*LAN(211AT),8*USB,6*COM(RS485/422),12VDC
H67UT-I76660 i7-6660u,2.4Ghz,2*SODDR3L,1*VGA,1*HDMI,2ch24bitLVDS,1*LAN(211AT),8*USB,6*COM(RS485/422),12VDC
H67UT-I56287 i5-6287u,3.1Ghz,2*SODDR3L,1*VGA,1*HDMI,eDP,1*LAN(211AT),8*USB,6*COM(RS485/422),12VDC
H67UT-I56360 i5-6360u,2.0Ghz,2*SODDR3L,1*VGA,1*HDMI,eDP,1*LAN(211AT),8*USB,6*COM(RS485/422),12VDC

Model Name Definition: B is for base config, A is for atx power supply, D is for DC12V, Digital string 12 is 1*LAN port and 2*COM ports.

Market Segments Supported
Digital Security & Surveillance , Digital Signage ; Gaming ; Industrial Automation/Control ; Medical ; Retail (POS/Kiosk/ATM) ;In-Vehicle Infotainment ;Networking/Storage Server/Mail Server/Print Server ;Thin Client;Net top.

Packing Details
Retail Pacakge: 1 Carton contain 20 pcs.
Retail Box Size:250*202*70MM Carton Size:725*419*269MM
