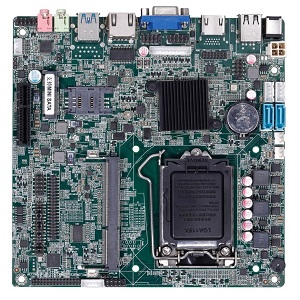

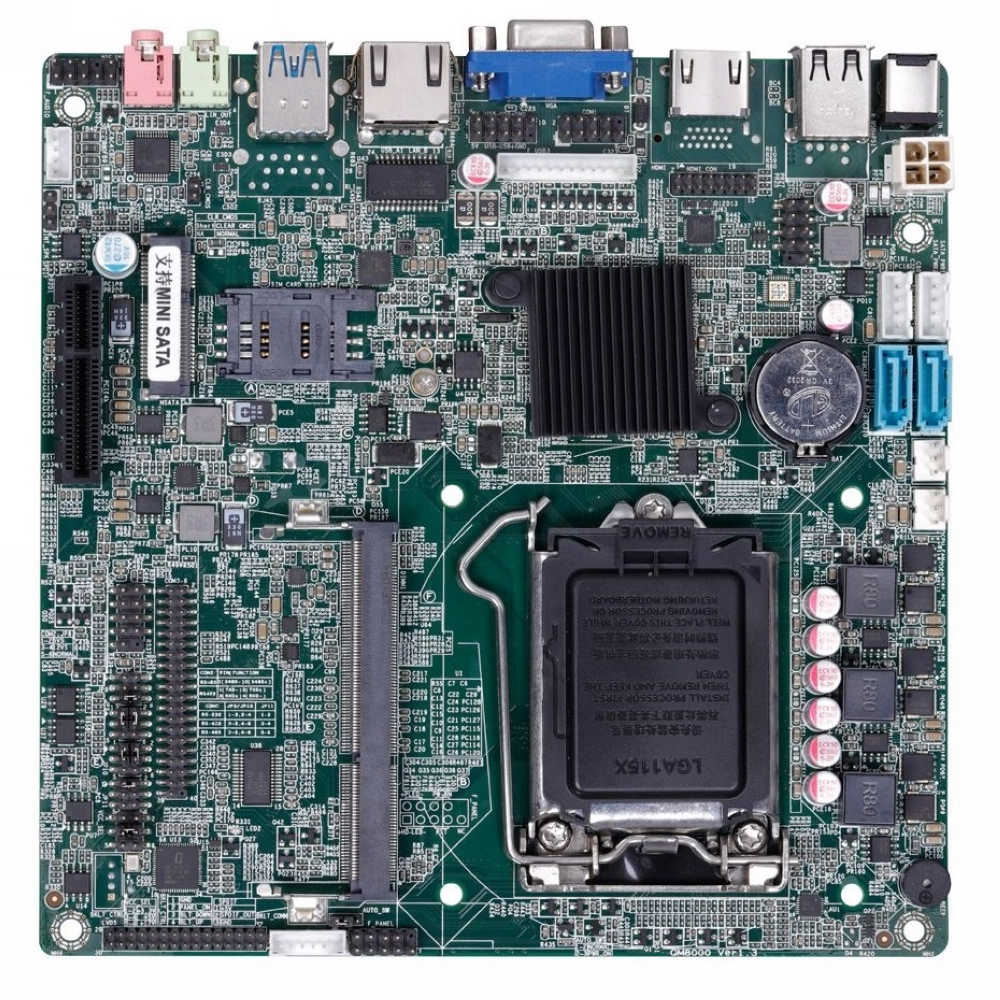

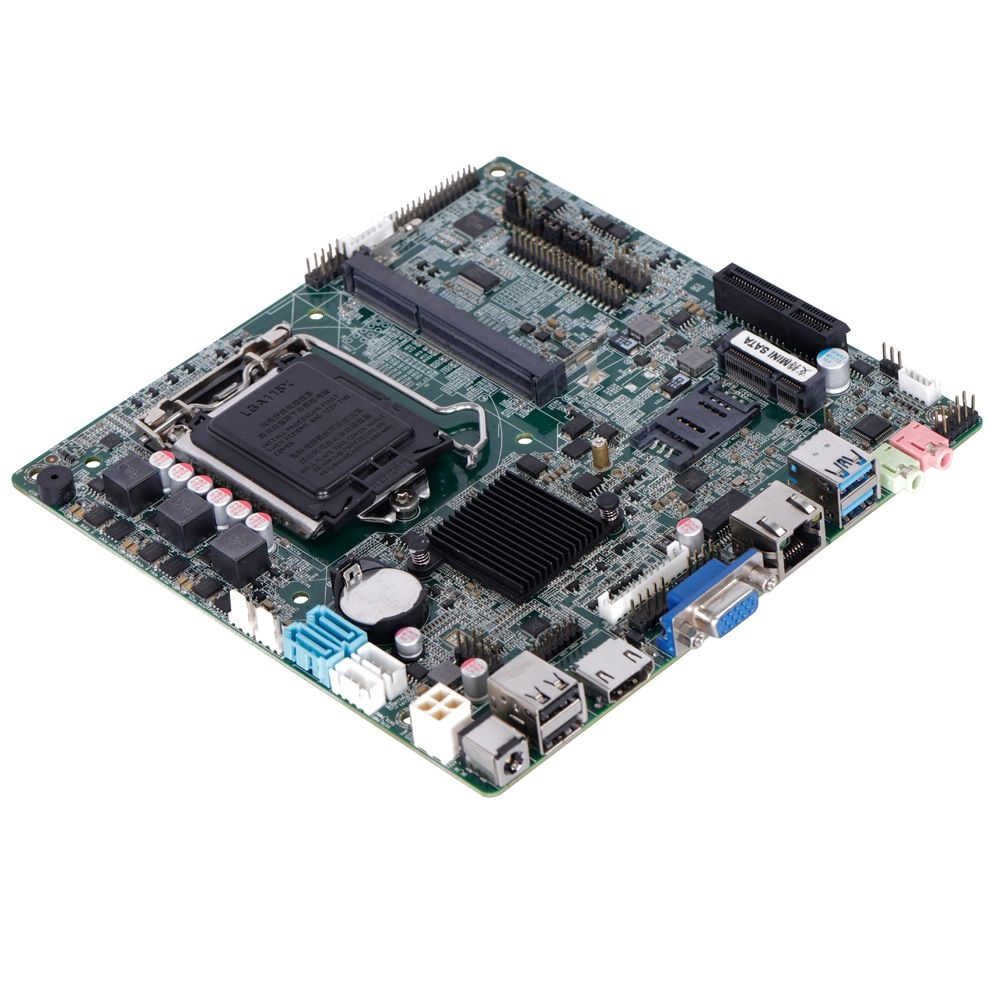

H81 Chipset LGA1150 socket MINI-ITX all-in-one Motherboard H80QM with HDI and VGA

Overview:
Support: Haswell LGA1150 socket i3/i5/i7 CPU
Chipset: H81
1*SO-DIMM DDR3 up to 8GB
Ethernet: Realtek 8111F 1000Mbps LAN, optional dual LAN
4*USB3.0, 6*USB2.0 4*USB3.0 (including pins)
Up to 6*RS232, of which 1 RS485 is optional
Dual gigabit network card optional

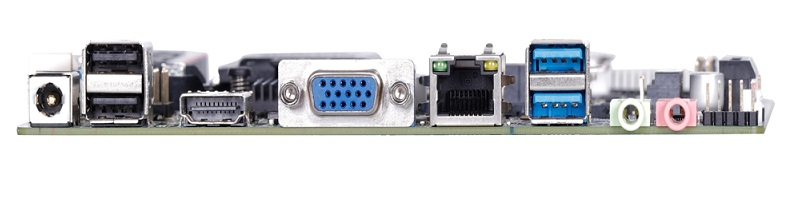

VGA&pin, HDI&pin, dual 8bit LVDS
Rear audio + front audio + power amplifier + optical audio (Spdif)
2*SATA3.0,1*MSATA
Watch dog 256 levels,0-255 secs
MiniPCIE supports Wifi&3G/4G&GPS&Bluetooth
DC-12V power supply, ultra-thin radiator & fan
Working Temperature -10℃~60℃(Working)
Storage Temperature -20℃~70℃(Storage)
Working Humidity 5-95% relative humidity,non-condensing
OS Windows 7, Windows 8, Windows 10, Linux
Power Supply

Order Information
H80QM LGA1150 CPU,H81,1*SODDR3,1*VGA,*HDI,1*LAN(RTL8111E),2*SATA,1*MSATA,8*USB,6*COM,12VDC
