Intel Haswell H81 LGA1150 Slim All-in-one MINI-ITX Motherboard 6*COM 12VDC POWER

For Industral application, slim board

ITX-H81DT VER:1.5
Support LGA1150 Intel? Core? i3/i5/i7/ Pentium/Celeron 32nm/22nm Processor
Adopt Intel? H81 Express chipset(Compatible Intel? B85/H87/Q87/Q85/Z87 chipset)
Double channel DDR3 SODIMM , support 1333/1600MHz memory, up to 16GB



Model No.
ITX-H81DT VER:1.5
CPU Support LGA1150 Intel? Core? i3/i5/i7/ Pentium/Celeron 32nm/22nm Processor
Chipset
Adopt Intel? H81 Express chipset(Compatible Intel? B85/H87/Q87/Q85/Z87 chipset)
Memory
Double channel DDR3 SODIMM , support 1333/1600MHz memory, up to 16GB
Graphics
Integrated Intel? HD Graphics
Support 1*VGA、2* HDMI、1* support dual channel24bit LVDS display output
Support single display, double display, double extension.
LAN
1* RTL8111F Gigabit Ethernet, support wake on LAN/PXE.
Storage
Provide 1* SATA3.0 HDD interface,1* SATA2.0 HDD interface
Audio
Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out,amplifier
Amplifier proposed using3Ω2W speakers
Expansion slots
Provide 1* Mini-PCIE slot, supportWIFI、3G module,
1* MSATA slot, support SSD, the transfer rate up to 6Gbps.
Rear I/O
2* USB 2.0
2* USB 3.0
1* VGA DB15

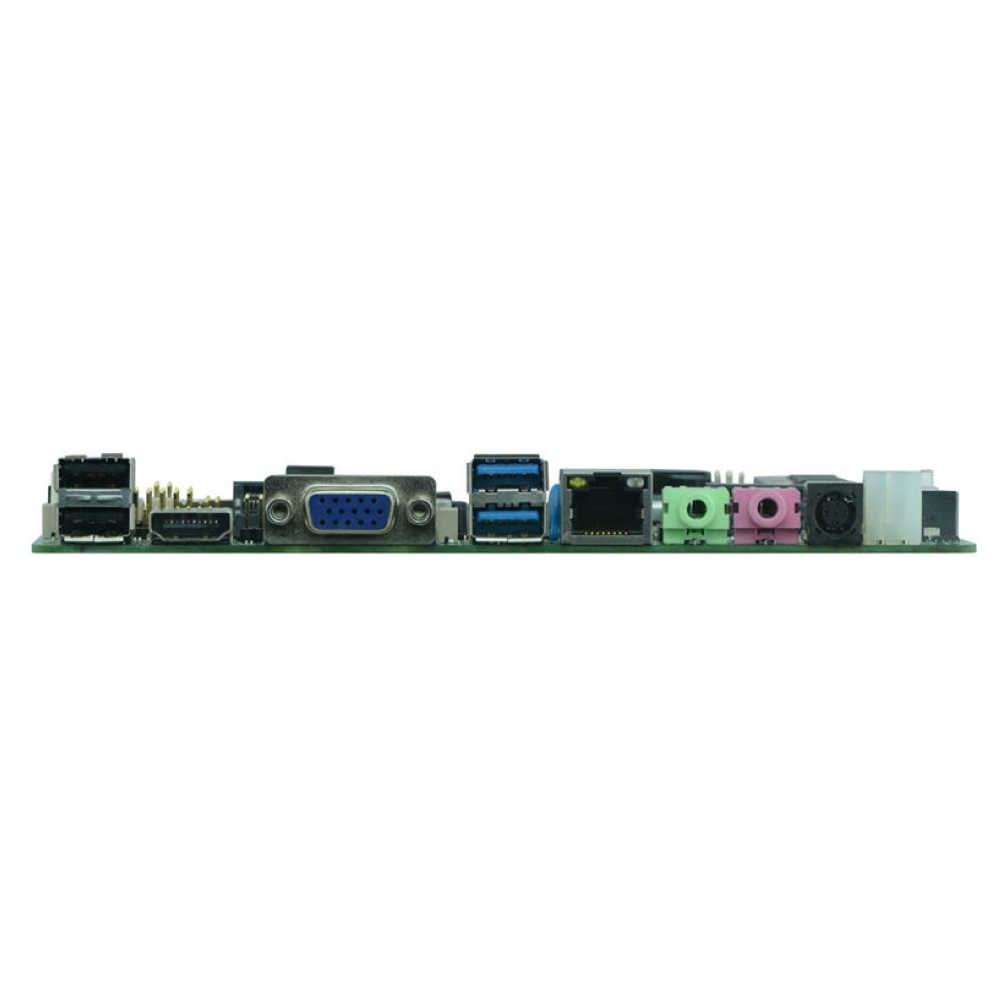

1* HDMI
1* RJ-45 Gigabit Ethernet connector
1* Line out(Green)
1* Mic (Red)
1* 12~19V DC Power input interface
Internal I/O
1* LVDS 2*15pin
1* JVGA 1*12pin same signal with VGA
1* JHDMI 2*8pin,support double HDMI display
6* RS232 serial port, COM3 supportRS422/RS485
1* LPT 2*13pin
2* USB 2.0 2*5pin
2* USB 3.0 2*10pin (B85/H87/Q87/Q85/Z87 chipset can support)
1* PS/2 KB/MS connector 6pin
1* front panel audio connector 2*5pin
1* power amplifier 1* 4pin
1* front panel function buttons and indicator connector 2*5pin
1* ATX 4pin power interface,support 12V~19V power input/output(According to the output voltage of the power supply)
1* LVDS Backlight power supply connector 1*6pin
2* HDD power supply interface 1*4pin
FAN interface
1* 4pin CPU Intelligent fan interface , 1*3pin system fan interface
GPIO
support 4 way input/output/GPIO
BIOS
32Mb Flash ROM
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input
Adopt DC 12V~19V power input
Operating Temp.
-10℃~60℃
Storage Temp.
-20℃~70℃
Humidity
5%-95%(relative humidity; non-condensing)
Dimension
170mm x 170mm

Order Information
H81DT-D16 LGA1150,H81.2*SODDR3,1*VGA,2*HDMI,2ch24bitLVDS,1*LAN(RTL8111F),6*USB,6*COM(RS485/422),12VDC
