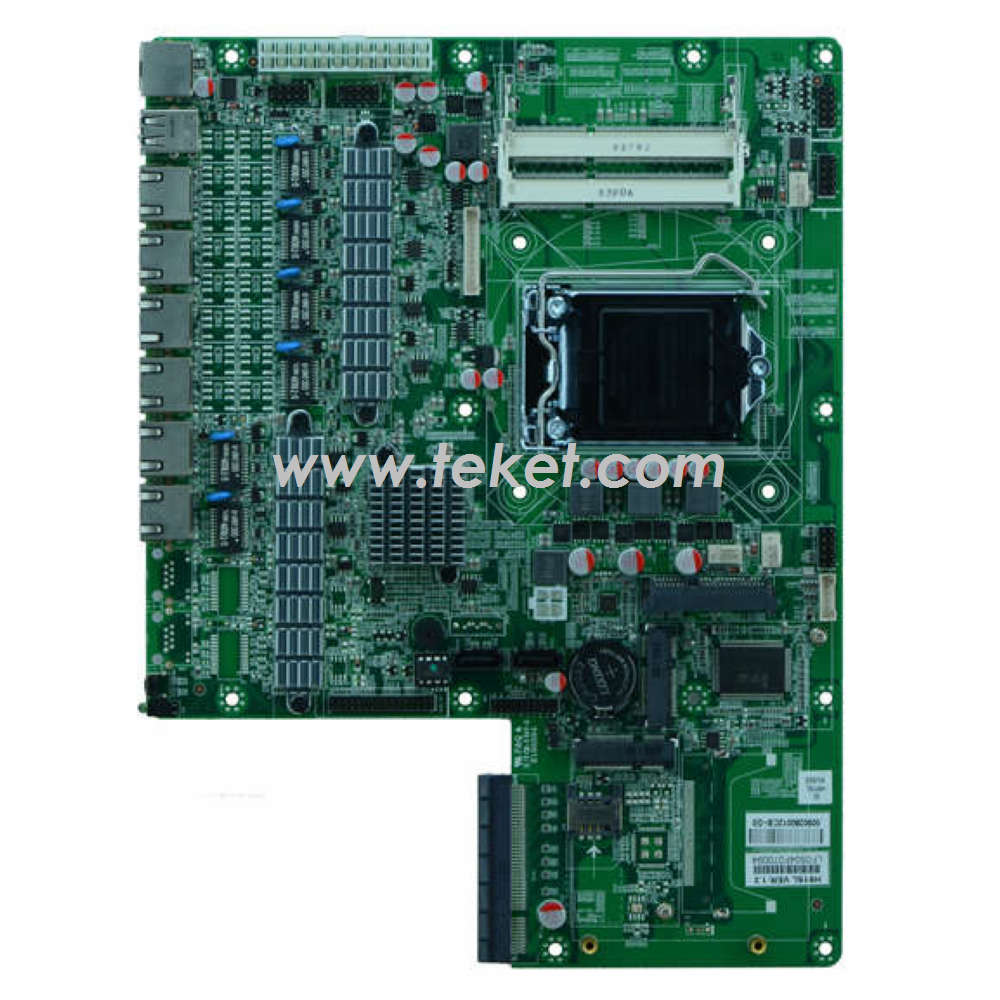

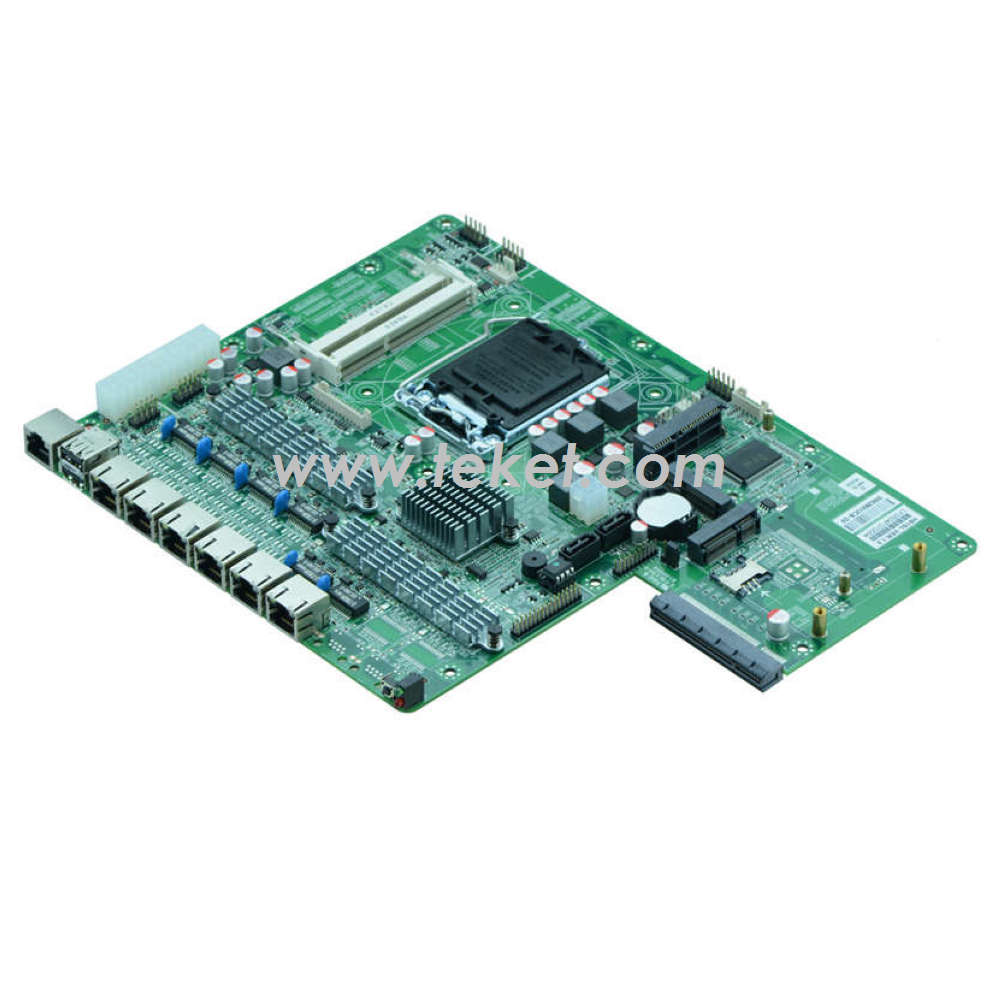

Intel H81 LGA1150 Motherboard H81LS with Intel 6 LAN PORTS ATX POWER

H81LS V1.3, H81,LGA1150,INTEL HD,6*INTEL 82583V,VGA,mSATA,mini PCIe,x8 PCIe,GPIO,SIM,6*USB 2.0,2*USB3.0,PS/2,280X209MM

Firewall, Gateway, Network Security ROS,Hi-Spider Router
Intel LGA1150 i7/i5/i3 H61 chipset 6 LAN Gigabit Ethernet BYPASS, Network Security ROS

H81LS VER:1.3
Support 4th Intel® Core™ i7/i5/i3/Pentium/celeron LGA1150 processor
Adopt Intel® H81 Express chipset ,Compatible Intel 8/9 series chipset
2* SODDR3 memory slot ,support 1600/1333MHz memory,up to 16GB
Integrated 6* WG82583V Gigabit Ethernet., support wake on LAN/PXE

CPU Support LGA1150 Intel® Core™ i3/i5/i7 /Pentium/processor
Chipset Adopt Intel® H81 Express chipset ,Compatible Intel 8/9 series chipset
Memory 2* SODDR3 memory slot ,support 1600/1333MHz memory,up to 16GB
Graphics Integrated Intel® HD Graphics,support 1*VGA display output
LAN Integrated 6* WG82583V Gigabit Ethernet., support wake on LAN/PXE
can support two sets of BYPASS functions(Management1,2 and 3,4 network ports)
Storage
Provide 1* SATA3.0 2.5 inch Notebook hard disk,can be installed the hard disk directly,the transfer rate up to 6Gbps
1* MSATA slot,support SSD ,the transfer rate up to 6Gbps
3*SATA3.0
Expansion slots
1* 8X PCIE expansion slot ,can expand Gigabit /10Gigabit Fiber port
Provide 1* Mini-PCIE slot ,support WIFI/3G Module

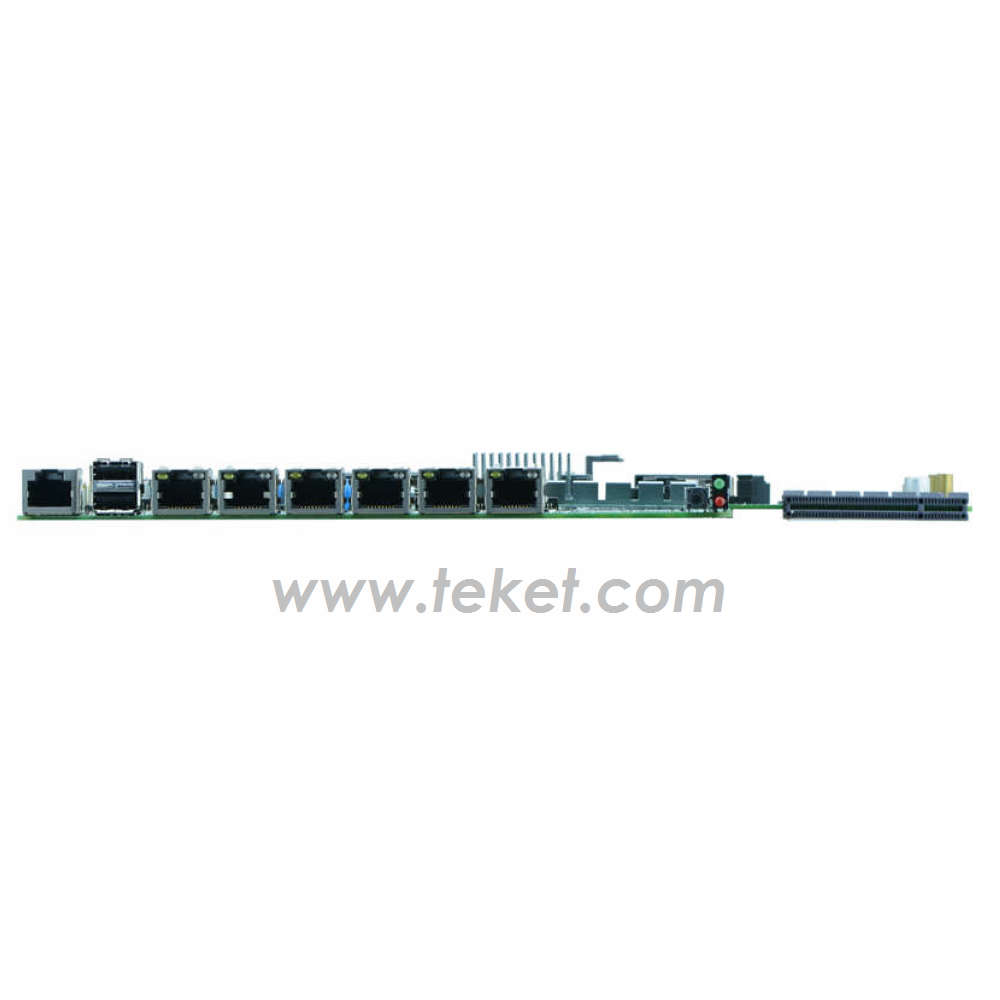

Rear I/O
6* RJ-45 Gigabit Ethernet connector
2* USB2.0
1* CISCO serial port
1* power switch
1* power/HDD LED

Internal I/O
1* JVGA1 1*12pin
1* RS232 serial port2*5Pin
1* Network indicator interface2*16Pin
1* PS/2 KB/MS connector 1*6Pin
4* USB2.0 2*5Pin
2* USB3.0 2*10Pin
1* front panel function buttons and indicator connector 2*5Pin
1* 24pin ATX power input
1* 4pin ATX power input
1* SIM card socket

FAN interface 2*4pin CPUFAN,1* 4pin system FAN
GPIO Support 4-way input/output GPIO
BIOS AMI 64Mb Flash ROM

Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power input ATX power input
Operating Temp. -10℃~60℃
Storage Temp. -20℃~70℃
Humidity 5%-95% (relative humidity; non-condensing)
Dimension 280mm x 209mm

Order Information:
H81LS Ver1.3, LGA1150,2*SODDR3,1*VGA,6*LAN(82583V),6*USB,2*COM,BYPASS(option),ATX(24pin)





Order Information
1U-H81LS, LGA1150,2*SODDR3,1*VGA,6*LAN(82583V),6*USB,2*COM,BYPASS(option),ATX(24pin),300W,ROS
