>>Your Current Position: Intel Motherboard

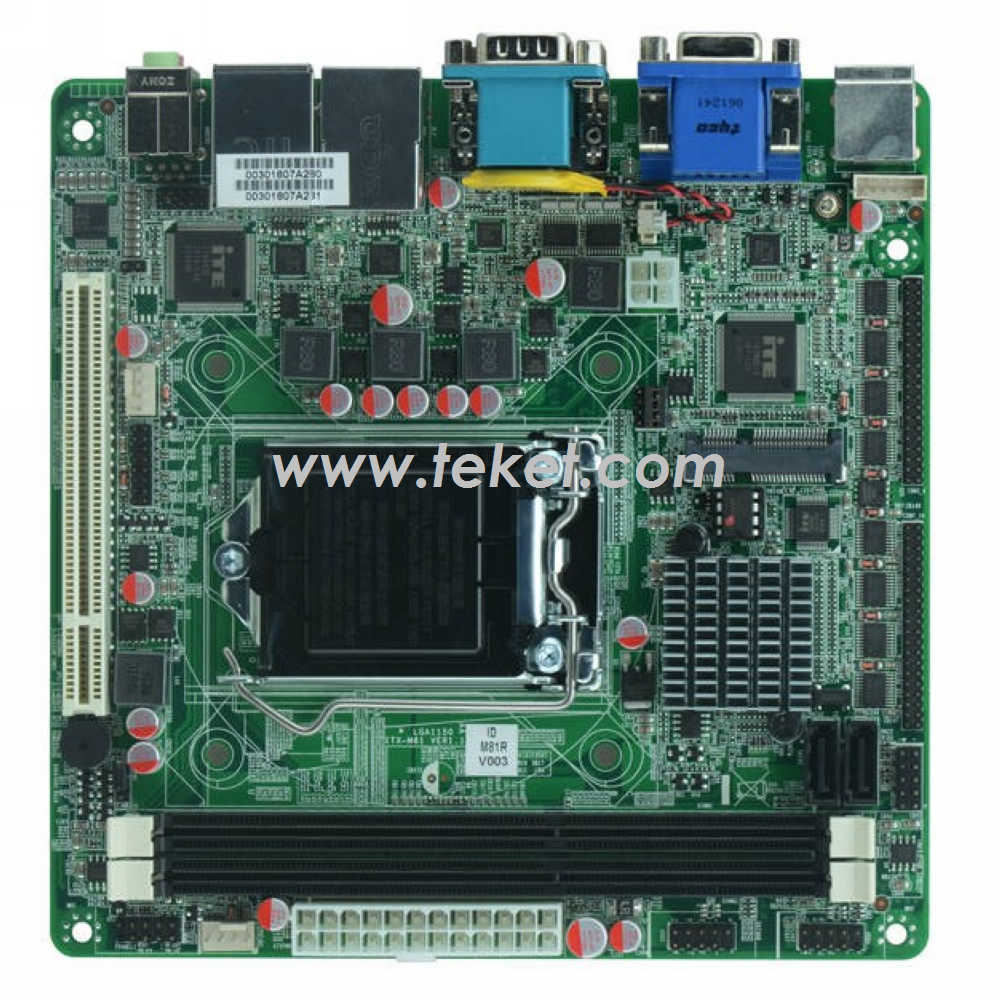

Intel Haswell H81 LGA1150 MINI-ITX Motherboard 2*VGA HDI,DUAL 2*LAN H81PE PCI 8*COM ATX POWER

For Industral application

H81ML VER:1.1
Support LGA1150 Intel? Core? i3/i5/i7 Pentium 22nm CPU
Intel? H81 (compatible withIntel? 8/9 series chipset )
2* DDRIII DIMM slot,support1600/1333MHz memory, max. up to16GB
Integrated ALC662 6-Channel audio controller ,support MIC/Line-out

Model NO. ITX-H81M VER:1.1
CPU Support LGA1150 Intel? Core? i3/i5/i7 Pentium 22nm CPU
Chipset Intel? H81 (compatible withIntel? 8/9 series chipset )
Memory 2* DDRIII DIMM slot,support1600/1333MHz memory, max. up to16GB
Graphics Intel? HD graphics,support dualVGA display
Support VGA;VGA synchronous/asynchronous display
LAN 2* RTL8111E Gigabit LAN controller, support Wake-on-LAN/PXE
Storage 2* SATAII port, transfer rate up to 6Gbps
Audio Integrated ALC662 6-Channel audio controller ,support MIC/Line-out
Expansion Slot 1* PCI slot(standard 120pin extended slot)
1* MINIPCIE slot, supportSSD /WIFI /USB WIFI ,(default is SSD)

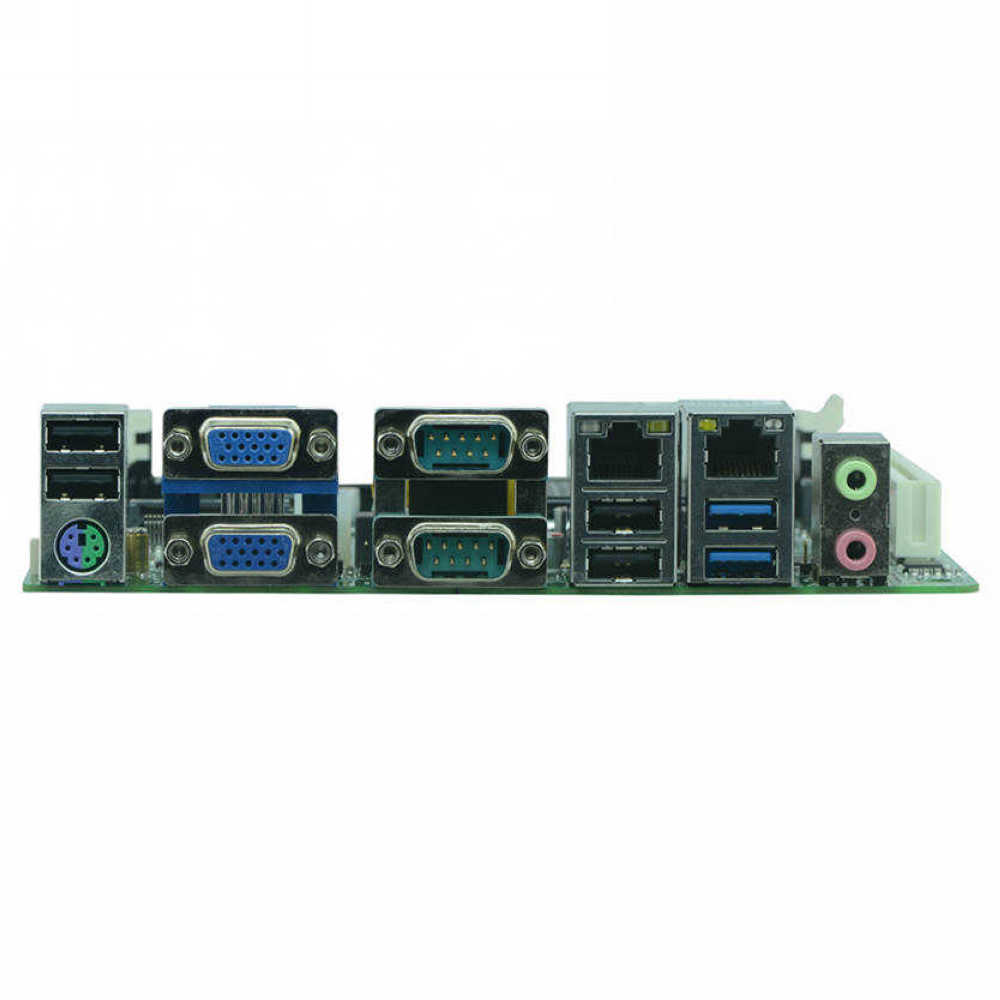

Rear I/O
1* PS/2( KB&MS)
2* DB9 COM port, the 9th pin ofCOM1 with charged function
2* VGA
6* USB2.0 (2*USB3.0)
2* RJ-45
1* Audio interface (Line out and MIC )
Internal I/O
4* USB2.0
1* HDI(2*8Pin)
1* HDI (2*8Pin)
8* RS232 COM (CO3~COM6, COM7~COM10 is2*20pin header,COM3 supportsRS485/RS422
1* TX-RXCOM RS422/485 interface
1* PS/2, KB/MS connector (1*6Pin)
1* AUDIO front panel audio connector(2*5pin)
1* FP1 front panel function buttons and indicator connector(2*5pin)
1* ATX_20P ATX power socket
Fan Interface
1* CPUFAN 4pin; 2* SYSFAN 3pin
BIOS
AMI 64MB Flash ROM
GPIO
1* GPIO (Support 4-way GPIO function)
Watchdog
Support hardware reset function (L256, 0~255 seconds)
Power Input
ATX power supply
Operating Temp. -10°C~60°C
Storage Temp. -20°C~70°C
Humidity 5%-95% (relative humidity; non-condensing)
Dimension 170mm x 170mm

Order Information
H81ML Ver1.1 LGA1150,2*DDR3,2*VGA,1*HDI,2*LAN(RTL8111E),PCI,10*USB,10*COM,COM3(RS485/422),ATX
